Removal - Driver Side

  1. Insert a finger into the pull cup formation molded into the end cap and pull firmly and sharply outward to disengage each of the snap clips that secure the end cap from their receptacles in the instrument panel base trim (Fig 1)

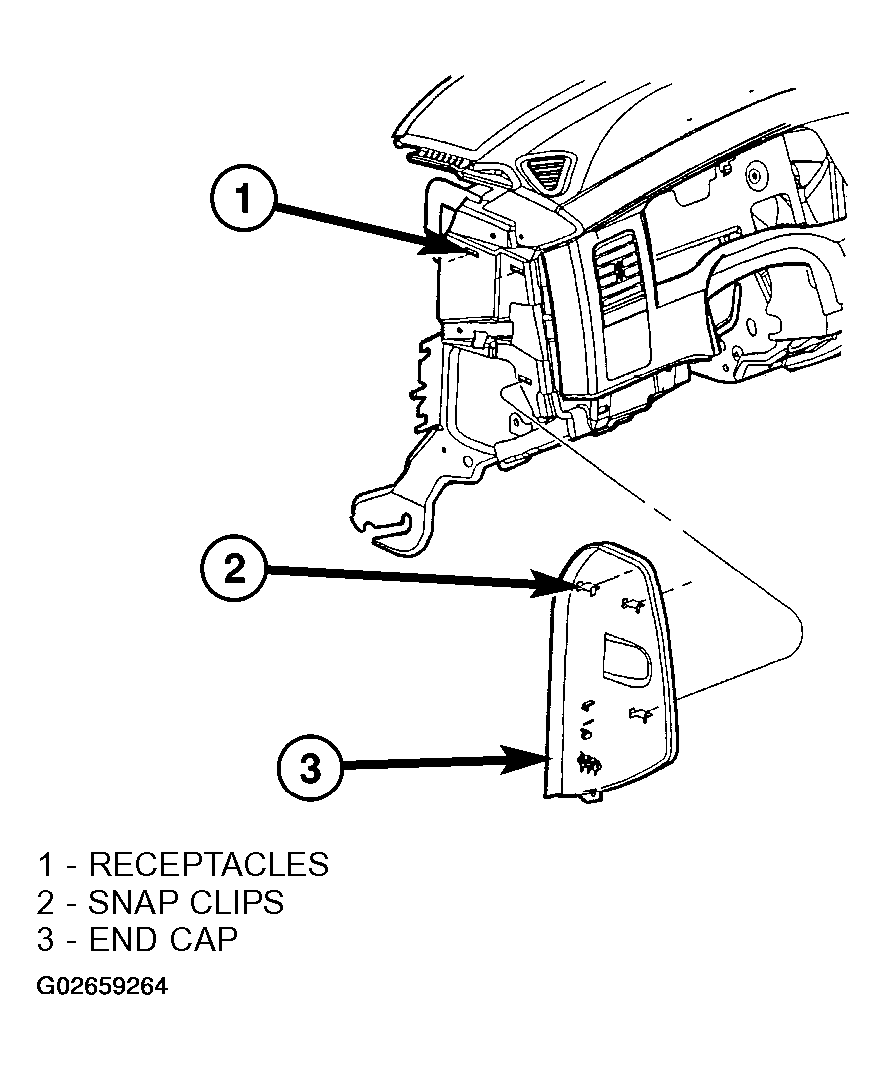

    Fig 1: Removing Driver Side End Cap
    G02659264Courtesy of DAIMLERCHRYSLER CORP.
  2. Remove the end cap from the end of the instrument panel.
