Connector PINOUTS

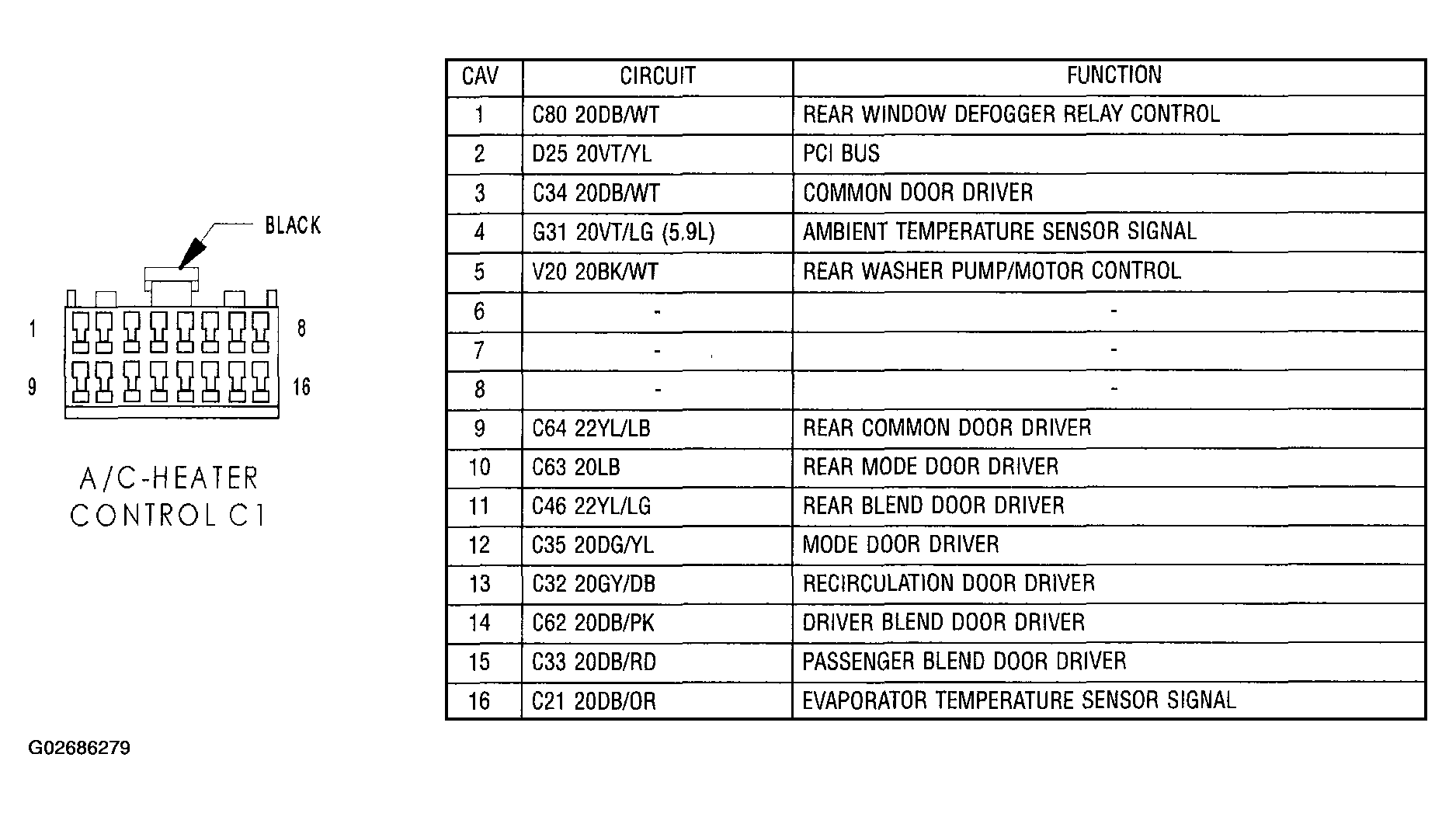

Fig 1: Identifying A/C-Heater Control C1 Connector Pinouts

G02686279

Courtesy of DAIMLERCHRYSLER CORP.

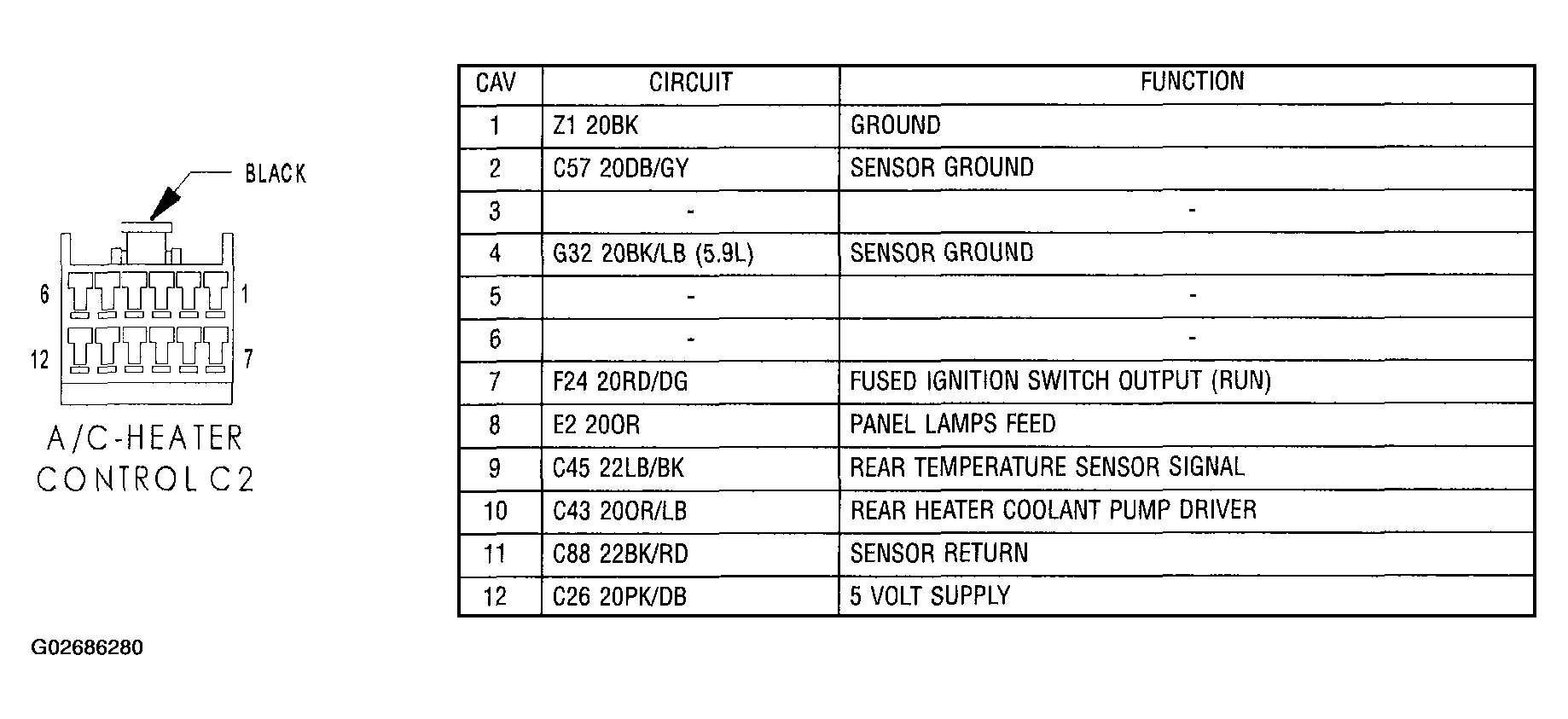

Fig 2: Identifying A/C-Heater Control C2 Connector Pinouts

G02686280

Courtesy of DAIMLERCHRYSLER CORP.

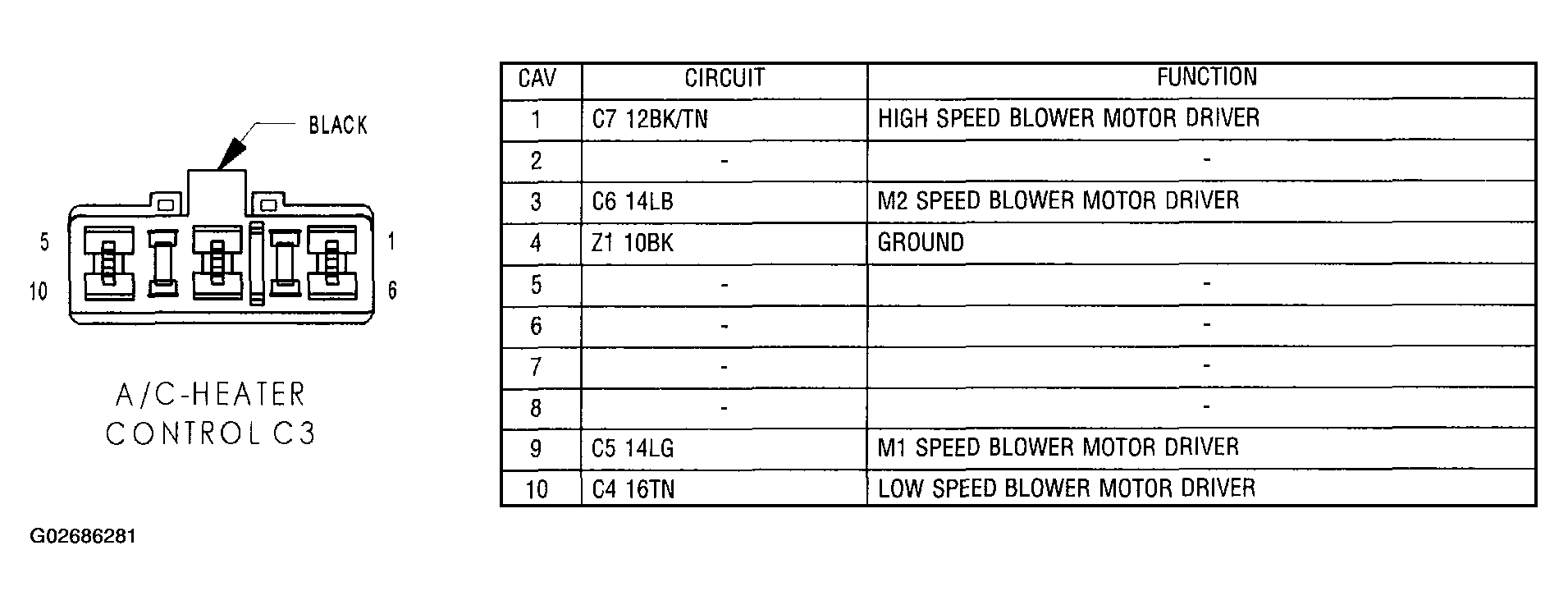

Fig 3: Identifying A/C-Heater Control C3 Connector Pinouts

G02686281

Courtesy of DAIMLERCHRYSLER CORP.

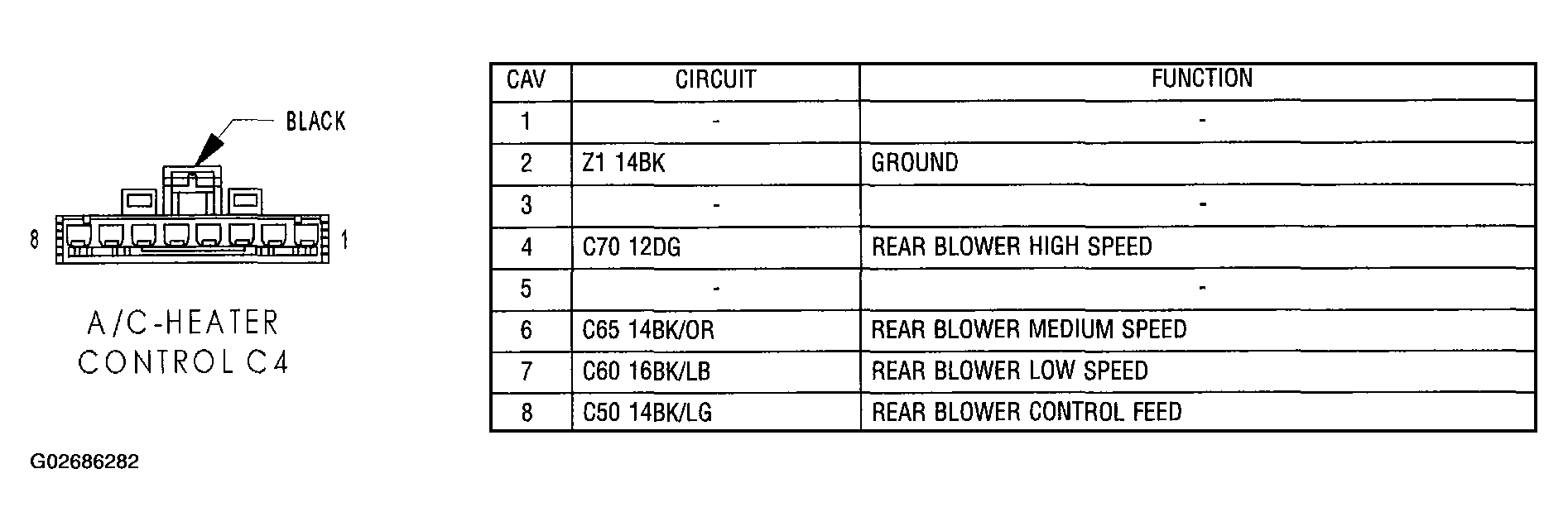

Fig 4: Identifying A/C-Heater Control C4 Connector Pinouts

G02686282

Courtesy of DAIMLERCHRYSLER CORP.

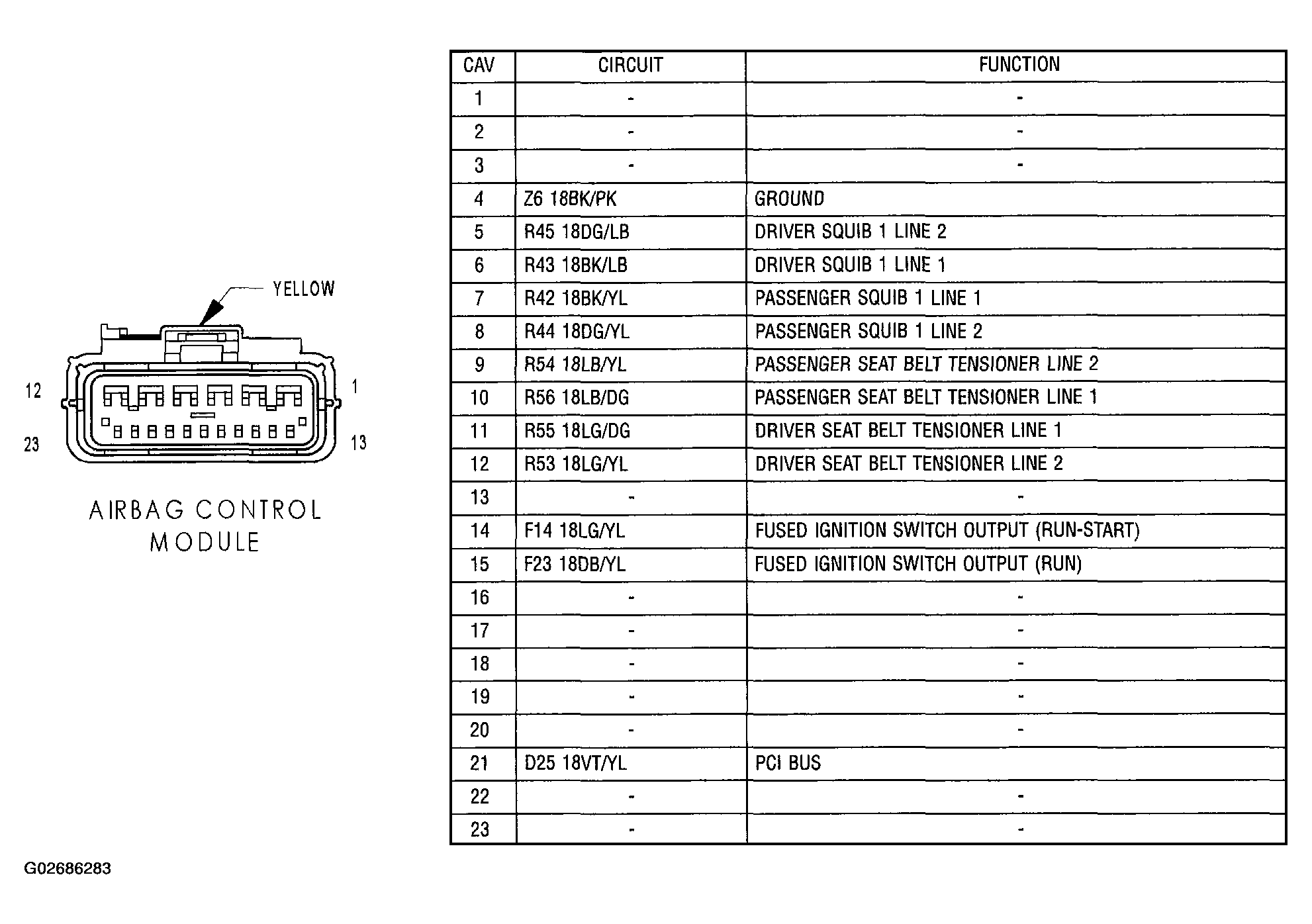

Fig 5: Identifying Airbag Control Module Connector Pinouts

G02686283

Courtesy of DAIMLERCHRYSLER CORP.

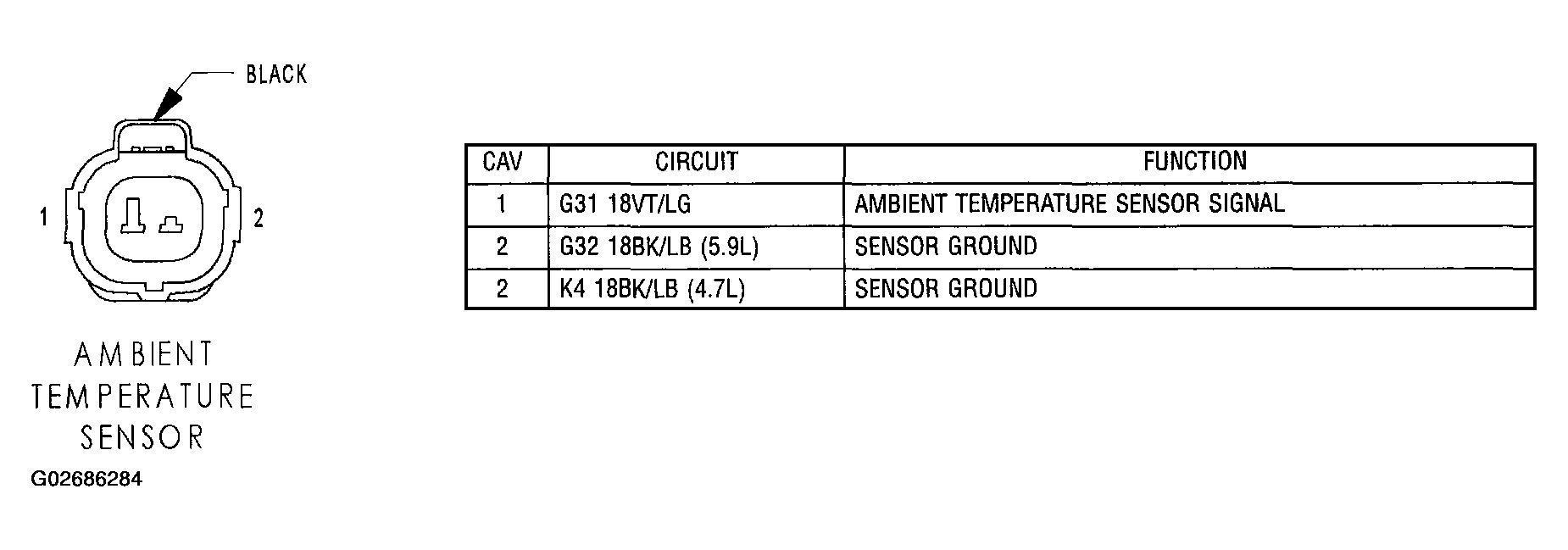

Fig 6: Identifying Ambient Temperature Sensor Connector Pinouts

G02686284

Courtesy of DAIMLERCHRYSLER CORP.

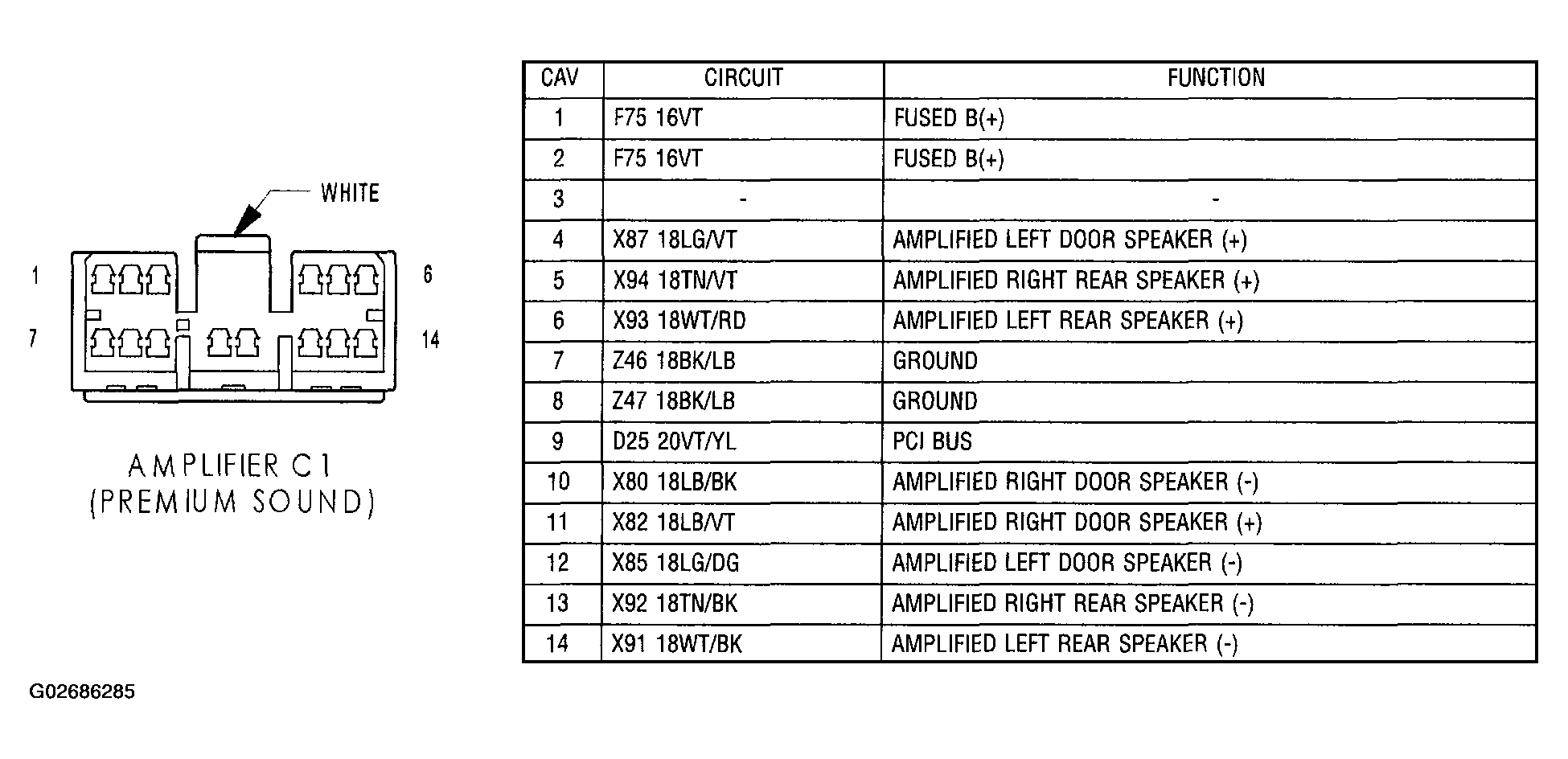

Fig 7: Identifying Amplifier C1 (Premium Sound) Connector Pinouts

G02686285

Courtesy of DAIMLERCHRYSLER CORP.

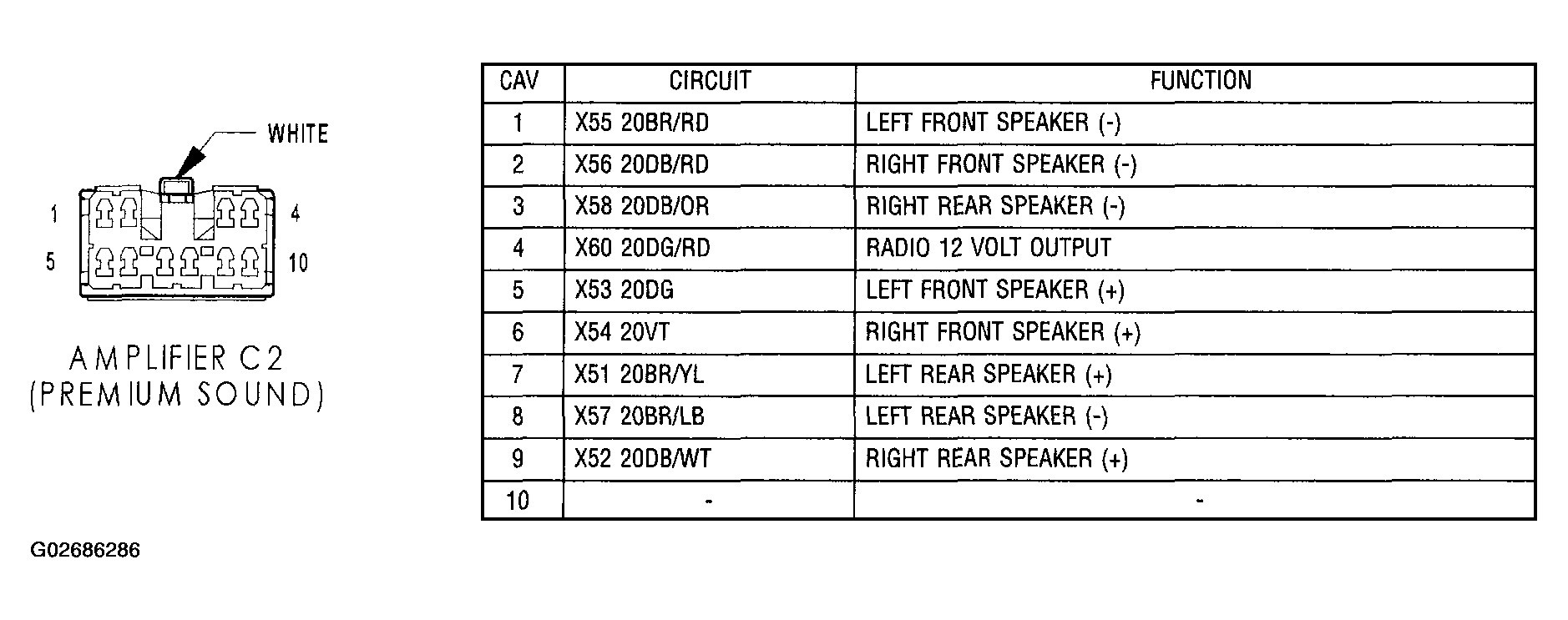

Fig 8: Identifying Amplifier C2 (Premium Sound) Connector Pinouts

G02686286

Courtesy of DAIMLERCHRYSLER CORP.

Fig 9: Identifying Blower Motor Connector Pinouts

G02686287

Courtesy of DAIMLERCHRYSLER CORP.

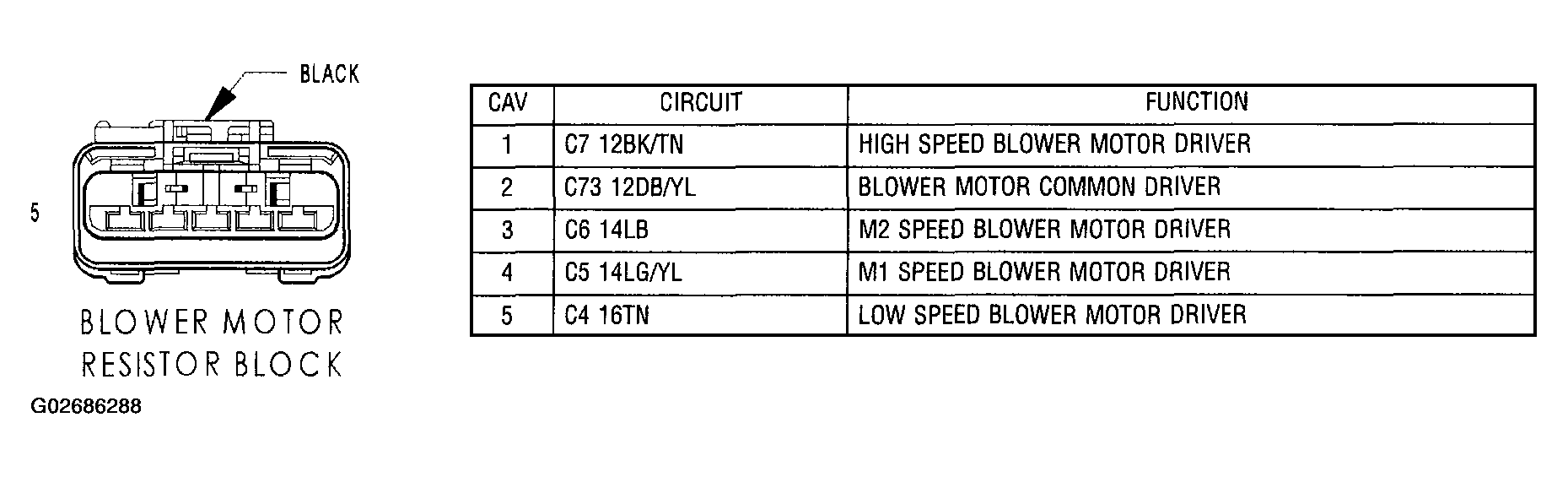

Fig 10: Identifying Blower Motor Resistor Block Connector Pinouts

G02686288

Courtesy of DAIMLERCHRYSLER CORP.

Fig 11: Identifying Brake Fluid Level Switch Connector Pinouts

G02686289

Courtesy of DAIMLERCHRYSLER CORP.

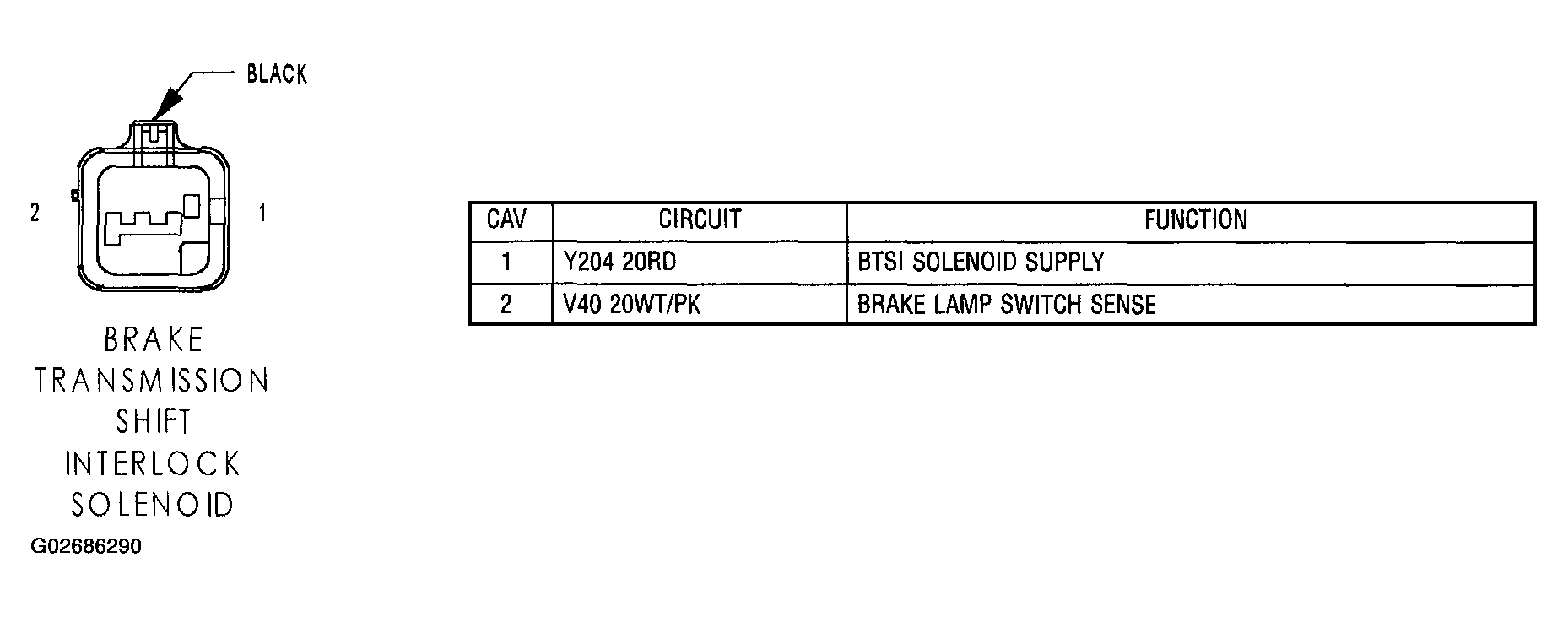

Fig 12: Identifying Brake Transmission Shift Interlock Solenoid Connector Pinouts

G02686290

Courtesy of DAIMLERCHRYSLER CORP.

Fig 13: Identifying C201 (Female) Connector Pinouts

G02686291

Courtesy of DAIMLERCHRYSLER CORP.

Fig 14: Identifying C201 (Male) Connector Pinouts

G02686292

Courtesy of DAIMLERCHRYSLER CORP.

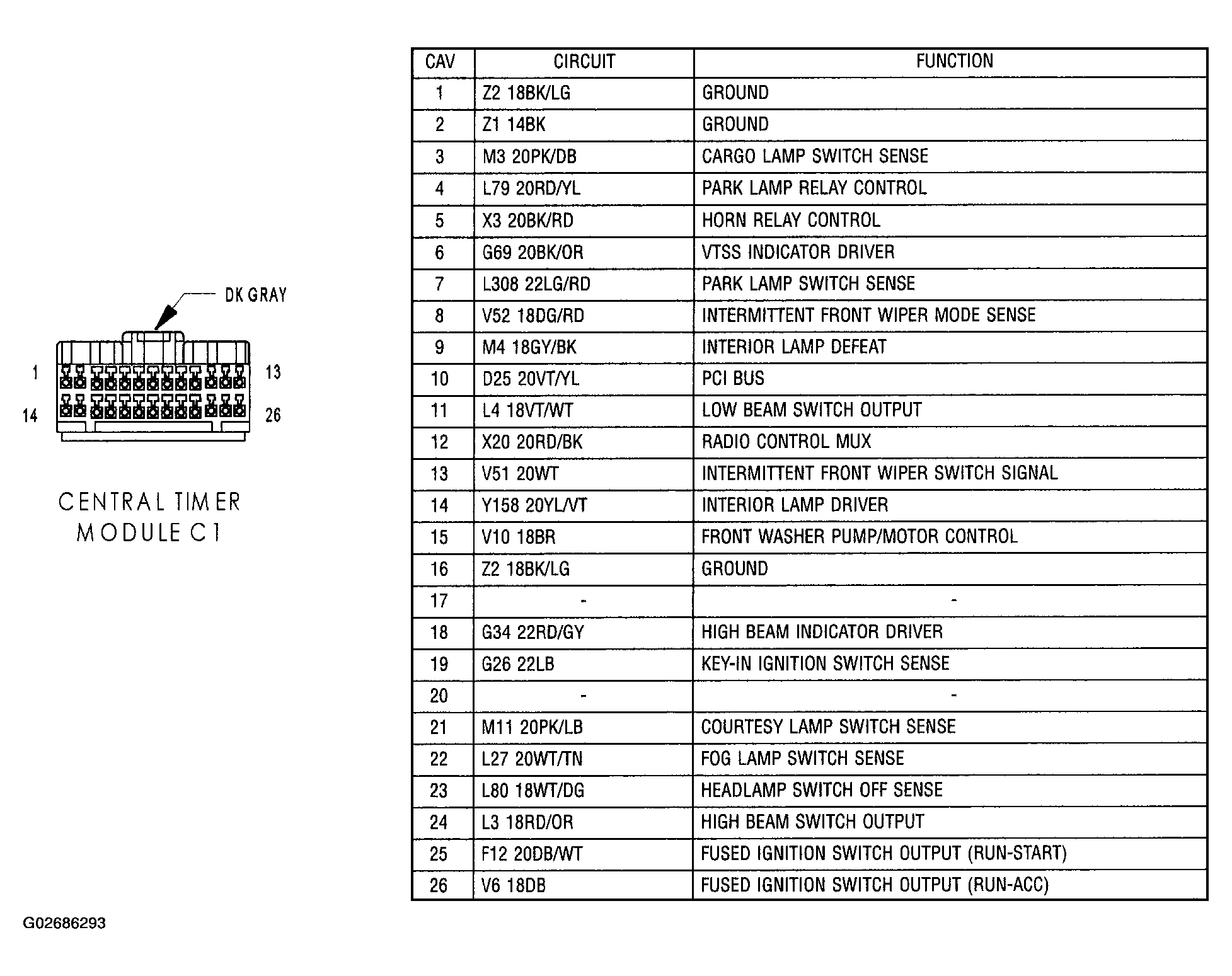

Fig 15: Identifying Central Timer Module C1 Connector Pinouts

G02686293

Courtesy of DAIMLERCHRYSLER CORP.

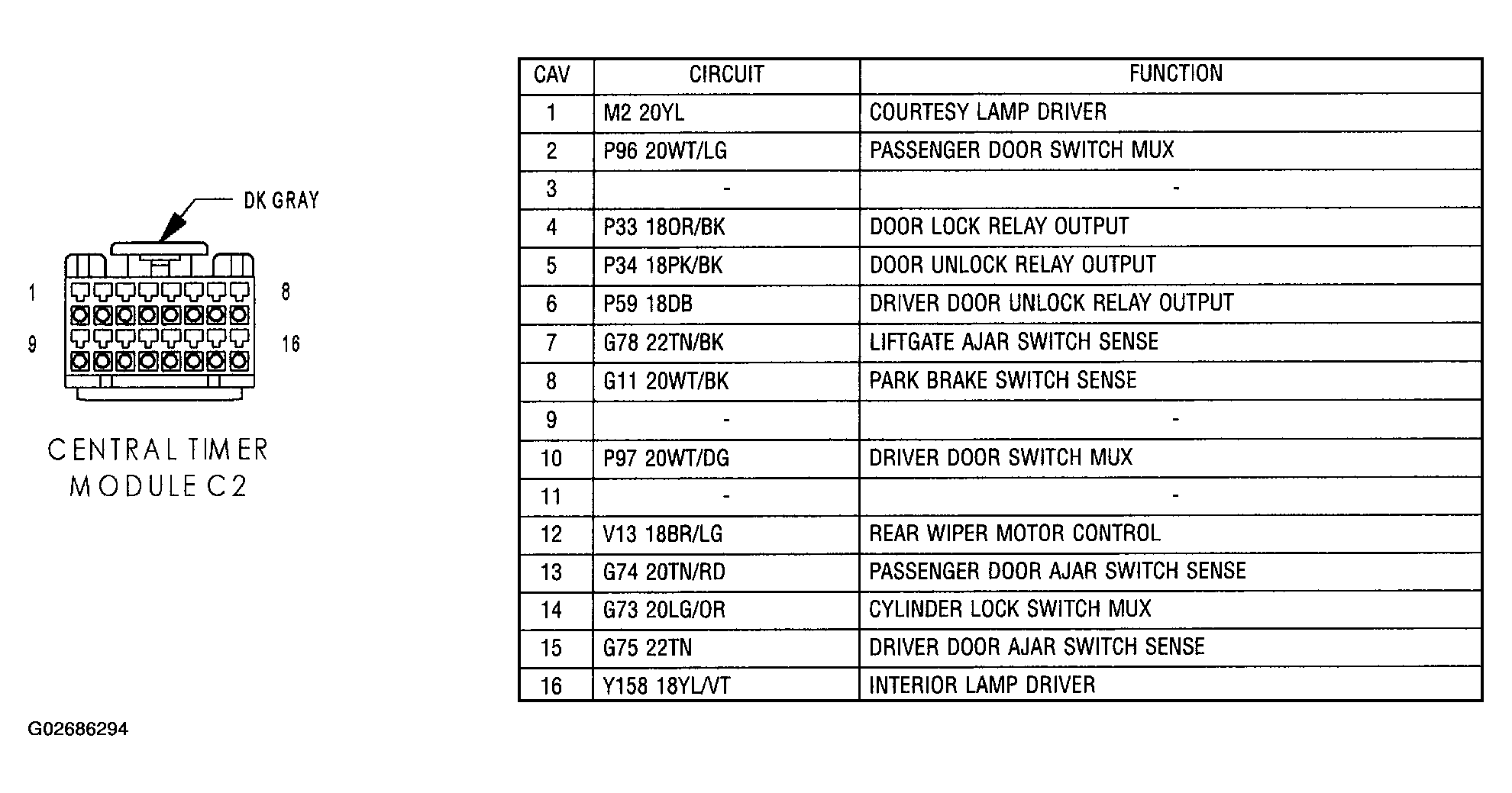

Fig 16: Identifying Central Timer Module C2 Connector Pinouts

G02686294

Courtesy of DAIMLERCHRYSLER CORP.

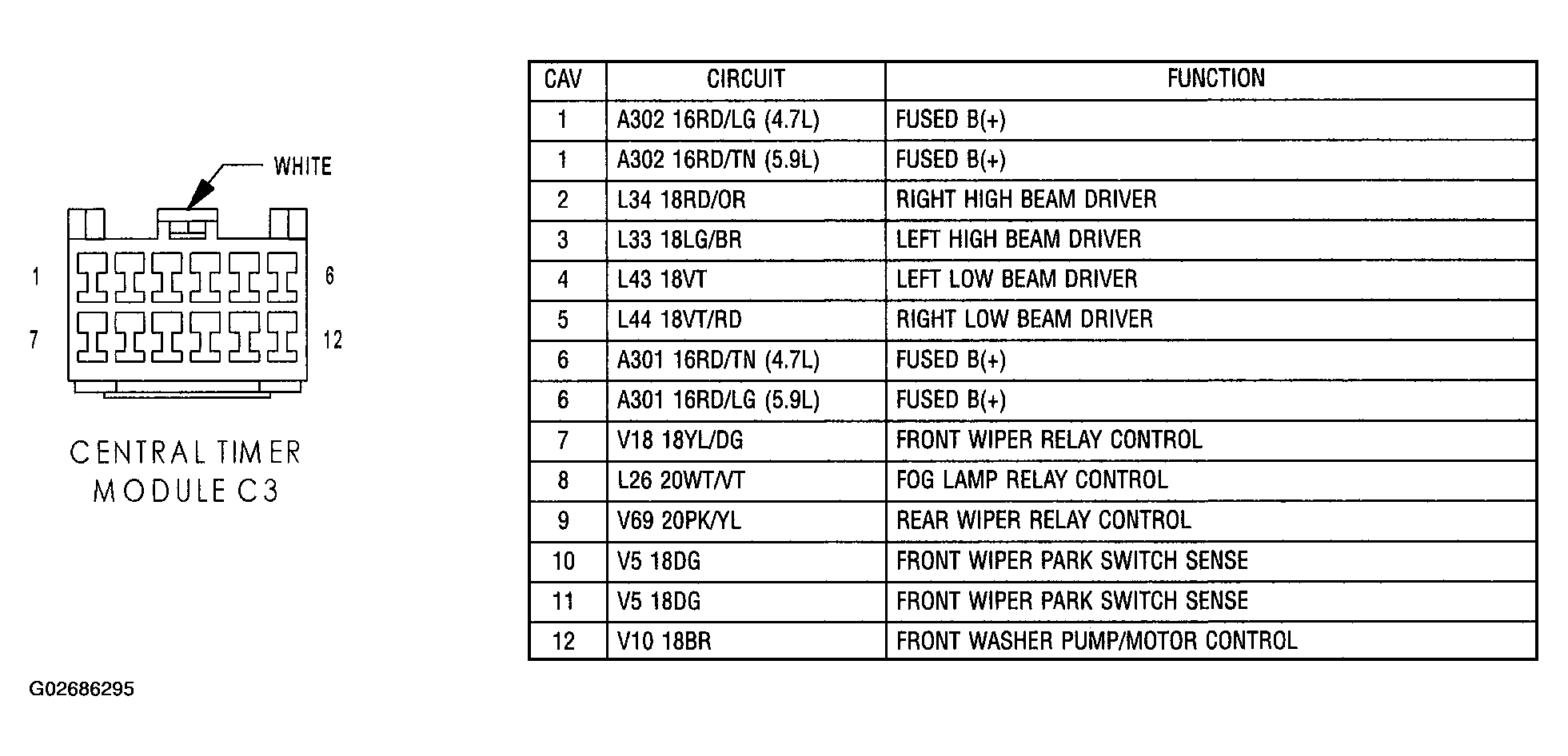

Fig 17: Identifying Central Timer Module C3 Connector Pinouts

G02686295

Courtesy of DAIMLERCHRYSLER CORP.

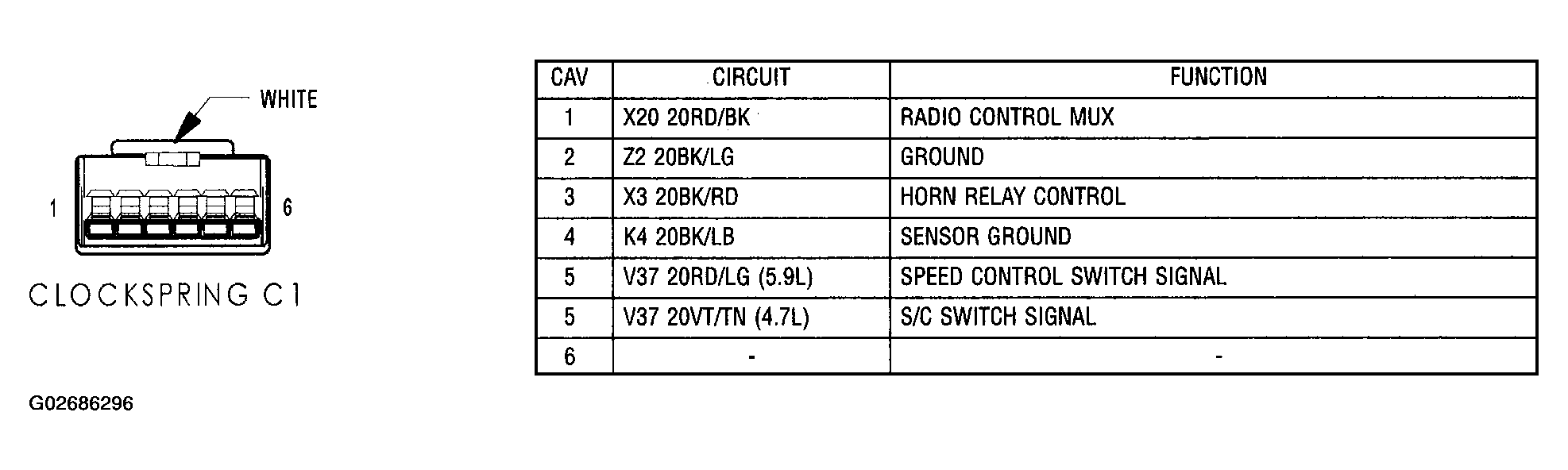

Fig 18: Identifying Clockspring C1 Connector Pinouts

G02686296

Courtesy of DAIMLERCHRYSLER CORP.

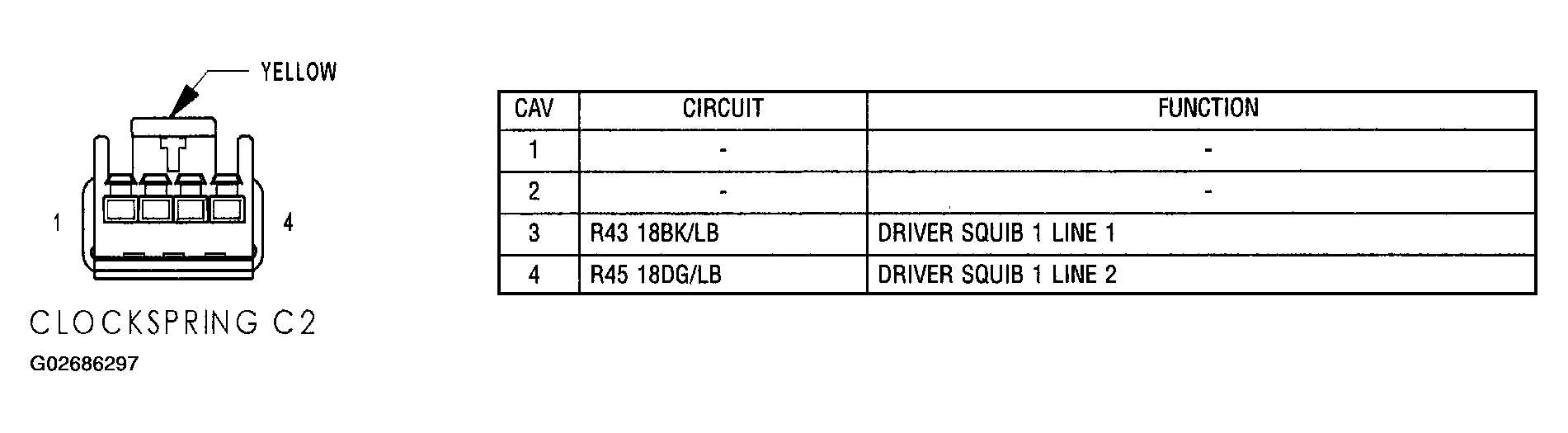

Fig 19: Identifying Clockspring C2 Connector Pinouts

G02686297

Courtesy of DAIMLERCHRYSLER CORP.

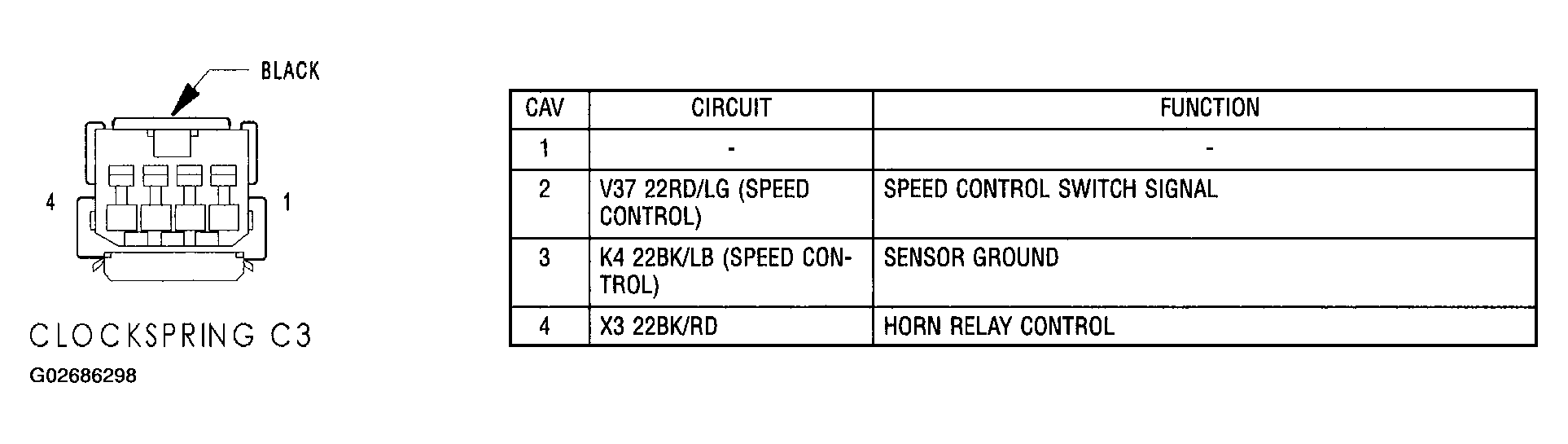

Fig 20: Identifying Clockspring C3 Connector Pinouts

G02686298

Courtesy of DAIMLERCHRYSLER CORP.

Fig 21: Identifying Clockspring C4 Connector Pinouts

G02686299

Courtesy of DAIMLERCHRYSLER CORP.

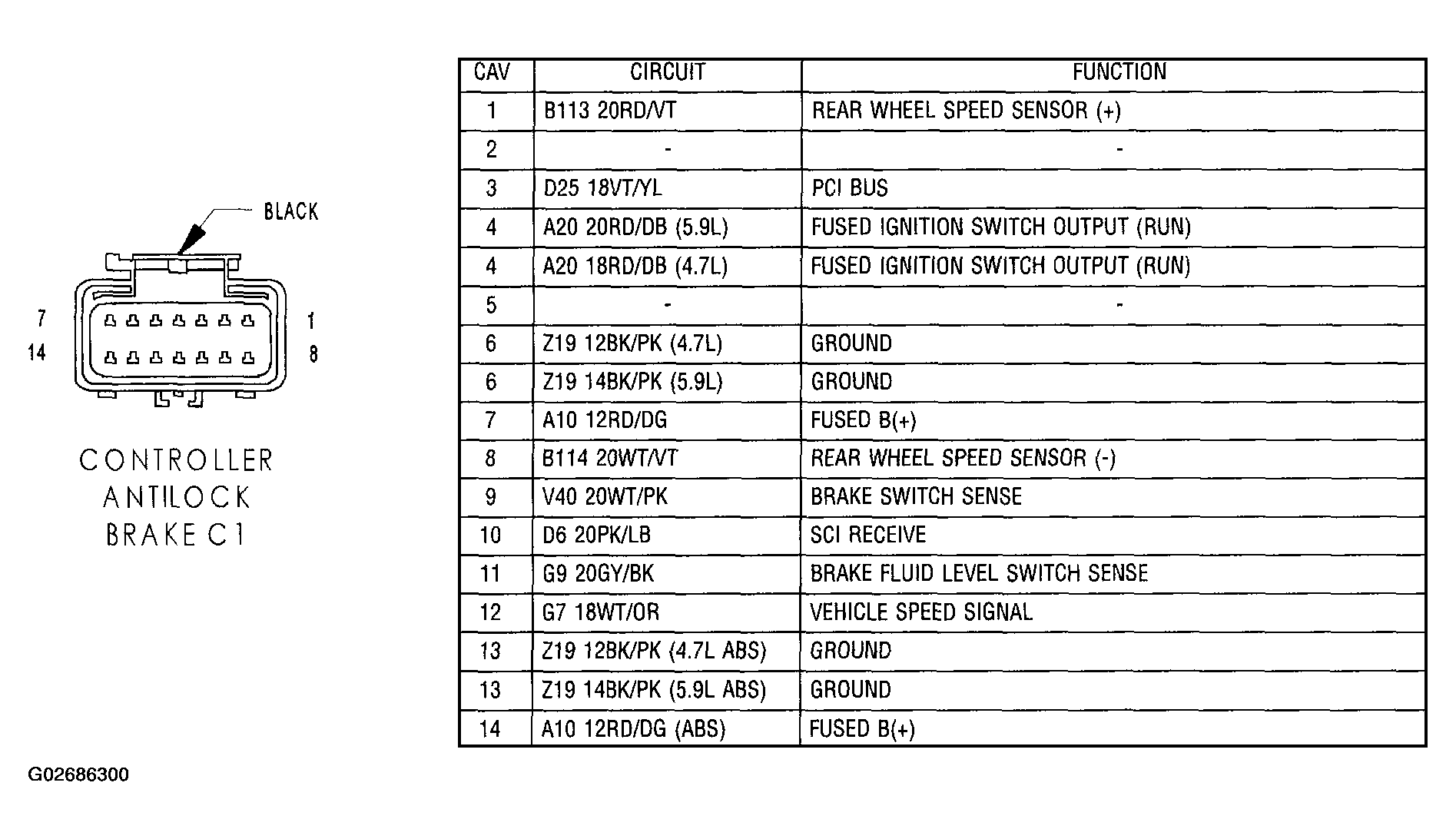

Fig 22: Identifying Controller Anti-Lock Brake C1 Connector Pinouts

G02686300

Courtesy of DAIMLERCHRYSLER CORP.

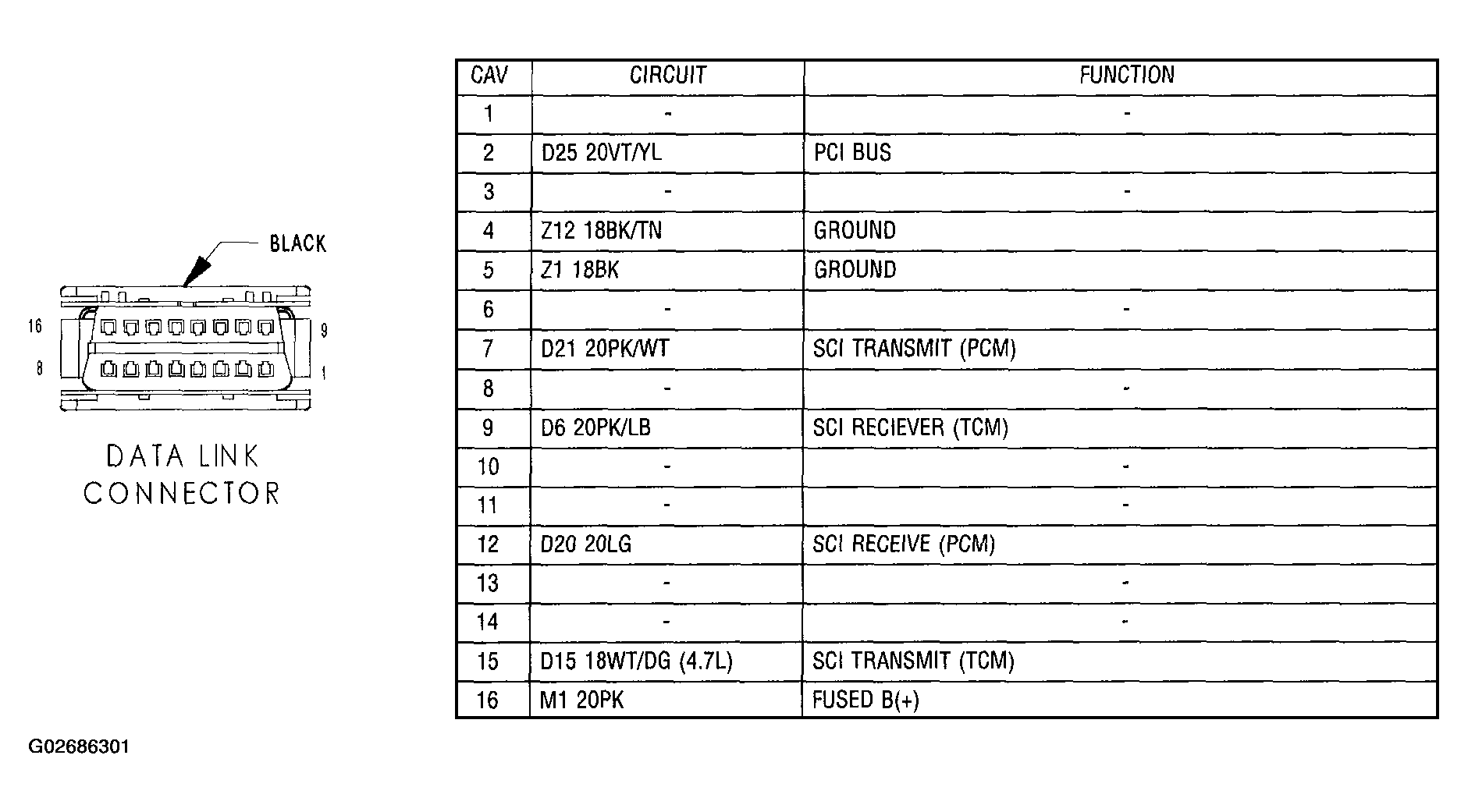

Fig 23: Identifying Data Link Connector Pinouts

G02686301

Courtesy of DAIMLERCHRYSLER CORP.

Fig 24: Identifying Driver Airbag Squib 1 Connector Pinouts

G02686302

Courtesy of DAIMLERCHRYSLER CORP.

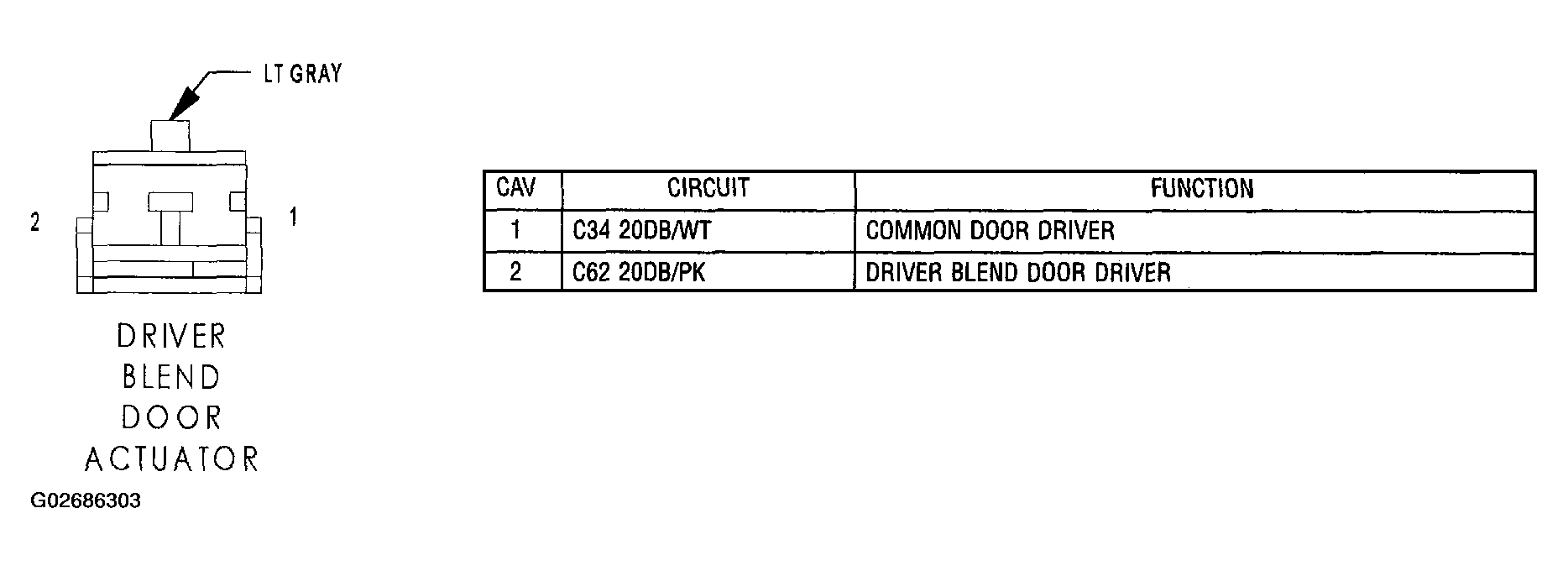

Fig 25: Identifying Driver Blend Door Actuator Connector Pinouts

G02686303

Courtesy of DAIMLERCHRYSLER CORP.

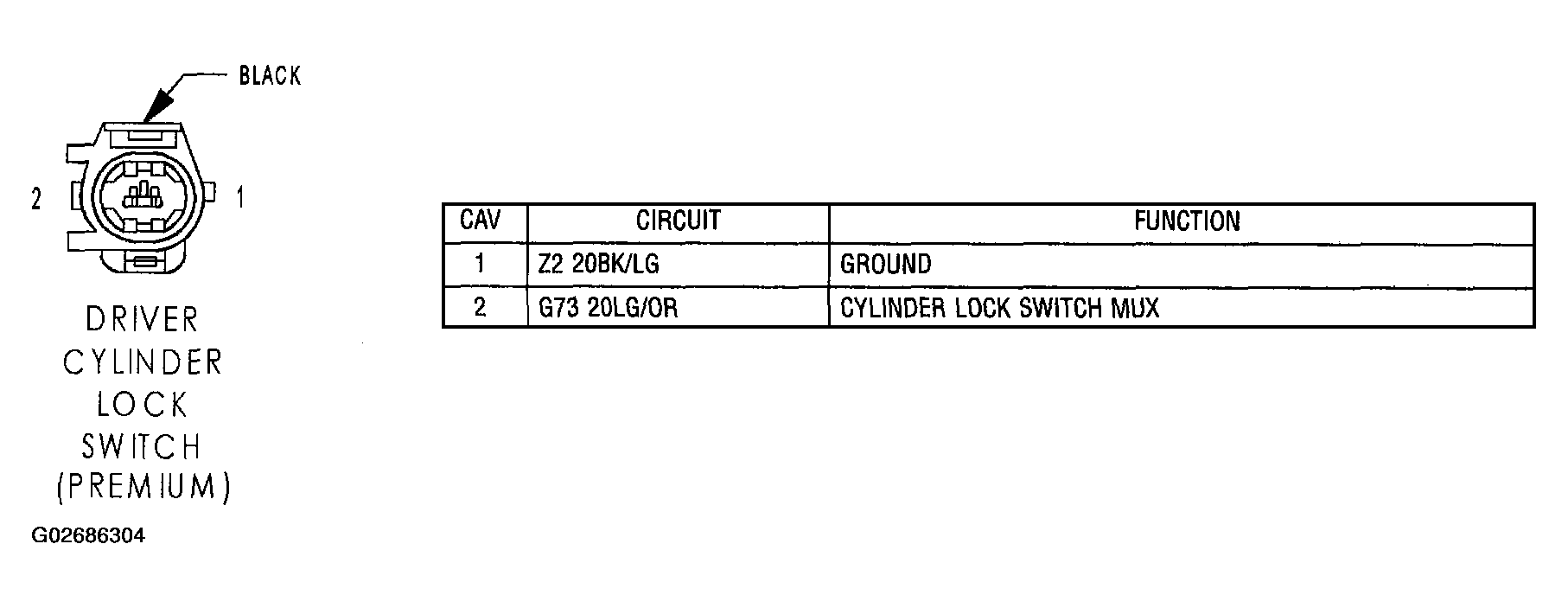

Fig 26: Identifying Driver Cylinder Lock Switch (Premium) Connector Pinouts

G02686304

Courtesy of DAIMLERCHRYSLER CORP.

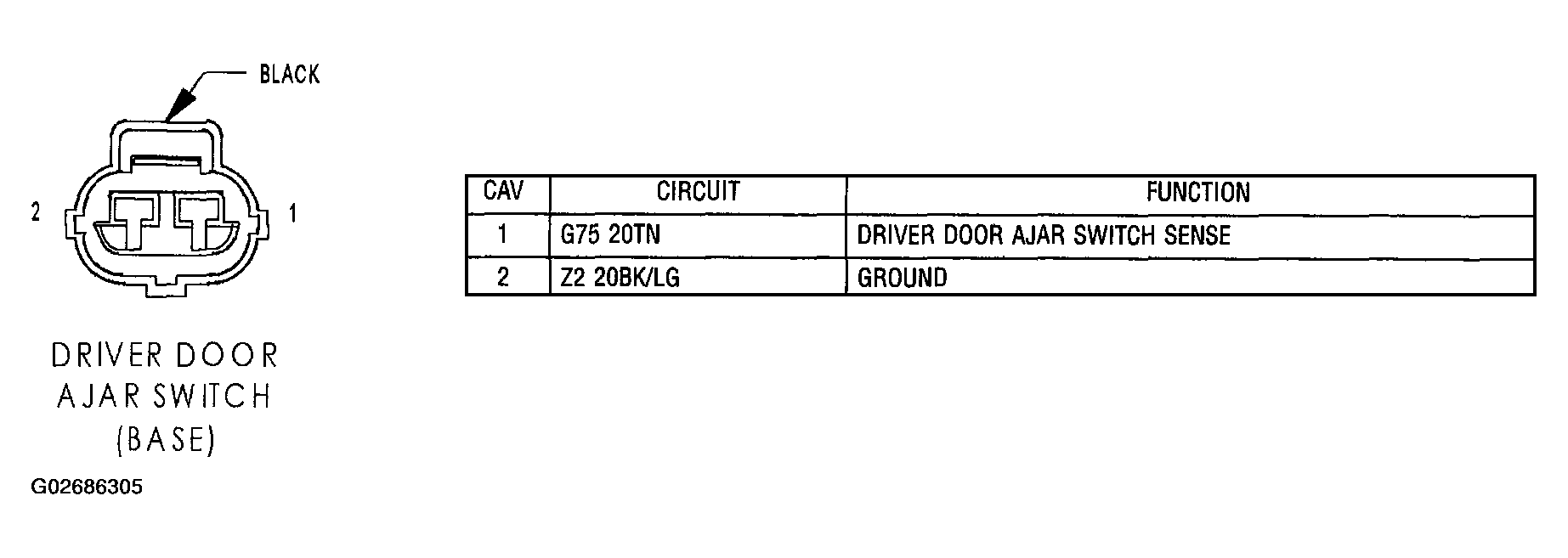

Fig 27: Identifying Driver Door Ajar Switch (Base) Connector Pinouts

G02686305

Courtesy of DAIMLERCHRYSLER CORP.

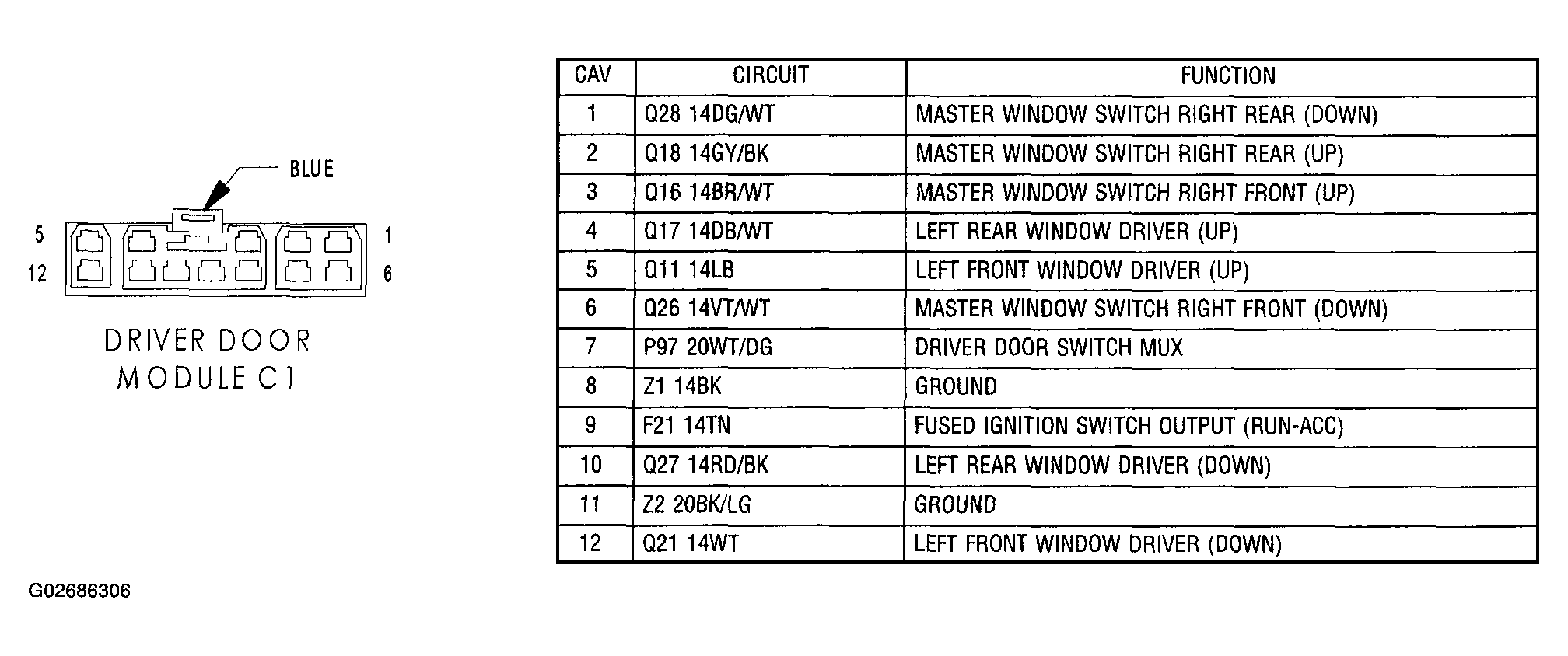

Fig 28: Identifying Driver Door Module C1 Connector Pinouts

G02686306

Courtesy of DAIMLERCHRYSLER CORP.

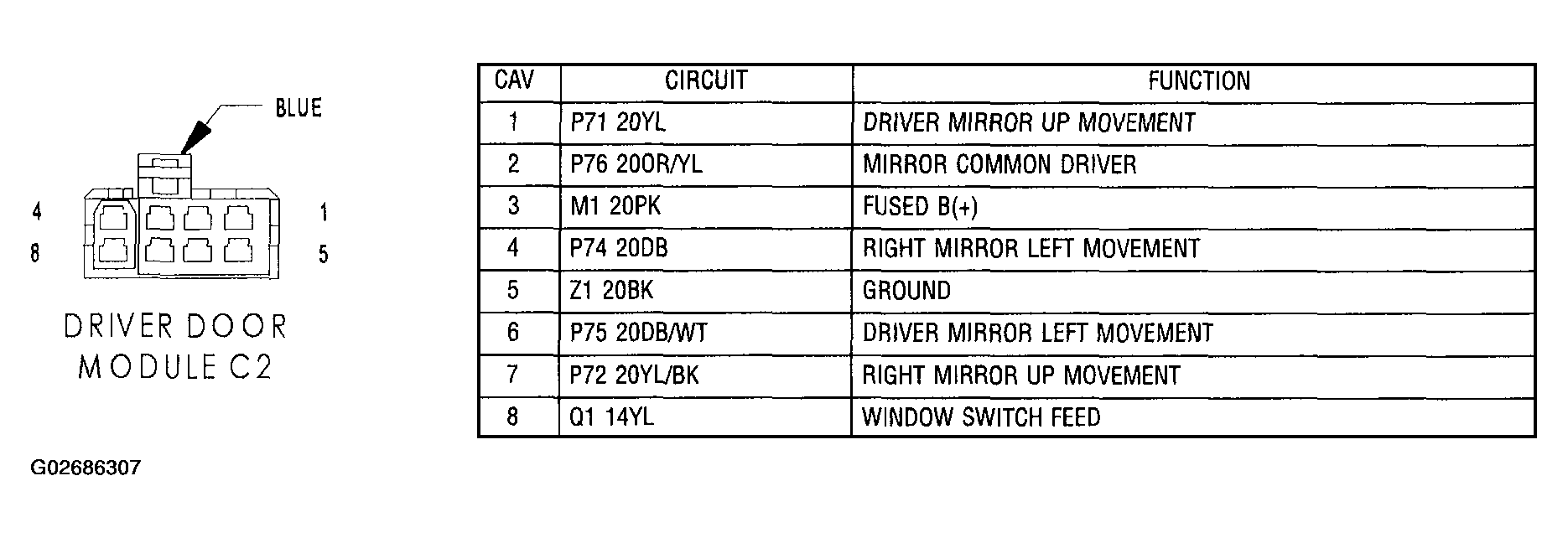

Fig 29: Identifying Driver Door Module C2 Connector Pinouts

G02686307

Courtesy of DAIMLERCHRYSLER CORP.

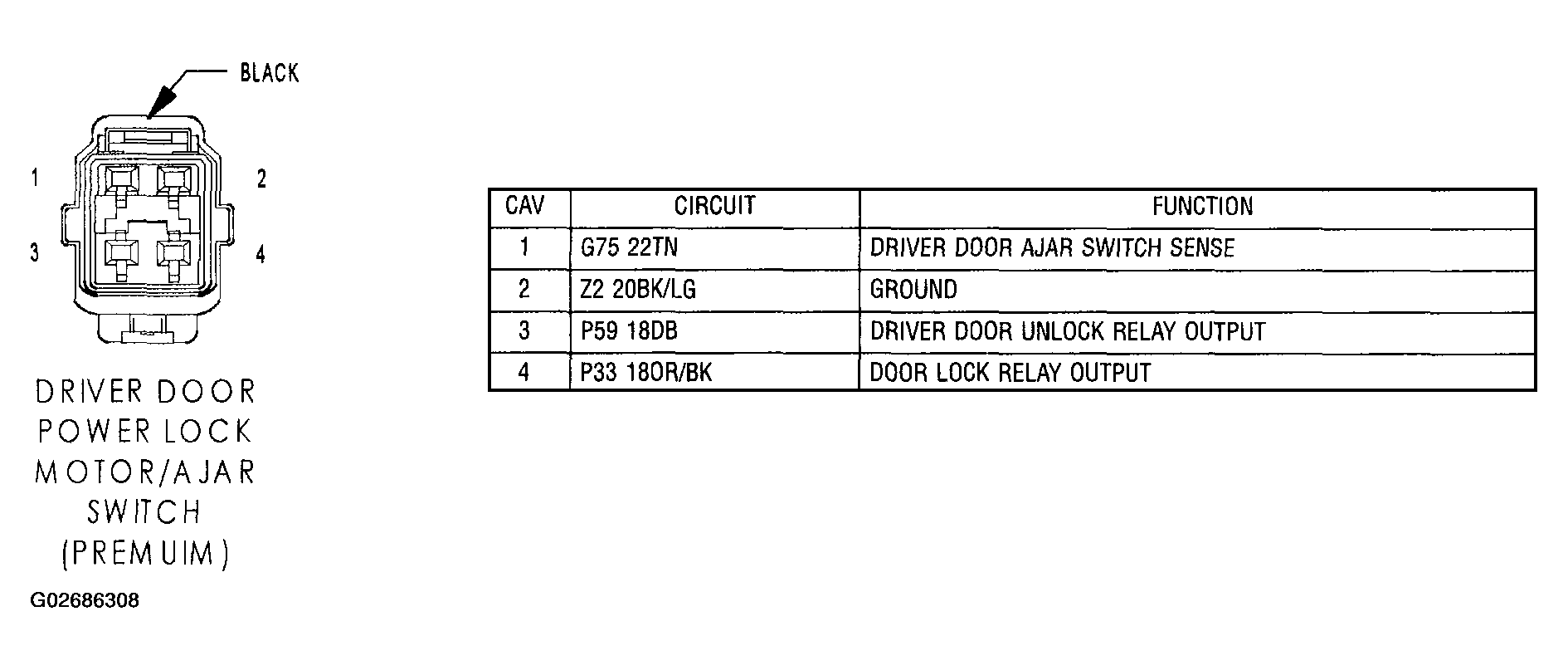

Fig 30: Identifying Driver Door Power Lock Motor/Ajar Switch (Premium) Connector Pinouts

G02686308

Courtesy of DAIMLERCHRYSLER CORP.

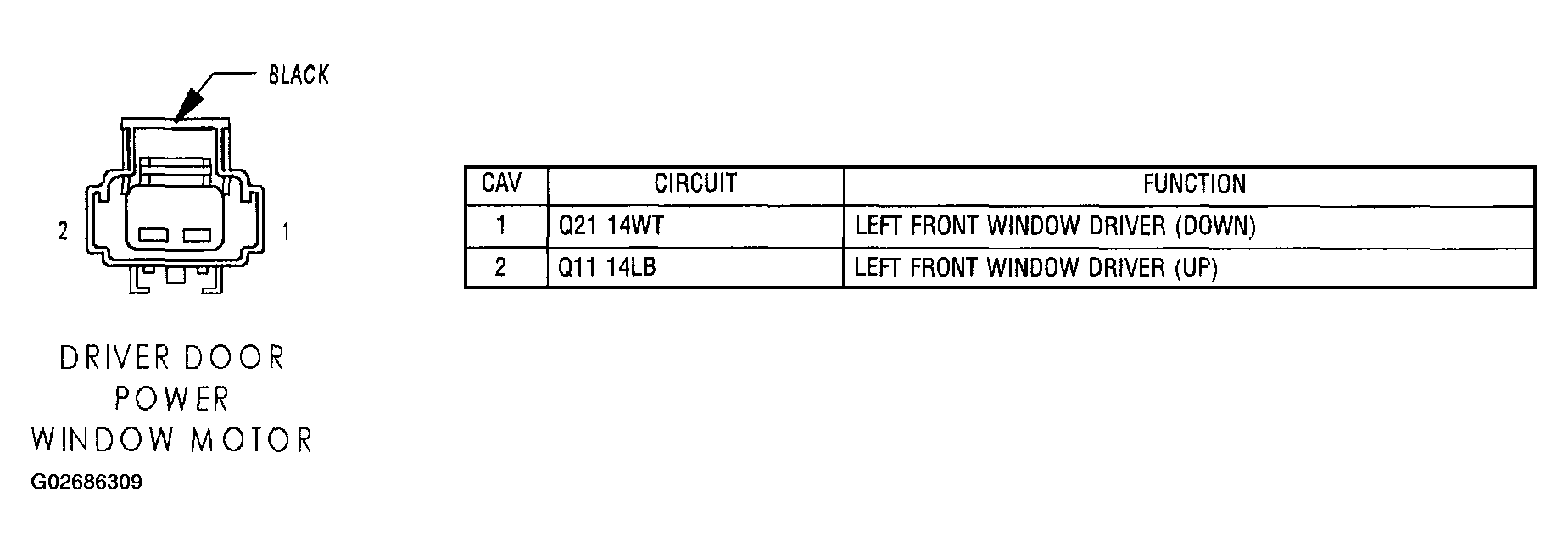

Fig 31: Identifying Driver Door Power Window Motor Connector Pinouts

G02686309

Courtesy of DAIMLERCHRYSLER CORP.

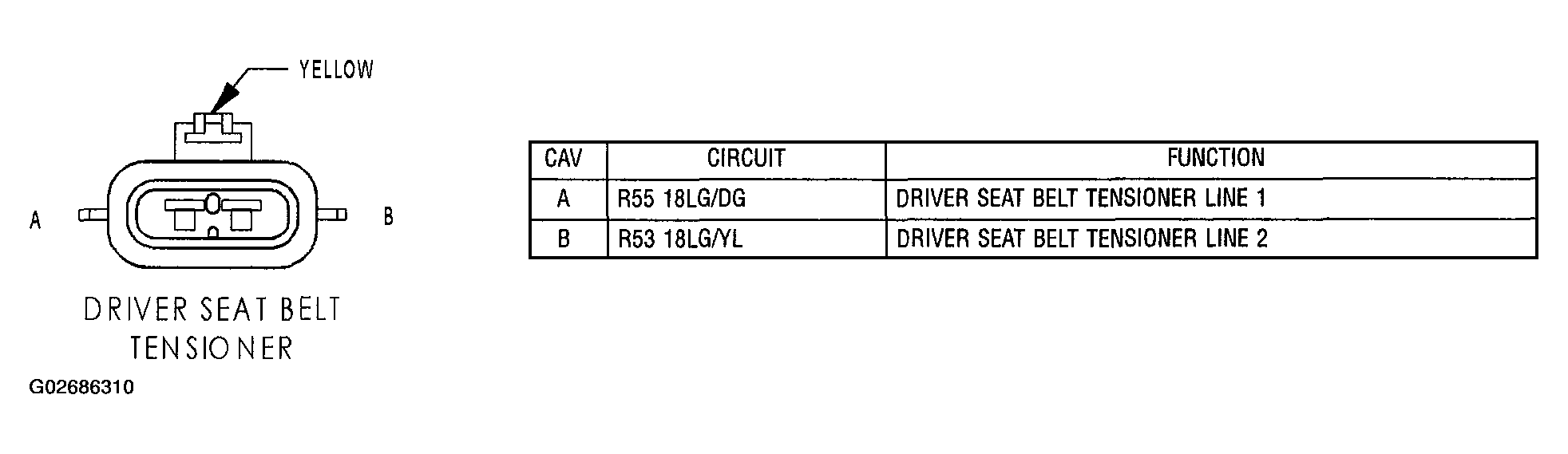

Fig 32: Identifying Driver Seat Belt Tensioner Connector Pinouts

G02686310

Courtesy of DAIMLERCHRYSLER CORP.

Fig 33: Identifying Evaporator Temperature Sensor Connector Pinouts

G02686311

Courtesy of DAIMLERCHRYSLER CORP.

Fig 34: Identifying Front Dome Lamp (Base) Connector Pinouts

G02686312

Courtesy of DAIMLERCHRYSLER CORP.

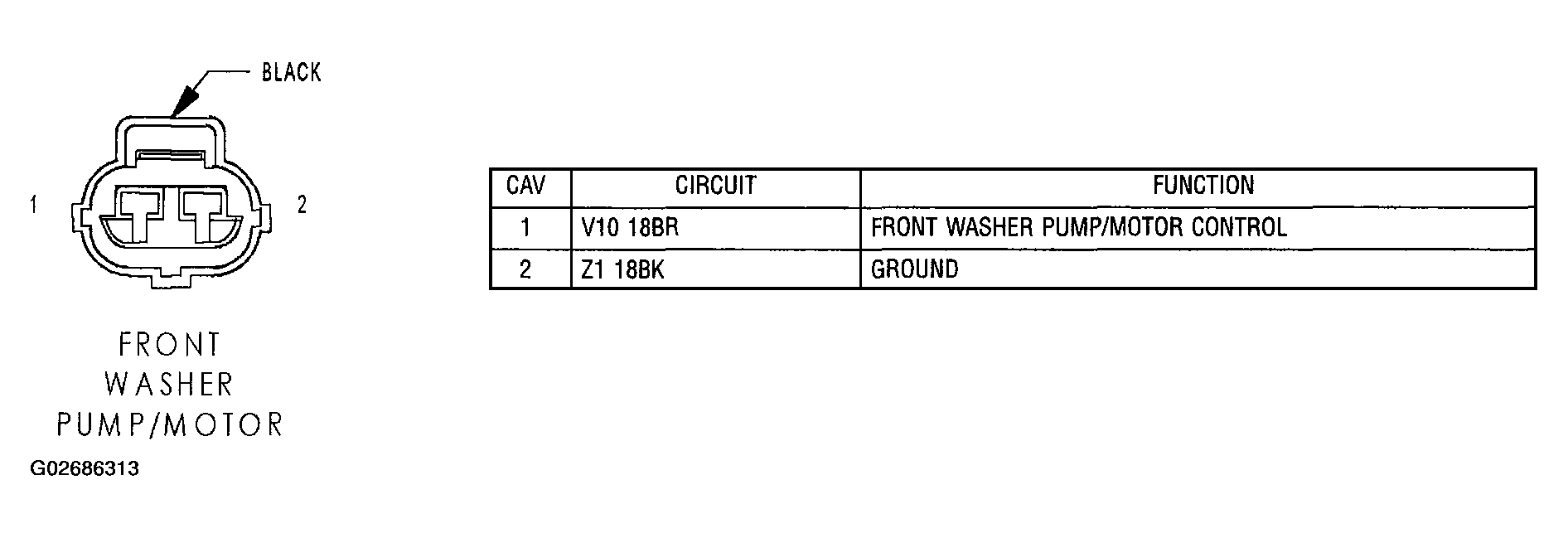

Fig 35: Identifying Front Washer Pump/Motor Connector Pinouts

G02686313

Courtesy of DAIMLERCHRYSLER CORP.

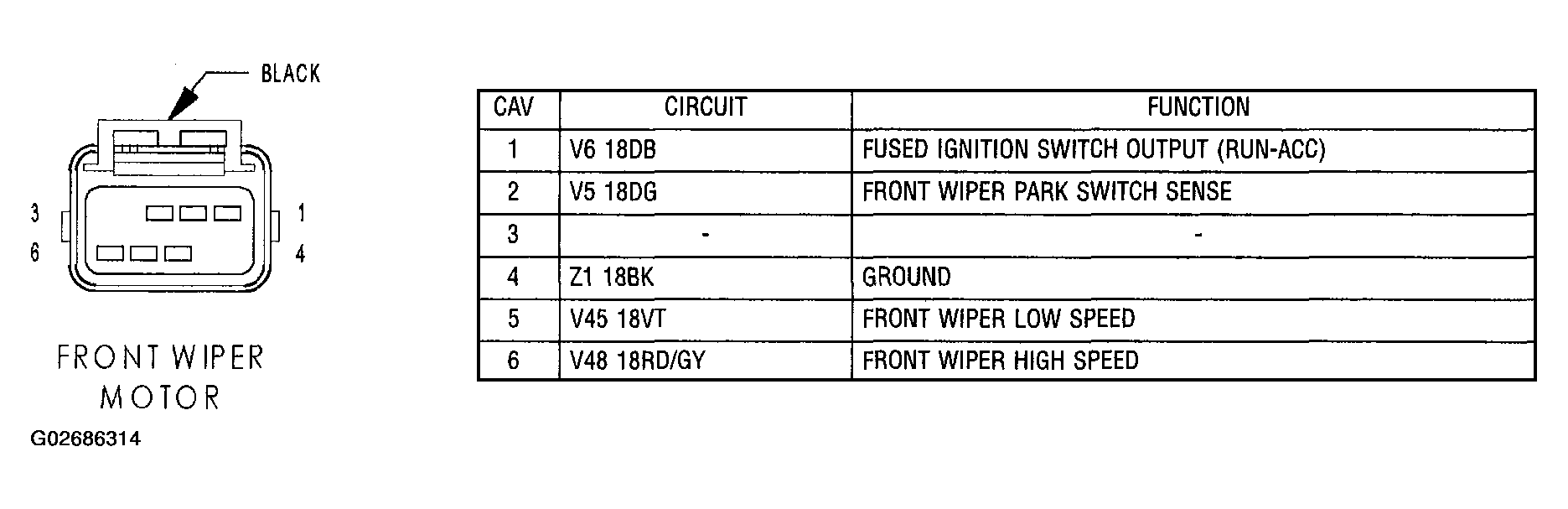

Fig 36: Identifying Front Wiper Motor Connector Pinouts

G02686314

Courtesy of DAIMLERCHRYSLER CORP.

Fig 37: Identifying Glove Box Lamp And Switch Connector Pinouts

G02686315

Courtesy of DAIMLERCHRYSLER CORP.

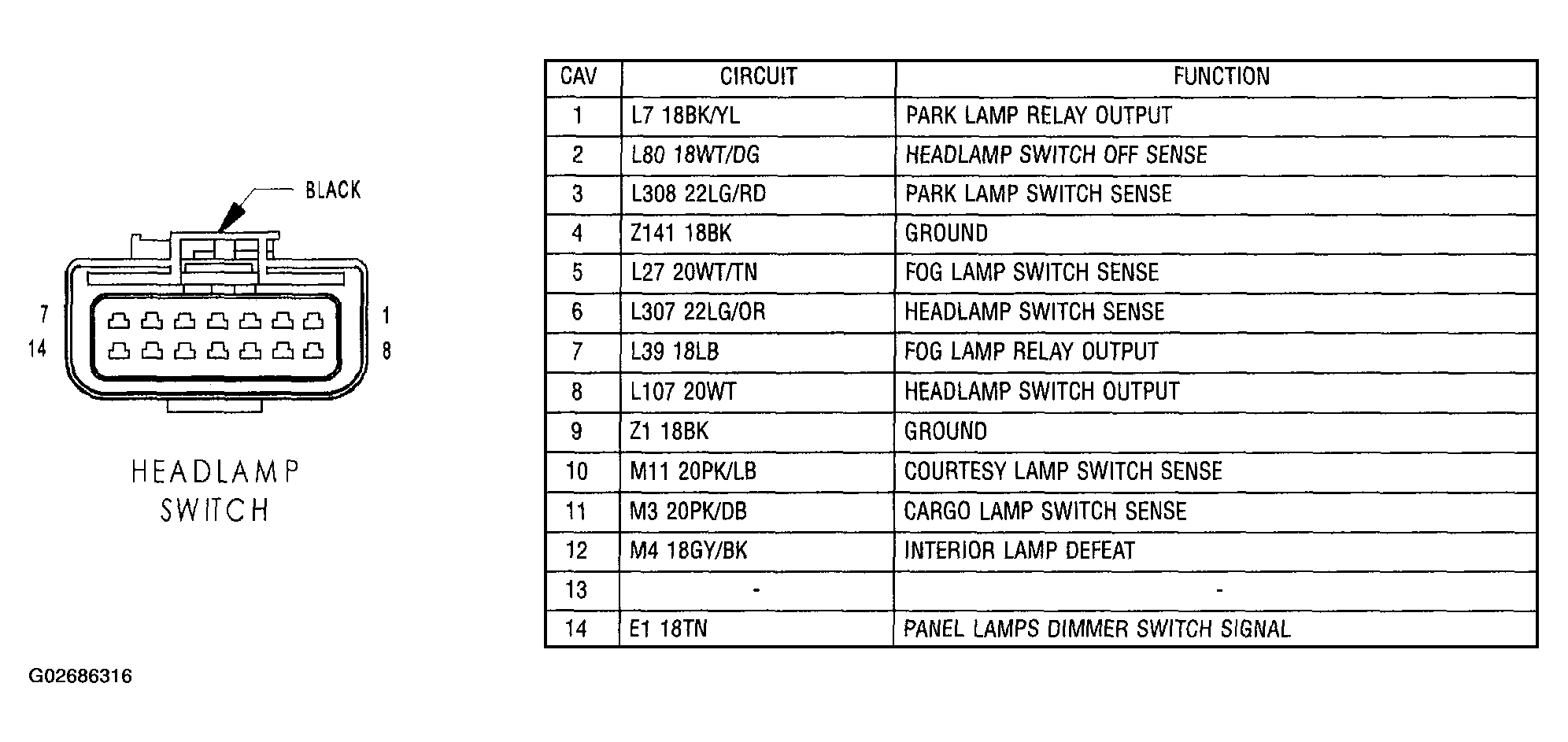

Fig 38: Identifying Headlamp Switch Connector Pinouts

G02686316

Courtesy of DAIMLERCHRYSLER CORP.

Fig 39: Identifying High Note Horn Connector Pinouts

G02686317

Courtesy of DAIMLERCHRYSLER CORP.

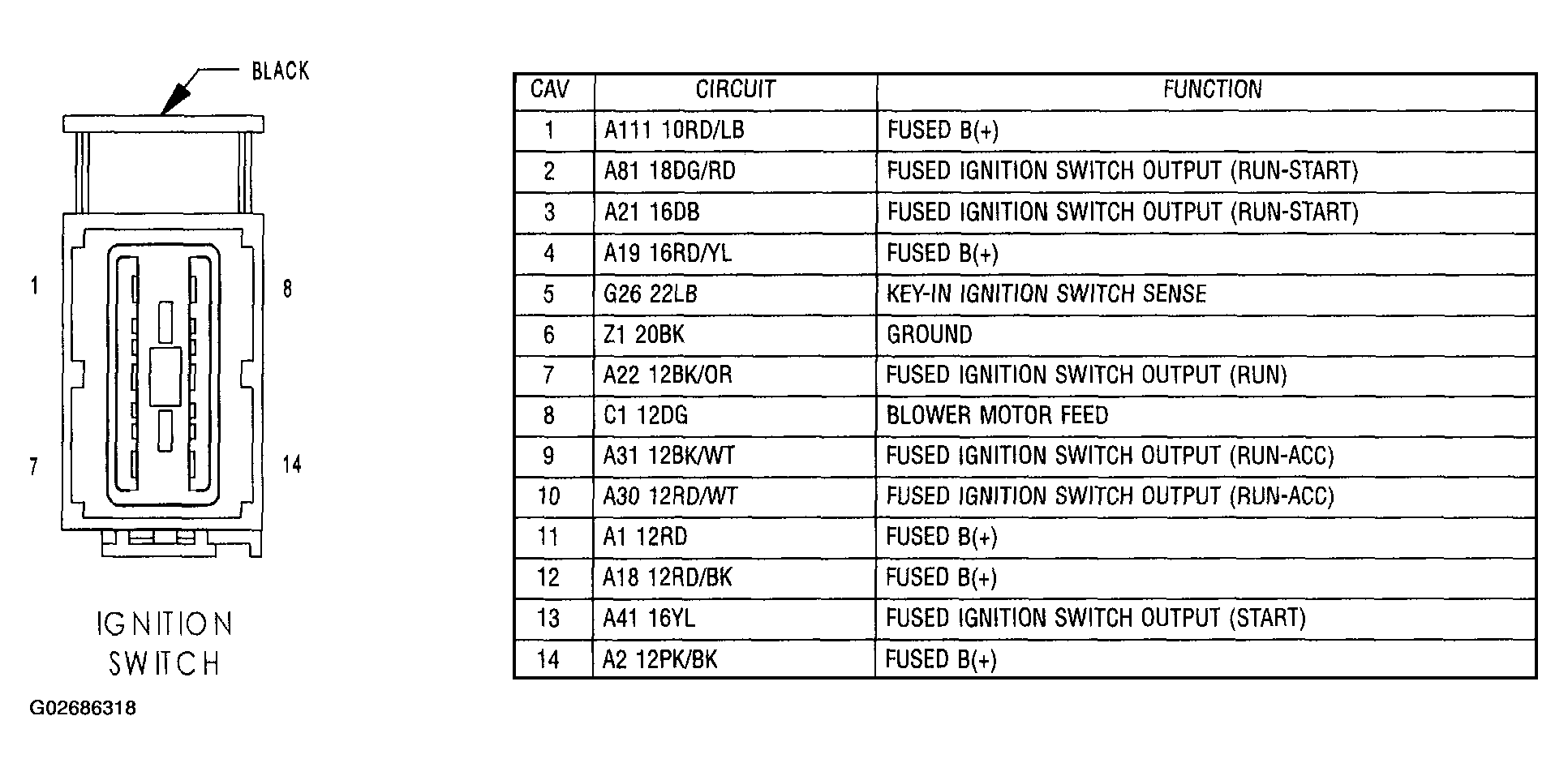

Fig 40: Identifying Ignition Switch Connector Pinouts

G02686318

Courtesy of DAIMLERCHRYSLER CORP.

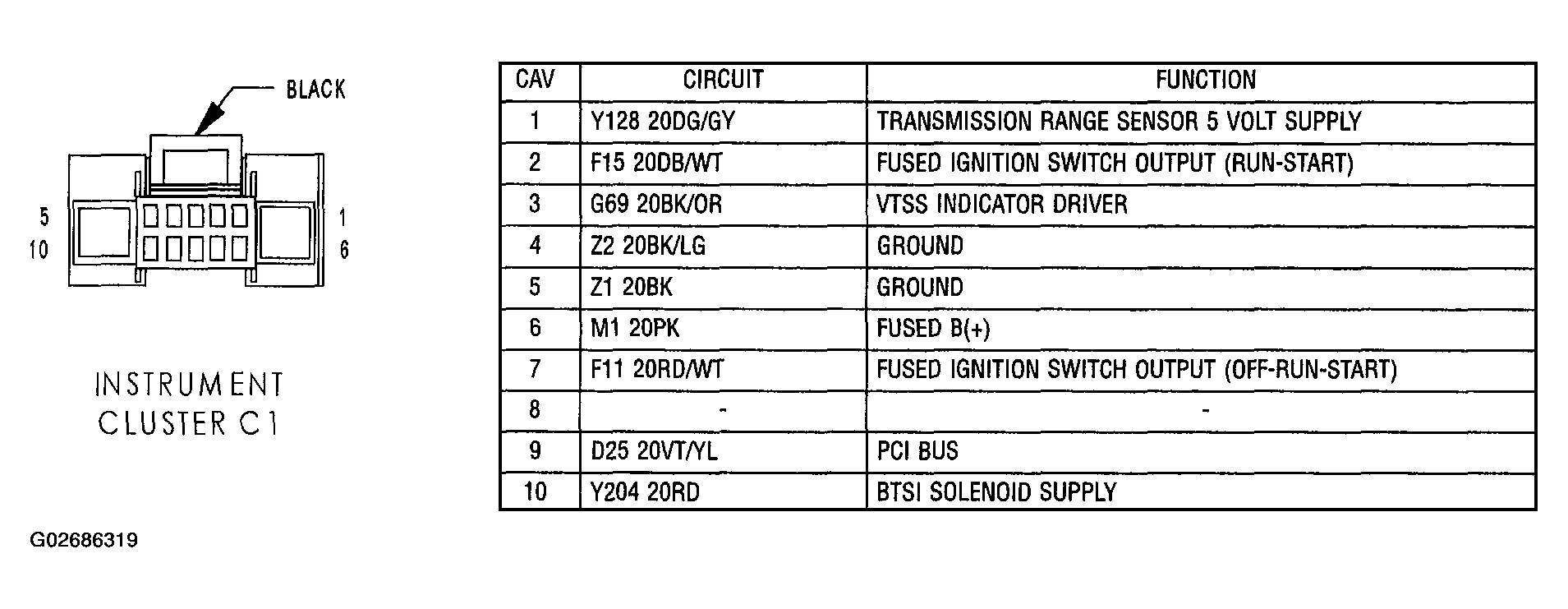

Fig 41: Identifying Instrument Cluster C1 Connector Pinouts

G02686319

Courtesy of DAIMLERCHRYSLER CORP.

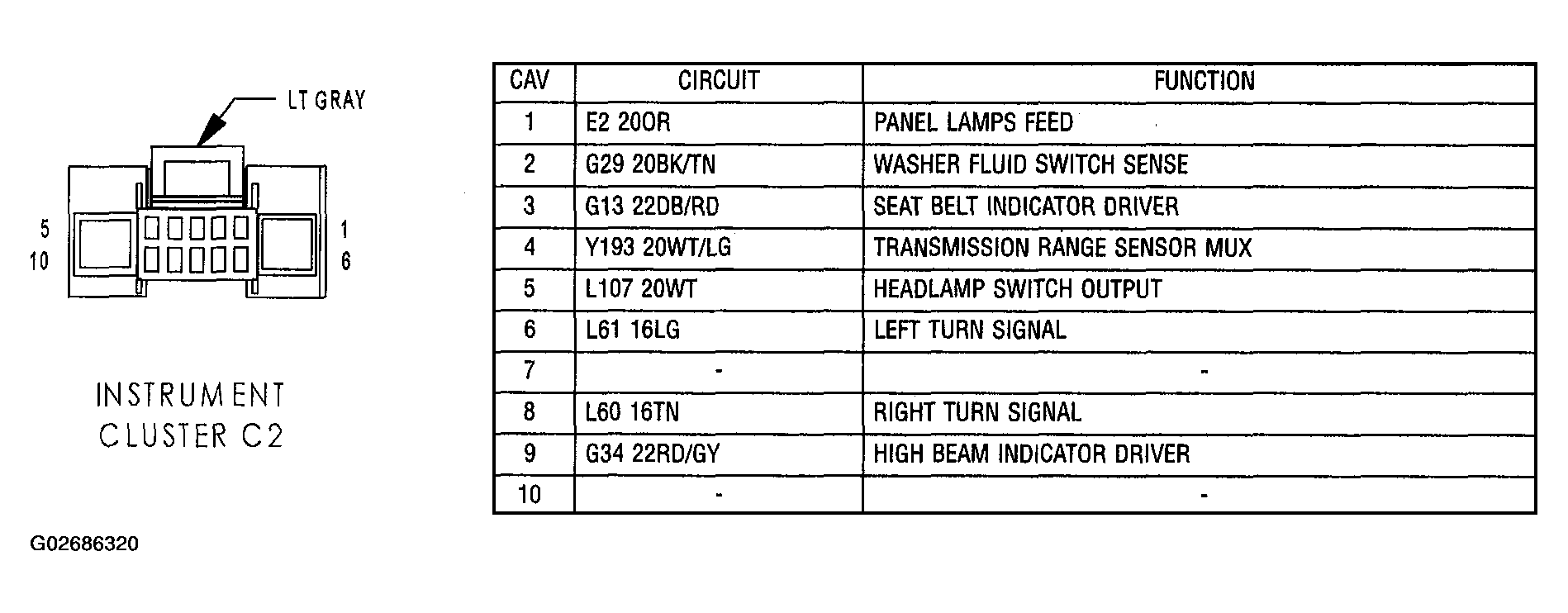

Fig 42: Identifying Instrument Cluster C2 Connector Pinouts

G02686320

Courtesy of DAIMLERCHRYSLER CORP.

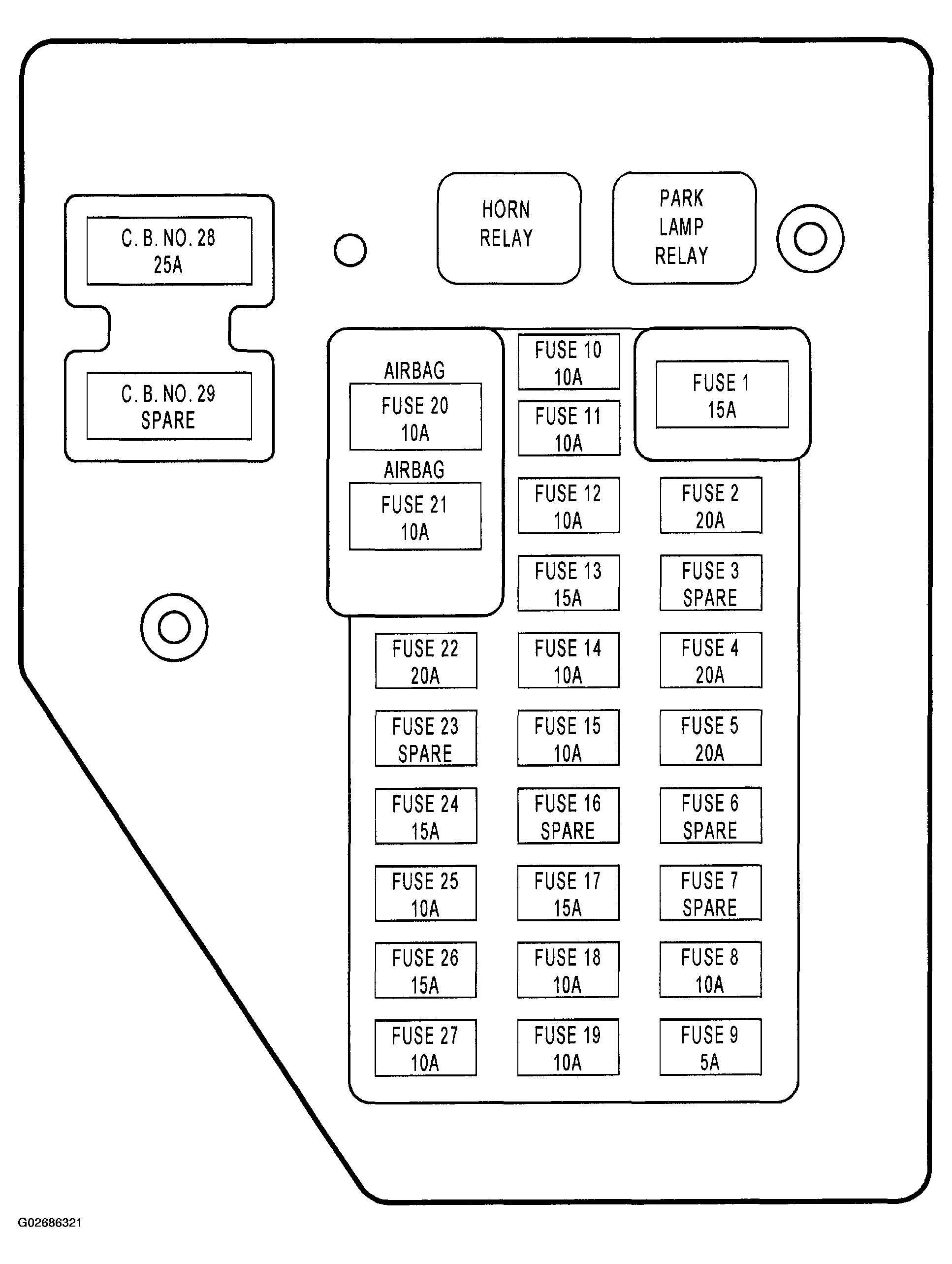

Fig 43: Identifying Junction Block (Front View) Connector Pinouts

G02686321

Courtesy of DAIMLERCHRYSLER CORP.

Fig 44: Identifying Horn Relay Connector Pinouts

G02686322

Courtesy of DAIMLERCHRYSLER CORP.

Fig 45: Identifying Park Lamp Relay Connector Pinouts

G02686323

Courtesy of DAIMLERCHRYSLER CORP.

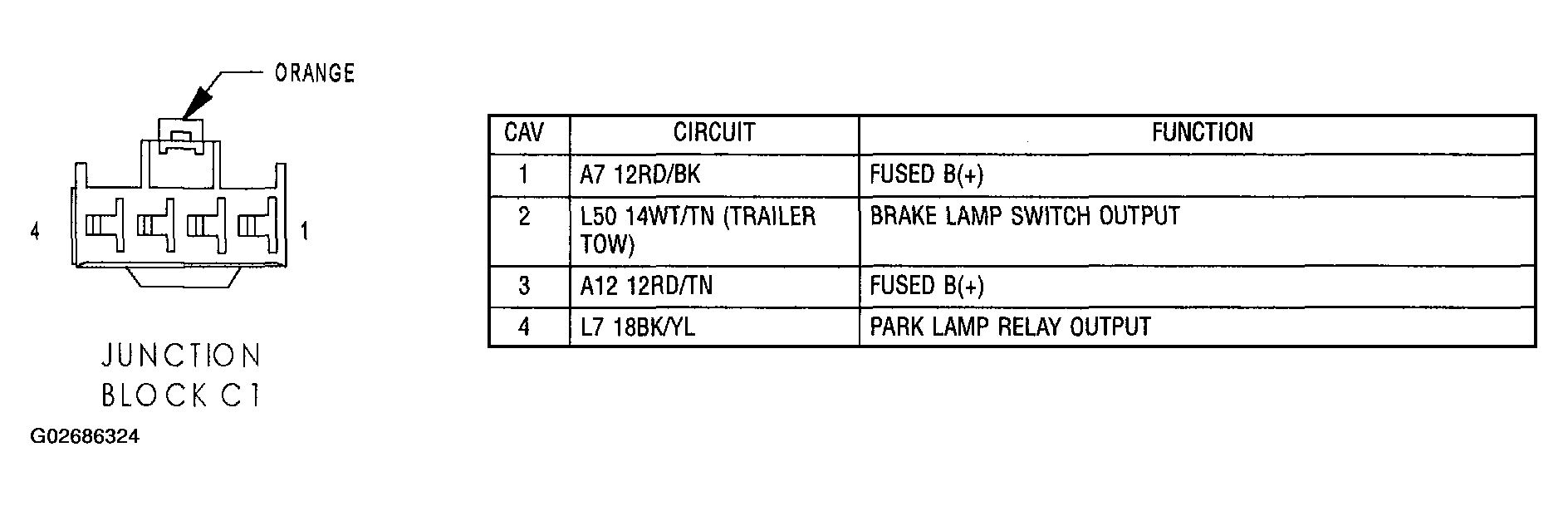

Fig 46: Identifying Junction Block C1 Connector Pinouts

G02686324

Courtesy of DAIMLERCHRYSLER CORP.

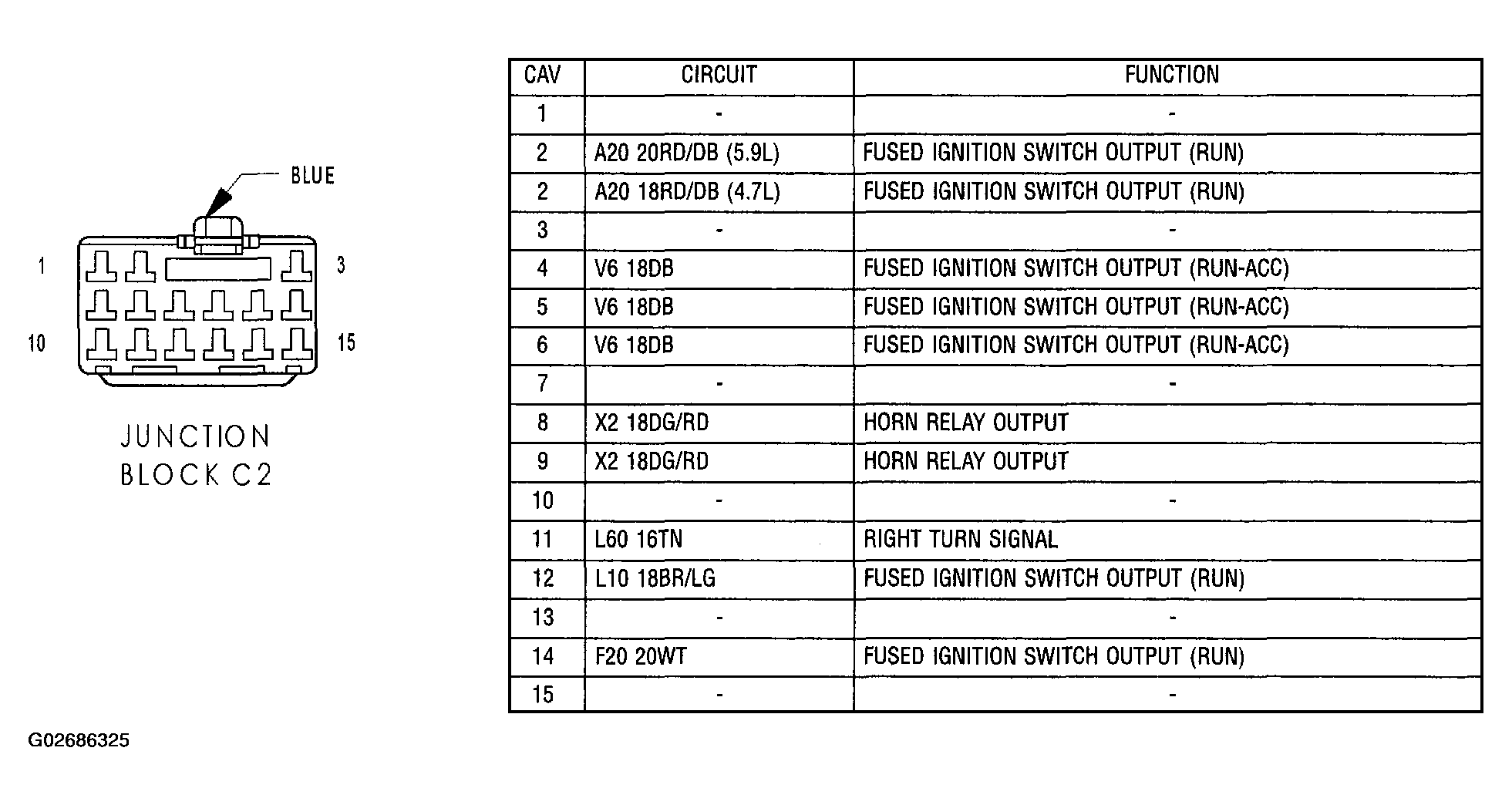

Fig 47: Identifying Junction Block C2 Connector Pinouts

G02686325

Courtesy of DAIMLERCHRYSLER CORP.

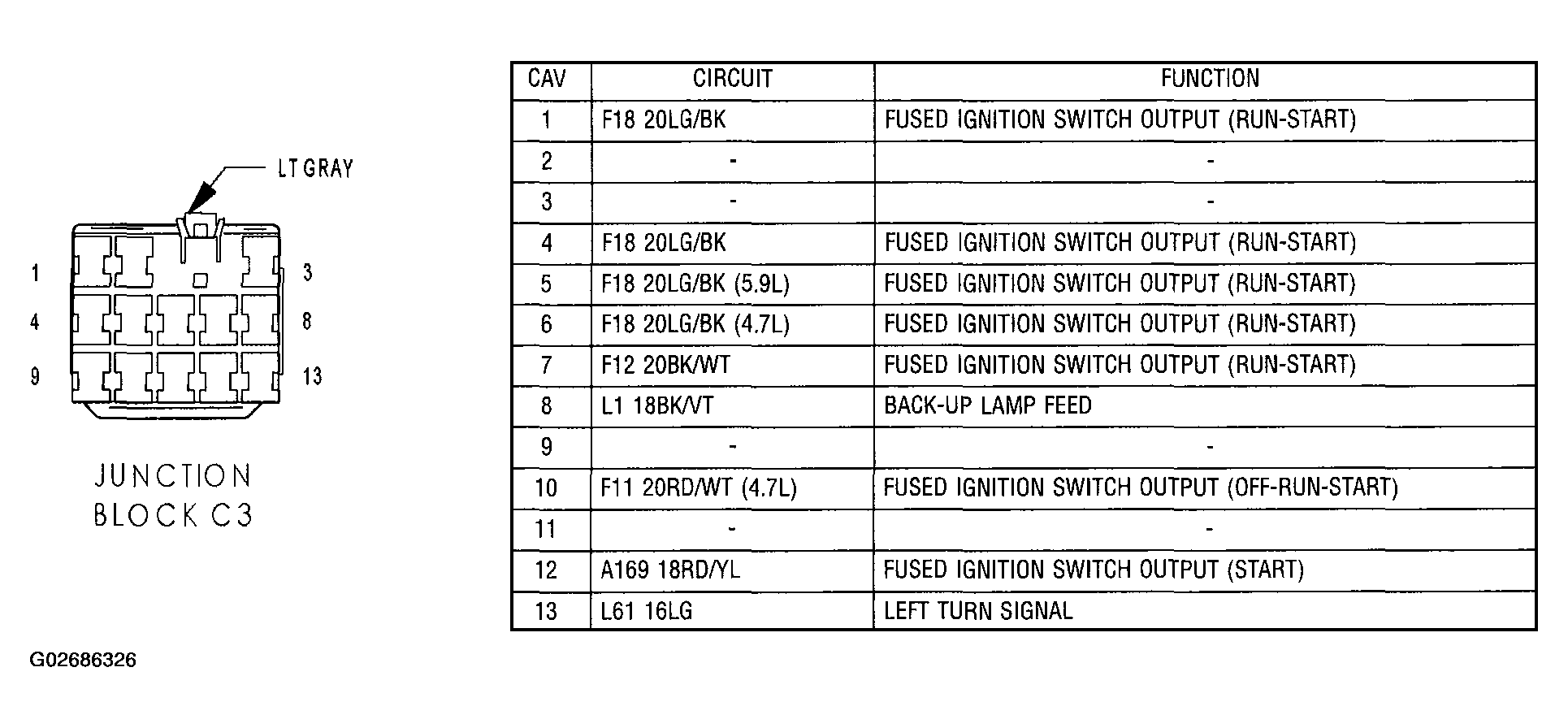

Fig 48: Identifying Junction Block C3 Connector Pinouts

G02686326

Courtesy of DAIMLERCHRYSLER CORP.

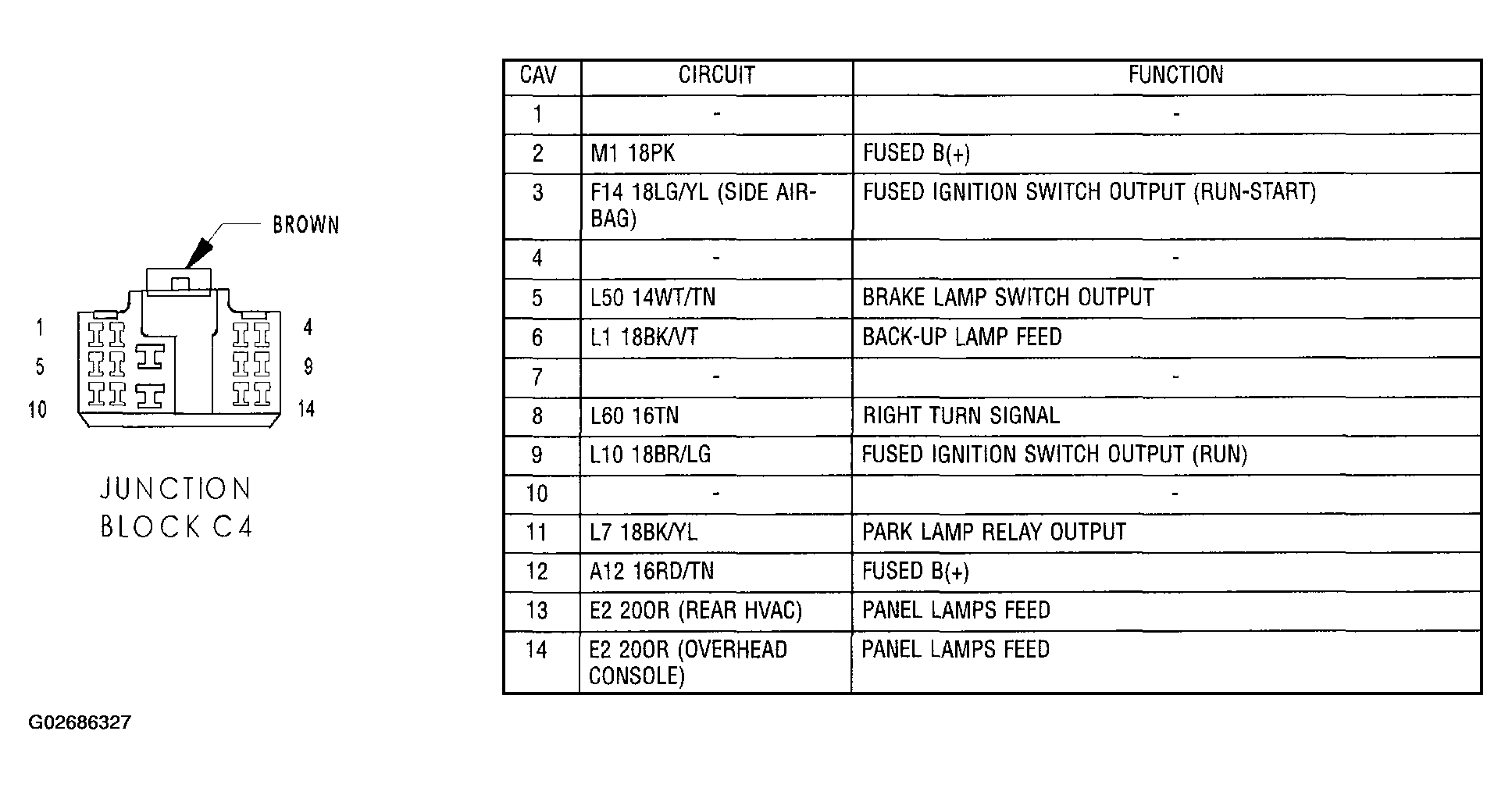

Fig 49: Identifying Junction Block C4 Connector Pinouts

G02686327

Courtesy of DAIMLERCHRYSLER CORP.

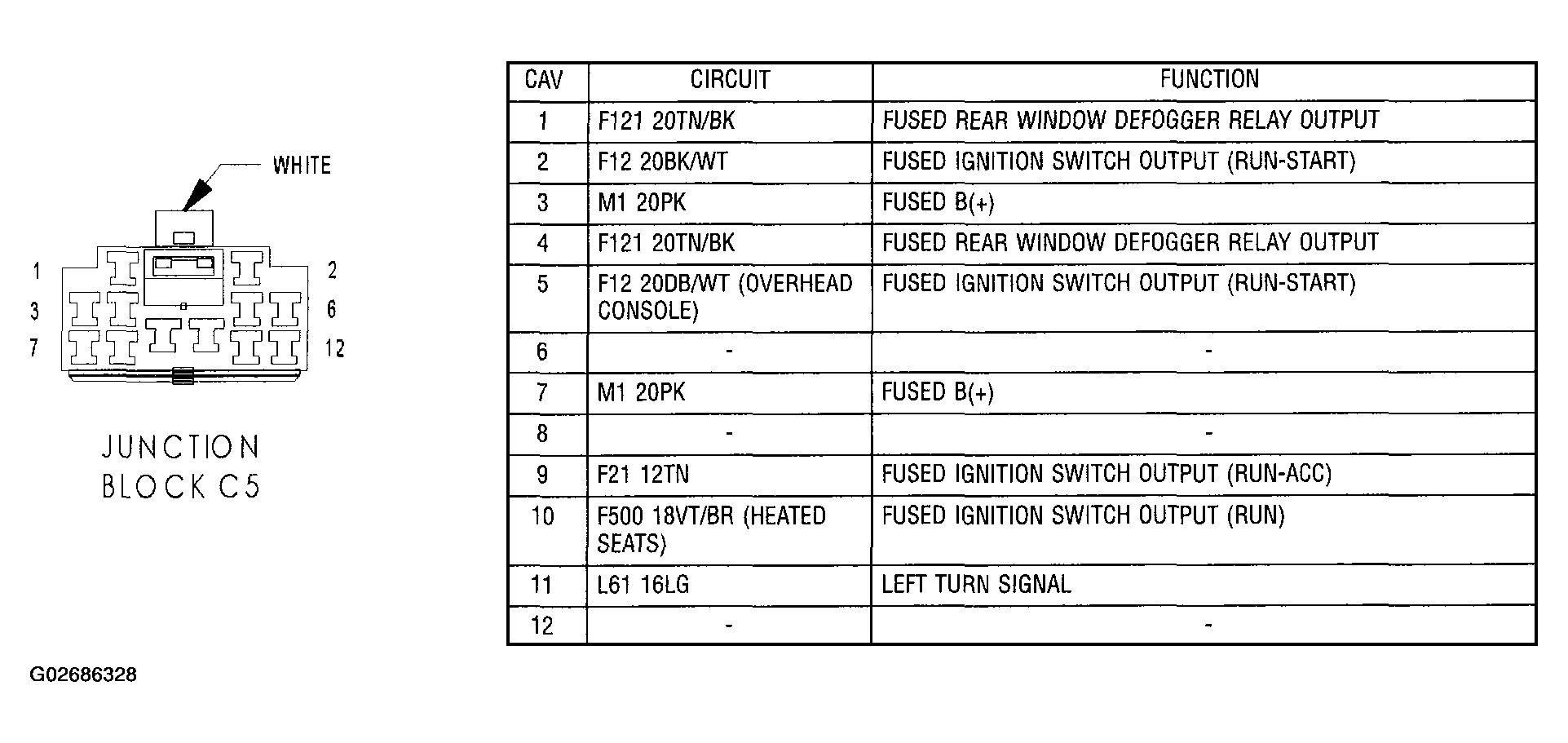

Fig 50: Identifying Junction Block C5 Connector Pinouts

G02686328

Courtesy of DAIMLERCHRYSLER CORP.

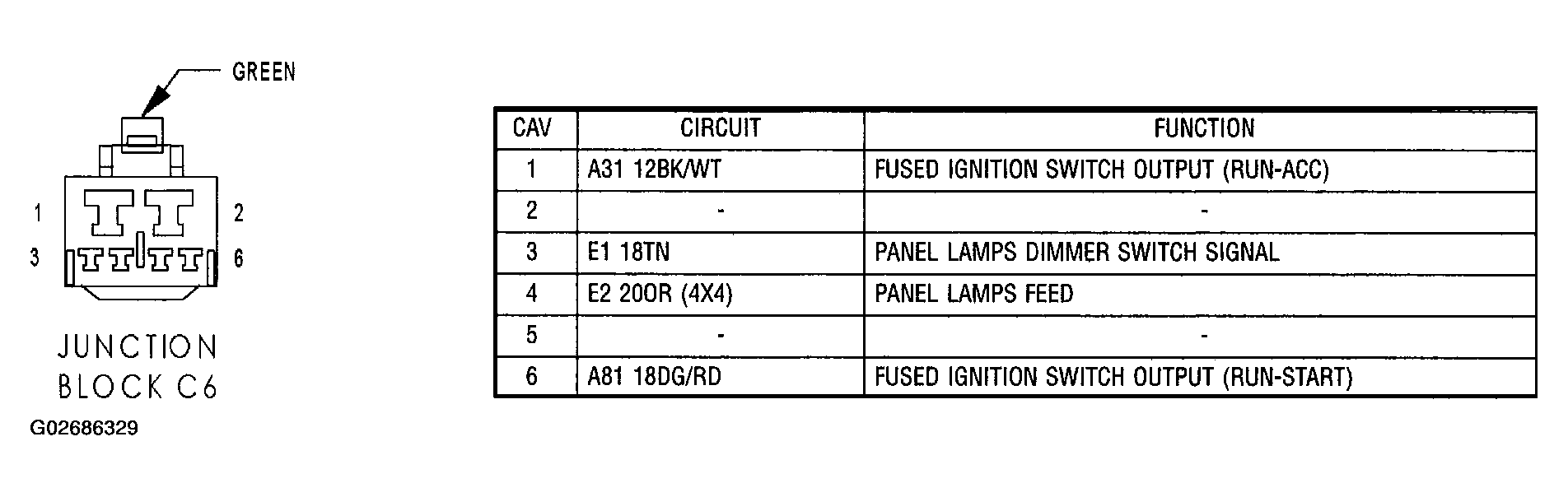

Fig 51: Identifying Junction Block C6 Connector Pinouts

G02686329

Courtesy of DAIMLERCHRYSLER CORP.

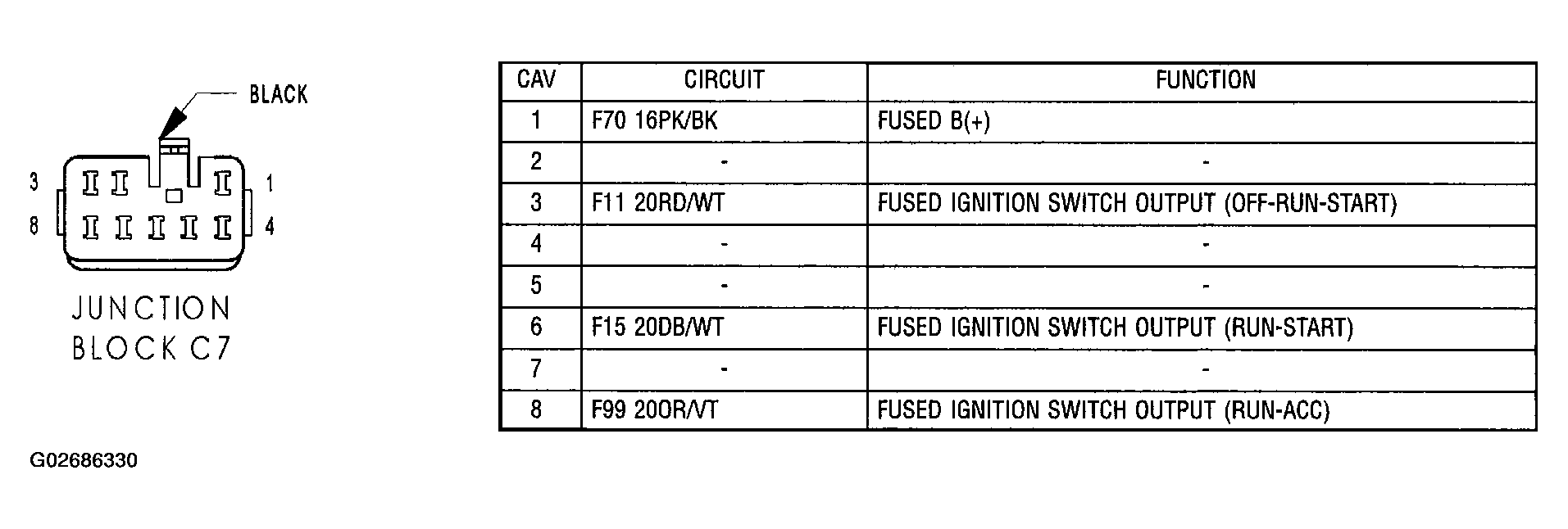

Fig 52: Identifying Junction Block C7 Connector Pinouts

G02686330

Courtesy of DAIMLERCHRYSLER CORP.

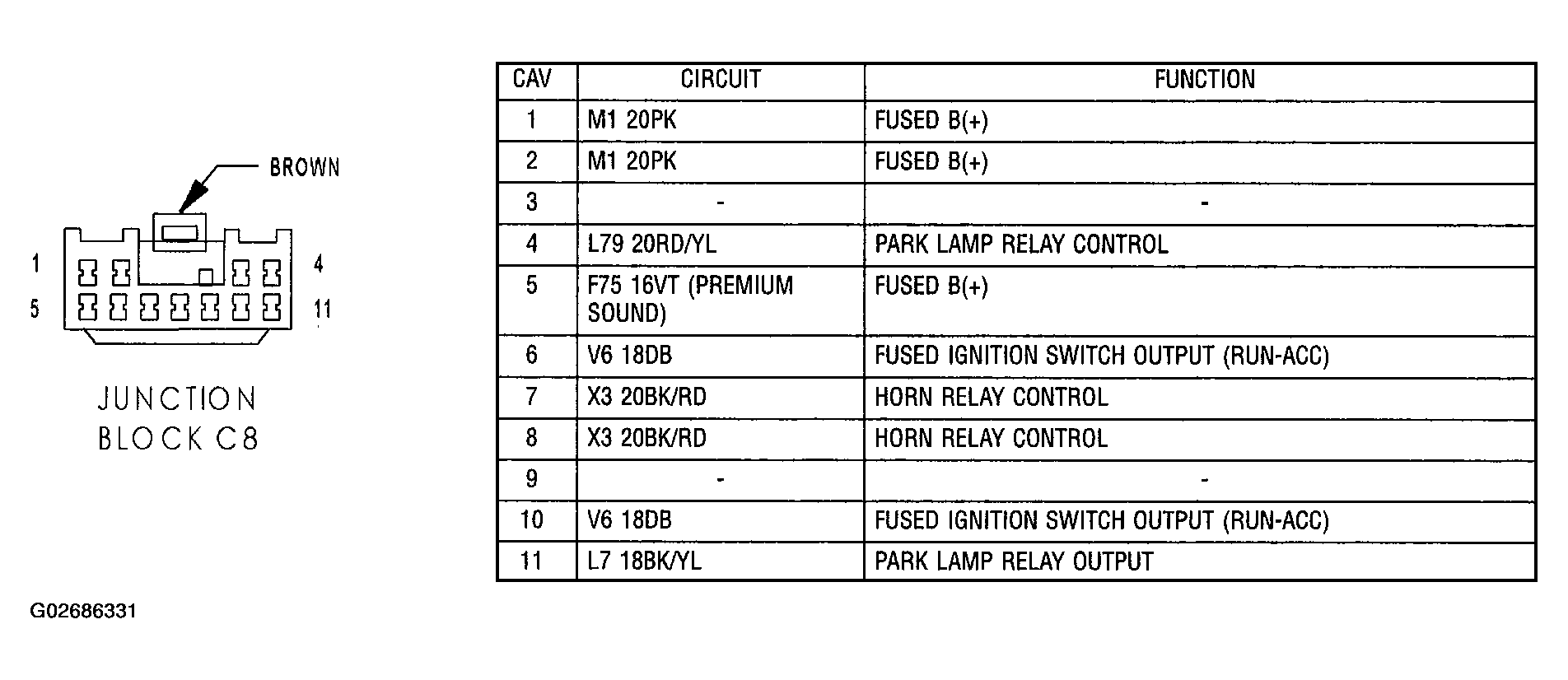

Fig 53: Identifying Junction Block C8 Connector Pinouts

G02686331

Courtesy of DAIMLERCHRYSLER CORP.

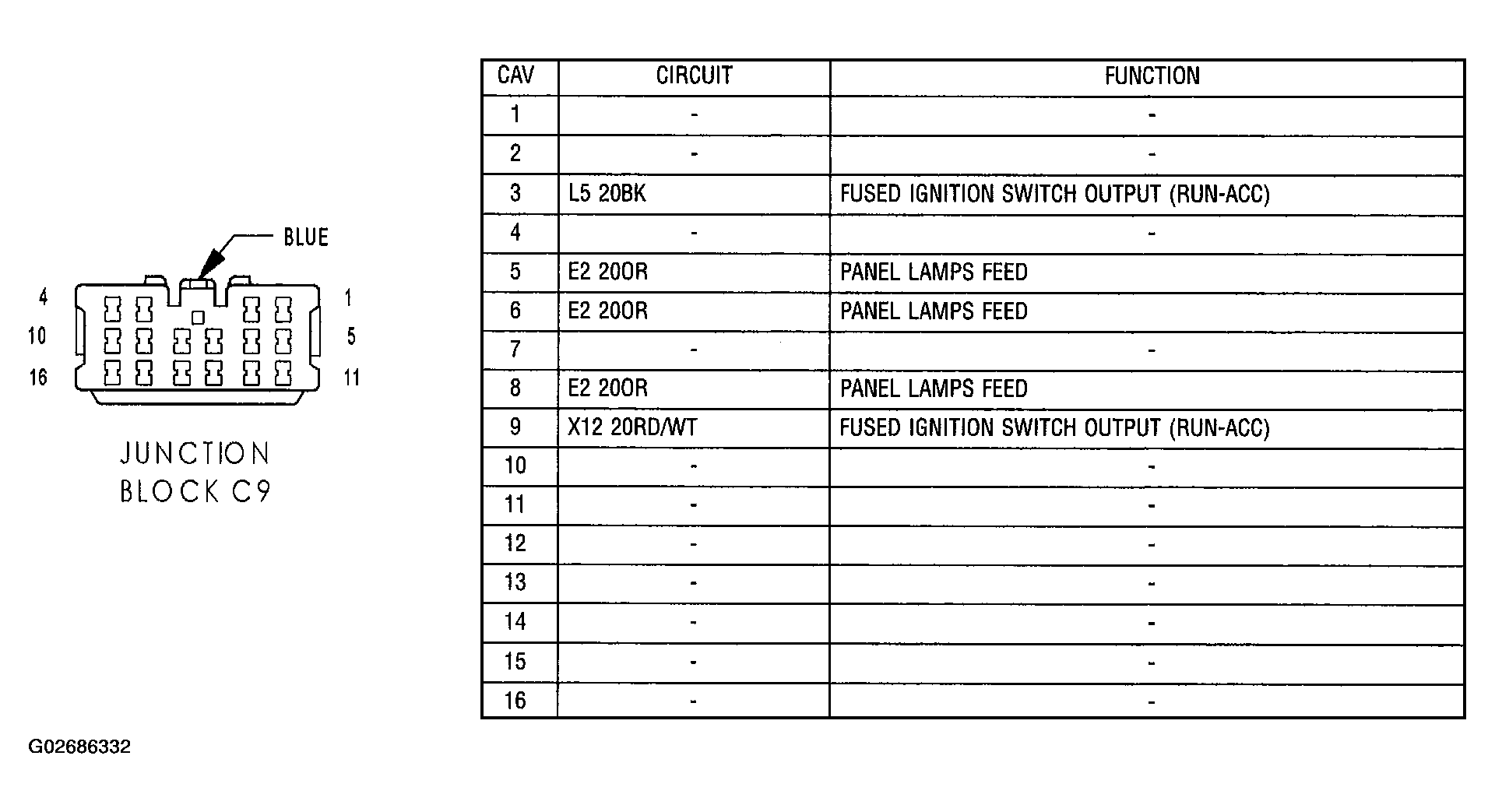

Fig 54: Identifying Junction Block C9 Connector Pinouts

G02686332

Courtesy of DAIMLERCHRYSLER CORP.

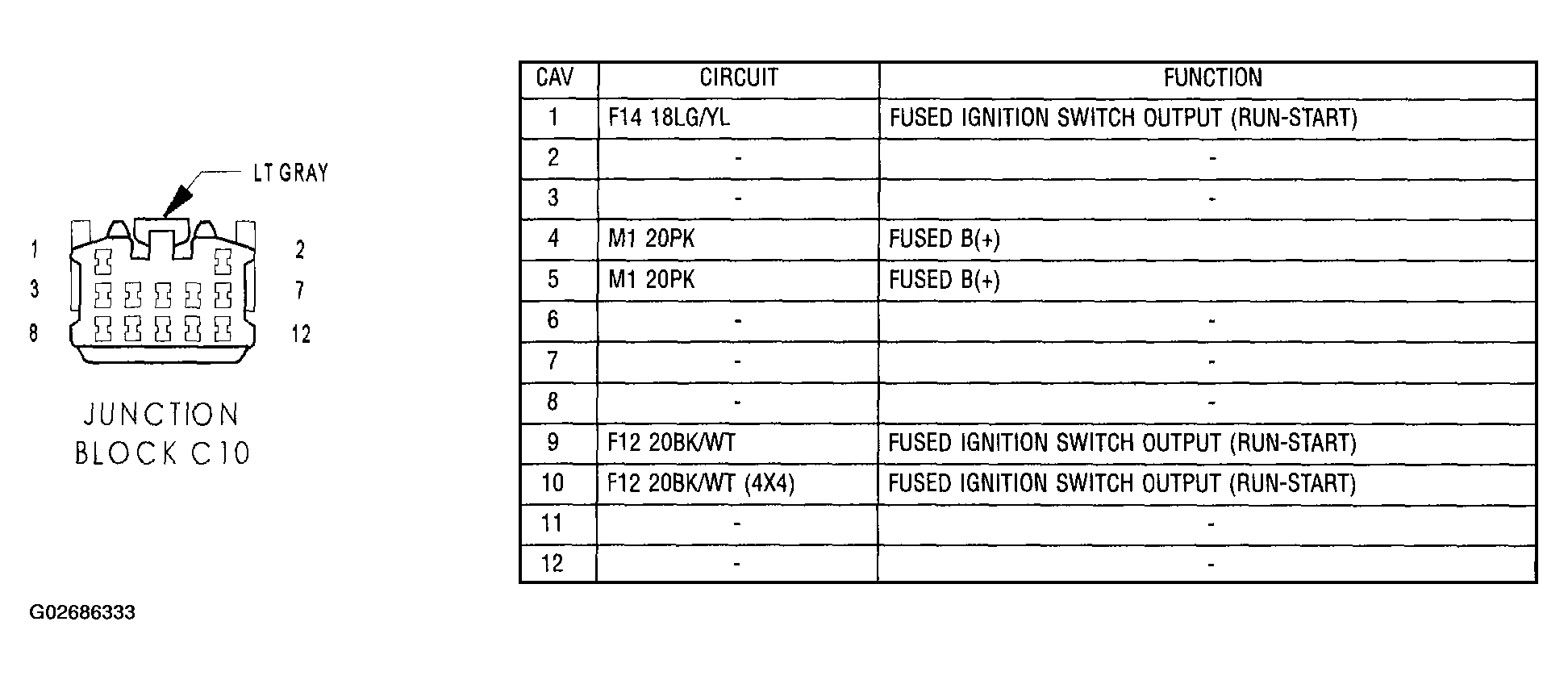

Fig 55: Identifying Junction Block C10 Connector Pinouts

G02686333

Courtesy of DAIMLERCHRYSLER CORP.

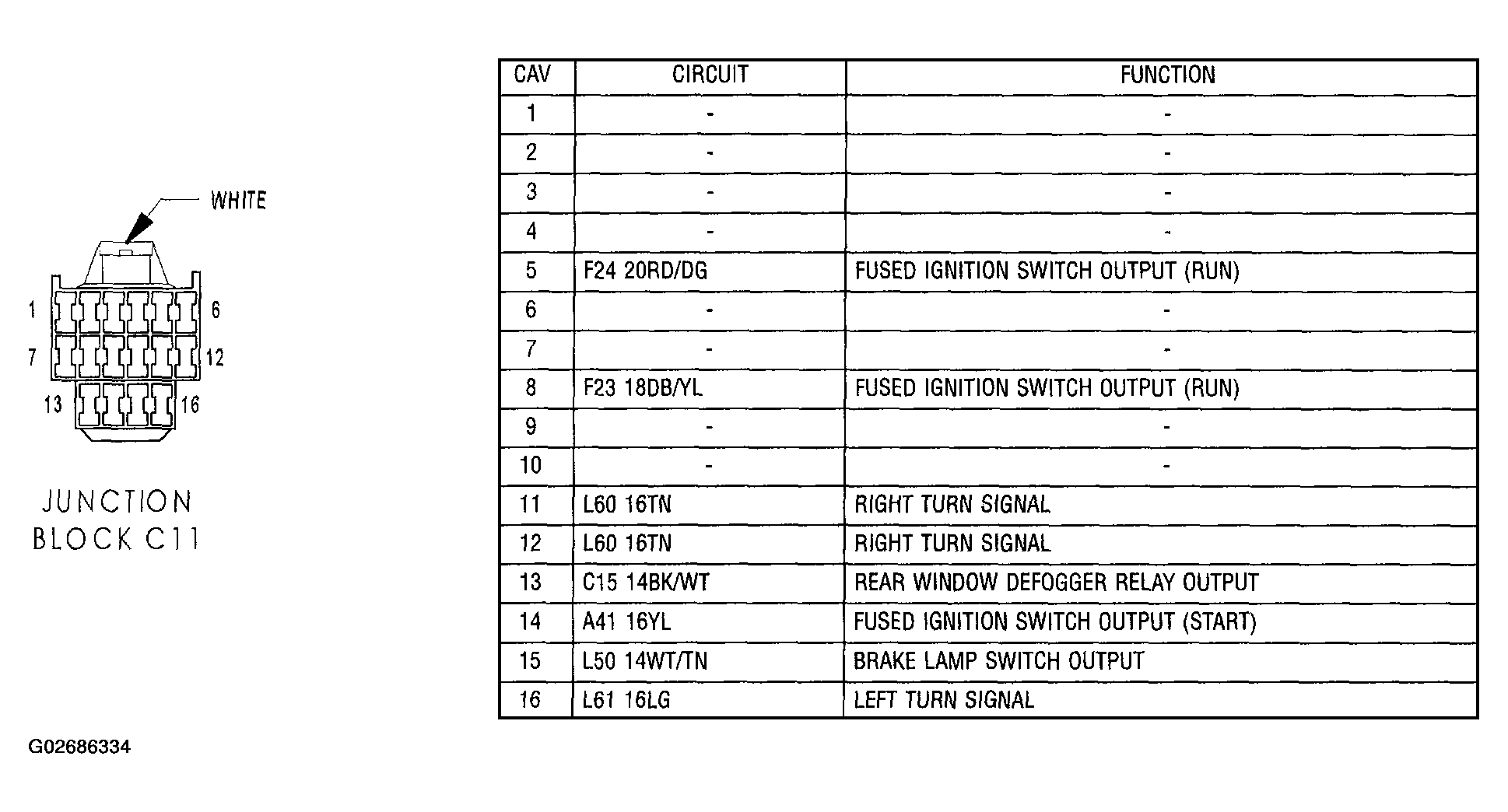

Fig 56: Identifying Junction Block C11 Connector Pinouts

G02686334

Courtesy of DAIMLERCHRYSLER CORP.

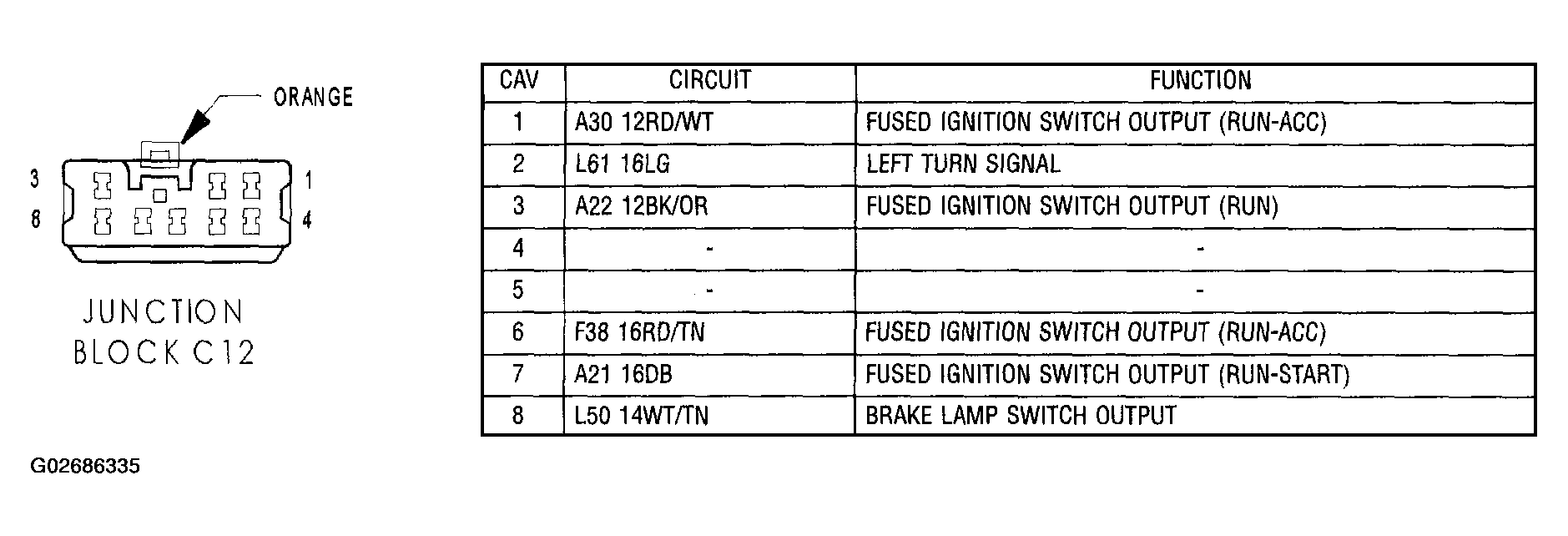

Fig 57: Identifying Junction Block C12 Connector Pinouts

G02686335

Courtesy of DAIMLERCHRYSLER CORP.

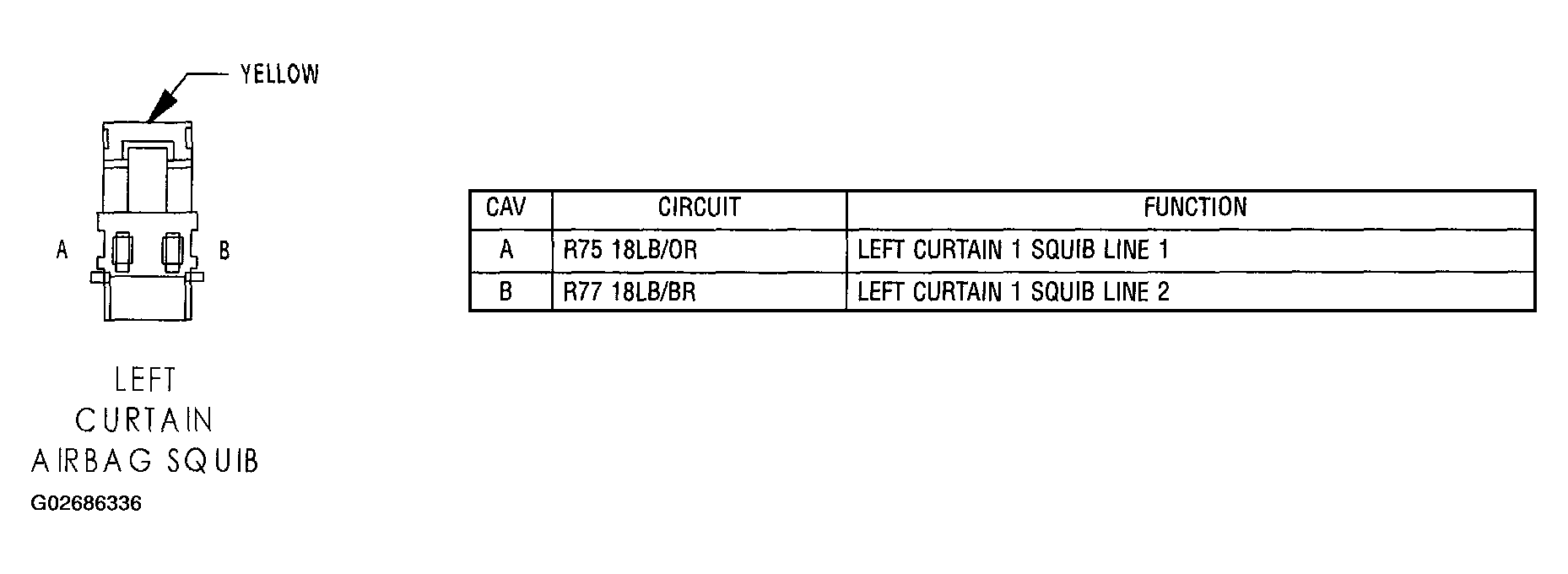

Fig 58: Identifying Left Curtain Airbag Squib Connector Pinouts

G02686336

Courtesy of DAIMLERCHRYSLER CORP.

Fig 59: Identifying Left Fog Lamp Connector Pinouts

G02686337

Courtesy of DAIMLERCHRYSLER CORP.

Fig 60: Identifying Left Front Door Tweeter (Premium) Connector Pinouts

G02686338

Courtesy of DAIMLERCHRYSLER CORP.

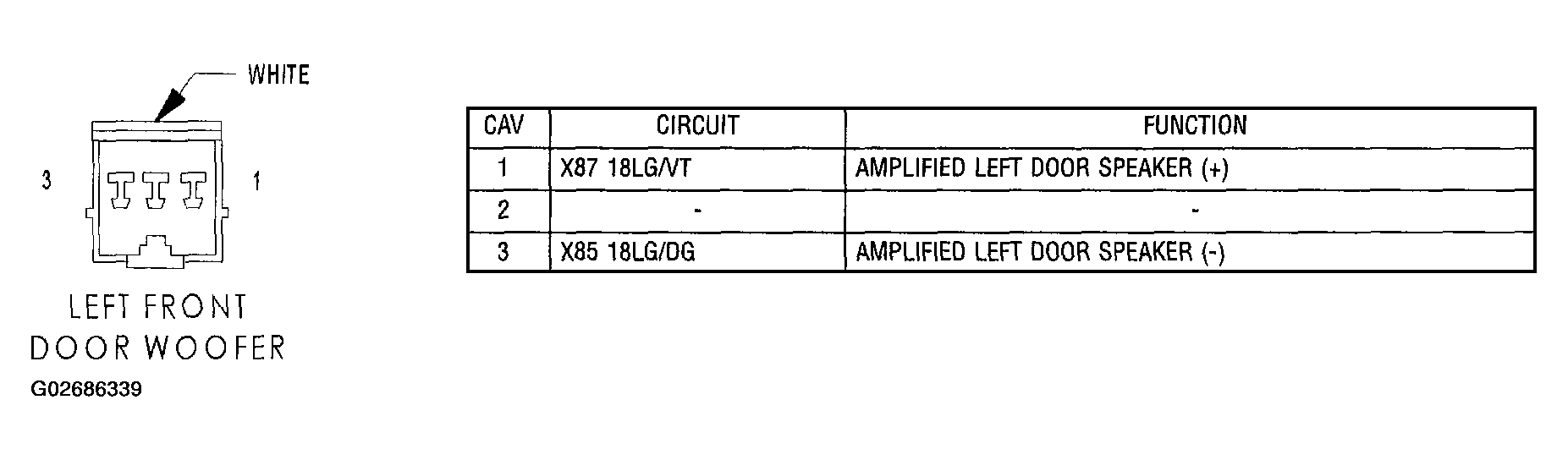

Fig 61: Identifying Left Front Door Woofer Connector Pinouts

G02686339

Courtesy of DAIMLERCHRYSLER CORP.

Fig 62: Identifying Left Headlamp Connector Pinouts

G02686340

Courtesy of DAIMLERCHRYSLER CORP.

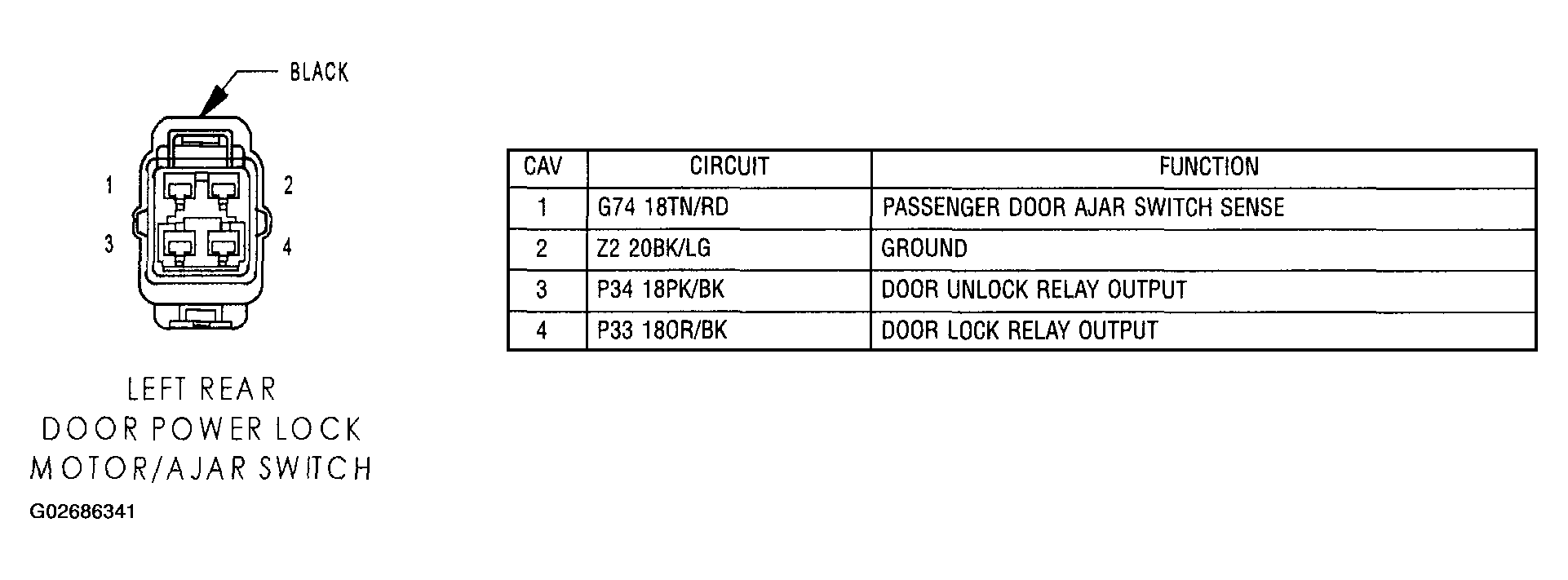

Fig 63: Identifying Left Rear Door Power Lock Motor/Ajar Switch Connector Pinouts

G02686341

Courtesy of DAIMLERCHRYSLER CORP.

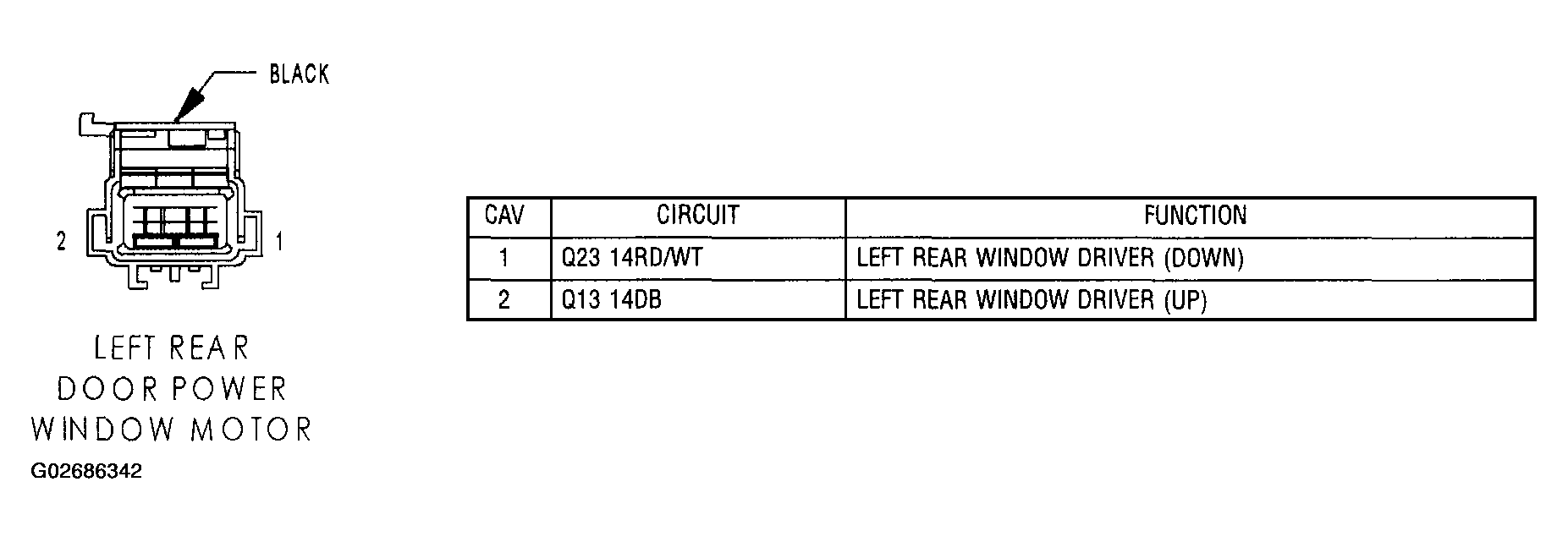

Fig 64: Identifying Left Rear Door Power Window Motor Connector Pinouts

G02686342

Courtesy of DAIMLERCHRYSLER CORP.

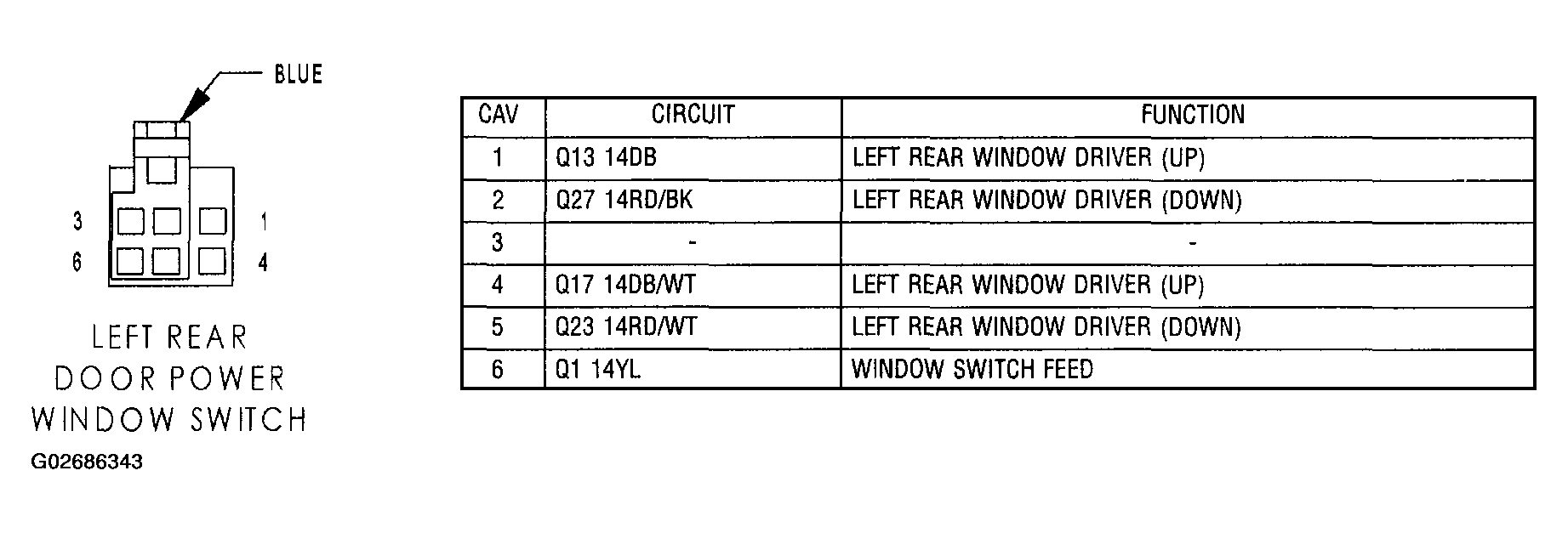

Fig 65: Identifying Left Rear Door Power Window Switch Connector Pinouts

G02686343

Courtesy of DAIMLERCHRYSLER CORP.

Fig 66: Identifying Left Rear Door Tweeter Connector Pinouts

G02686344

Courtesy of DAIMLERCHRYSLER CORP.

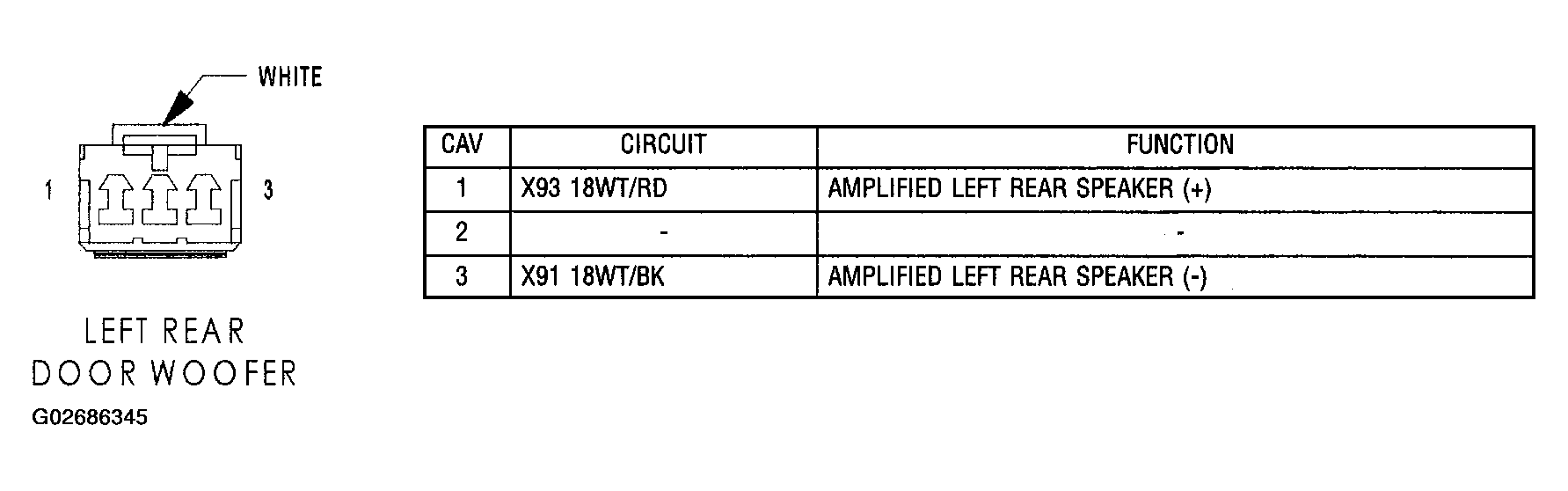

Fig 67: Identifying Left Rear Door Woofer Connector Pinouts

G02686345

Courtesy of DAIMLERCHRYSLER CORP.

Fig 68: Identifying Left Remote Radio Switch (Premium) Connector Pinouts

G02686346

Courtesy of DAIMLERCHRYSLER CORP.

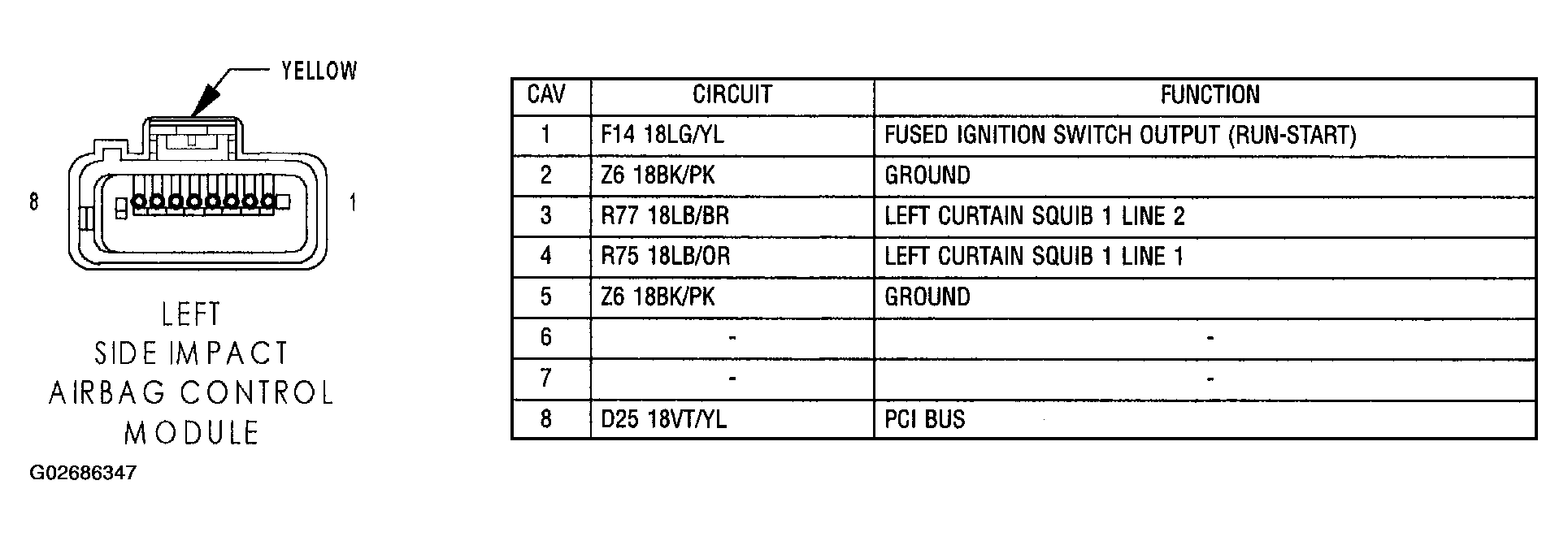

Fig 69: Identifying Left Side Impact Airbag Control Module Connector Pinouts

G02686347

Courtesy of DAIMLERCHRYSLER CORP.

Fig 70: Identifying Liftgate Ajar Switch Connector Pinouts

G02686348

Courtesy of DAIMLERCHRYSLER CORP.

Fig 71: Identifying Liftgate Cylinder Lock Switch (Premium) Connector Pinouts

G02686349

Courtesy of DAIMLERCHRYSLER CORP.

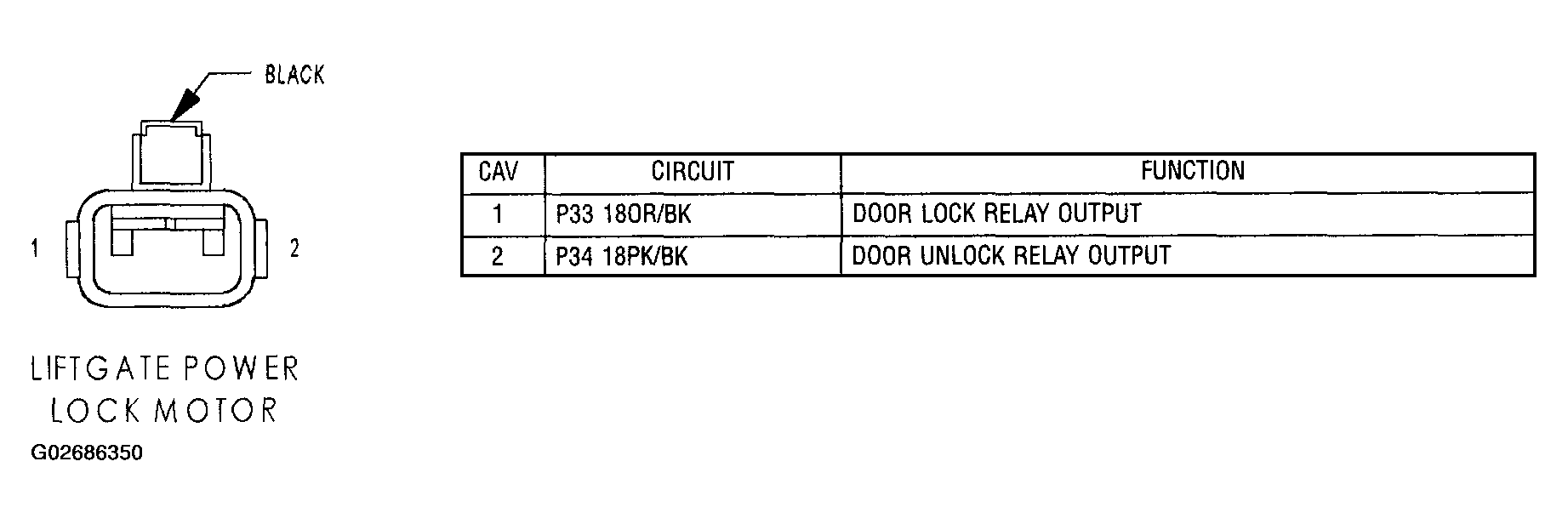

Fig 72: Identifying Liftgate Power Lock Motor Connector Pinouts

G02686350

Courtesy of DAIMLERCHRYSLER CORP.

Fig 73: Identifying Low Note Horn Connector Pinouts

G02686351

Courtesy of DAIMLERCHRYSLER CORP.

Fig 74: Identifying Mode Door Actuator Connector Pinouts

G02686352

Courtesy of DAIMLERCHRYSLER CORP.

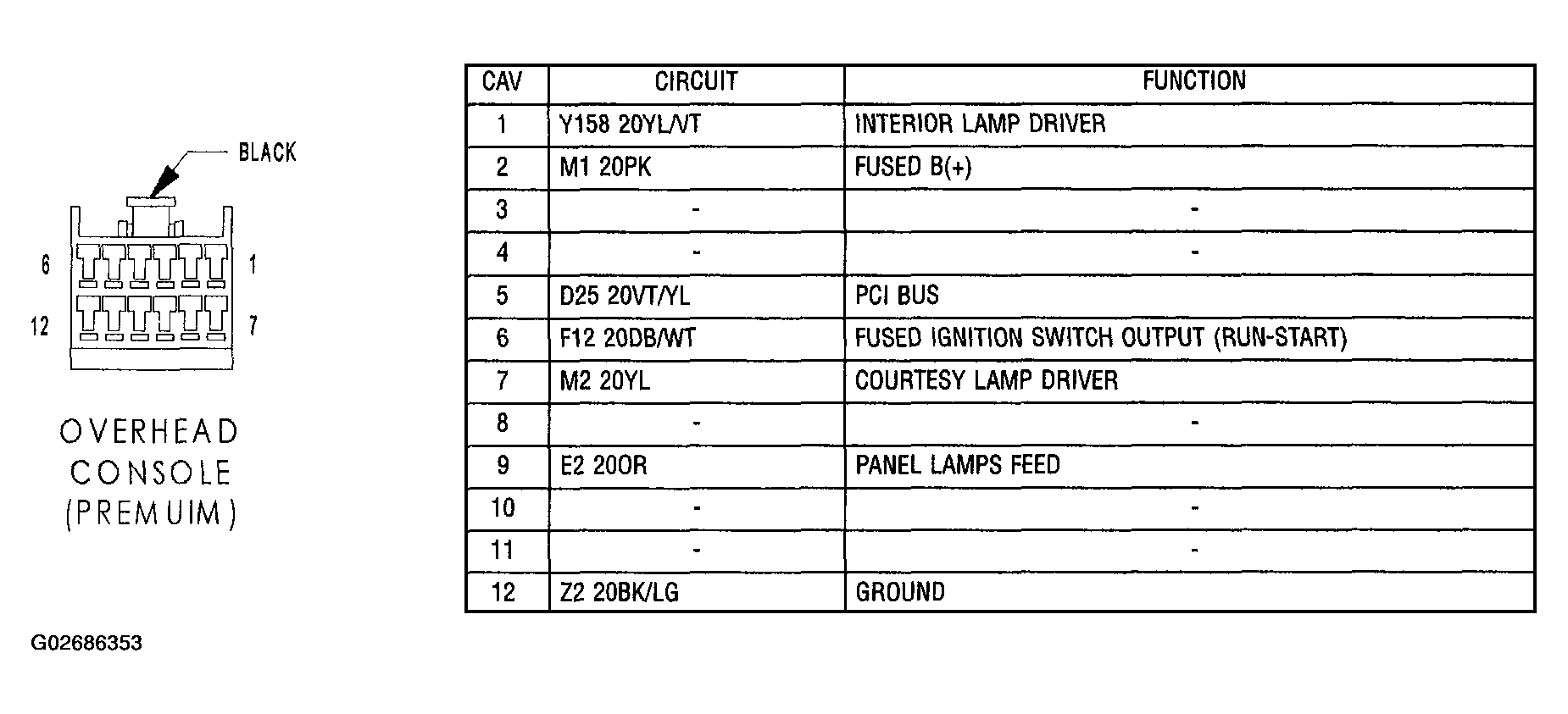

Fig 75: Identifying Overhead Console (Premium) Connector Pinouts

G02686353

Courtesy of DAIMLERCHRYSLER CORP.

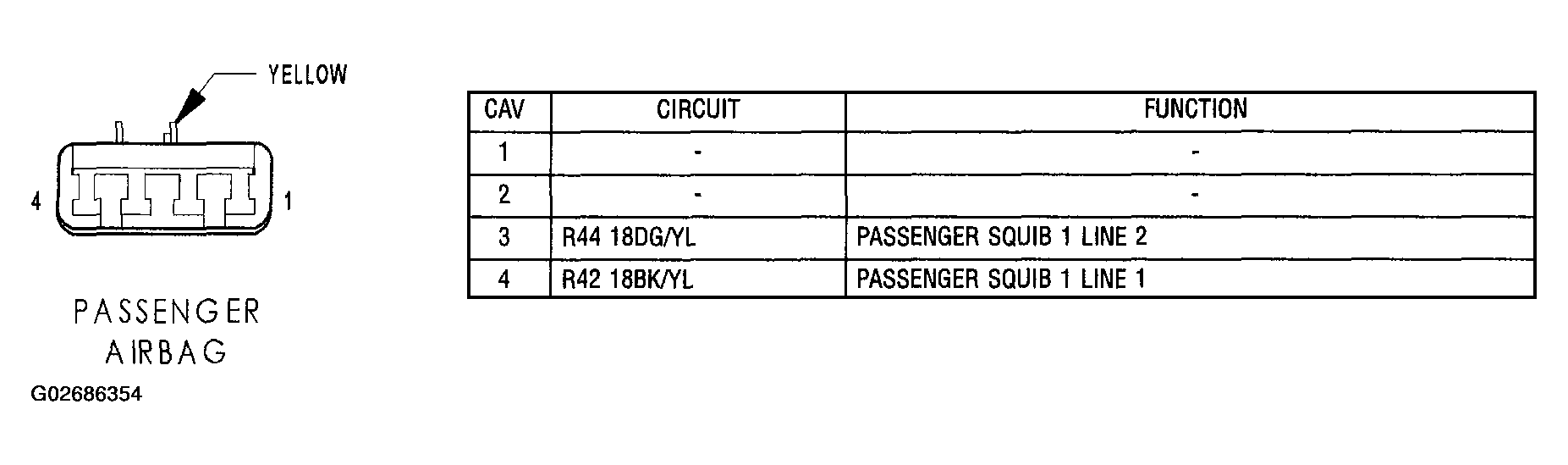

Fig 76: Identifying Passenger Airbag Connector Pinouts

G02686354

Courtesy of DAIMLERCHRYSLER CORP.

Fig 77: Identifying Passenger Blend Door Actuator Connector Pinouts

G02686355

Courtesy of DAIMLERCHRYSLER CORP.

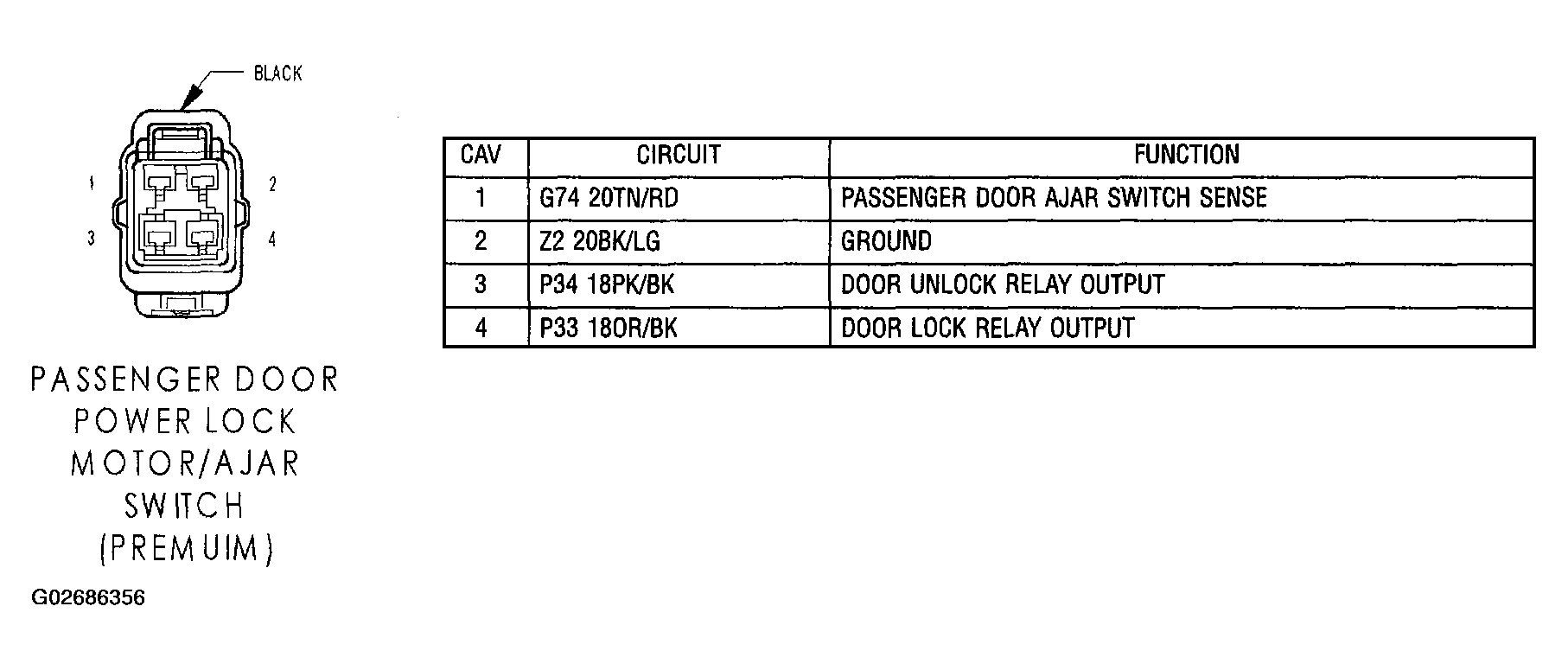

Fig 78: Identifying Passenger Door Power Lock Motor/Ajar Switch (Premium) Connector Pinouts

G02686356

Courtesy of DAIMLERCHRYSLER CORP.

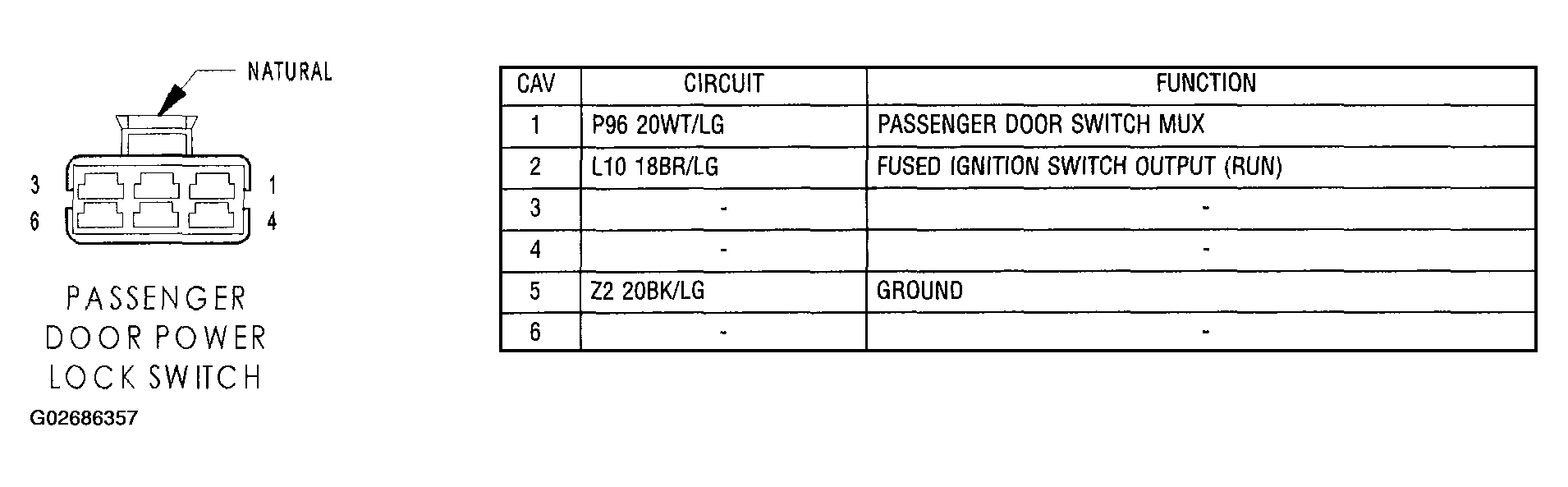

Fig 79: Identifying Passenger Door Power Lock Switch Connector Pinouts

G02686357

Courtesy of DAIMLERCHRYSLER CORP.

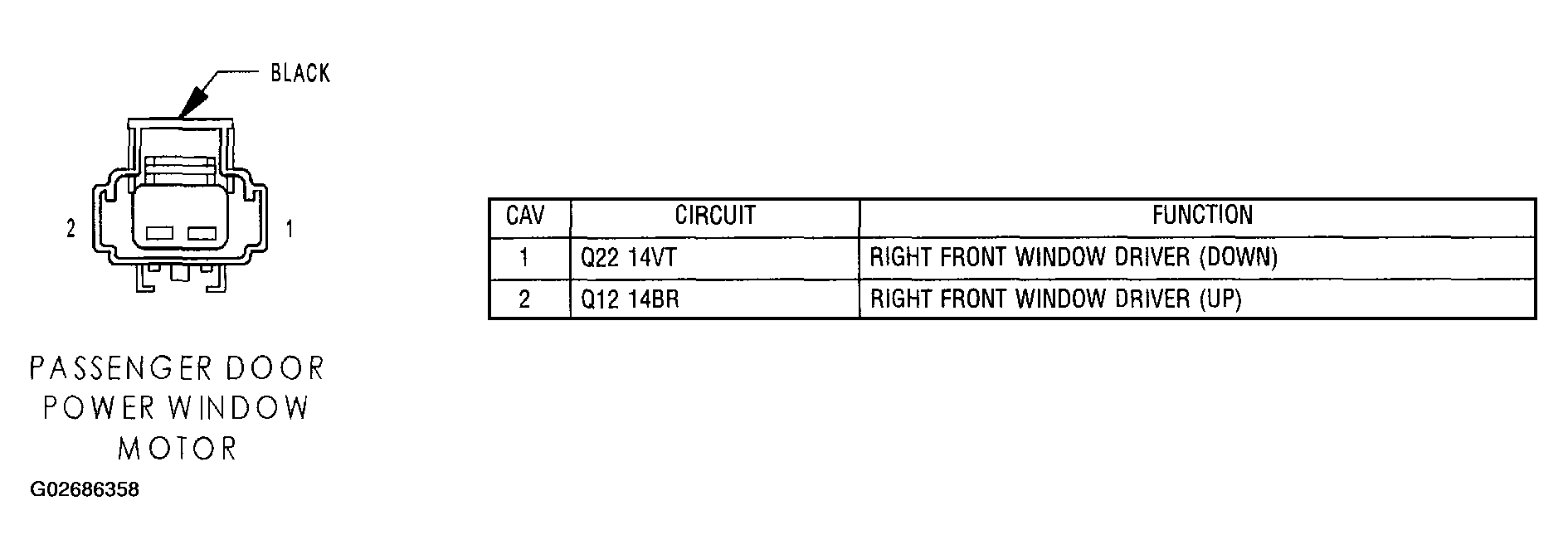

Fig 80: Identifying Passenger Door Power Window Motor Connector Pinouts

G02686358

Courtesy of DAIMLERCHRYSLER CORP.

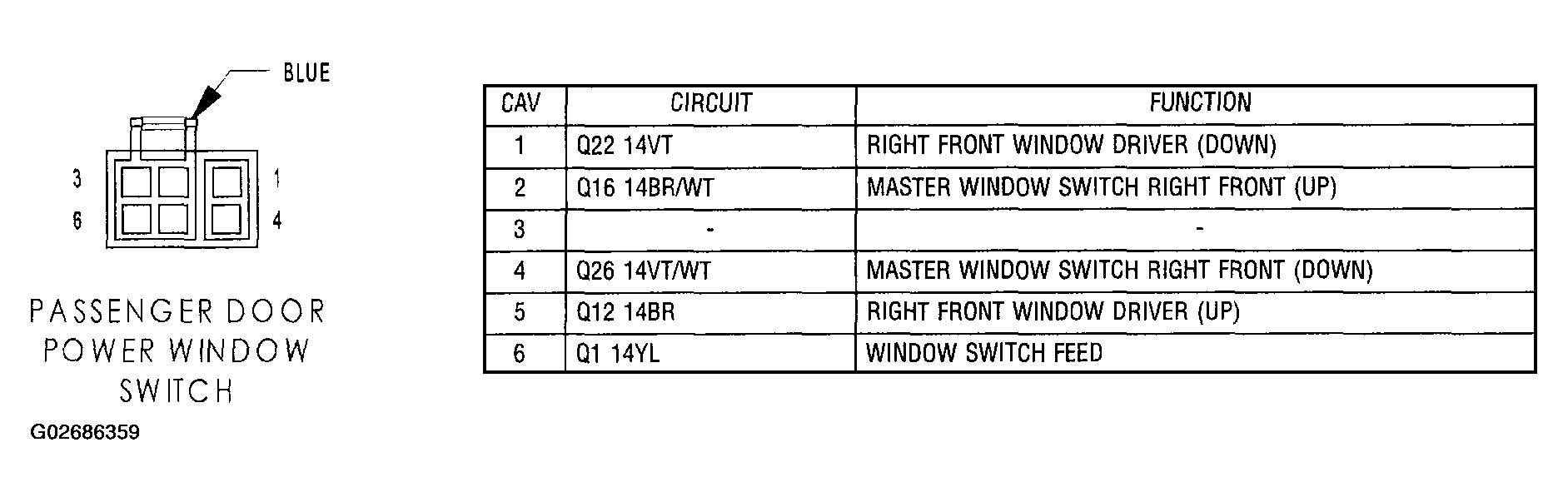

Fig 81: Identifying Passenger Door Power Window Switch Connector Pinouts

G02686359

Courtesy of DAIMLERCHRYSLER CORP.

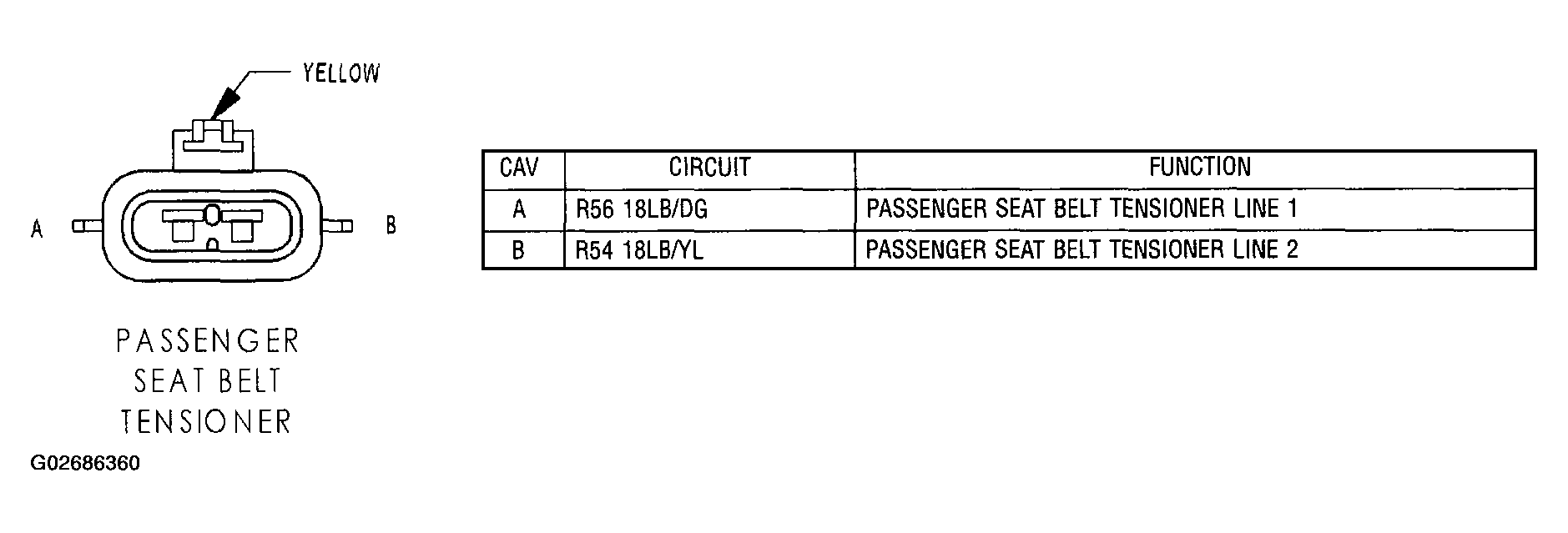

Fig 82: Identifying Passenger Seat Belt Tensioner Connector Pinouts

G02686360

Courtesy of DAIMLERCHRYSLER CORP.

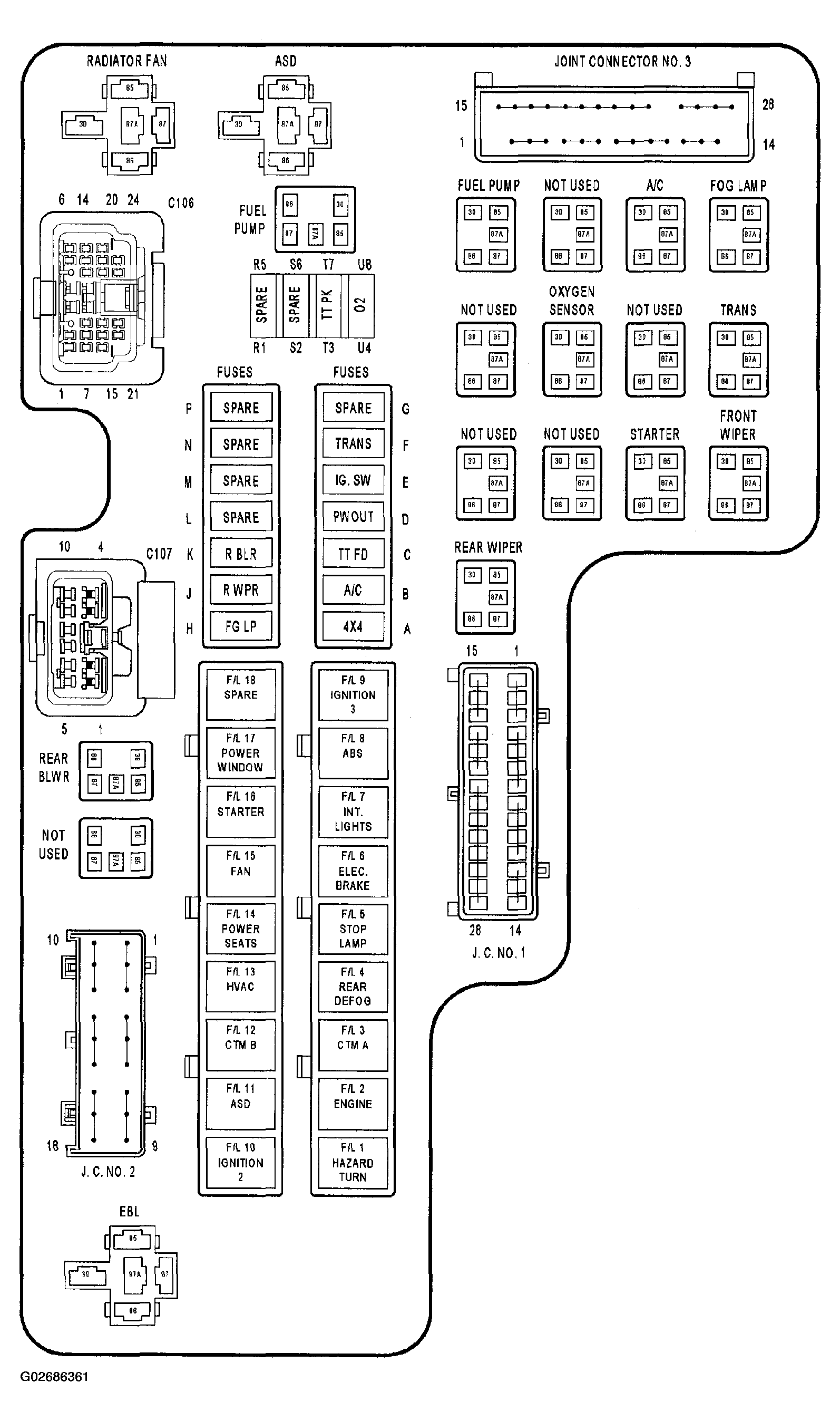

Fig 83: Identifying Power Distribution Center Connector Pinouts

G02686361

Courtesy of DAIMLERCHRYSLER CORP.

Fig 84: Identifying Fog Lamp Relay Connector Pinouts

G02686362

Courtesy of DAIMLERCHRYSLER CORP.

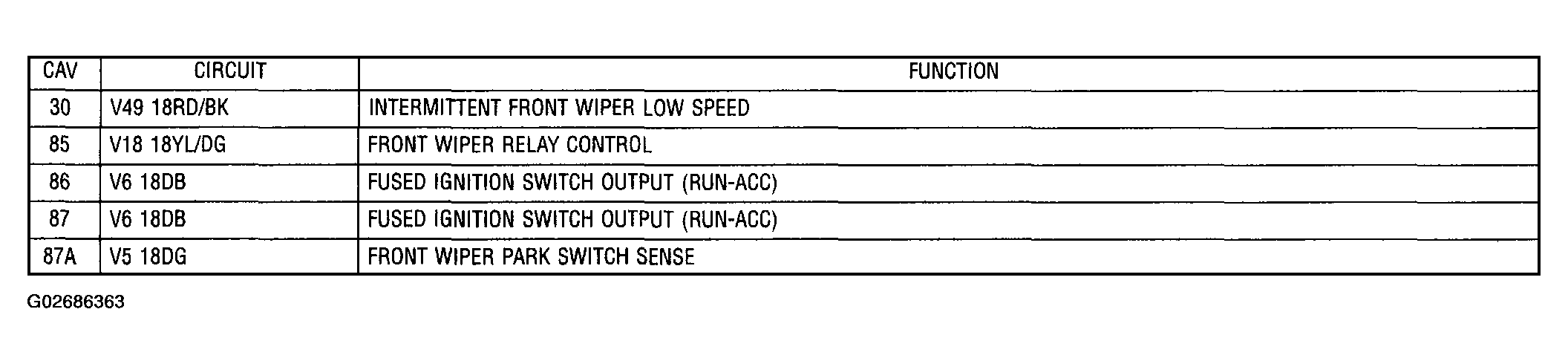

Fig 85: Identifying Front Wiper Relay Connector Pinouts

G02686363

Courtesy of DAIMLERCHRYSLER CORP.

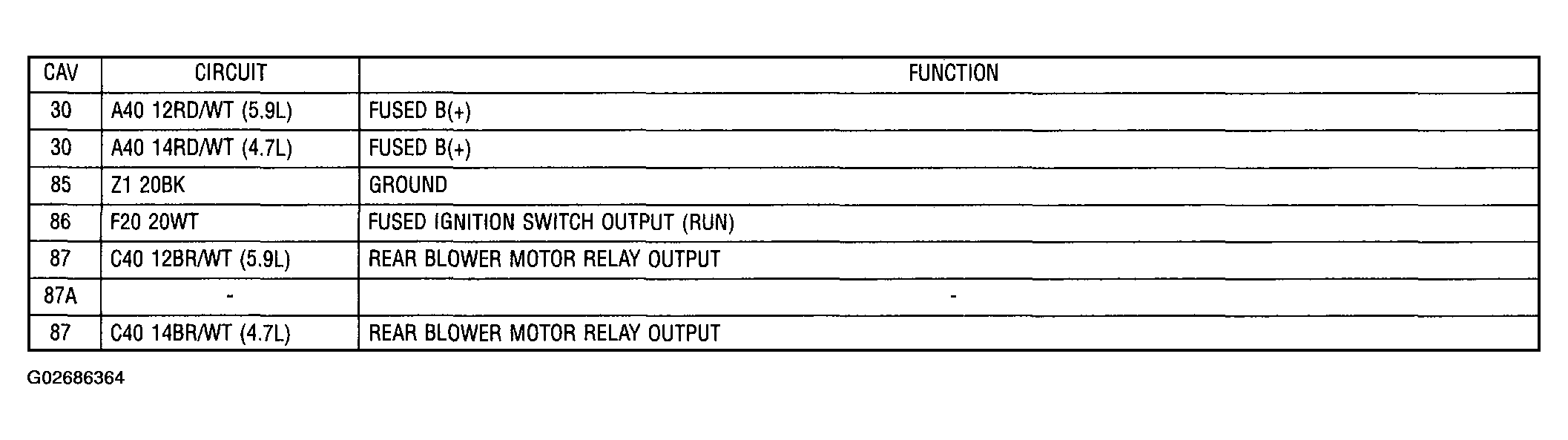

Fig 86: Identifying Rear Blower Motor Relay Connector Pinouts

G02686364

Courtesy of DAIMLERCHRYSLER CORP.

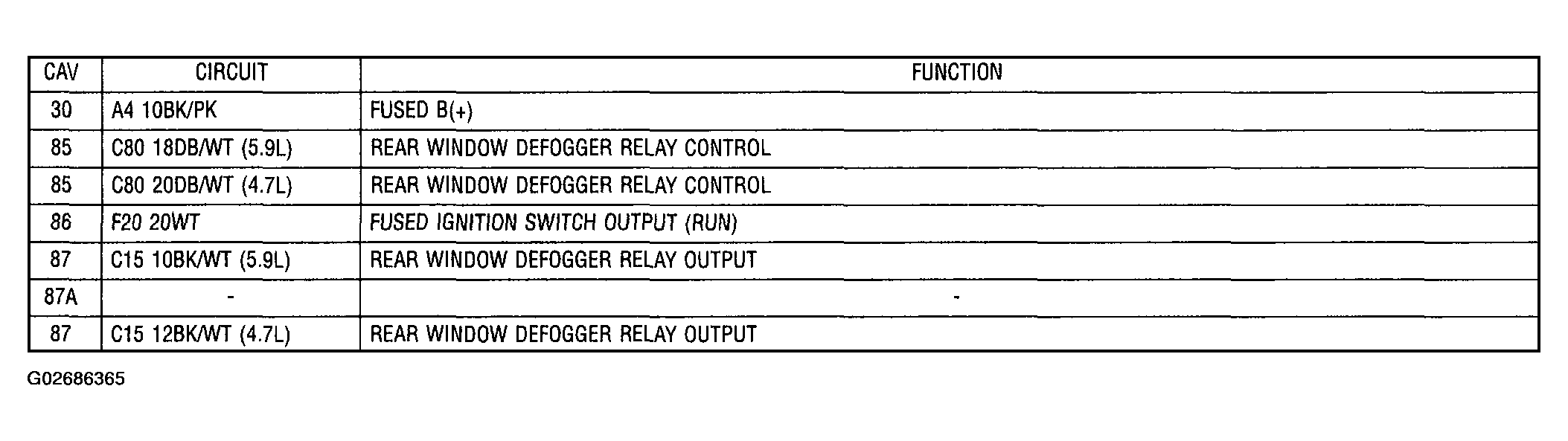

Fig 87: Identifying Rear Window Motor Relay Connector Pinouts

G02686365

Courtesy of DAIMLERCHRYSLER CORP.

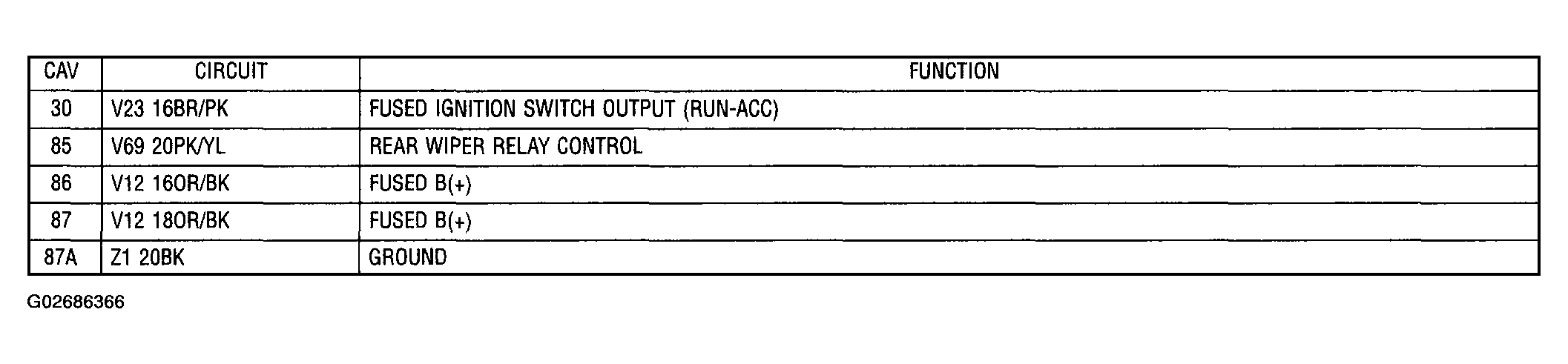

Fig 88: Identifying Rear Wiper Relay Connector Pinouts

G02686366

Courtesy of DAIMLERCHRYSLER CORP.

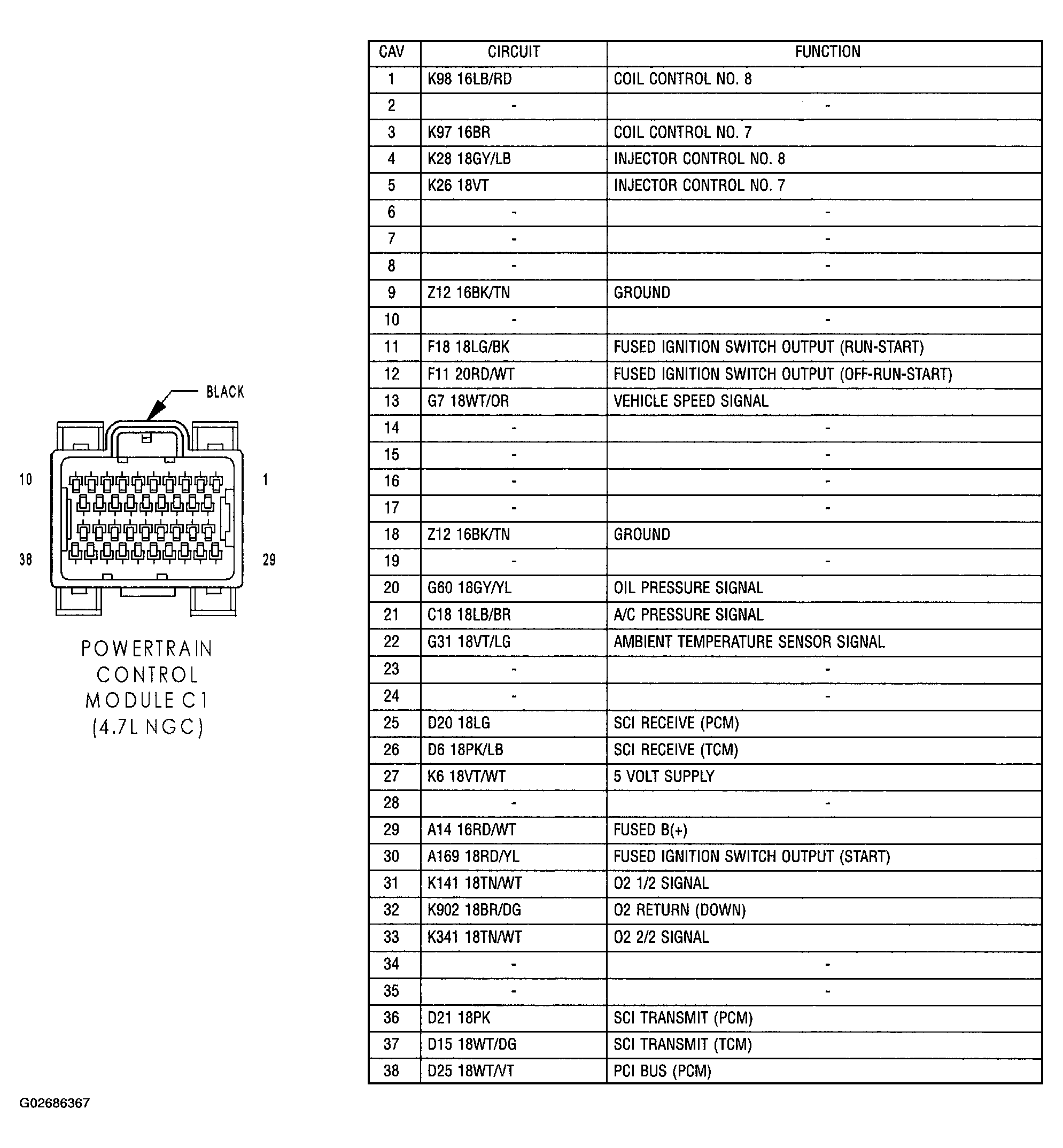

Fig 89: Identifying Powertrain Control Module C1 (4.7L NGC) Connector Pinouts

G02686367

Courtesy of DAIMLERCHRYSLER CORP.

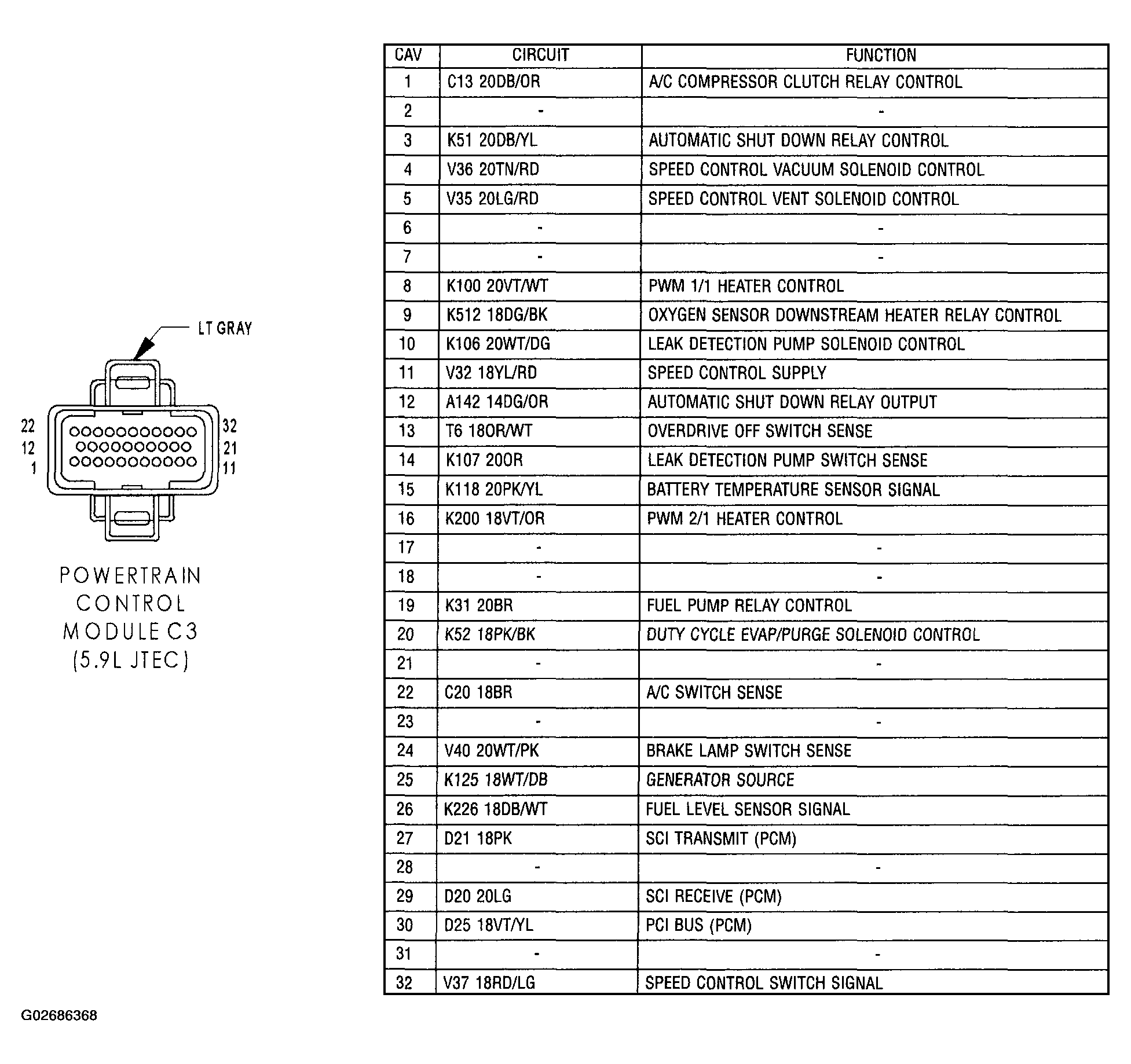

Fig 90: Identifying Powertrain Control Module C3 (5.9L JTEC) Connector Pinouts

G02686368

Courtesy of DAIMLERCHRYSLER CORP.

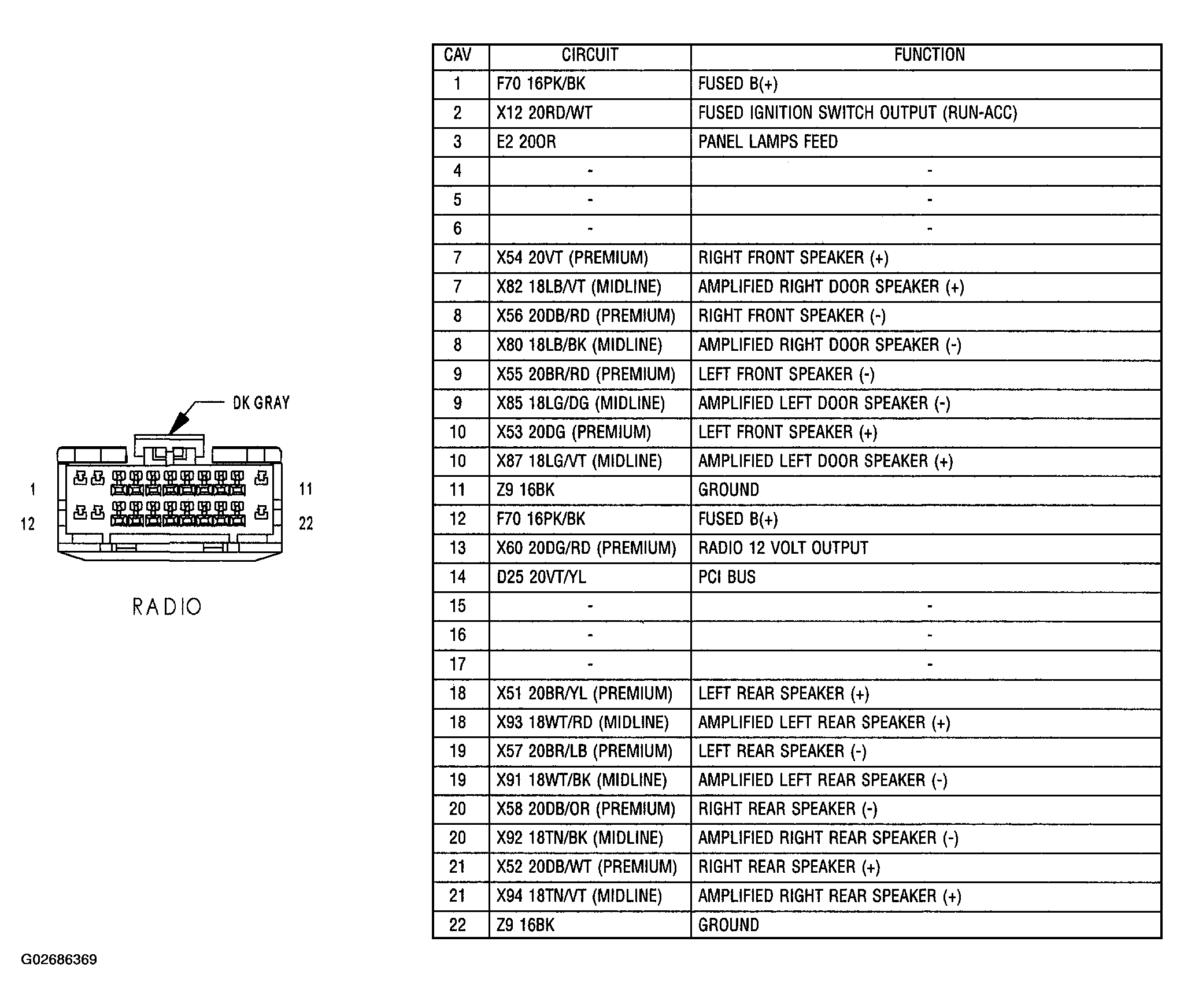

Fig 91: Identifying Radio Connector Pinouts

G02686369

Courtesy of DAIMLERCHRYSLER CORP.

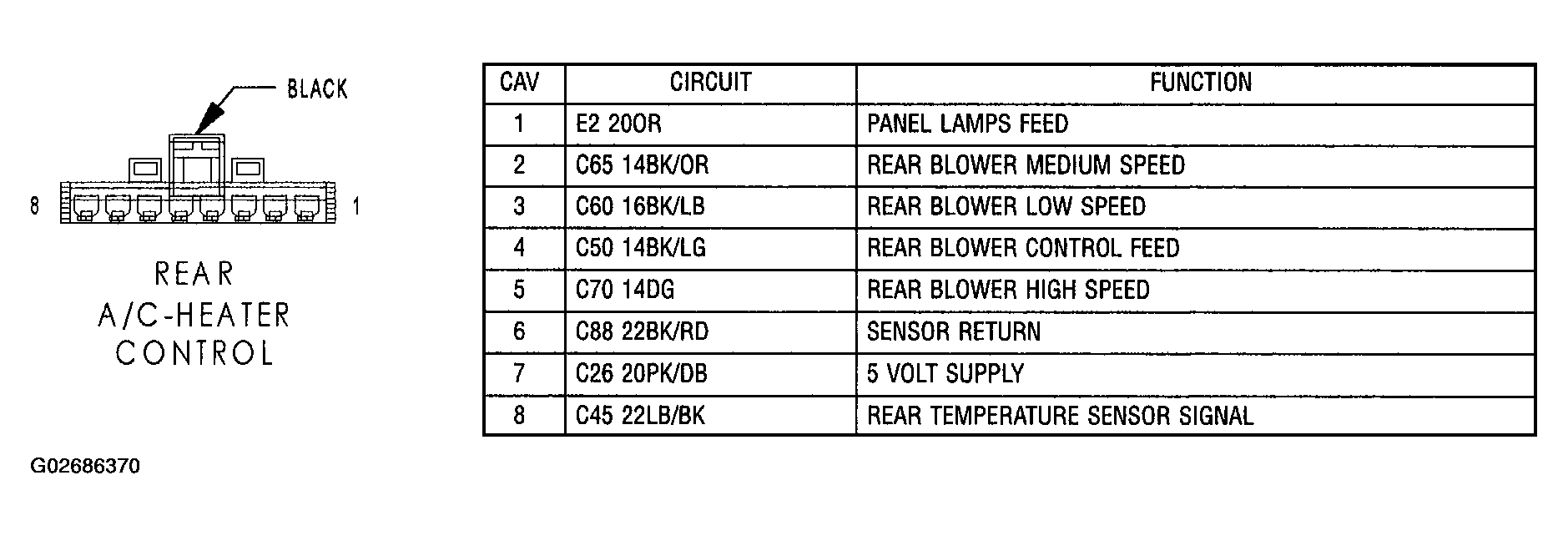

Fig 92: Identifying Rear A/C-Heater Control Connector Pinouts

G02686370

Courtesy of DAIMLERCHRYSLER CORP.

Fig 93: Identifying Rear Blend Door Actuator Connector Pinouts

G02686371

Courtesy of DAIMLERCHRYSLER CORP.

Fig 94: Identifying Rear Blower Motor Connector Pinouts

G02686372

Courtesy of DAIMLERCHRYSLER CORP.

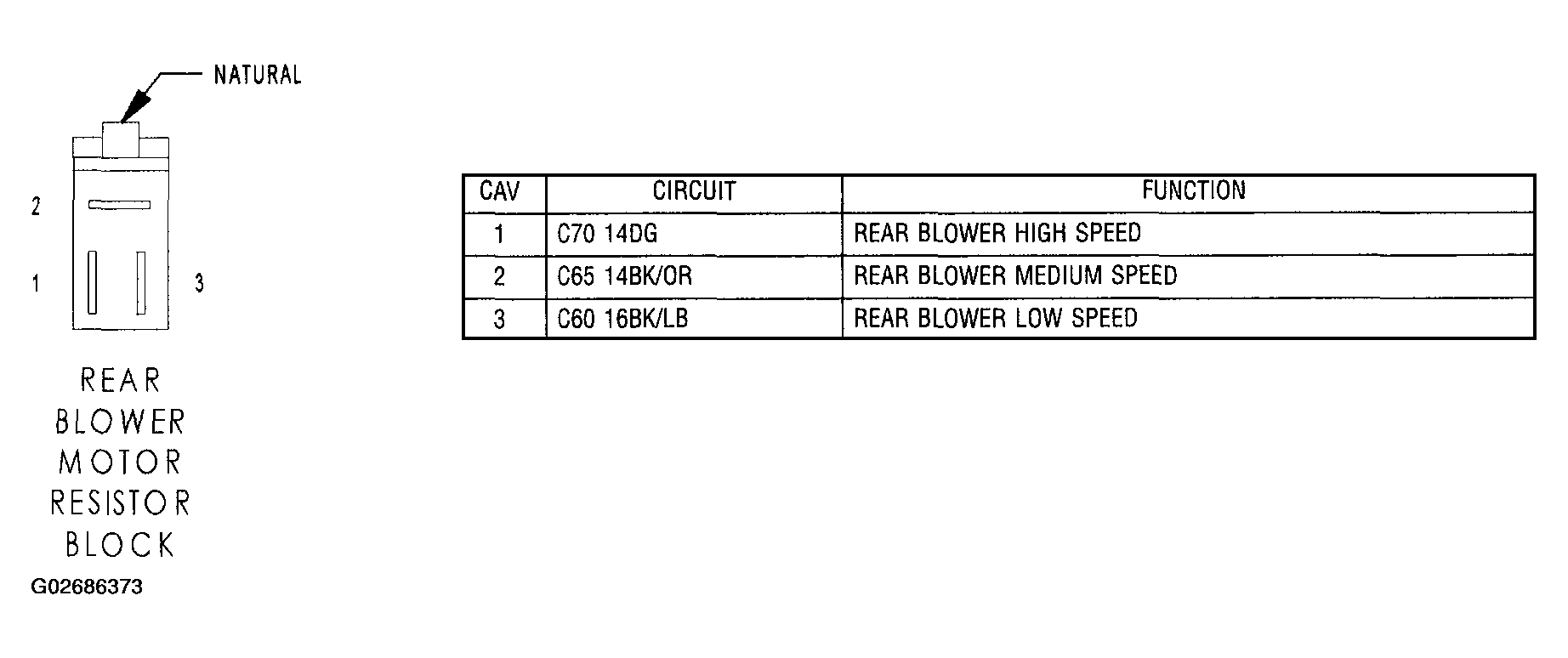

Fig 95: Identifying Rear Blower Motor Resistor Block Connector Pinouts

G02686373

Courtesy of DAIMLERCHRYSLER CORP.

Fig 96: Identifying Rear Dome Lamp Connector Pinouts

G02686374

Courtesy of DAIMLERCHRYSLER CORP.

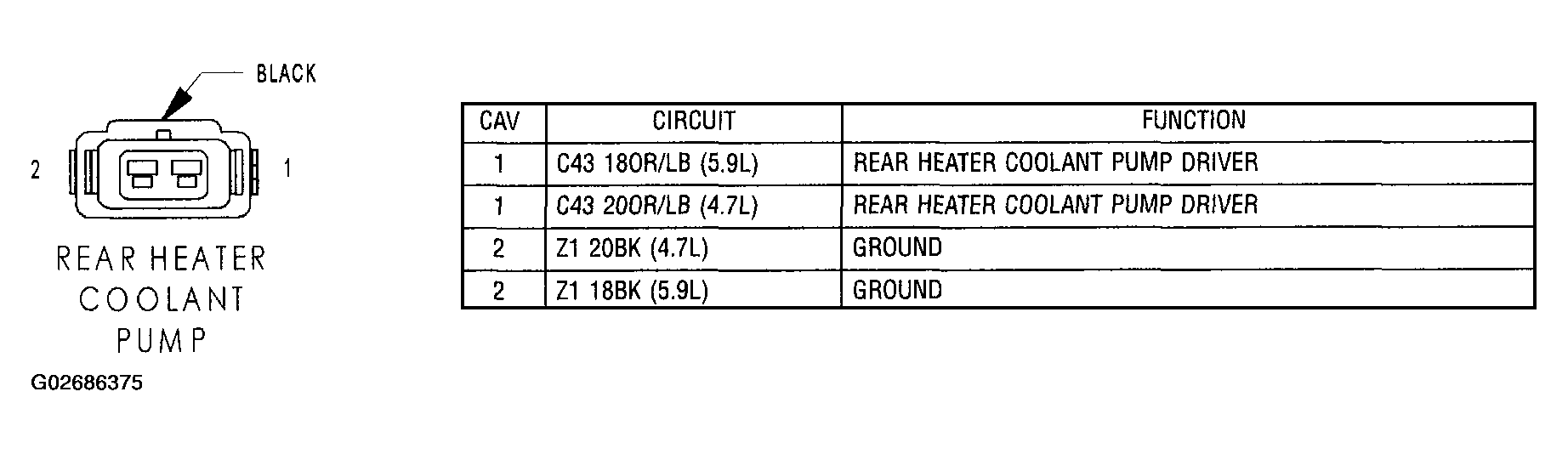

Fig 97: Identifying Rear Heater Coolant Pump Connector Pinouts

G02686375

Courtesy of DAIMLERCHRYSLER CORP.

Fig 98: Identifying Rear Mode Door Actuator Connector Pinouts

G02686376

Courtesy of DAIMLERCHRYSLER CORP.

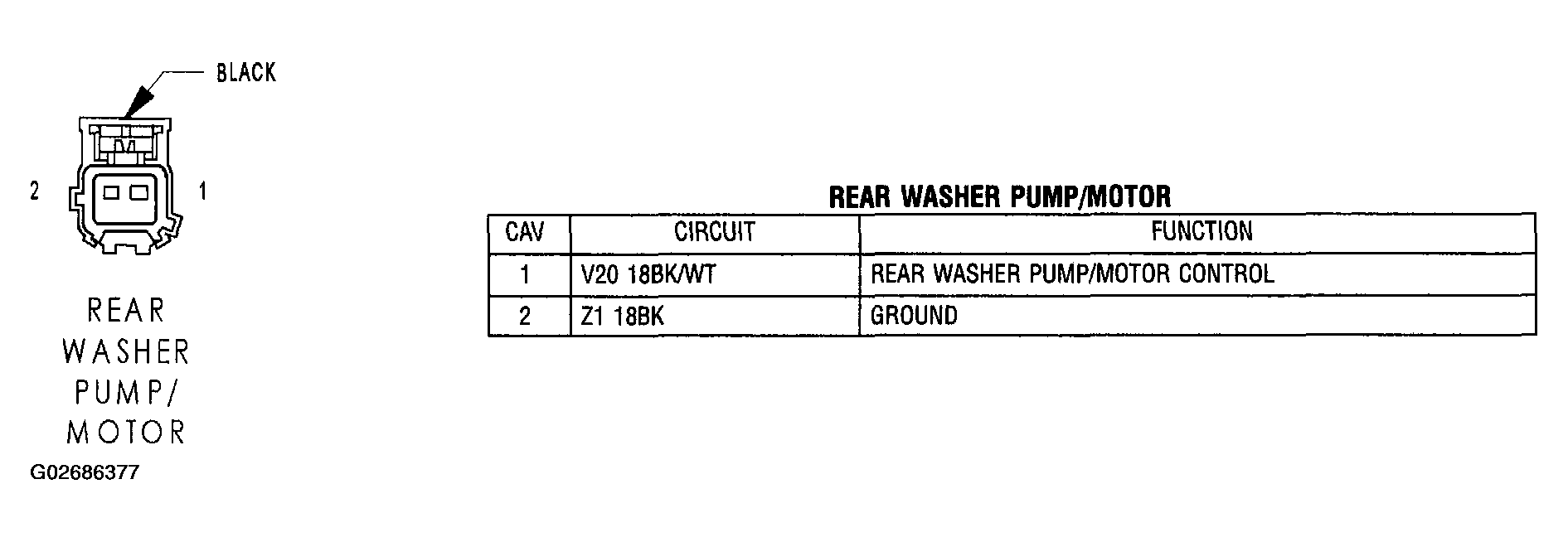

Fig 99: Identifying Rear Washer Pump/Motor Connector Pinouts

G02686377

Courtesy of DAIMLERCHRYSLER CORP.

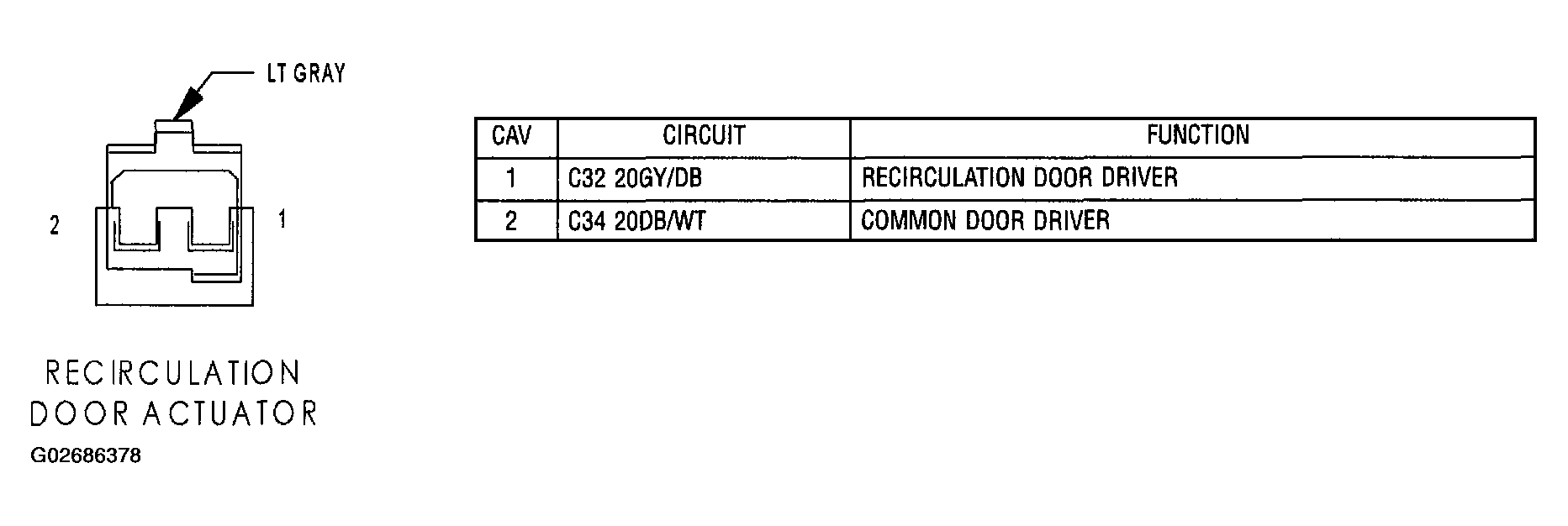

Fig 100: Identifying Recirculation Door Actuator Connector Pinouts

G02686378

Courtesy of DAIMLERCHRYSLER CORP.

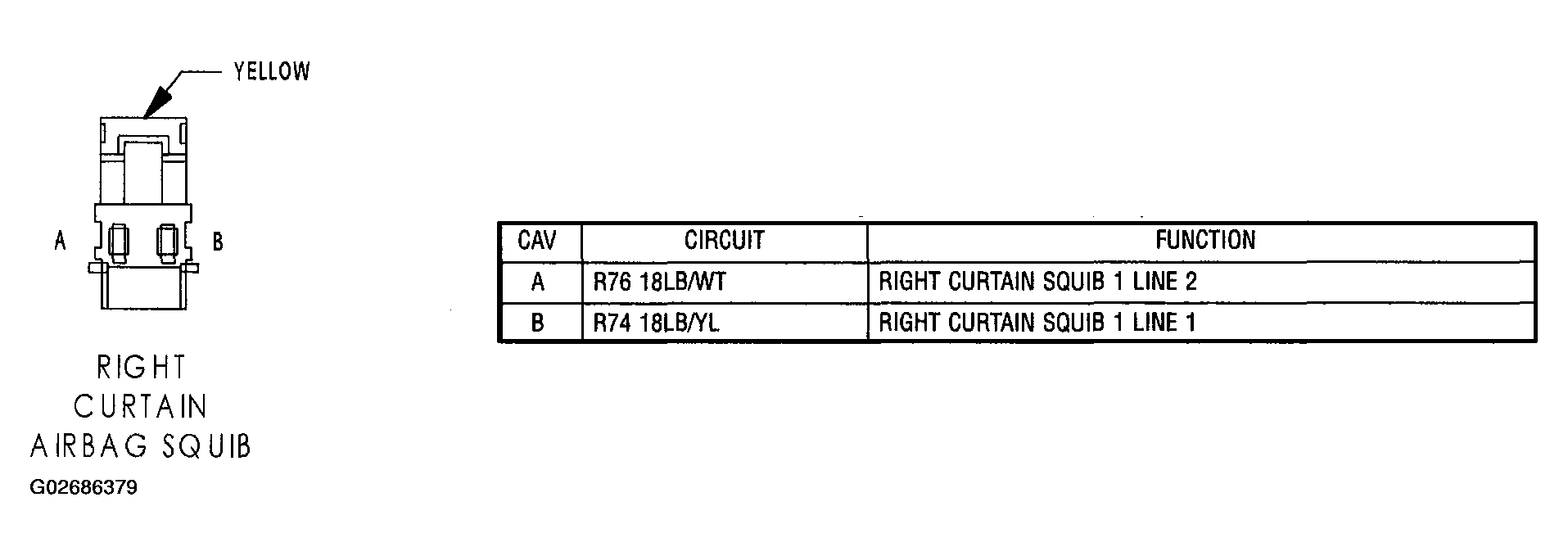

Fig 101: Identifying Right Curtain Airbag Squib Connector Pinouts

G02686379

Courtesy of DAIMLERCHRYSLER CORP.

Fig 102: Identifying Right Front Door Tweeter (Premium) Connector Pinouts

G02686380

Courtesy of DAIMLERCHRYSLER CORP.

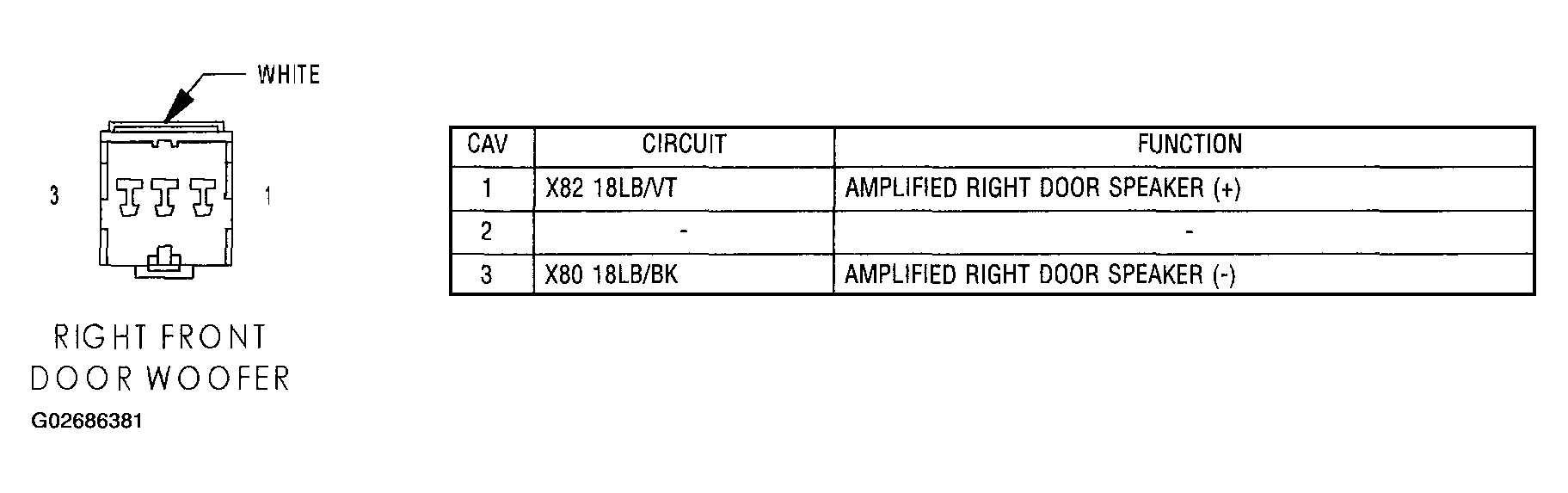

Fig 103: Identifying Right Front Door Woofer Connector Pinouts

G02686381

Courtesy of DAIMLERCHRYSLER CORP.

Fig 104: Identifying Right Rear Door Power Lock Motor/Ajar Switch Connector Pinouts

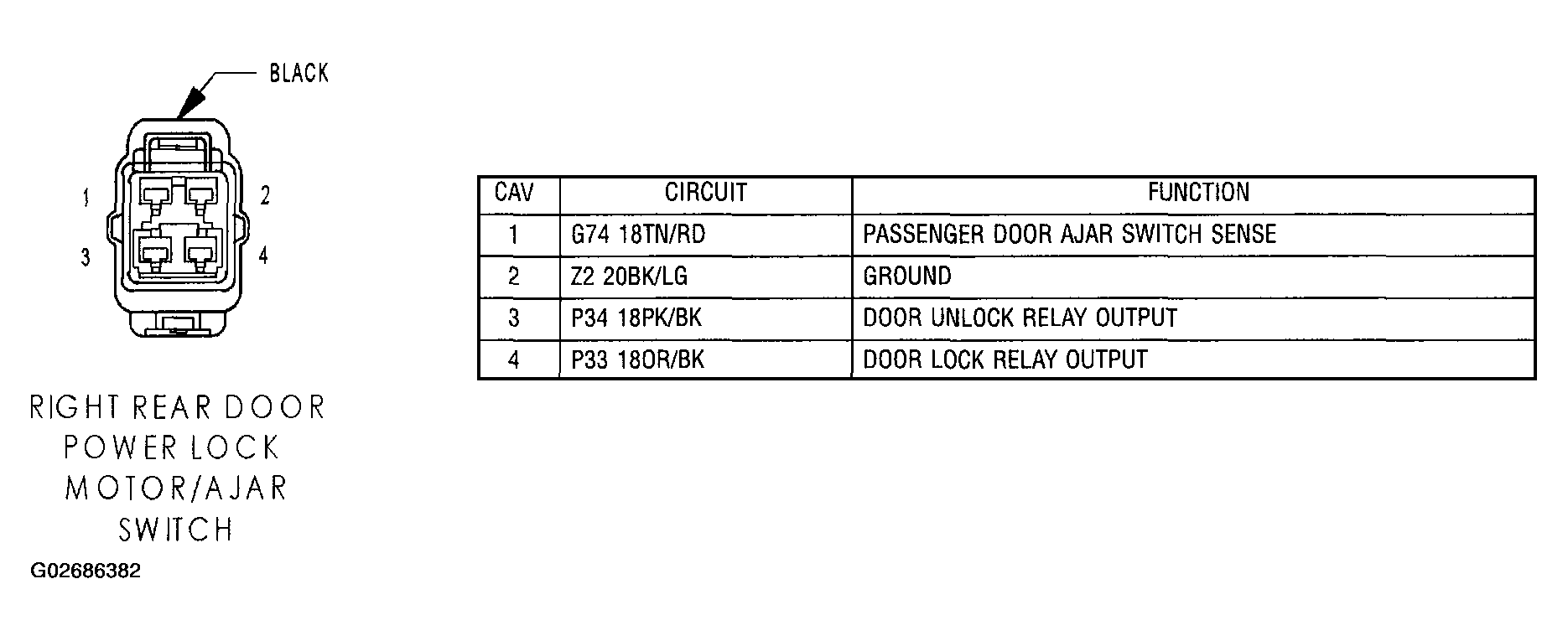

G02686382

Courtesy of DAIMLERCHRYSLER CORP.

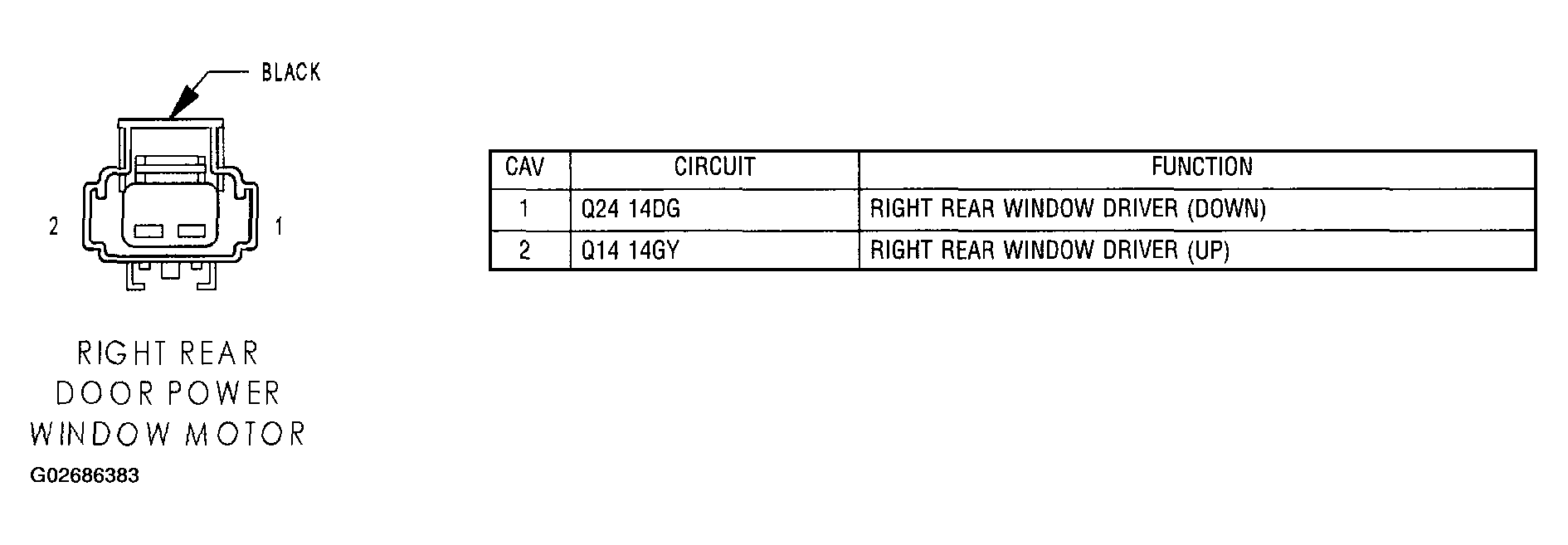

Fig 105: Identifying Right Rear Door Power Window Motor Connector Pinouts

G02686383

Courtesy of DAIMLERCHRYSLER CORP.

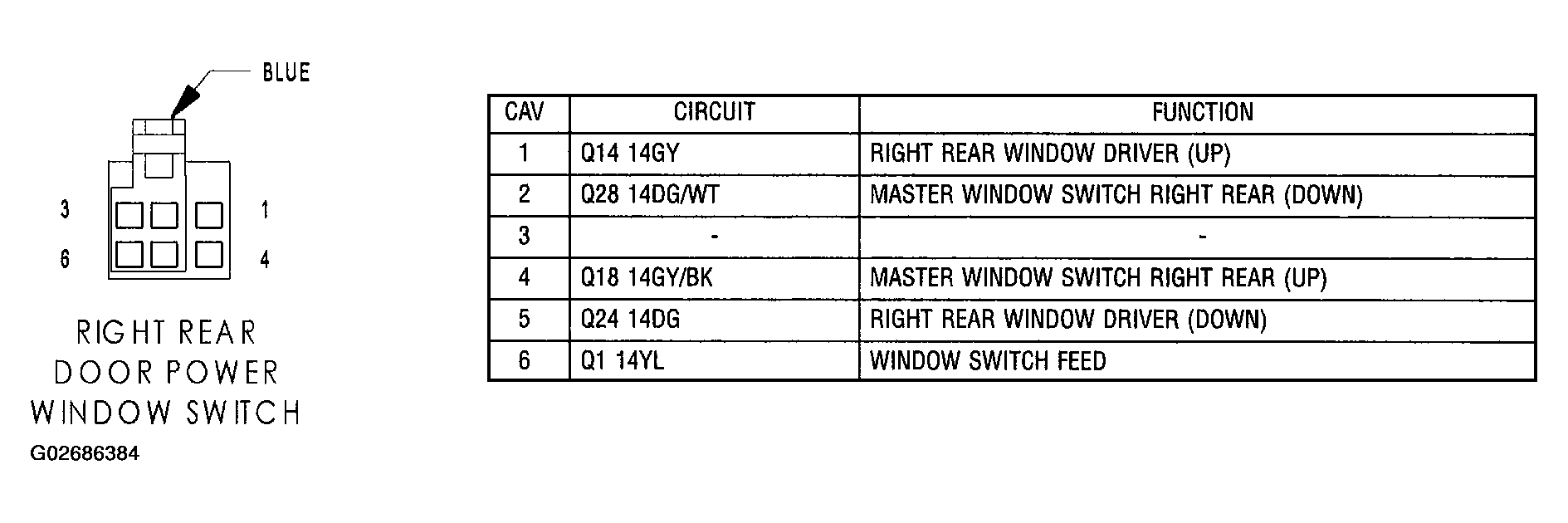

Fig 106: Identifying Right Rear Door Power Window Switch Connector Pinouts

G02686384

Courtesy of DAIMLERCHRYSLER CORP.

Fig 107: Identifying Right Rear Door Tweeter Connector Pinouts

G02686385

Courtesy of DAIMLERCHRYSLER CORP.

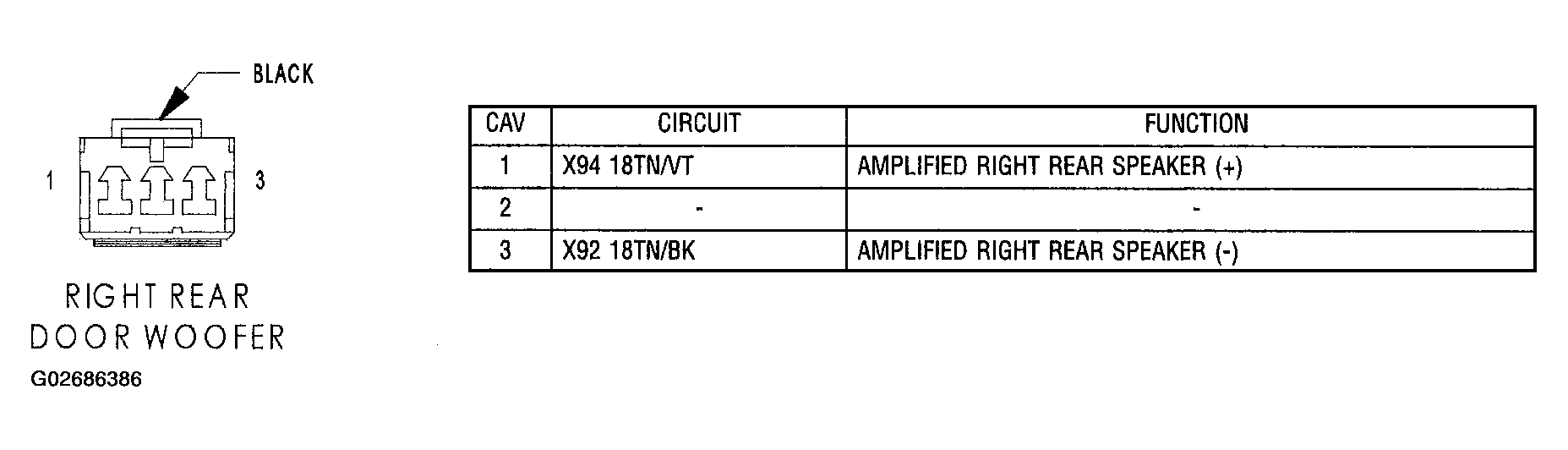

Fig 108: Identifying Right Rear Door Woofer Connector Pinouts

G02686386

Courtesy of DAIMLERCHRYSLER CORP.

Fig 109: Identifying Right Remote Radio Switch (Premium) Connector Pinouts

G02686387

Courtesy of DAIMLERCHRYSLER CORP.

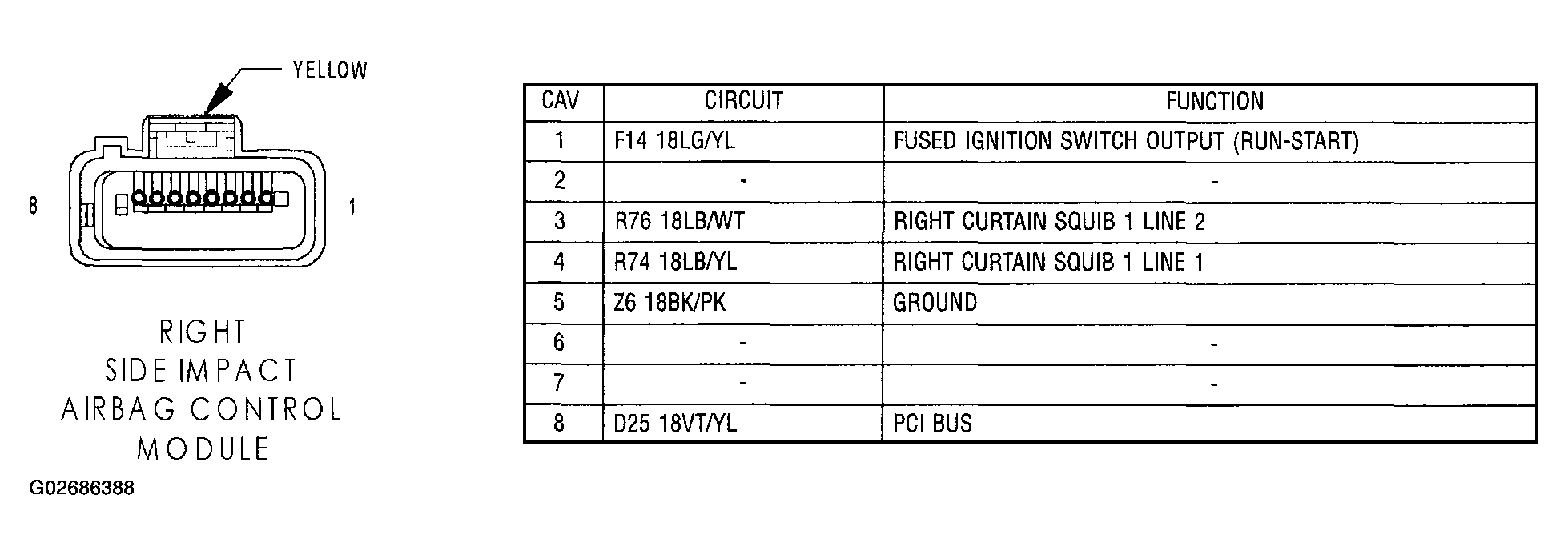

Fig 110: Identifying Right Side Impact Airbag Control Module Connector Pinouts

G02686388

Courtesy of DAIMLERCHRYSLER CORP.

Fig 111: Identifying Seat Belt Switch Connector Pinouts

G02686389

Courtesy of DAIMLERCHRYSLER CORP.

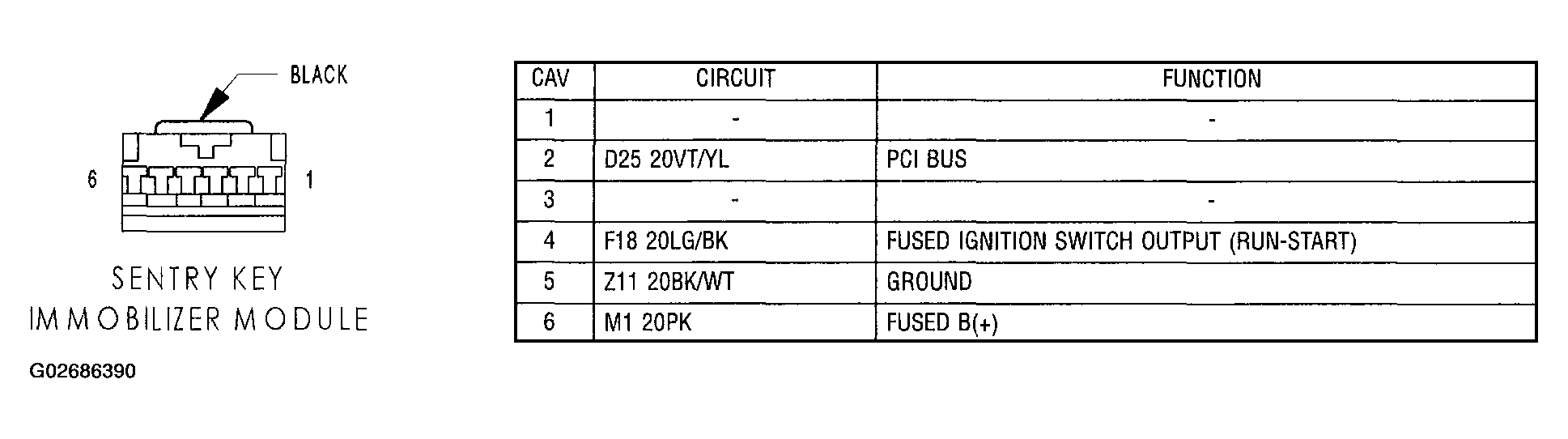

Fig 112: Identifying Sentry Key Immobilizer Module Connector Pinouts

G02686390

Courtesy of DAIMLERCHRYSLER CORP.

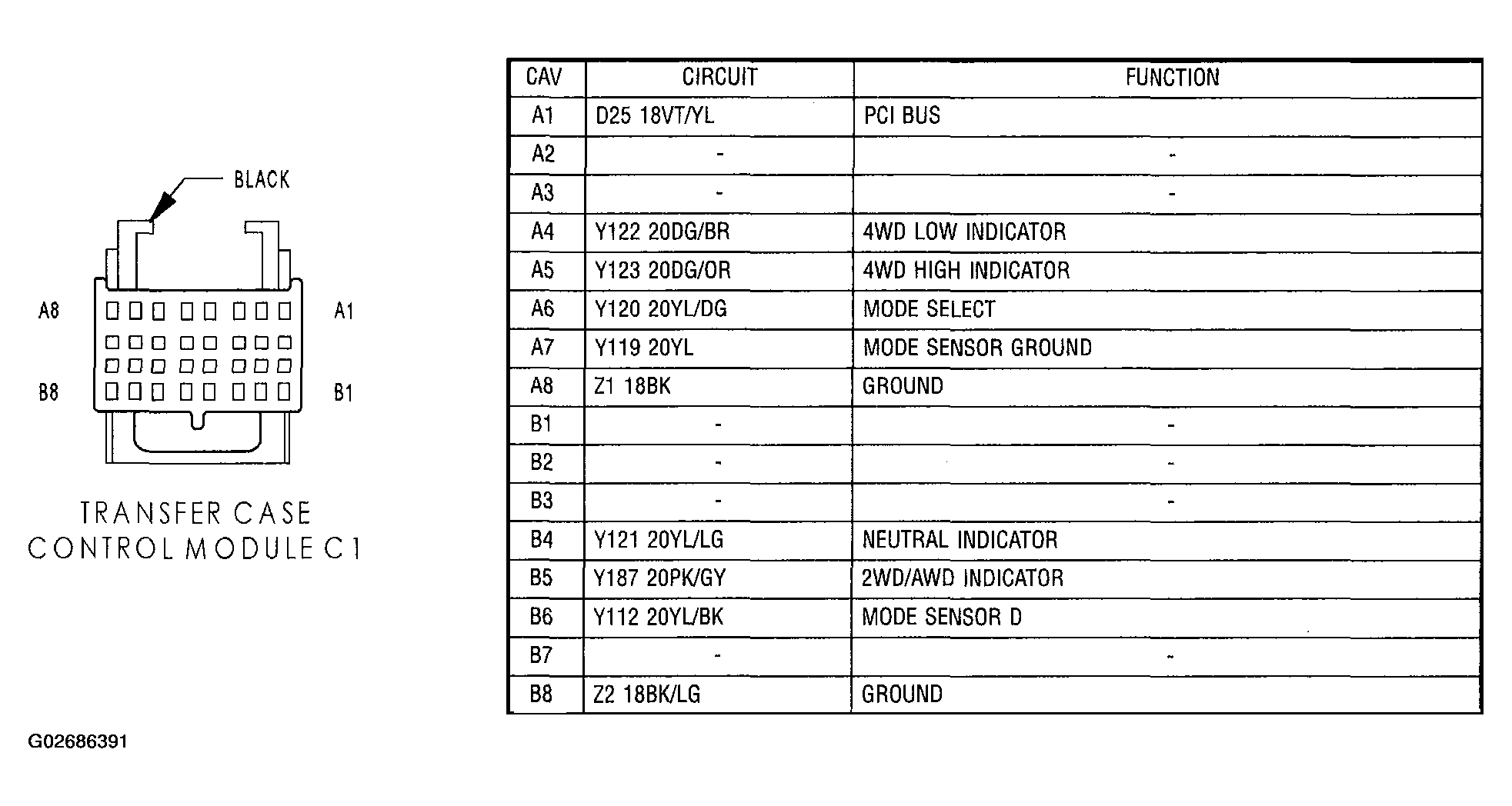

Fig 113: Identifying Transfer Case Control Module C1 Connector Pinouts

G02686391

Courtesy of DAIMLERCHRYSLER CORP.

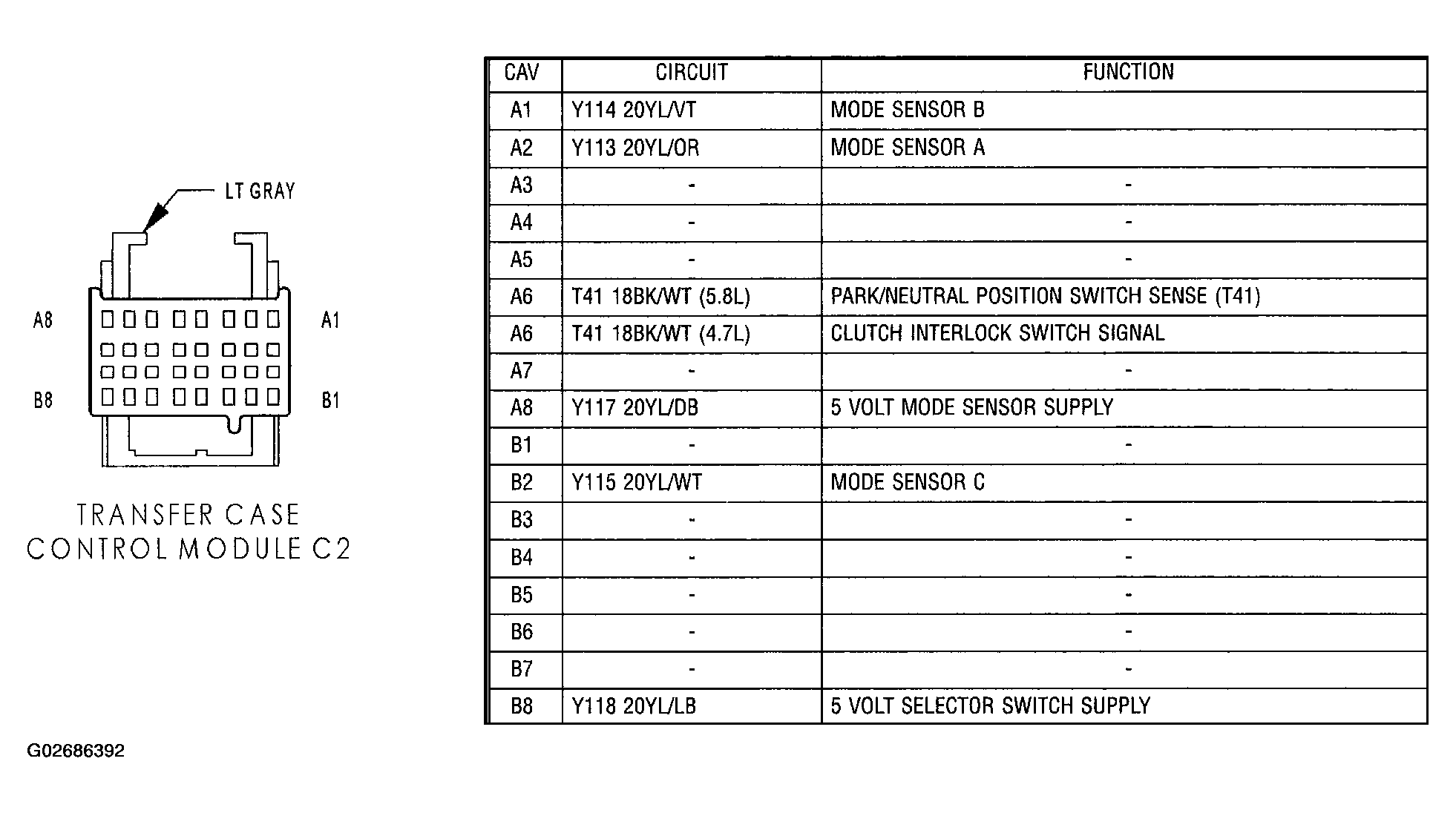

Fig 114: Identifying Transfer Case Control Module C2 Connector Pinouts

G02686392

Courtesy of DAIMLERCHRYSLER CORP.

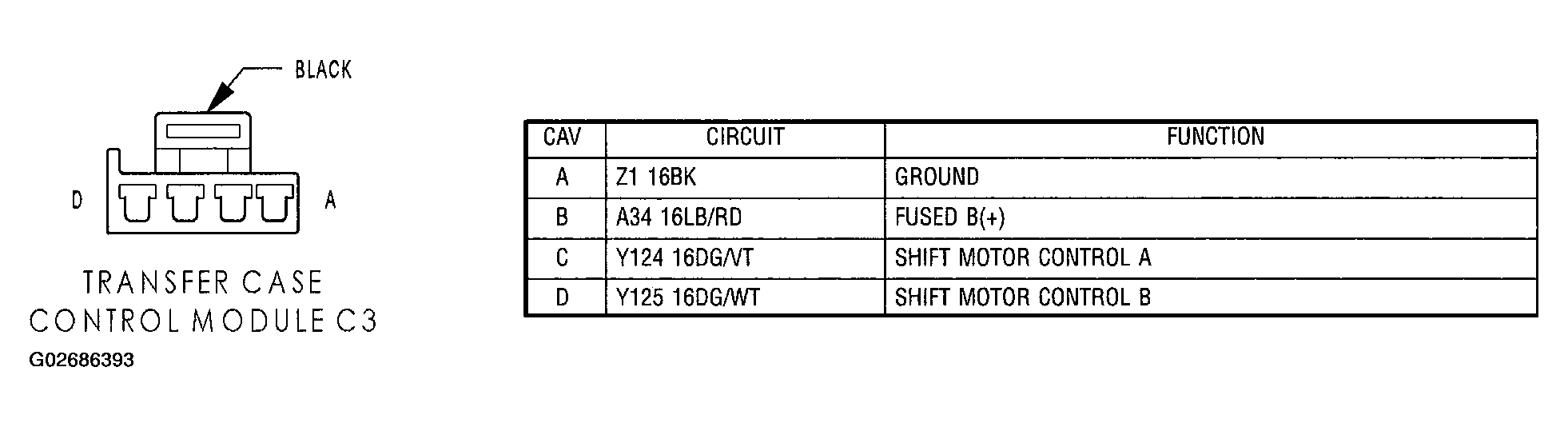

Fig 115: Identifying Transfer Case Control Module C3 Connector Pinouts

G02686393

Courtesy of DAIMLERCHRYSLER CORP.

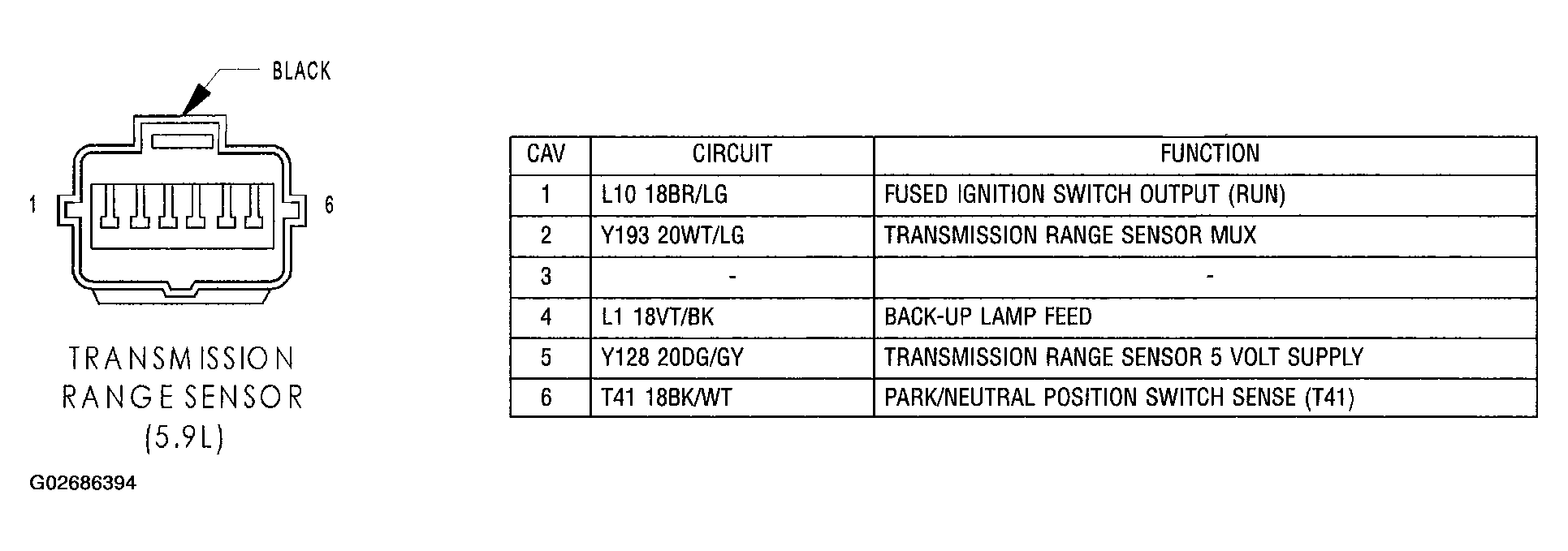

Fig 116: Identifying Transmission Range Sensor (5.9L) Connector Pinouts

G02686394

Courtesy of DAIMLERCHRYSLER CORP.

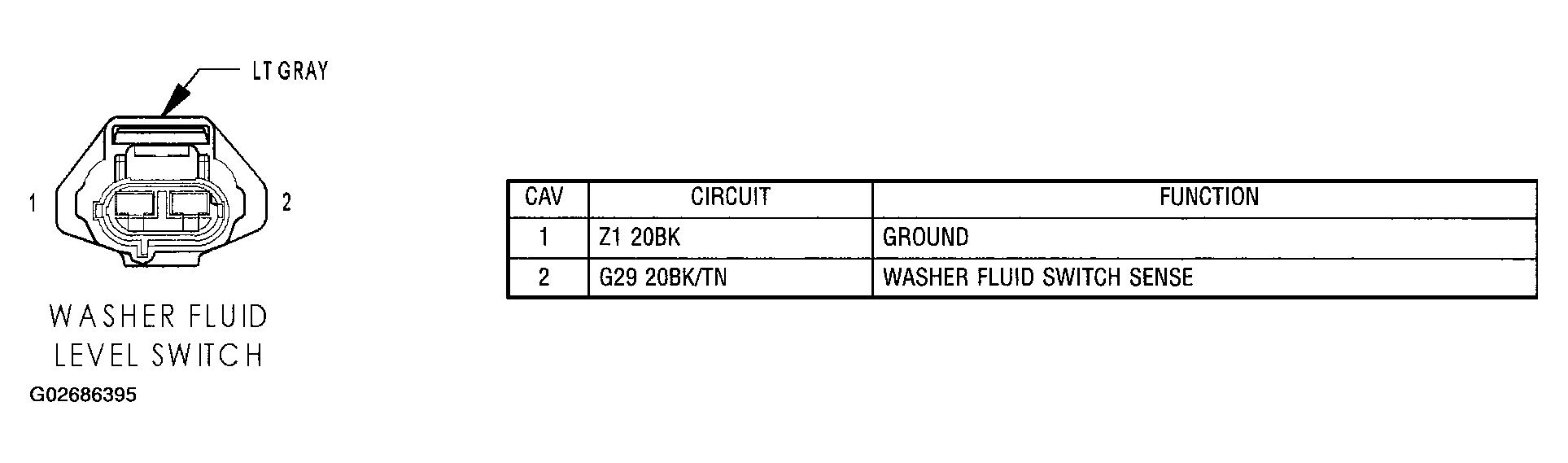

Fig 117: Identifying Washer Fluid Level Switch Connector Pinouts

G02686395

Courtesy of DAIMLERCHRYSLER CORP.
