Removal (Durango)

  1. Raise and support the vehicle.
  2. Loosen the cable adjuster nut. See Fig 1.
  3. Pull cable through the body mount.
  4. Remove support and lower vehicle.
  5. Remove left kick panel.
  6. Fold left front edge of floor covering rearward and remove cable grommet from floor pan.
  7. Engage parking brake pedal and remove cable from parking brake pedal assembly.
  8. Pull the cable through the floor pan.
  9. Remove cable from vehicle.

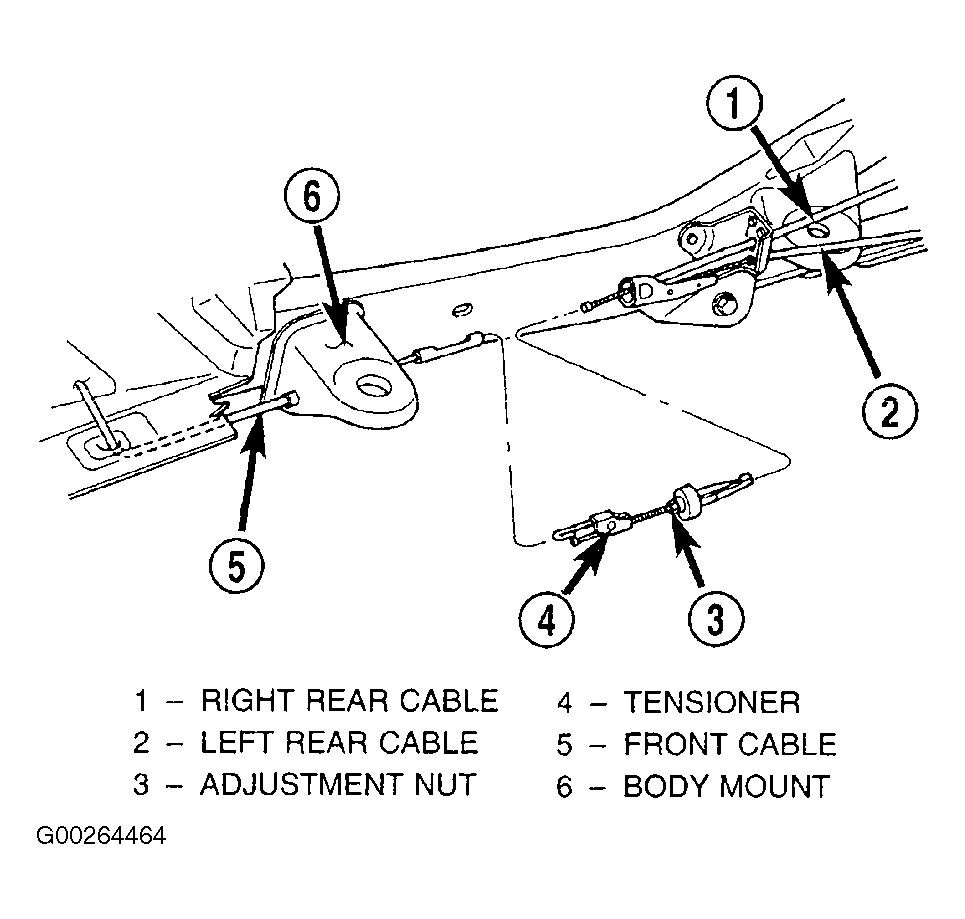

Fig 1: Removing & Installing Front Parking Brake Cable (Durango)
G00264464Courtesy of CHRYSLER CORP.
