Removal (Rear - Durango)

  1. Raise and support vehicle.
  2. Remove the wheel and tire assembly.
  3. Remove the caliper brake hose banjo bolt, washers, and hose. See Fig 1.
  4. Remove the caliper mounting slide pin bolts. See Fig 1.
  5. Remove the caliper from vehicle.
  6. Remove the anti-rattle springs.

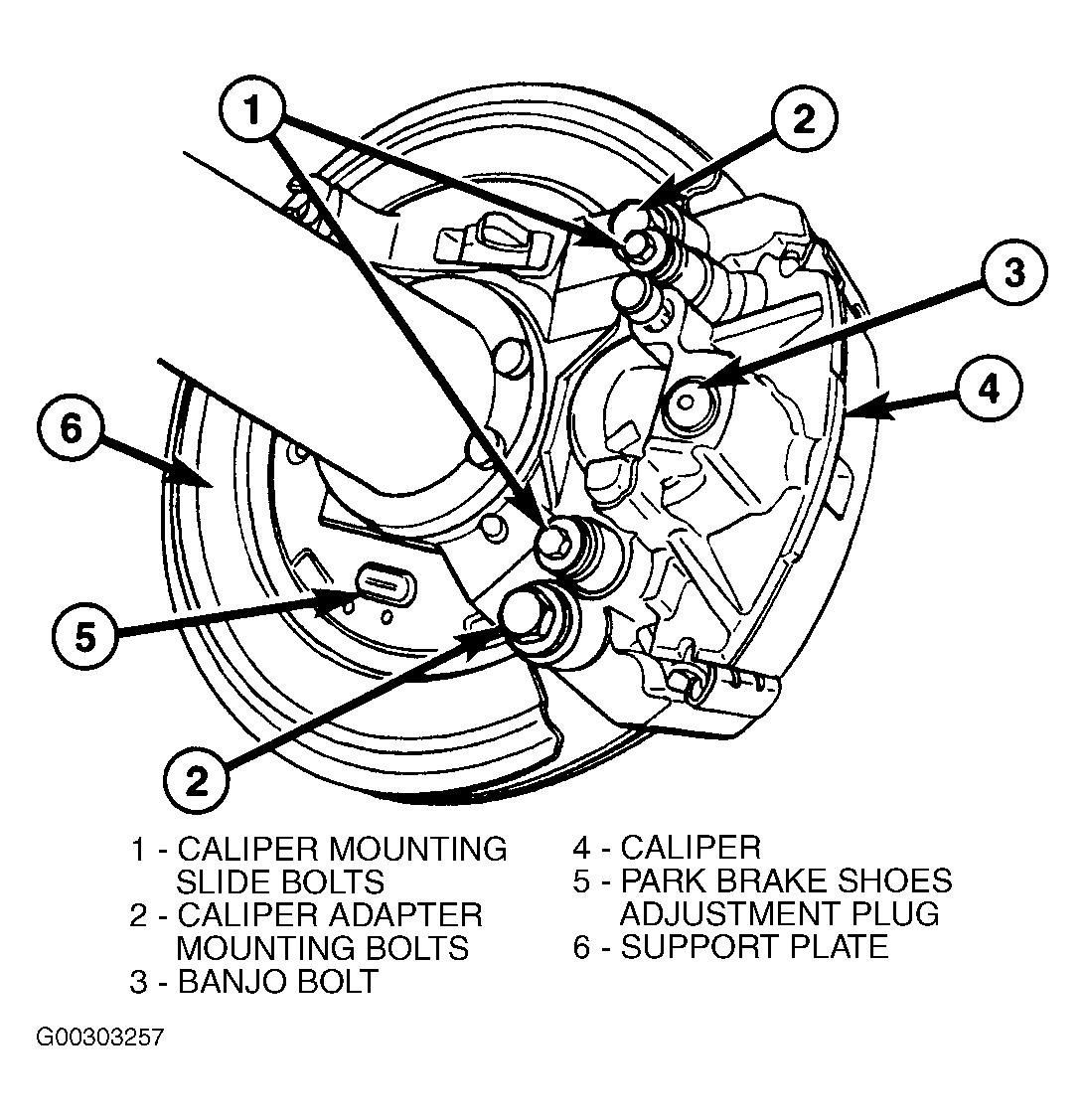

Fig 1: Removing Rear Caliper (Durango)
G00303257Courtesy of CHRYSLER CORP.
