Removal (Front)

Clean master reservoir and filler caps.
Remove reservoir filler cap. Use clean suction gun or similar device to drain approximately 1/4 of fluid from the reservoir.
Raise and support vehicle.
Remove front wheel and tire assemblies.
Bottom caliper pistons in bores with large C-clamp. Position clamp frame on rear of caliper and clamp screw on outboard brake shoe.
Disconnect brake hose at caliper. Discard hose fitting washers if worn, or damaged. See Fig 1 or Fig 2 .
Remove the caliper slide pin bolts from the caliper adapter.
Remove caliper and brake shoes from caliper. See DISC BRAKE SHOES .

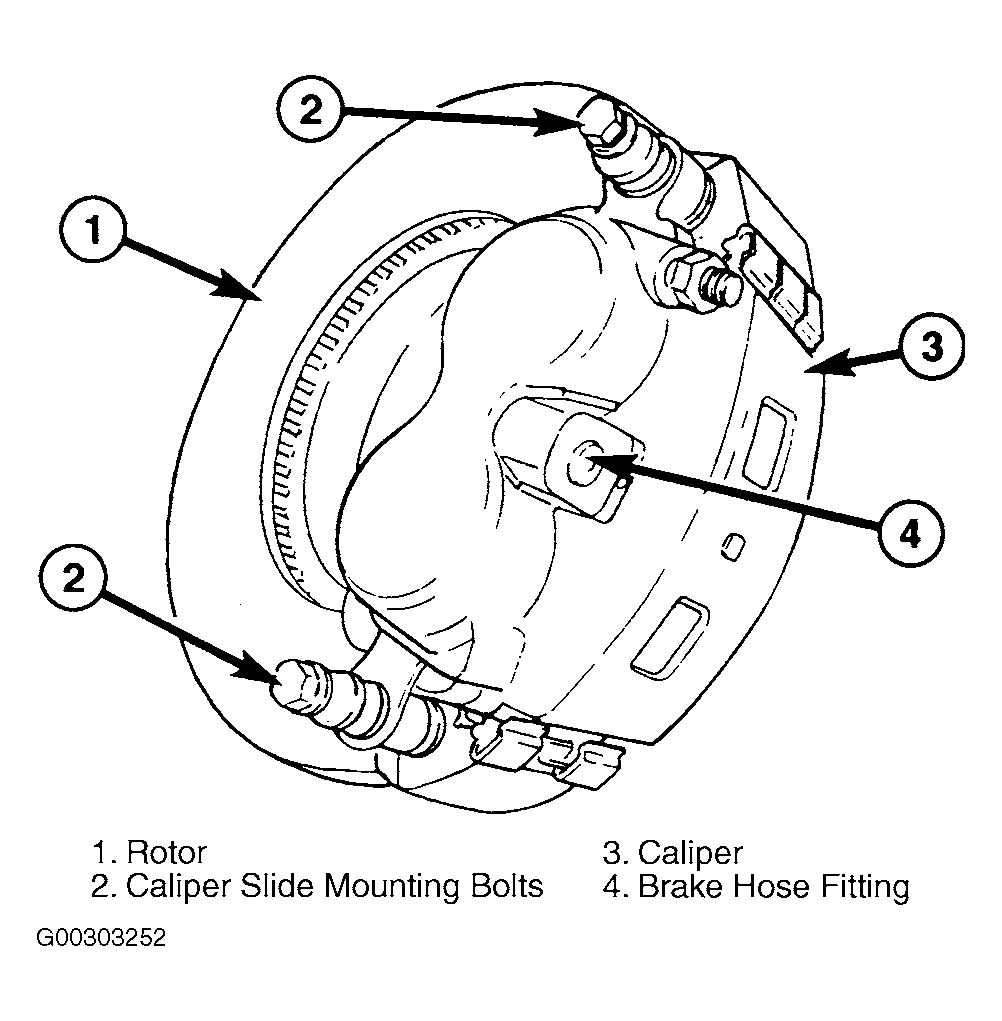

Fig 1: Removing Front Caliper (Dakota)

Courtesy of CHRYSLER CORP.

Fig 2: Removing Front Caliper (Durango)

Courtesy of CHRYSLER CORP.
