Removal (Rear - Durango)

  1. Raise and support the vehicle.
  2. Remove the wheel and tire assembly.
  3. Drain a small amount of fluid from the master cylinder with a clean suction gun.
  4. Remove the disc caliper. See CALIPER .
  5. Remove the inboard and outboard brake pads. See Fig 1.
  6. Remove the anti-rattle clips. See Fig 1.
  7. Remove the caliper adapter mounting bolts. See Fig 1.

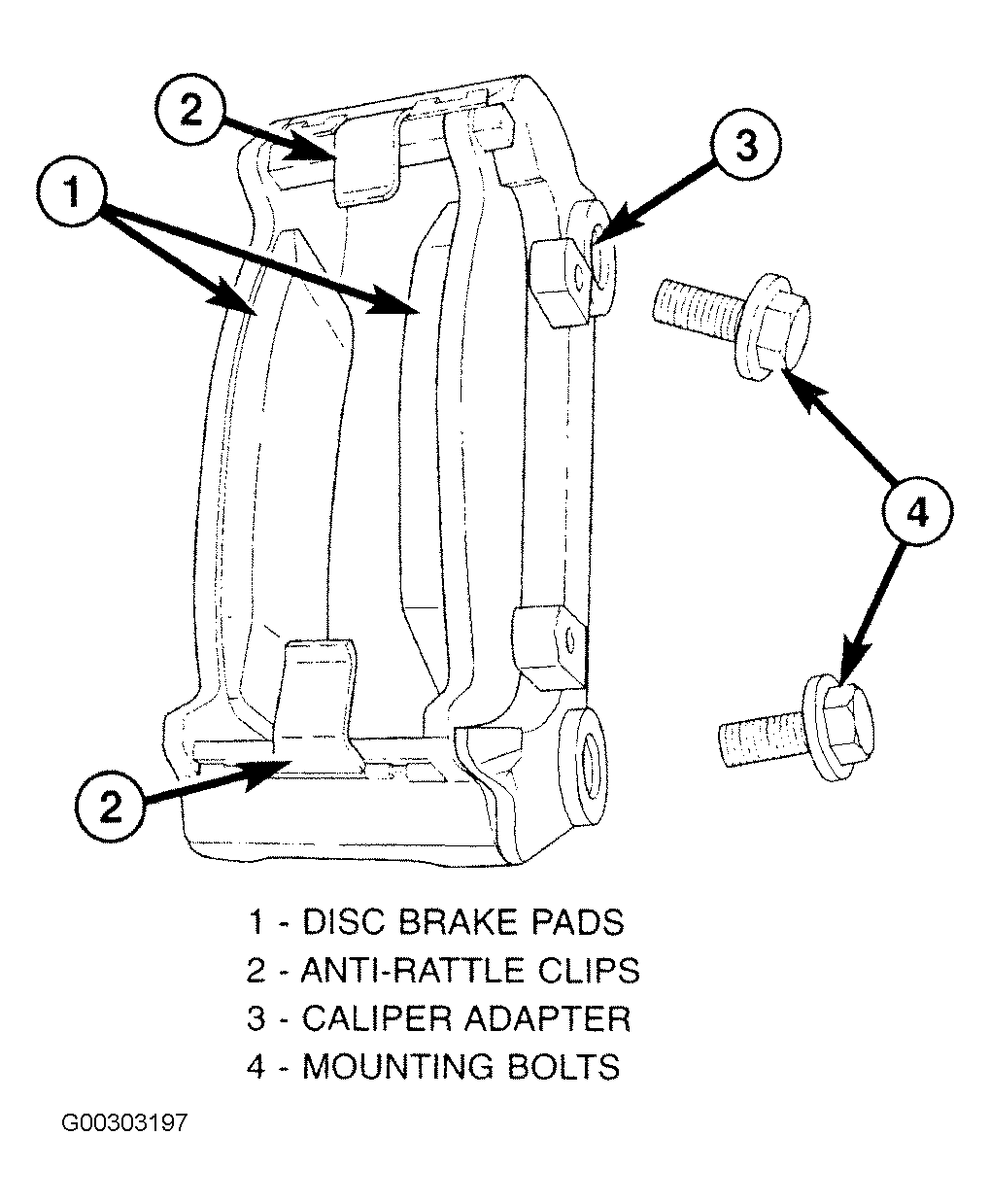

Fig 1: Removing & Installing Adapter (Rear - Durango)
G00303197Courtesy of CHRYSLER CORP.
