End Cap: Installation

  1. Position the end cap to the outboard end of the instrument panel.

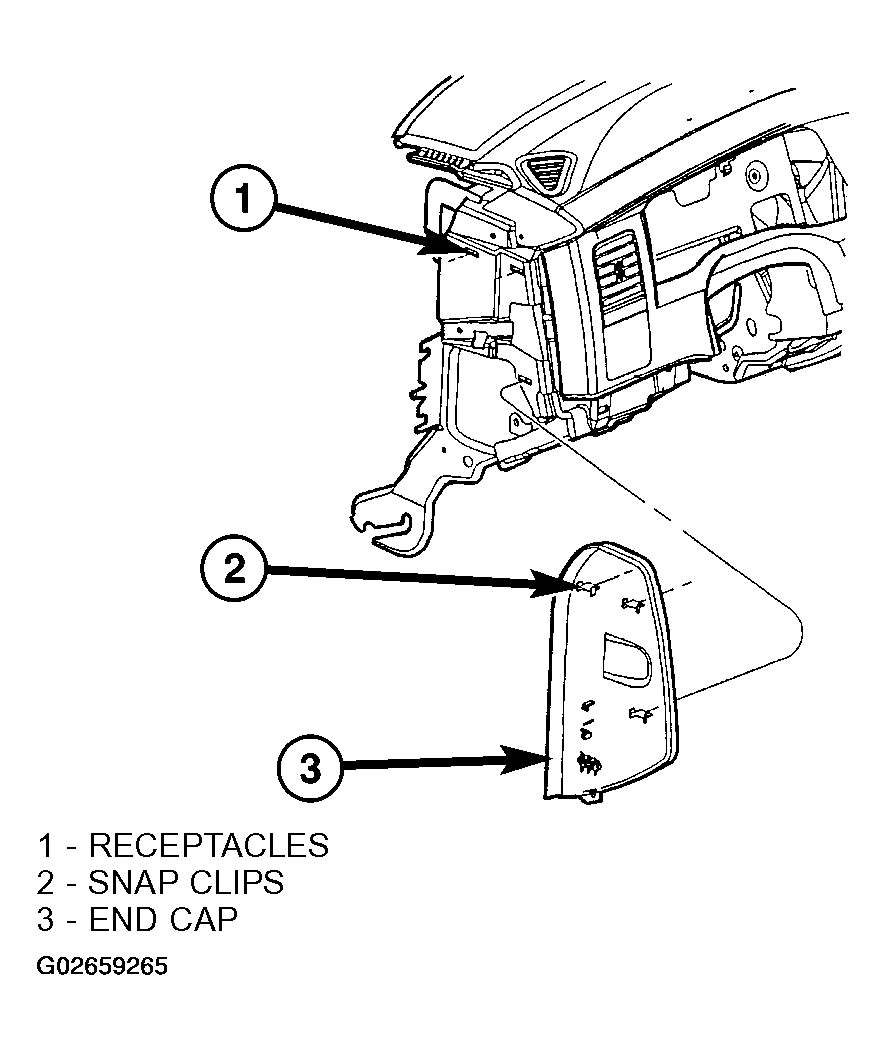

  2. Align the snap clips on the end cap with the receptacles in the instrument panel base trim (Figure).
  3. Using hand pressure, press firmly on the end cap over each of the snap clip locations until each of the snap clips is fully engaged in its receptacle in the instrument panel base trim.
