Heating & A/C - Rear A/C-Heater Control Schematic

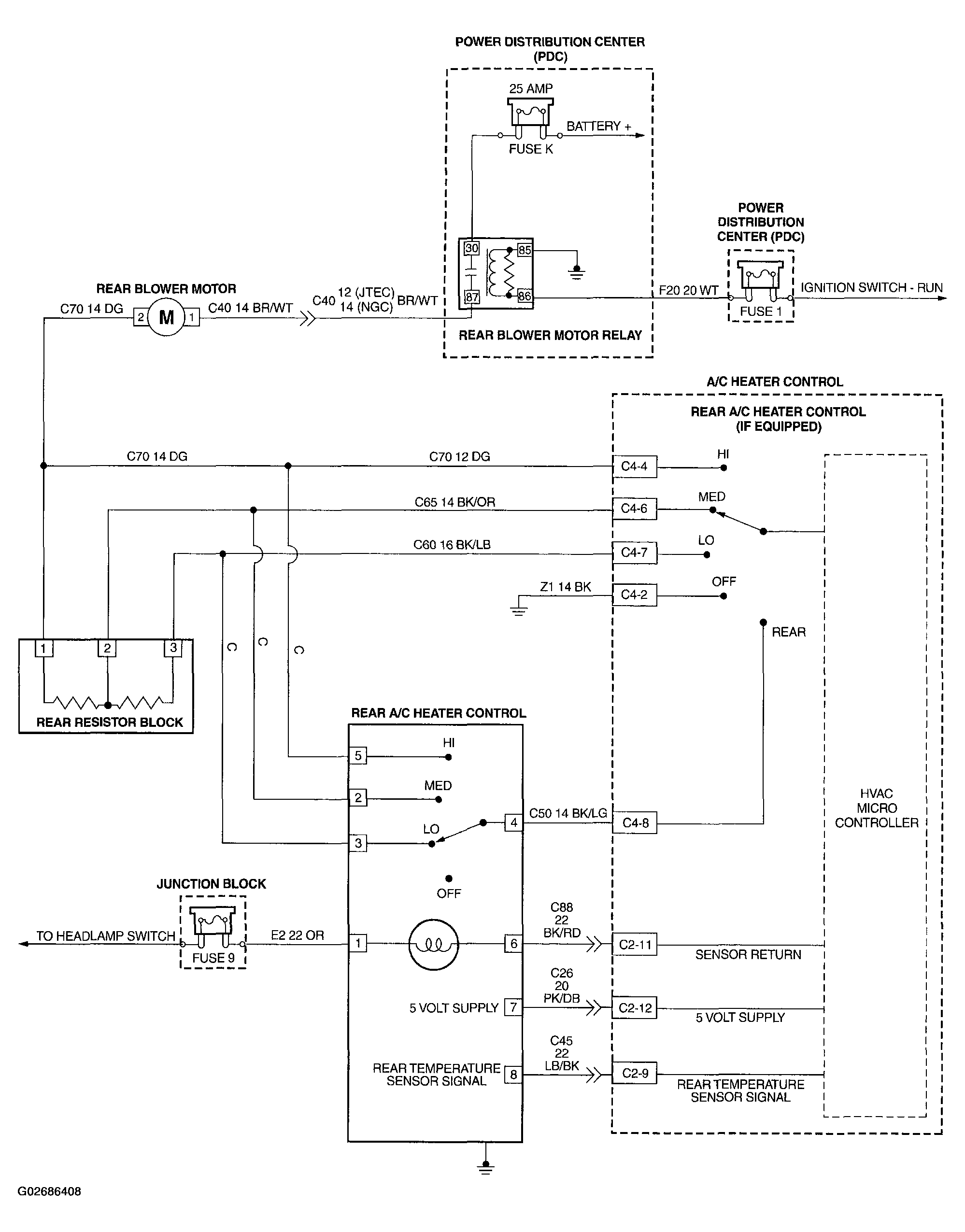

Fig 1: Heating And A/C - Rear A/C-Heater Control Schematic Diagram

G02686408

Courtesy of DAIMLERCHRYSLER CORP.
