Heating & A/C - Door Actuators Schematic

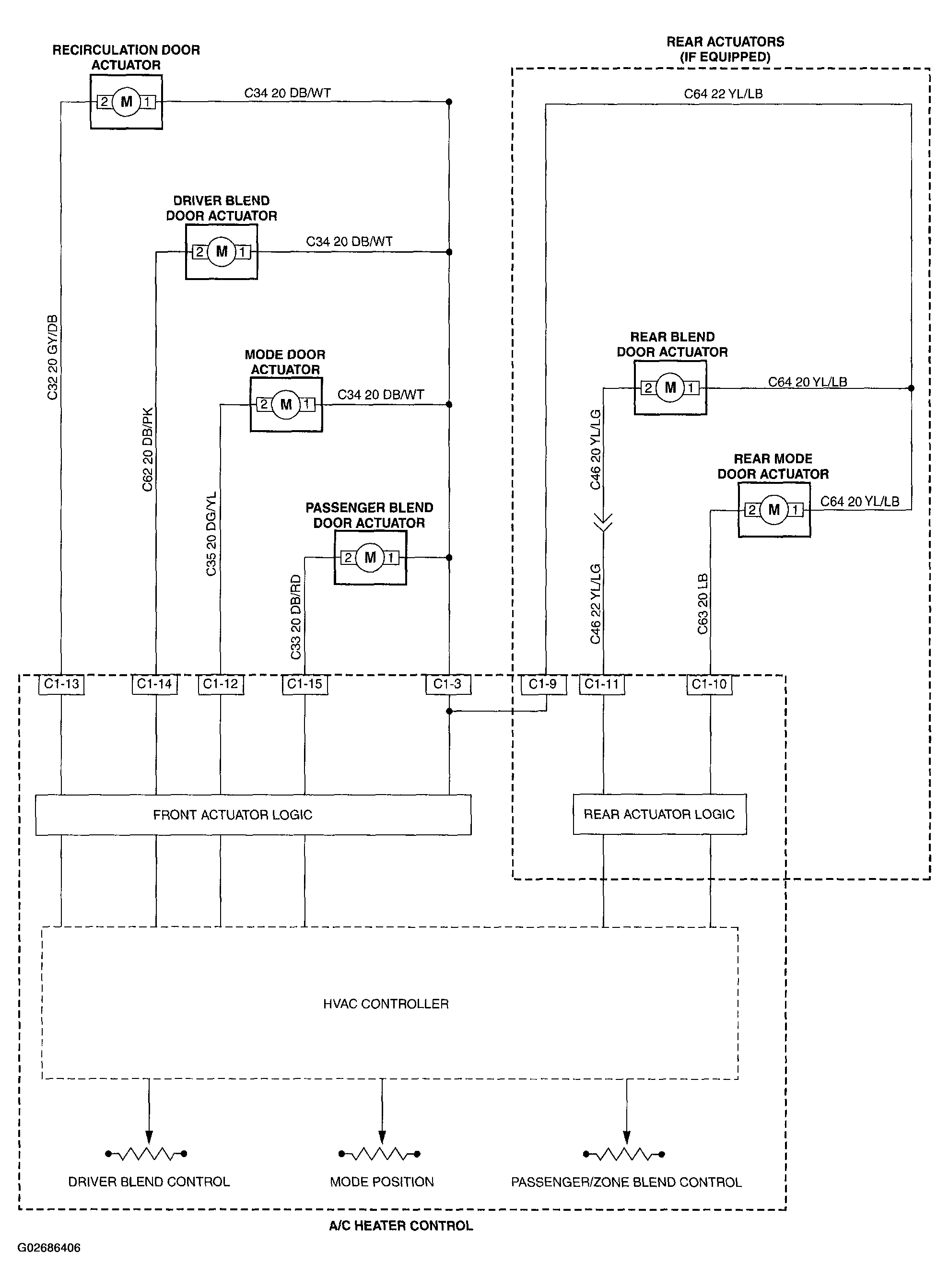

Fig 1: Heating And A/C - Door Actuators Schematic Diagram

G02686406

Courtesy of DAIMLERCHRYSLER CORP.
