Electro/Mechanical Instrument Cluster

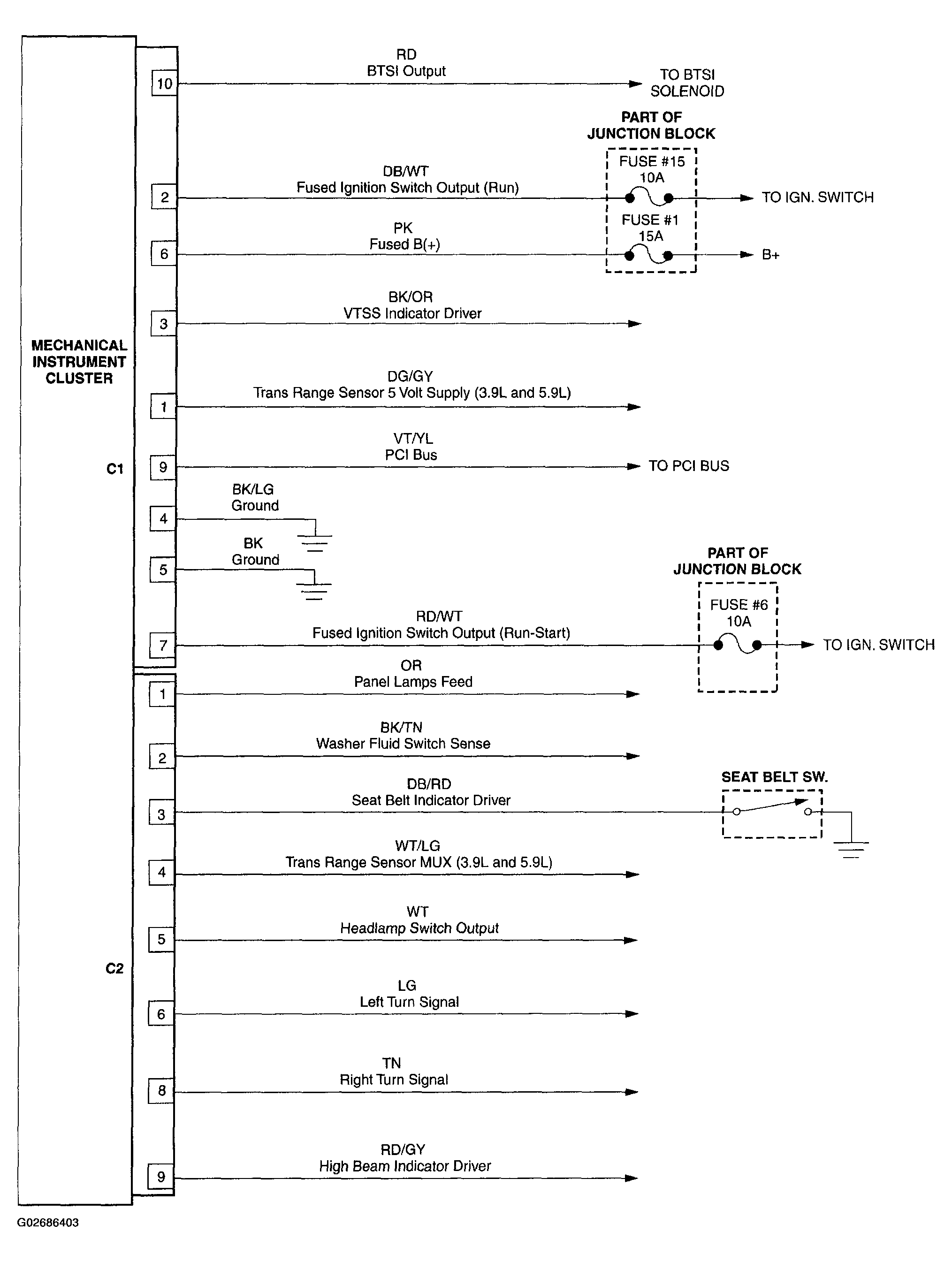

Fig 1: Electro/Mechanical Instrument Cluster Schematic Diagram

G02686403

Courtesy of DAIMLERCHRYSLER CORP.
