Schematic Diagrams: Chime

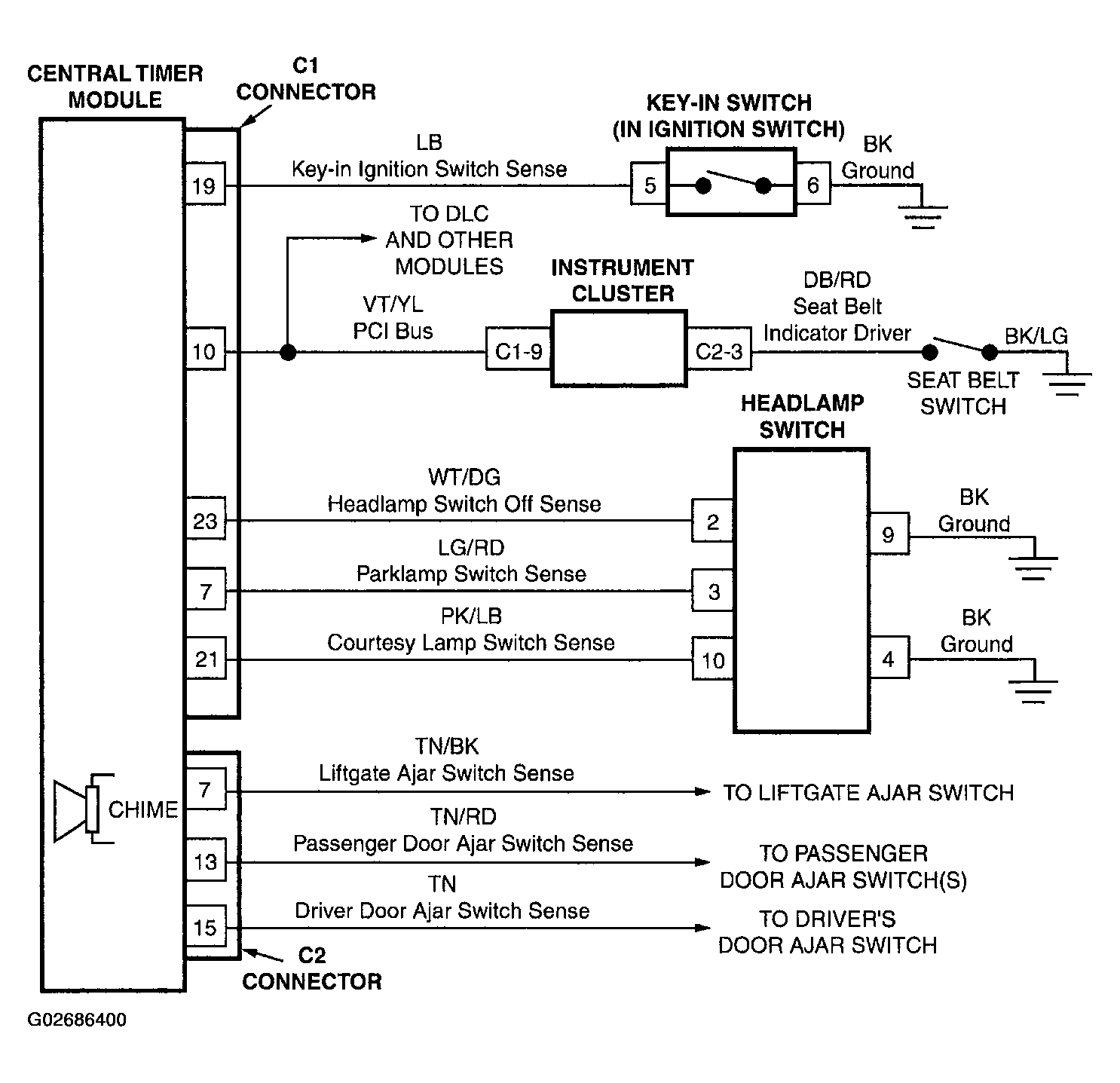

Fig 1: Chime Schematic Diagram

G02686400

Courtesy of DAIMLERCHRYSLER CORP.
