Diagnostic Procedures

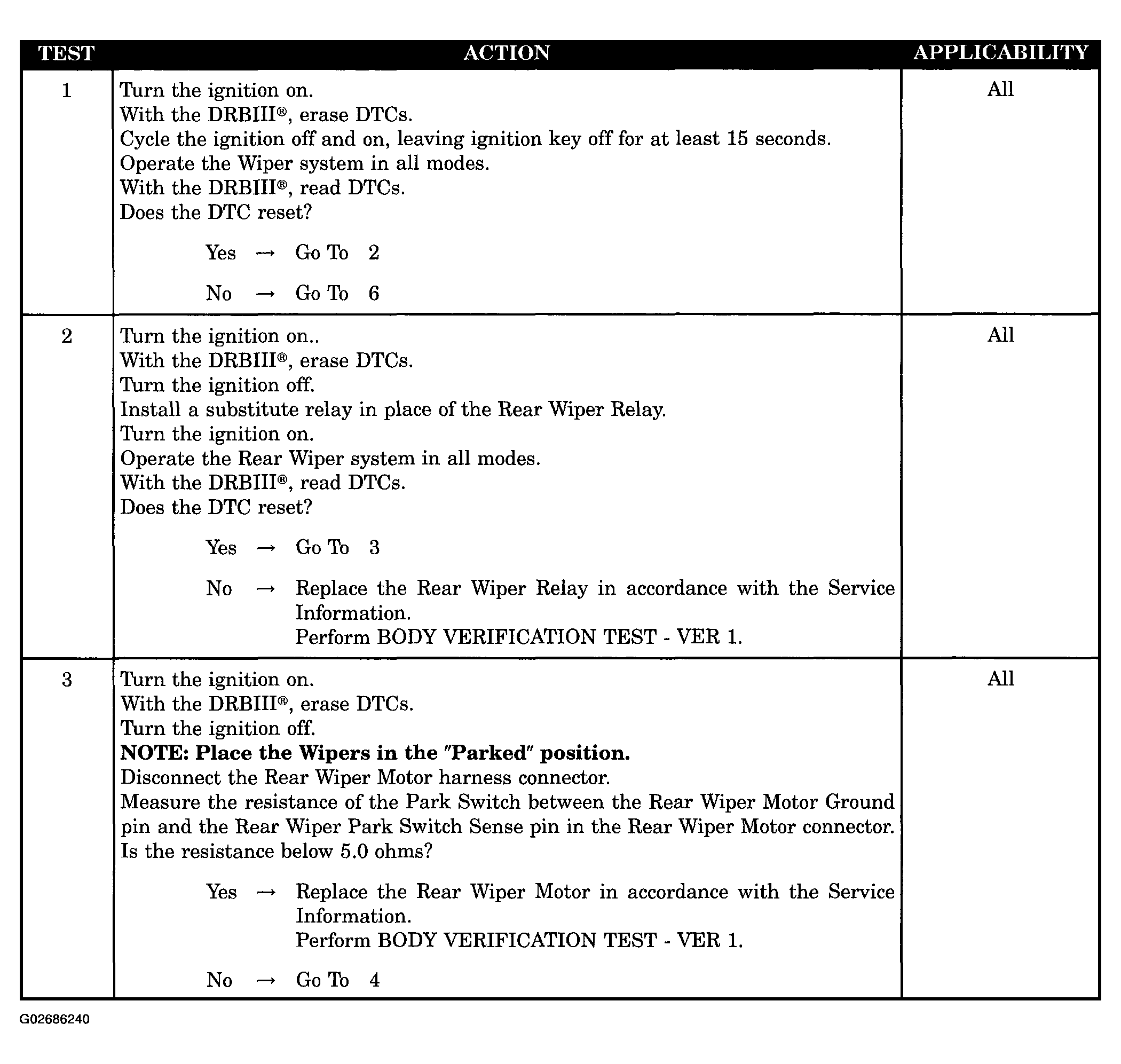

Fig 1: Rear Wiper Park Switch Sense Circuit Low Diagnostic Procedure (1 Of 2)
G02686240Courtesy of DAIMLERCHRYSLER CORP.

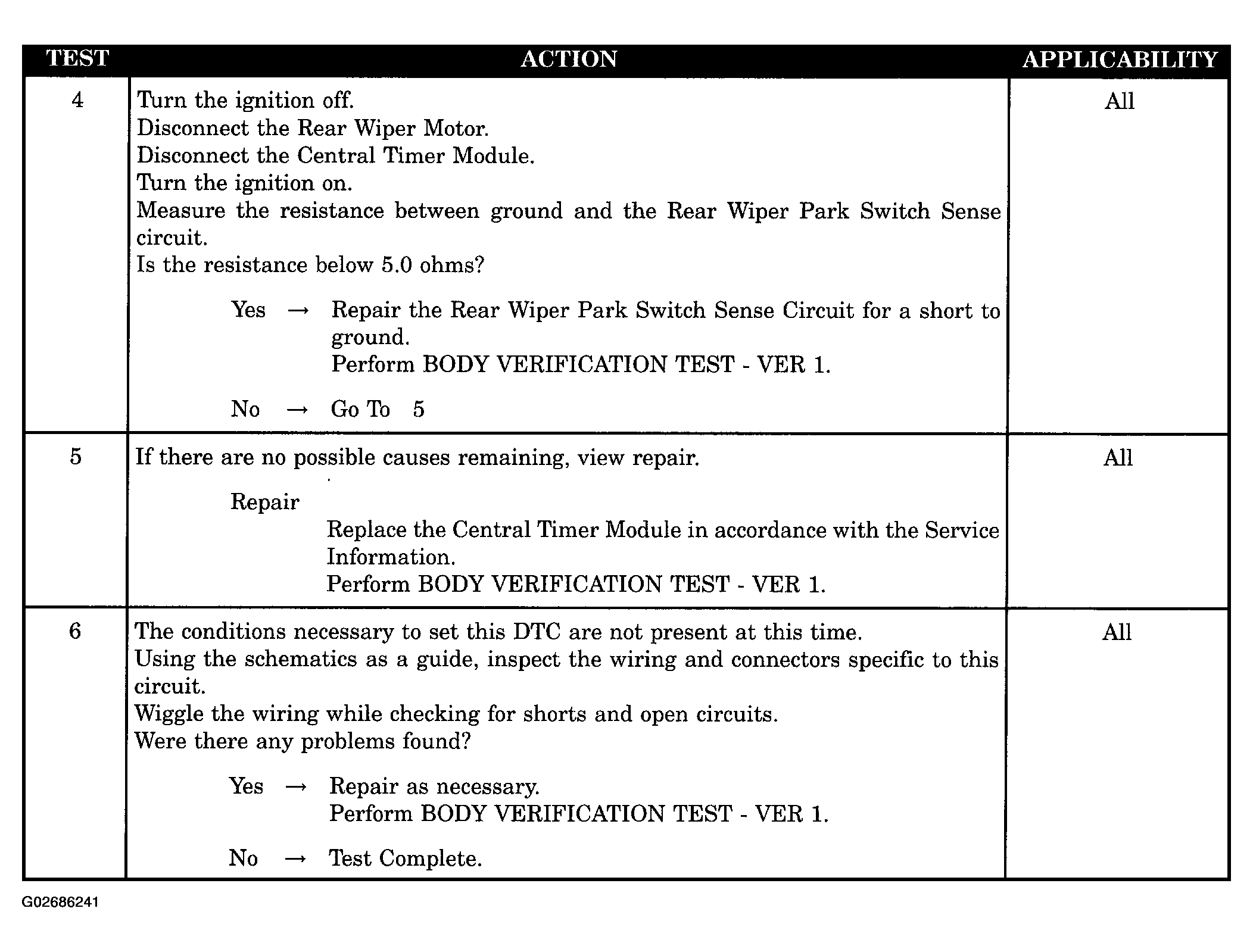

Fig 2: Rear Wiper Park Switch Sense Circuit Low Diagnostic Procedure (2 Of 2)
G02686241Courtesy of DAIMLERCHRYSLER CORP.
