Diagnostic Procedures

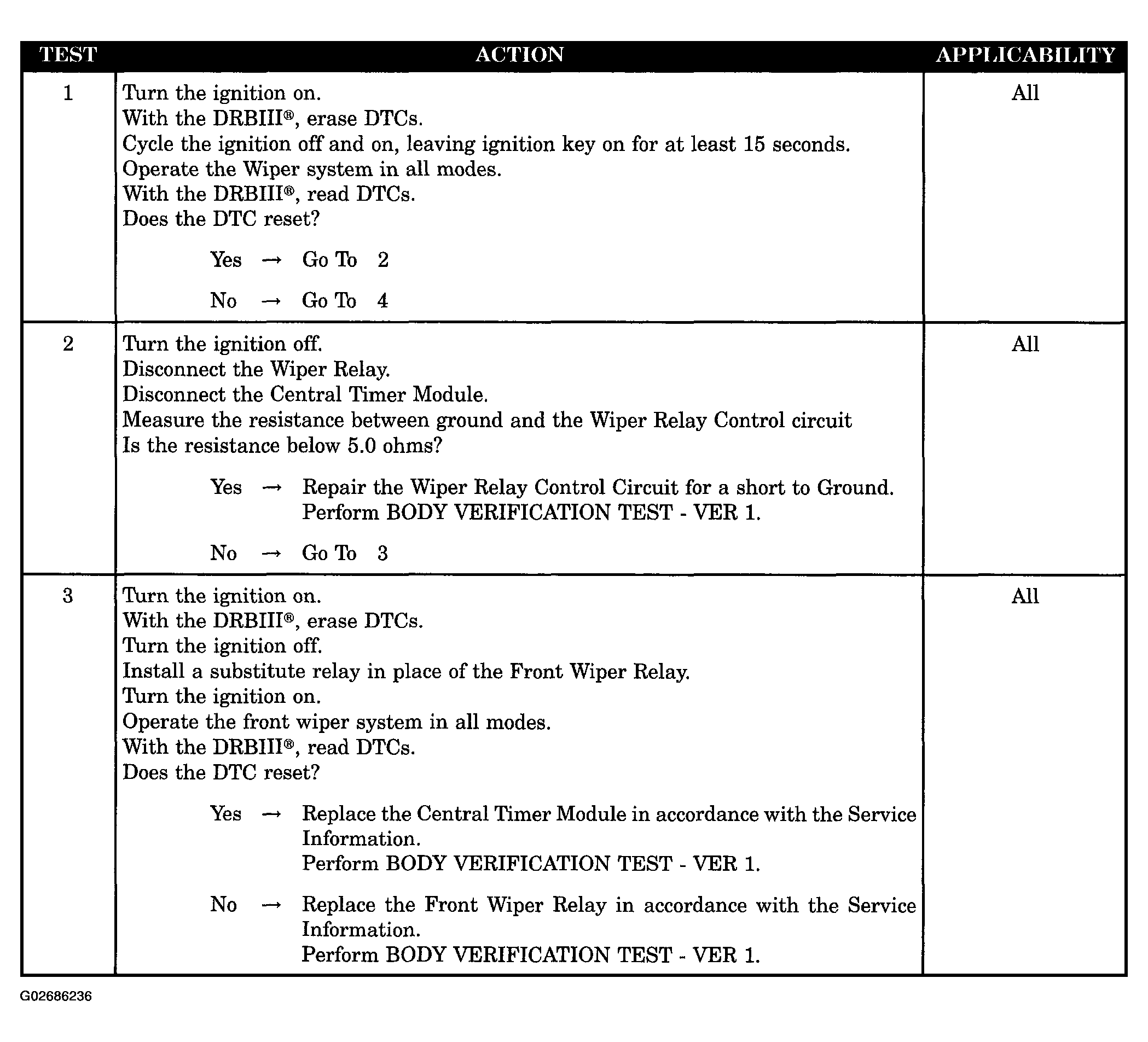

Fig 1: Front Wiper Relay Control Circuit Short To Ground Diagnostic Procedure (1 Of 2)
G02686236Courtesy of DAIMLERCHRYSLER CORP.

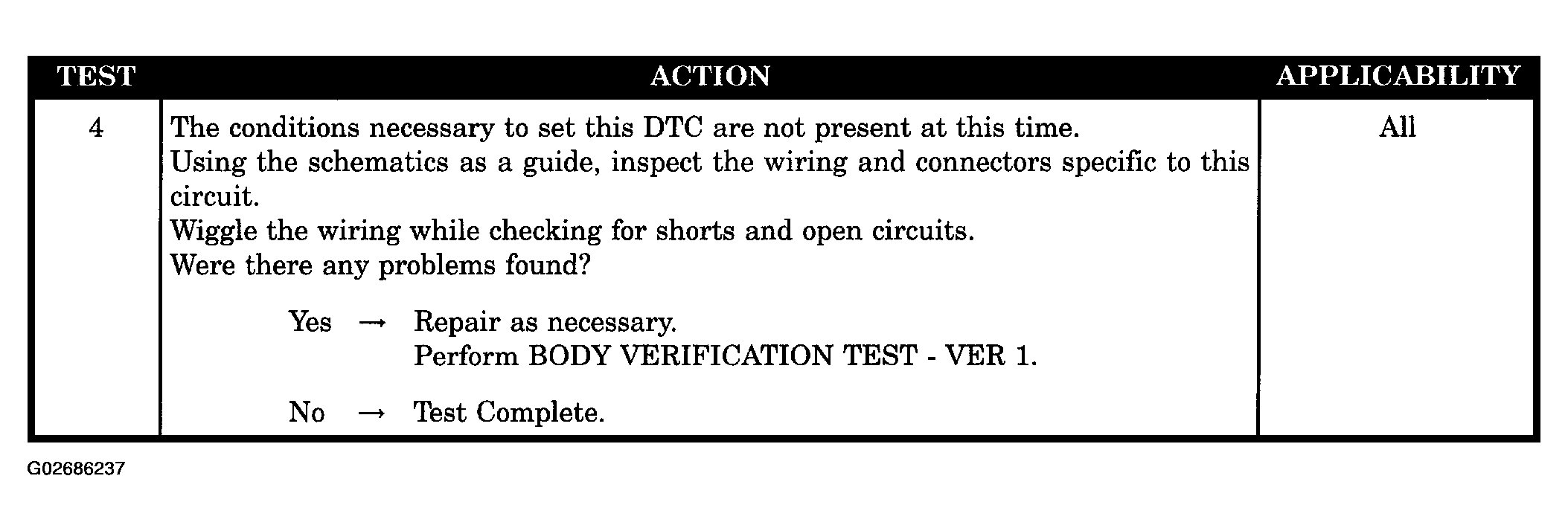

Fig 2: Front Wiper Relay Control Circuit Short To Ground Diagnostic Procedure (2 Of 2)
G02686237Courtesy of DAIMLERCHRYSLER CORP.
