Diagnostic Procedures

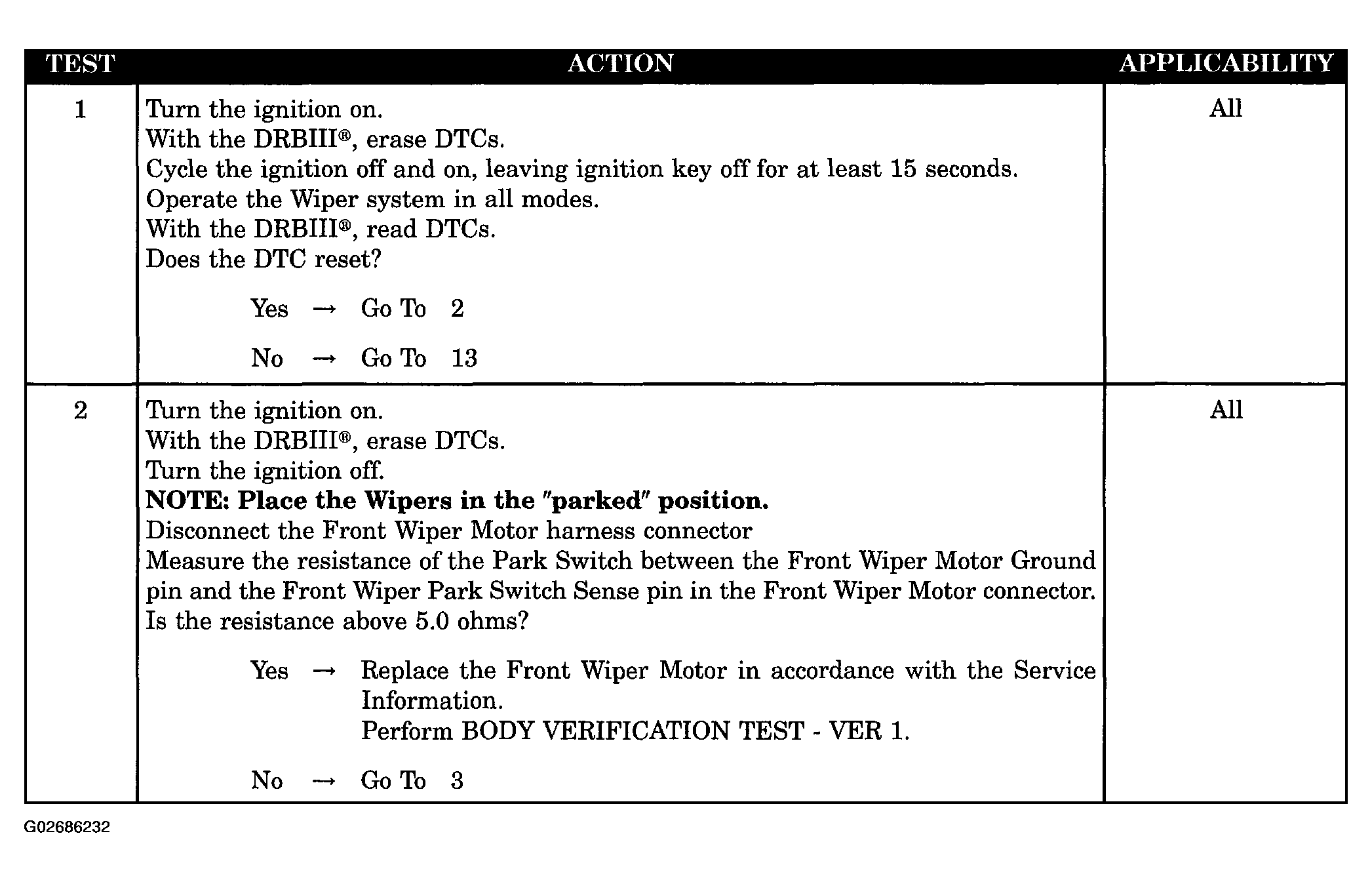

Fig 1: Front Wiper Park Switch Sense Circuit High Diagnostic Procedure (1 Of 4)
G02686232Courtesy of DAIMLERCHRYSLER CORP.

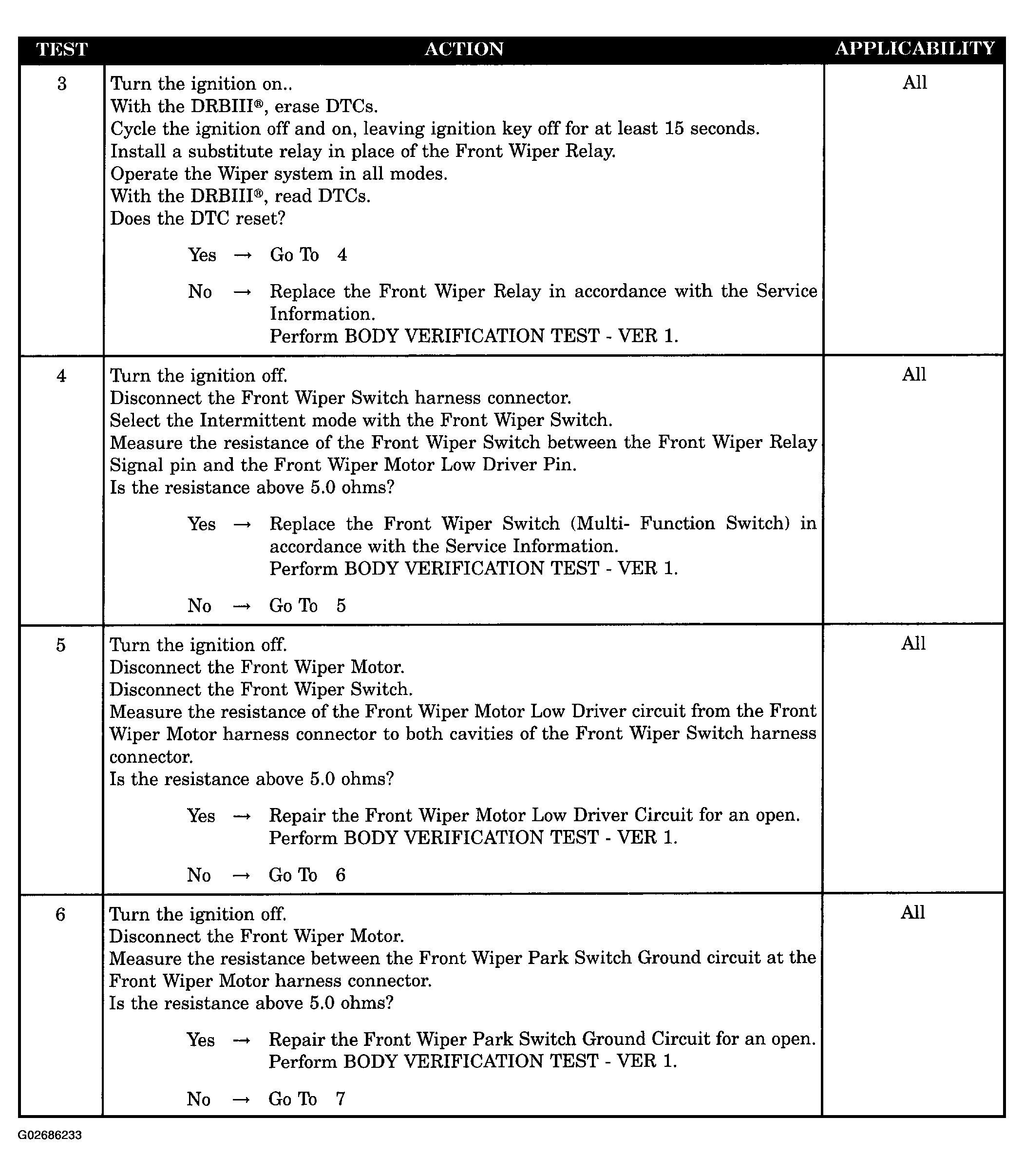

Fig 2: Front Wiper Park Switch Sense Circuit High Diagnostic Procedure (2 Of 4)
G02686233Courtesy of DAIMLERCHRYSLER CORP.

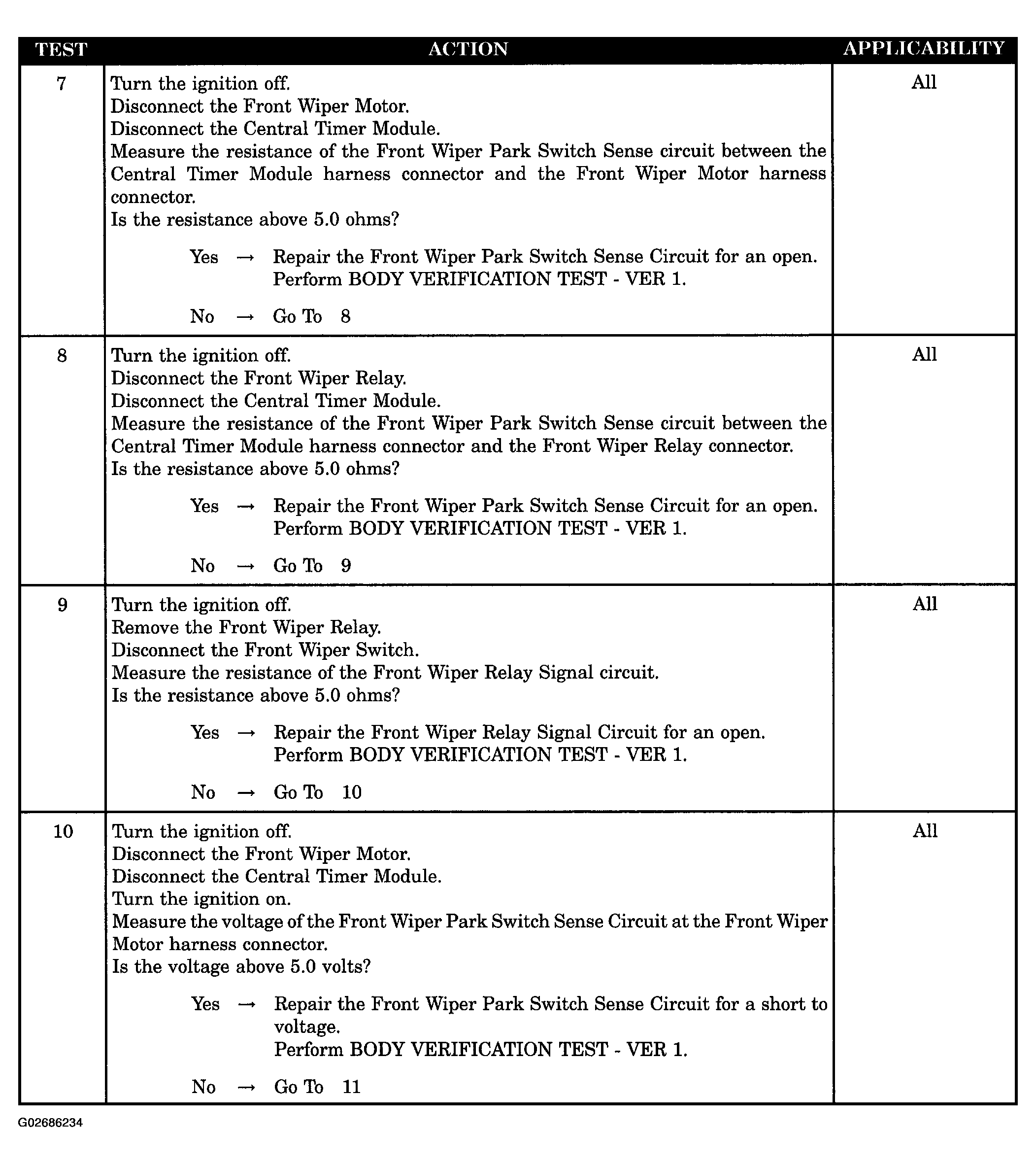

Fig 3: Front Wiper Park Switch Sense Circuit High Diagnostic Procedure (3 Of 4)
G02686234Courtesy of DAIMLERCHRYSLER CORP.

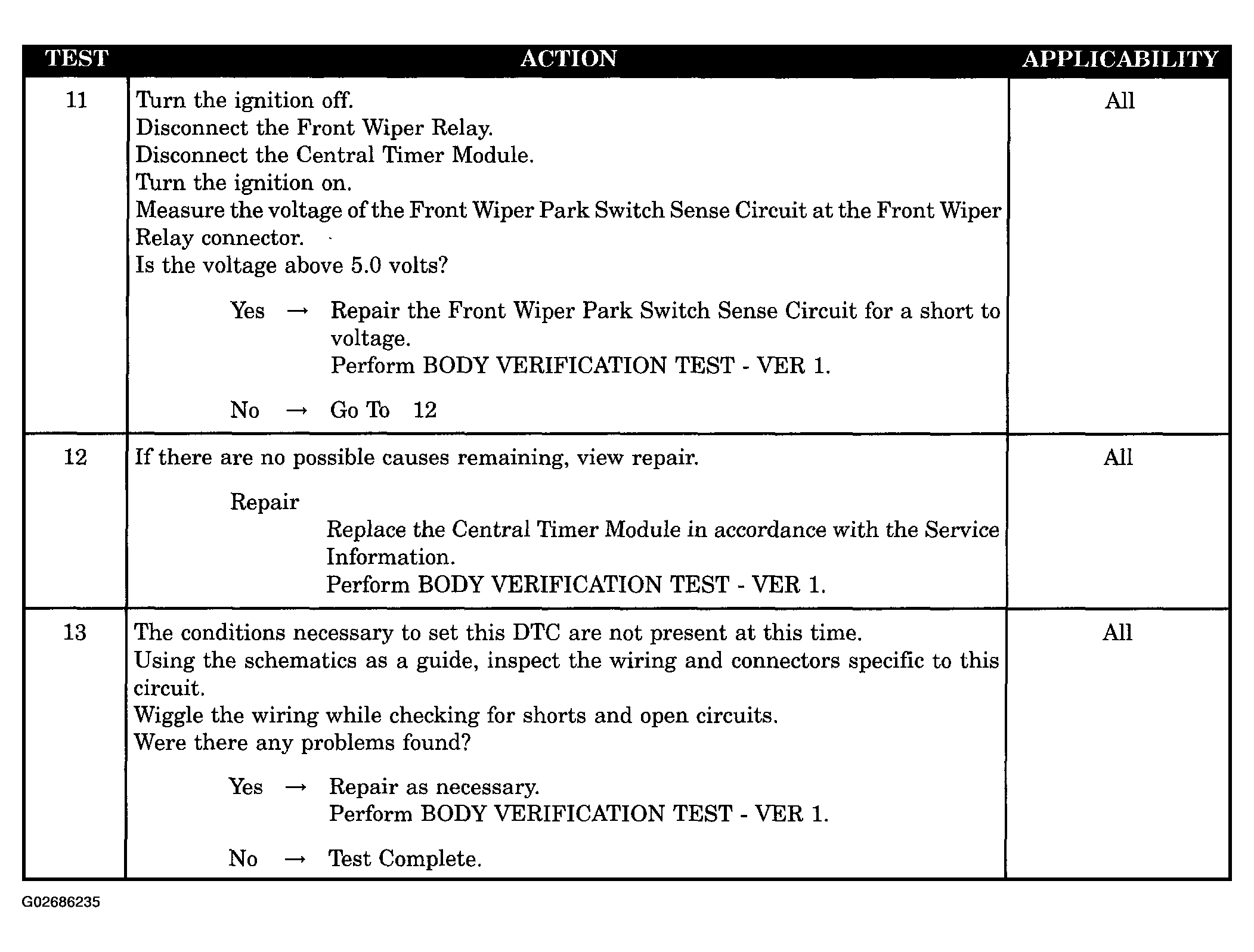

Fig 4: Front Wiper Park Switch Sense Circuit High Diagnostic Procedure (4 Of 4)
G02686235Courtesy of DAIMLERCHRYSLER CORP.
