Diagnostic Procedures

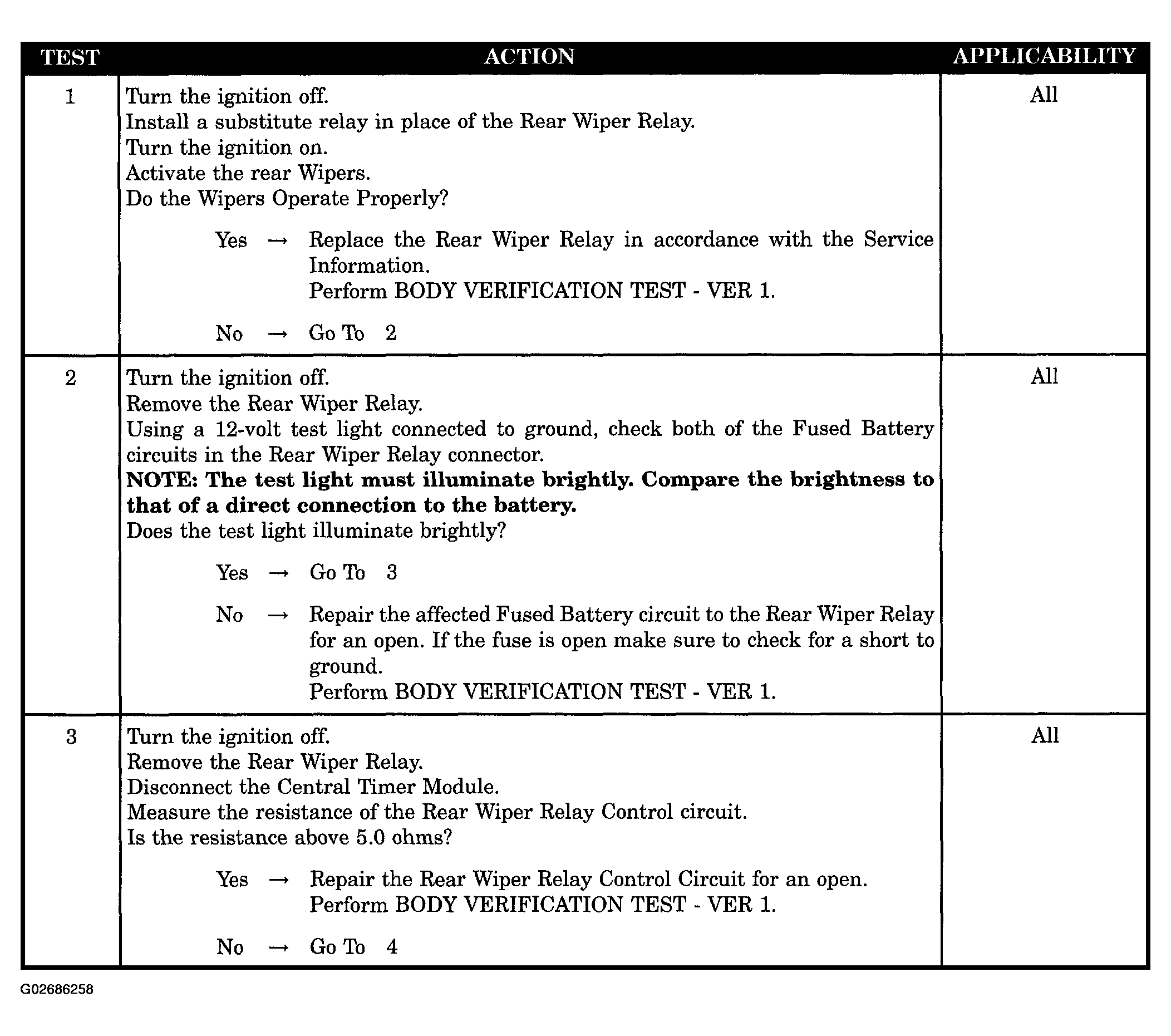

Fig 1: Rear Wiper INOP Diagnostic Procedure (1 Of 3)
G02686258Courtesy of DAIMLERCHRYSLER CORP.

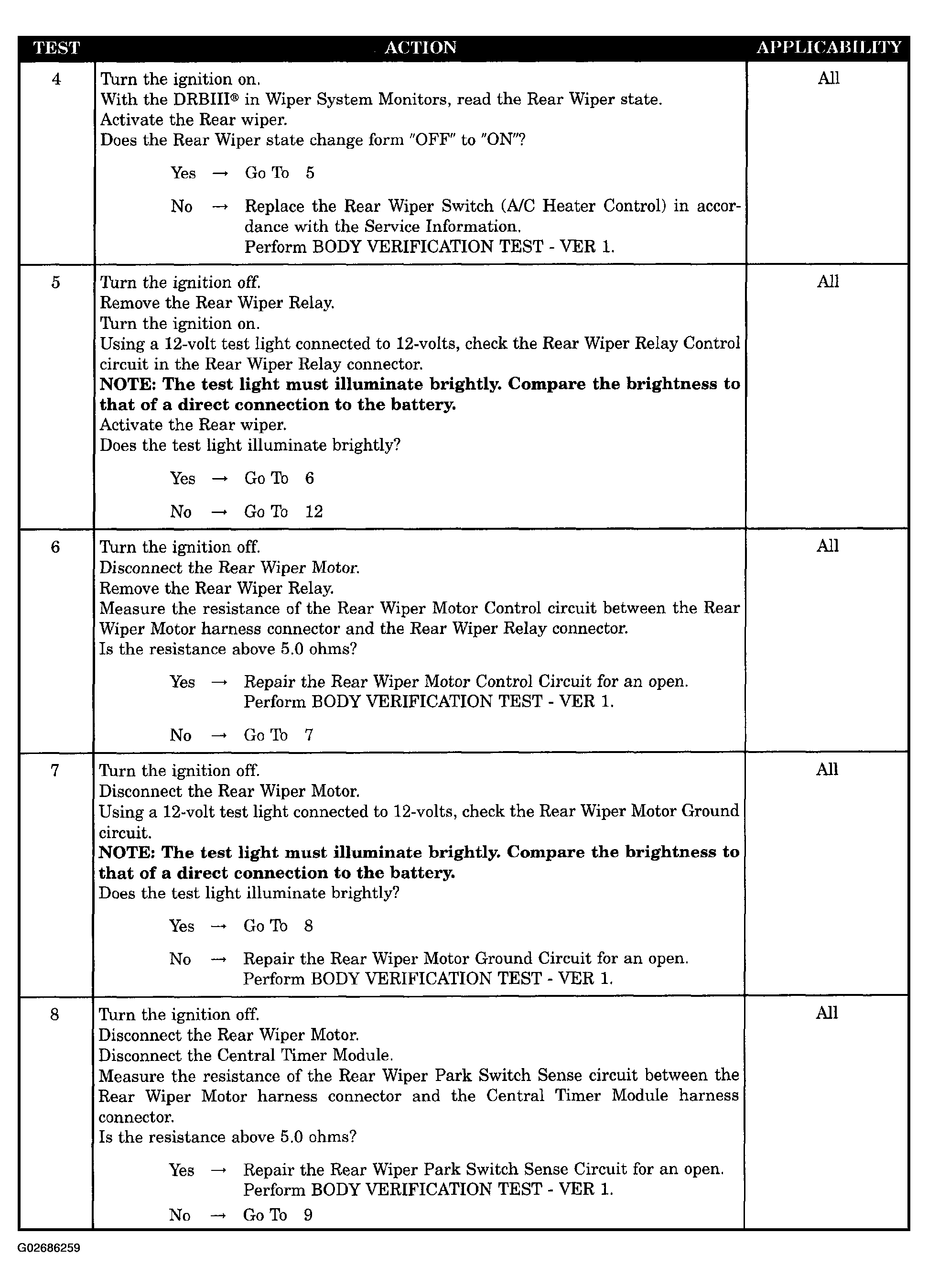

Fig 2: Rear Wiper INOP Diagnostic Procedure (2 Of 3)
G02686259Courtesy of DAIMLERCHRYSLER CORP.

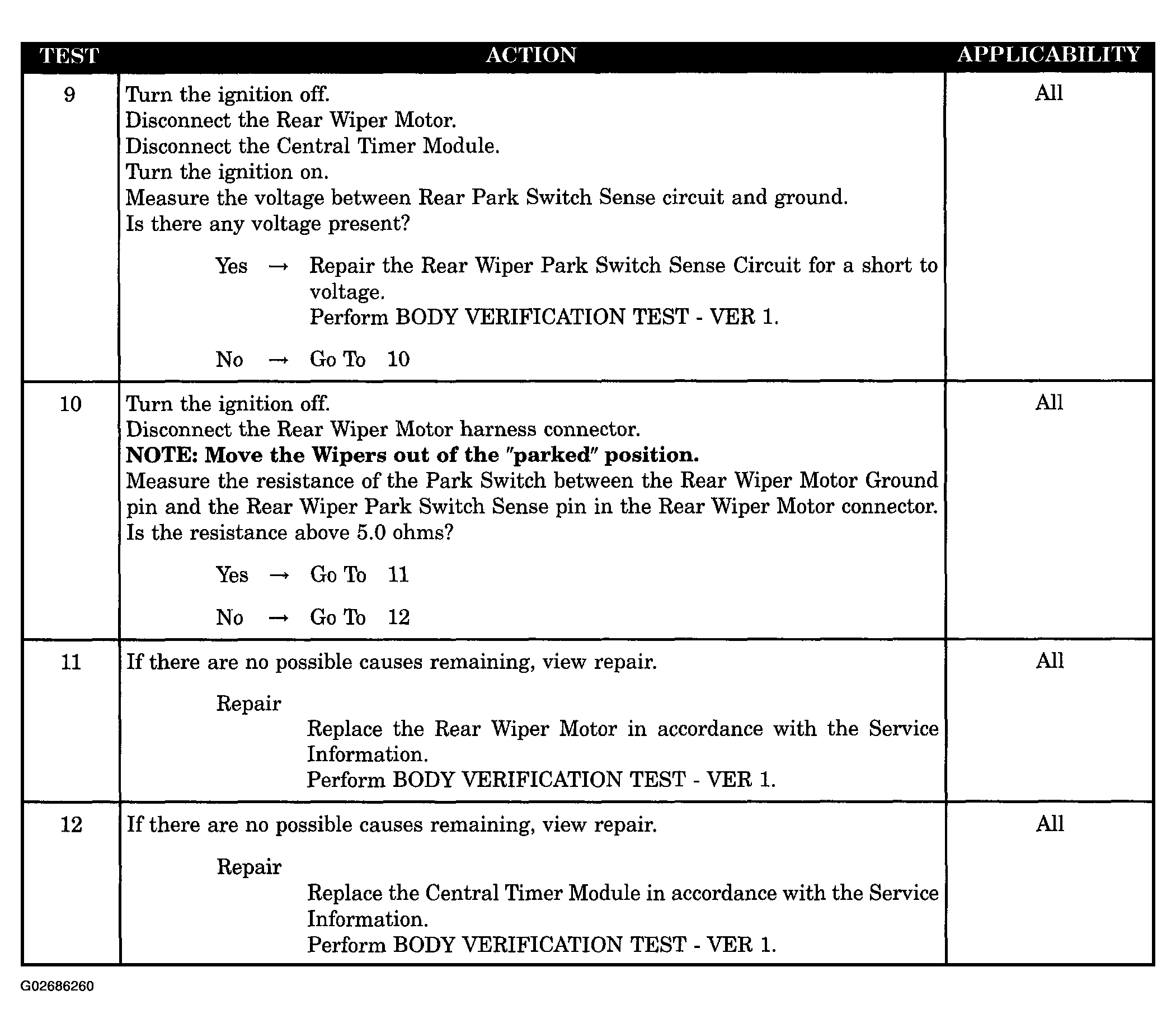

Fig 3: Rear Wiper INOP Diagnostic Procedure (3 Of 3)
G02686260Courtesy of DAIMLERCHRYSLER CORP.
