Durango Base, 5.9 Z, RWD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Body Diagnostics
>>
Diagnostic Information & Procedures
>>
Windshield Wiper & Washer
>>
Symptom: *Front Wiper Intermittent INOP
>>
Diagnostic Procedures
Diagnostic Procedures

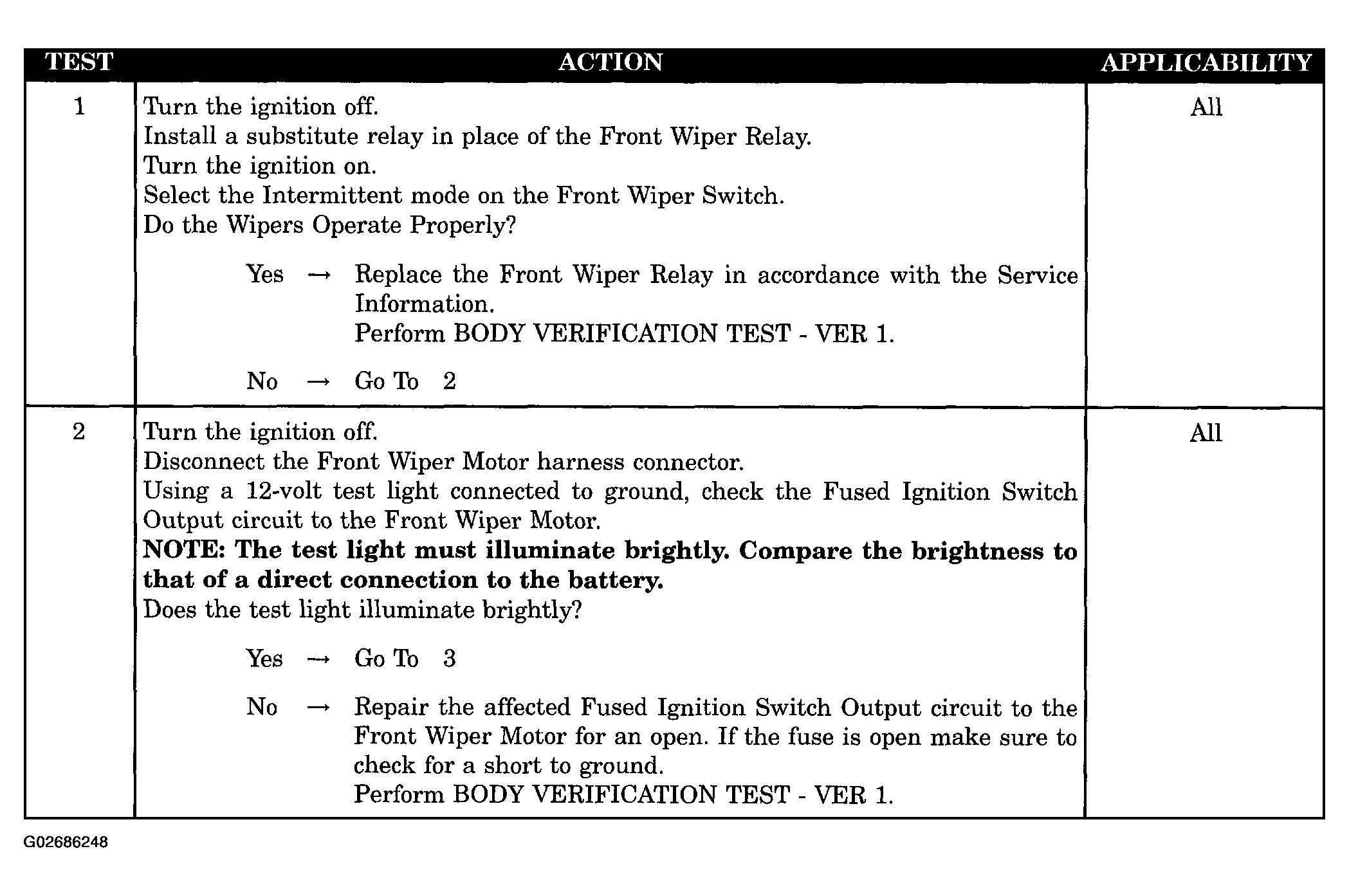

Fig 1: Front Wiper Intermittent INOP Diagnostic Procedure (1 Of 4)
Courtesy of DAIMLERCHRYSLER CORP.

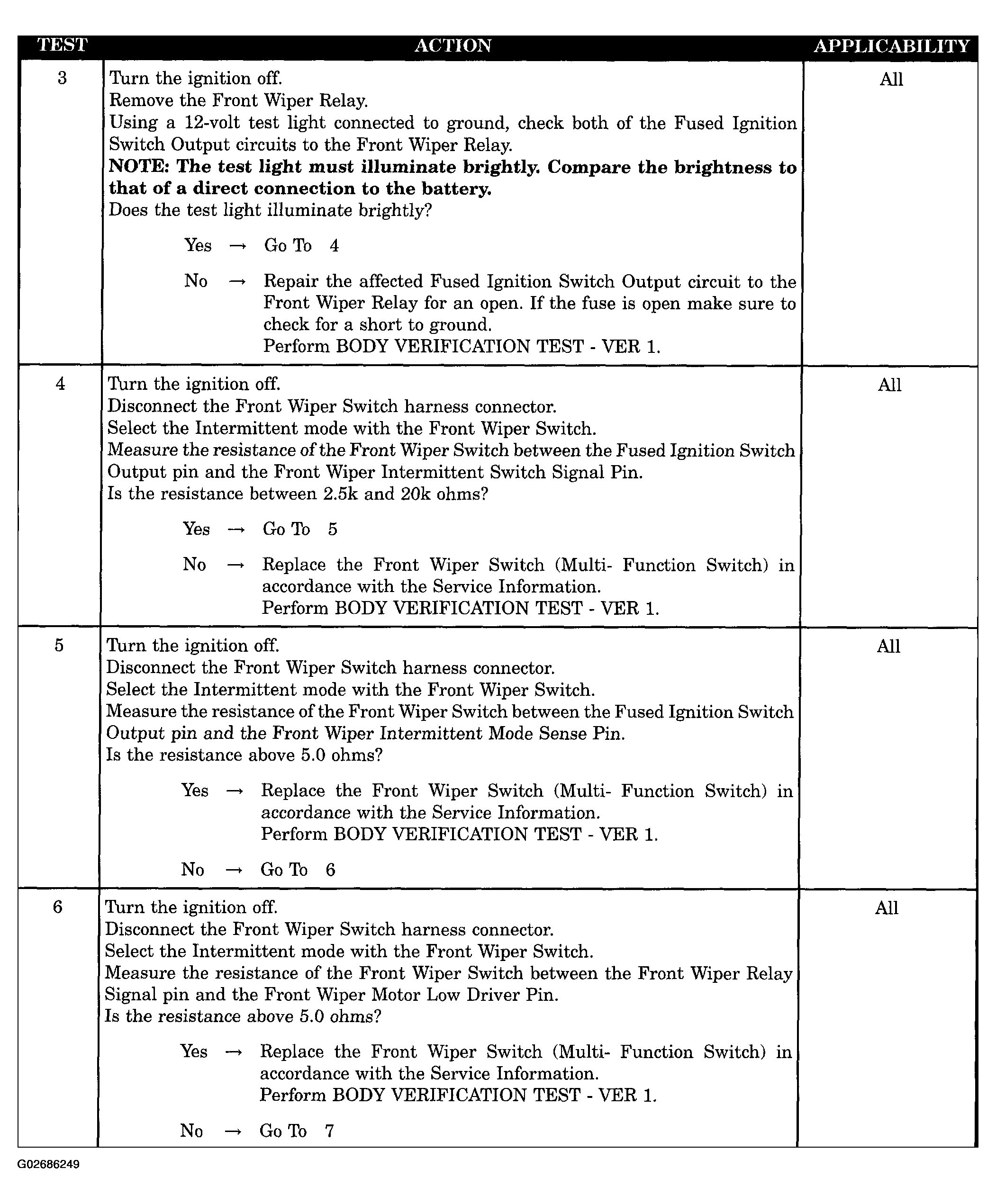

Fig 2: Front Wiper Intermittent INOP Diagnostic Procedure (2 Of 4)
Courtesy of DAIMLERCHRYSLER CORP.

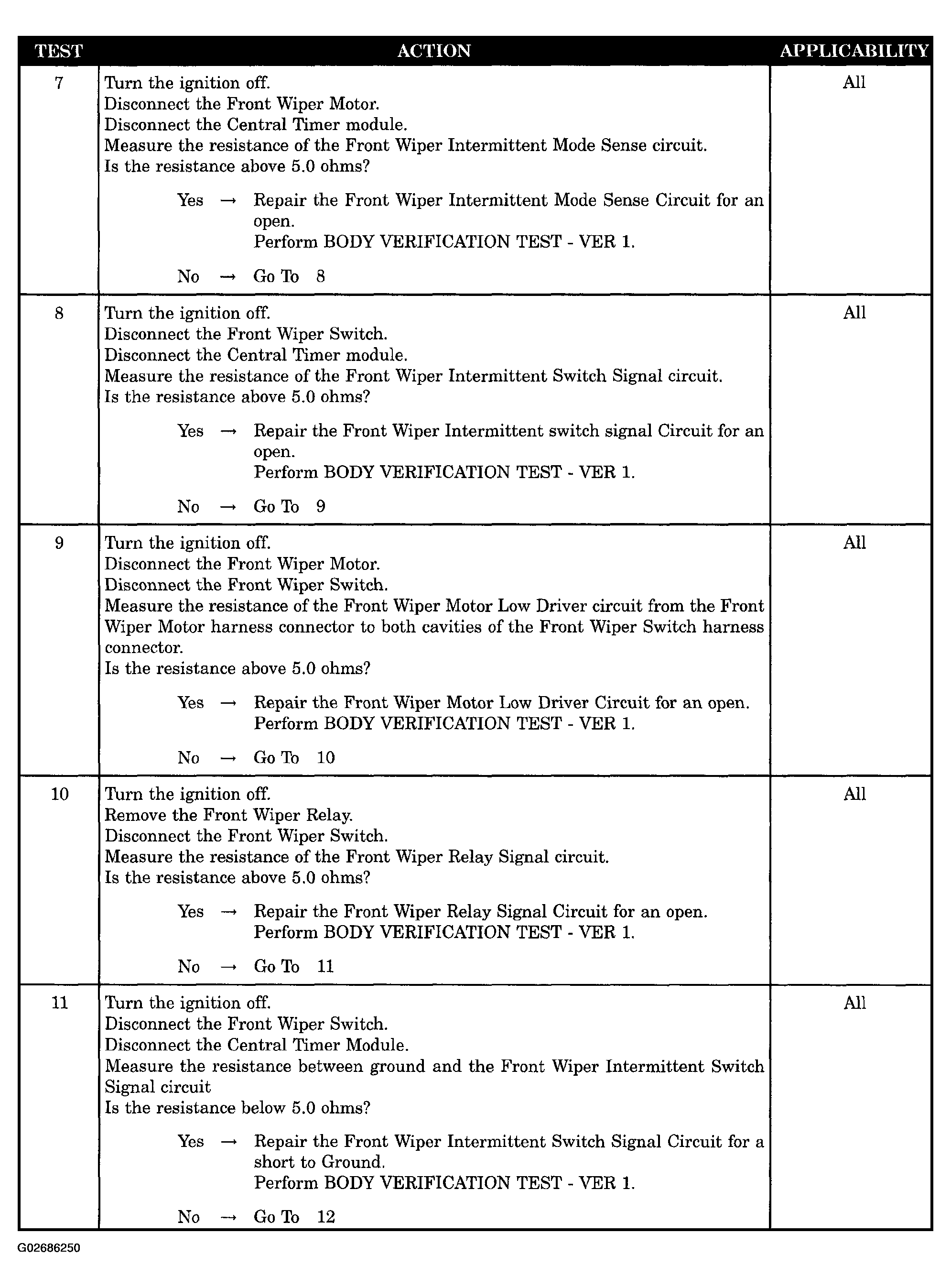

Fig 3: Front Wiper Intermittent INOP Diagnostic Procedure (3 Of 4)
Courtesy of DAIMLERCHRYSLER CORP.

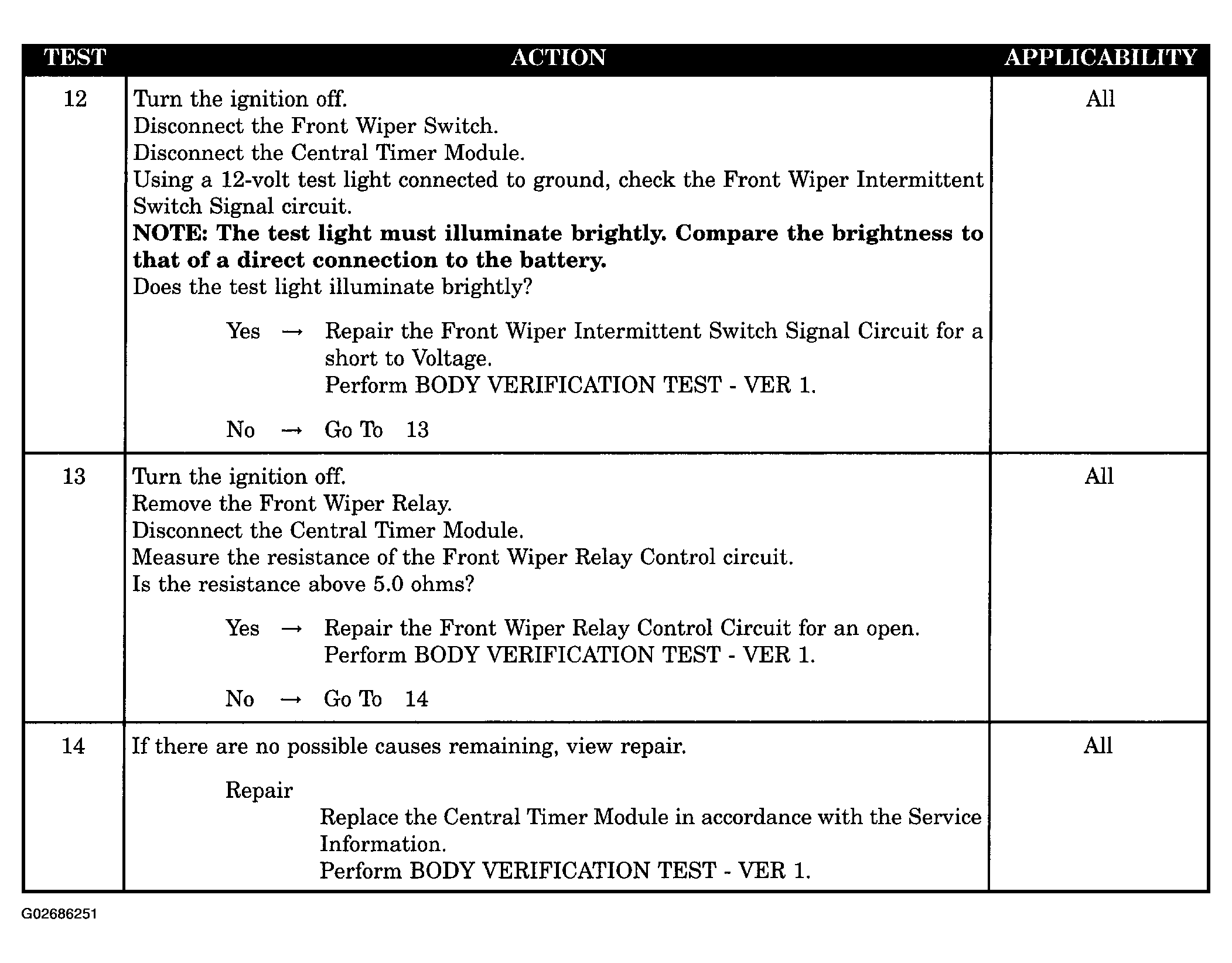

Fig 4: Front Wiper Intermittent INOP Diagnostic Procedure (4 Of 4)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
