Diagnostic Procedures

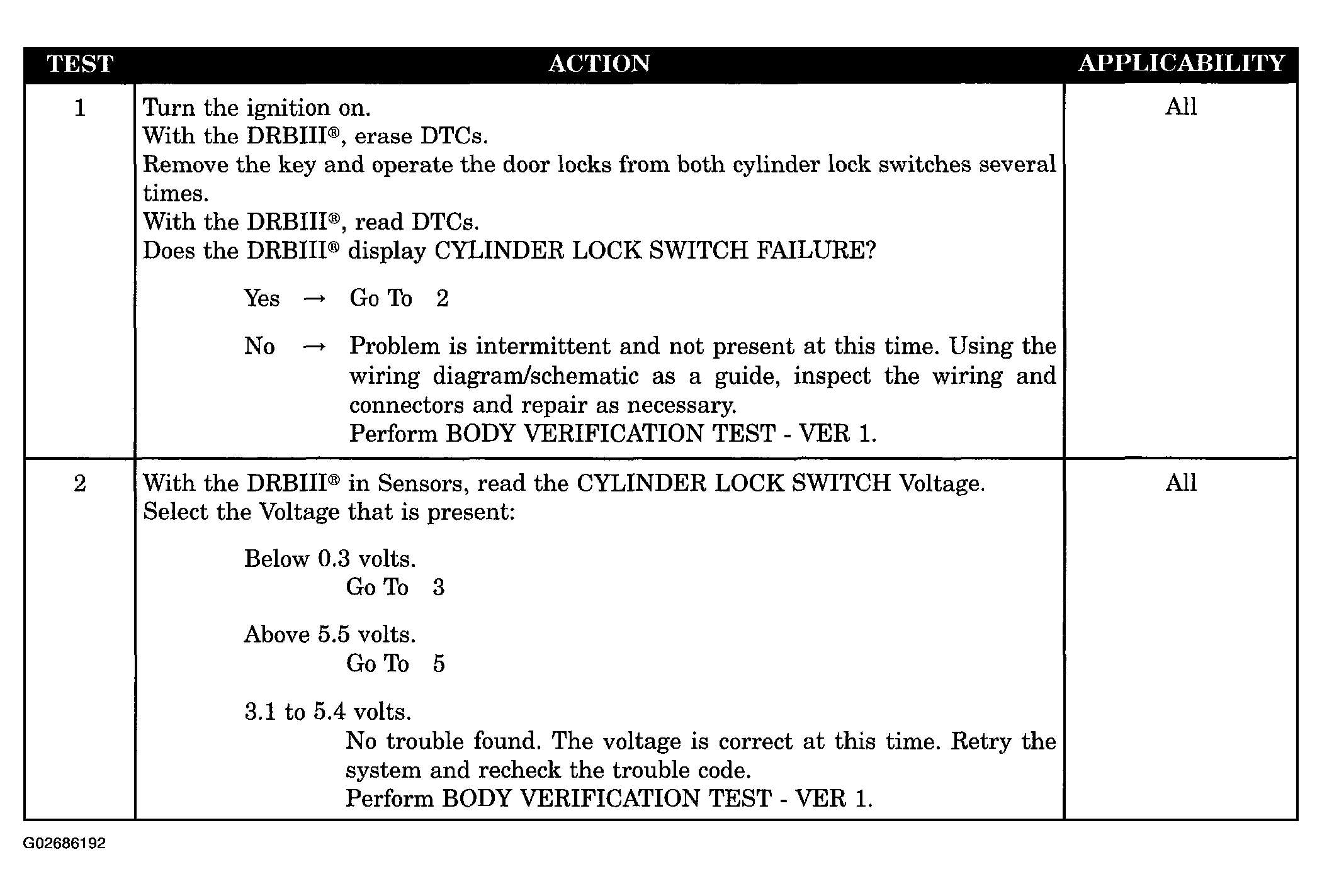

Fig 1: Cylinder Lock Switch Failure Diagnostic Procedure (1 Of 3)
G02686192Courtesy of DAIMLERCHRYSLER CORP.

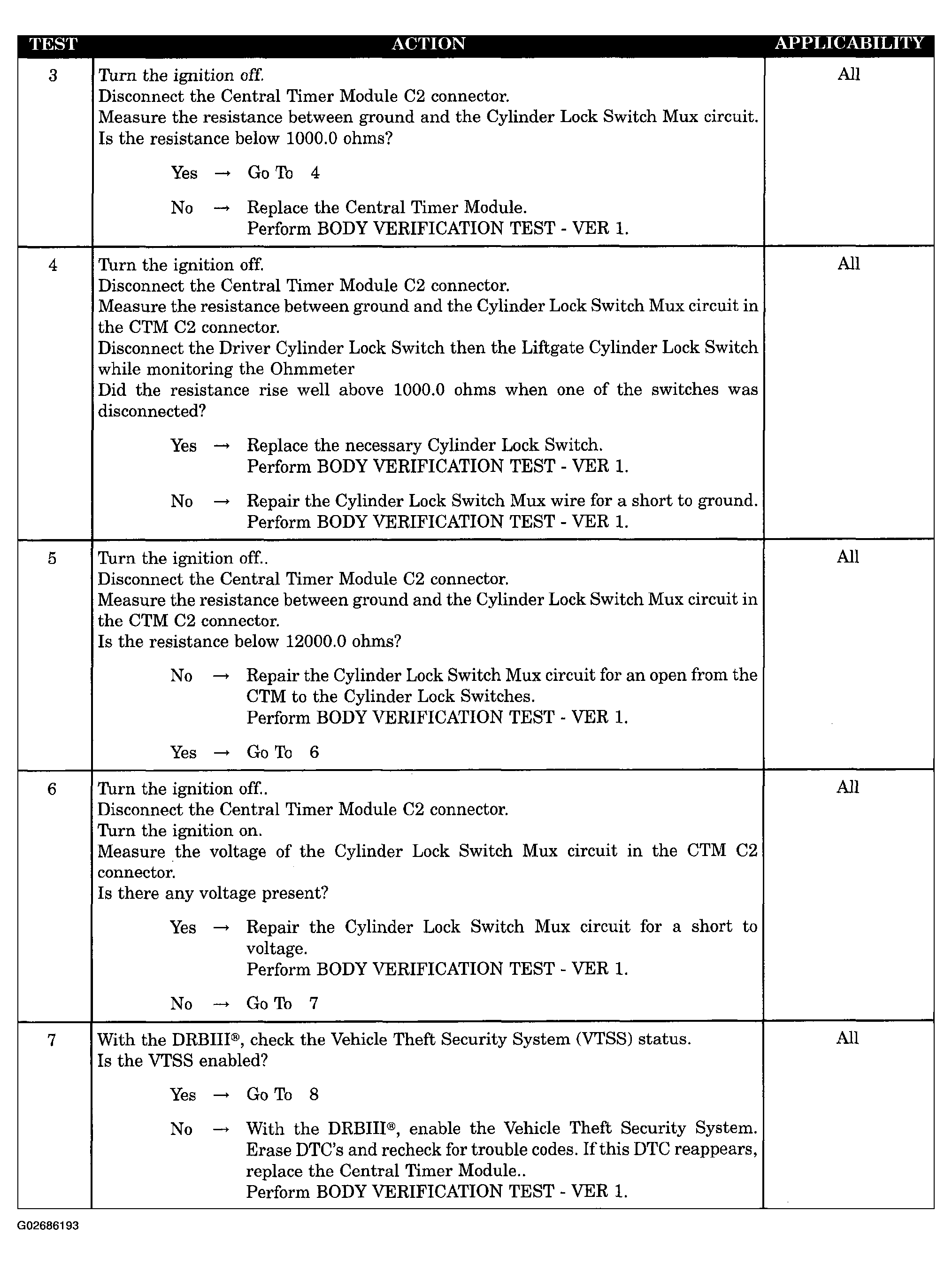

Fig 2: Cylinder Lock Switch Failure Diagnostic Procedure (2 Of 3)
G02686193Courtesy of DAIMLERCHRYSLER CORP.

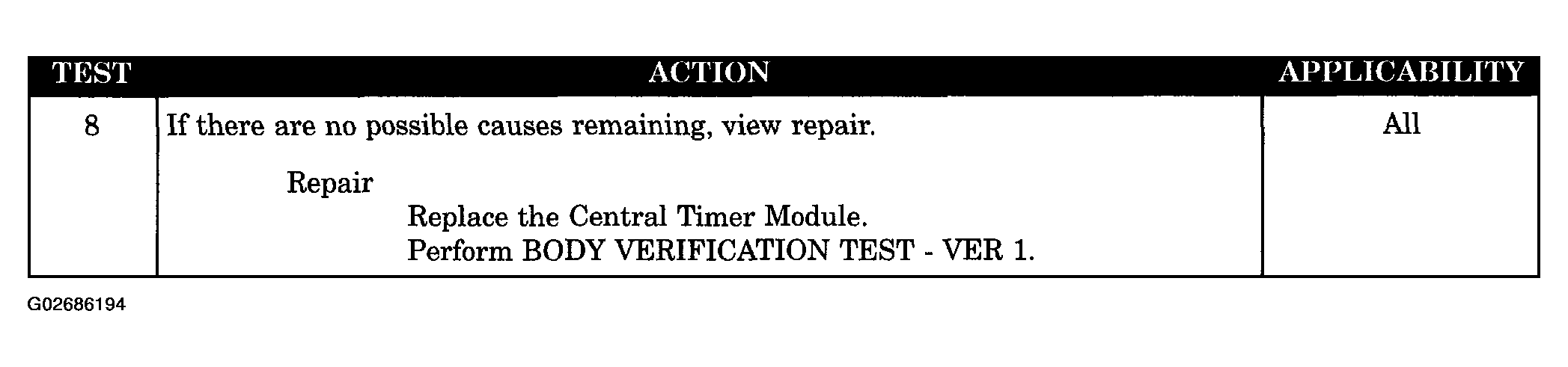

Fig 3: Cylinder Lock Switch Failure Diagnostic Procedure (3 Of 3)
G02686194Courtesy of DAIMLERCHRYSLER CORP.
