Diagnostic Procedures

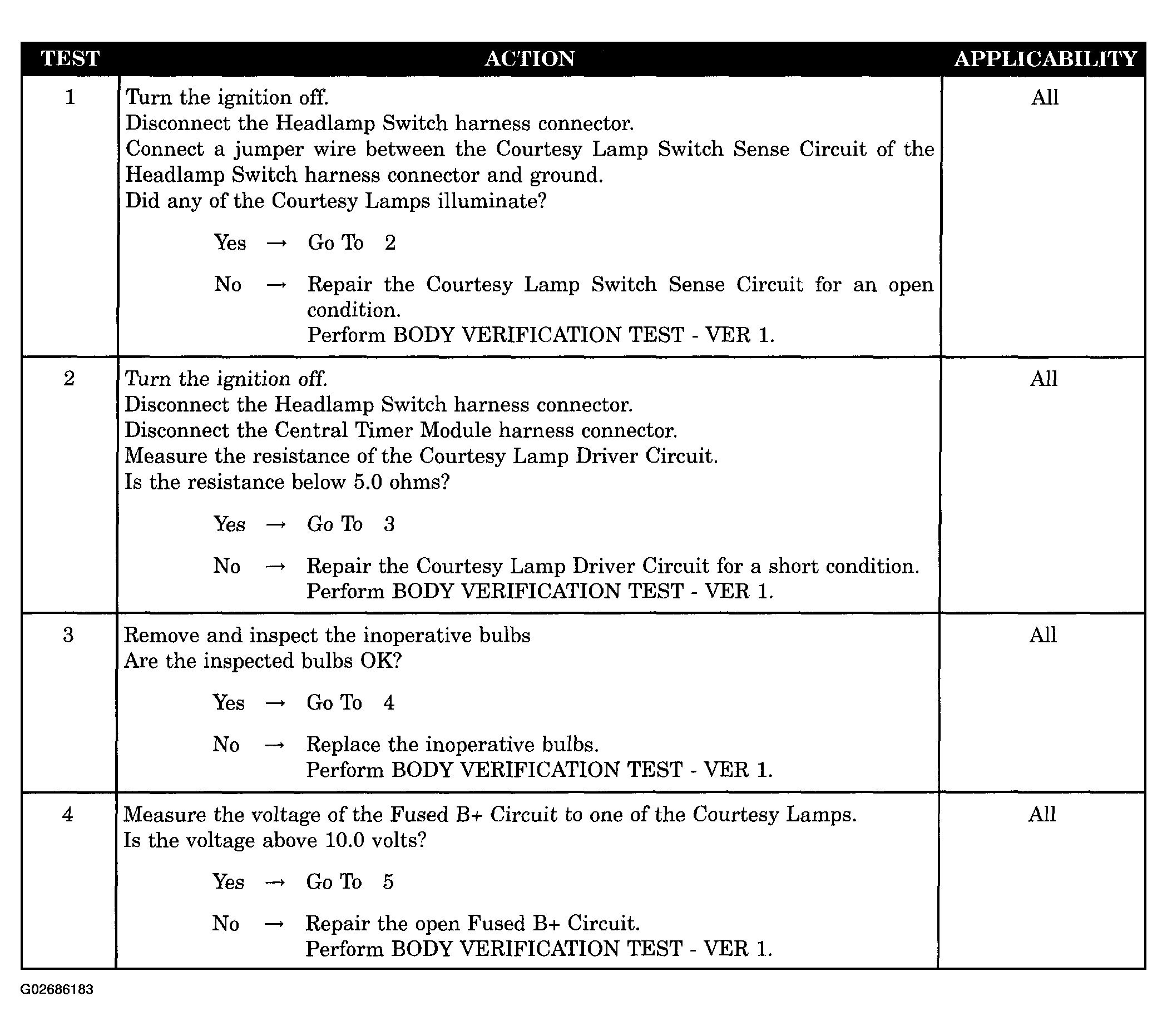

Fig 1: Courtesy Lamps Inoperative - All Lamps Diagnostic Procedure (1 Of 2)
G02686183Courtesy of DAIMLERCHRYSLER CORP.

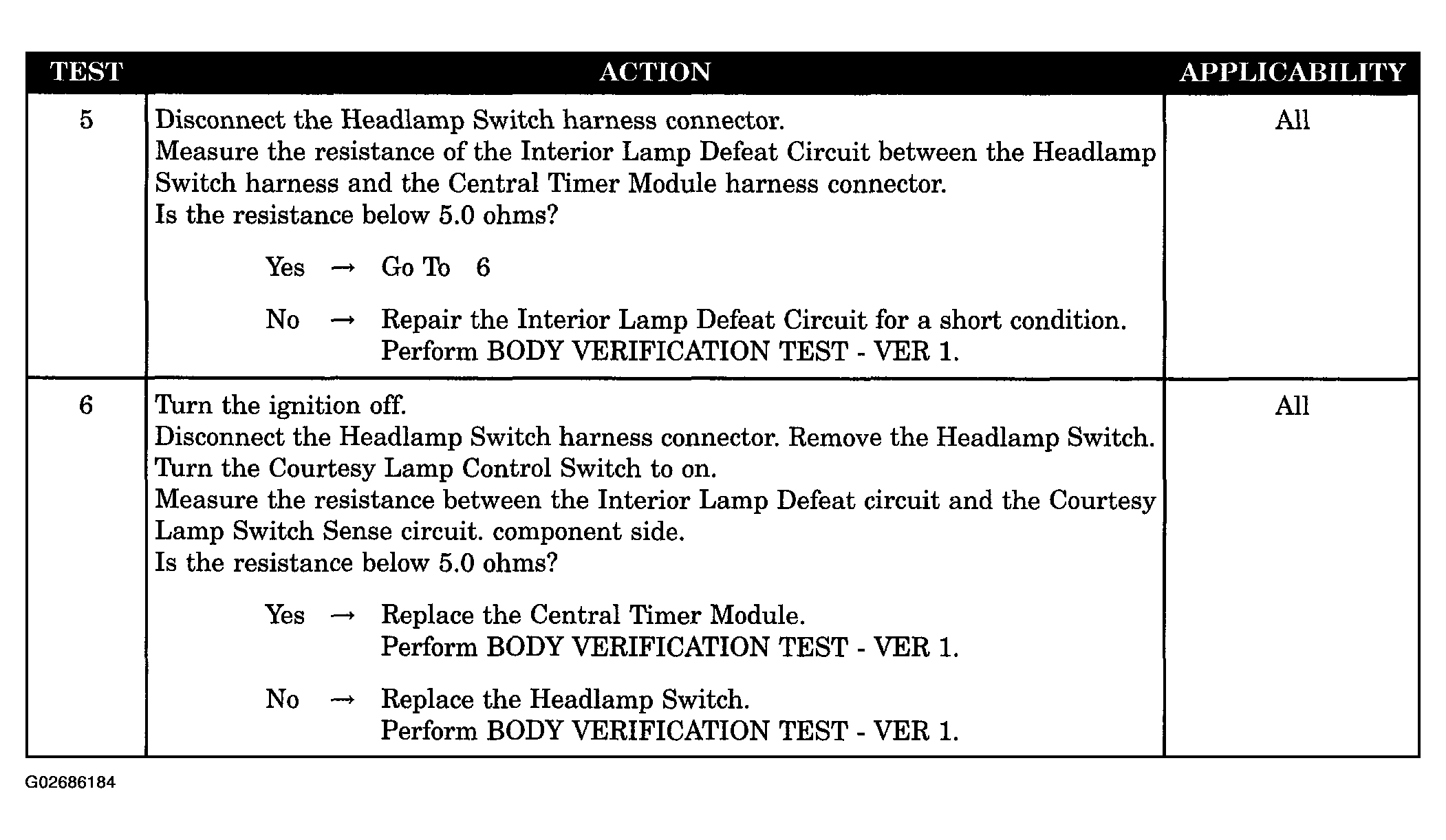

Fig 2: Courtesy Lamps Inoperative - All Lamps Diagnostic Procedure (2 Of 2)
G02686184Courtesy of DAIMLERCHRYSLER CORP.
