Diagnostic Procedures

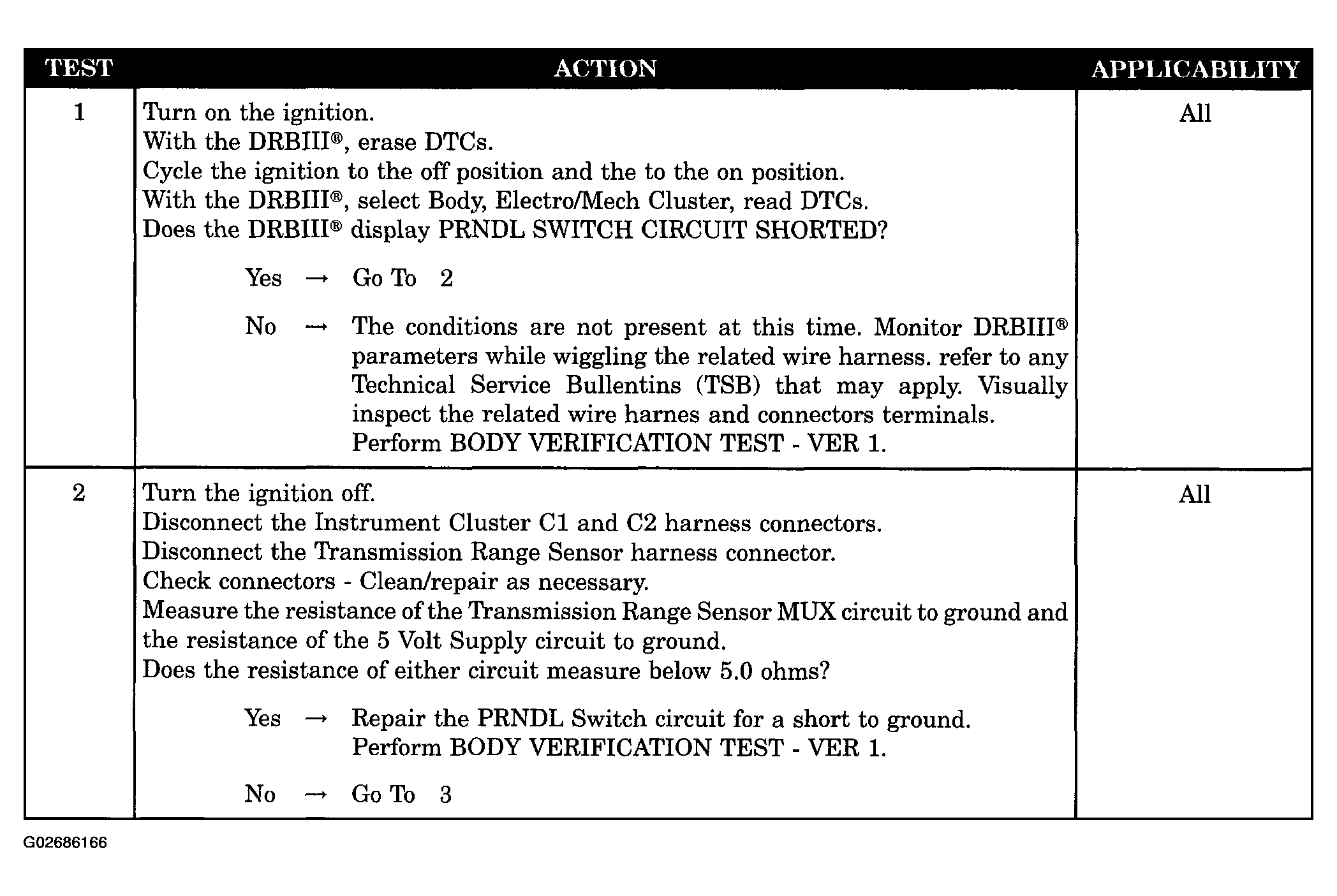

Fig 1: PRNDL Switch Circuit Shorted Diagnostic Procedure (1 Of 2)
G02686166Courtesy of DAIMLERCHRYSLER CORP.

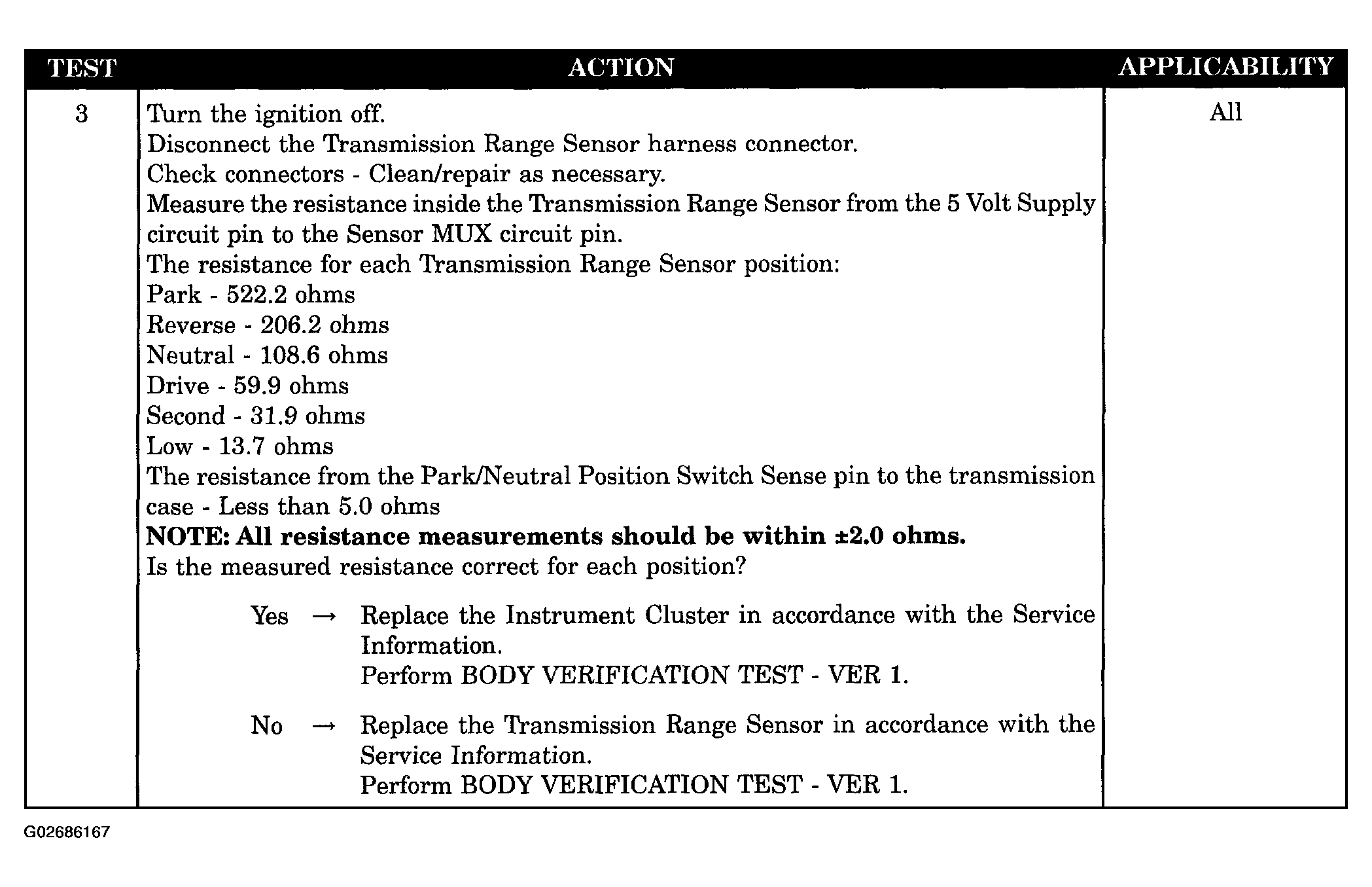

Fig 2: PRNDL Switch Circuit Shorted Diagnostic Procedure (2 Of 2)
G02686167Courtesy of DAIMLERCHRYSLER CORP.
