Diagnostic Procedures

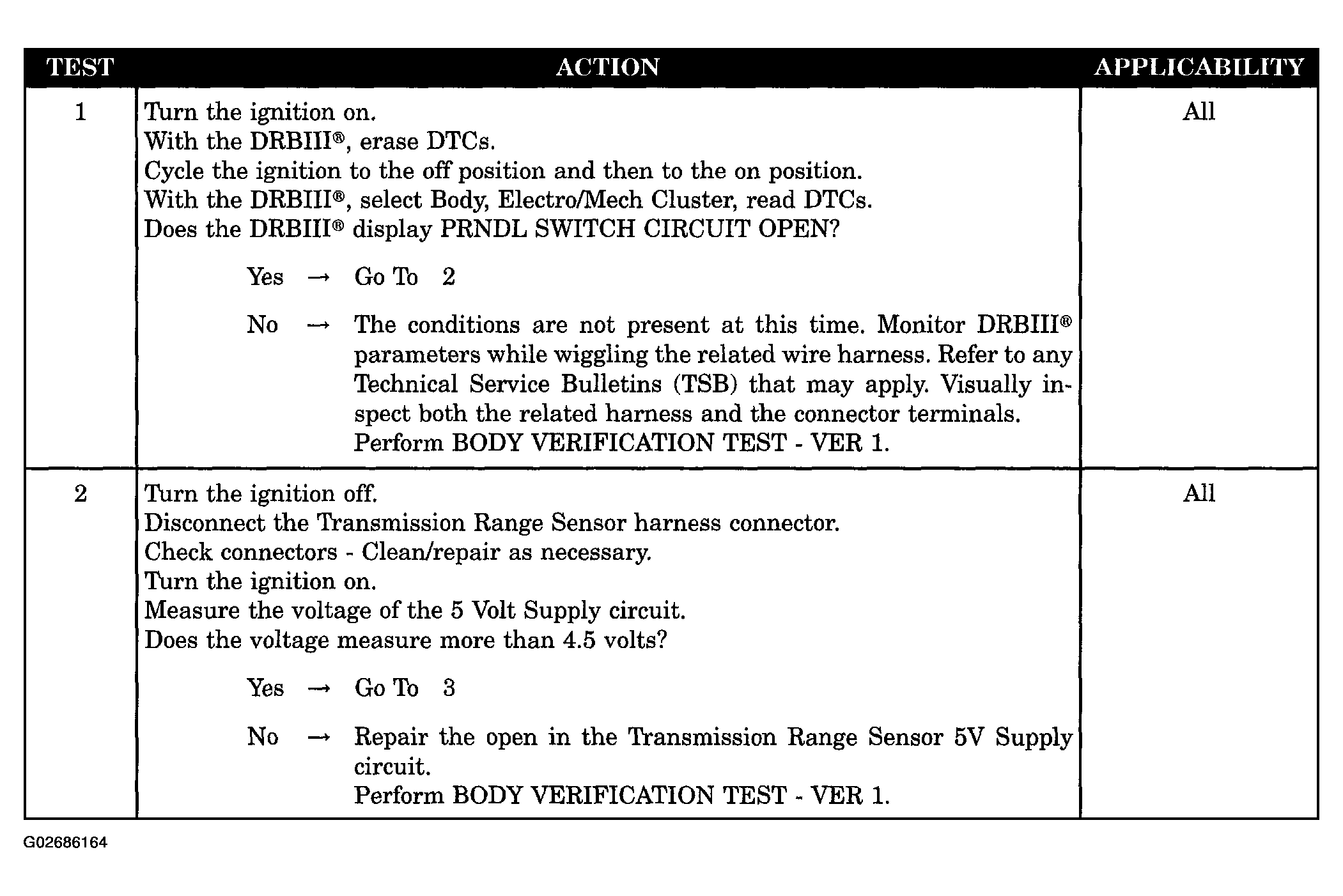

Fig 1: PRNDL Switch Circuit Open Diagnostic Procedure (1 Of 2)
G02686164Courtesy of DAIMLERCHRYSLER CORP.

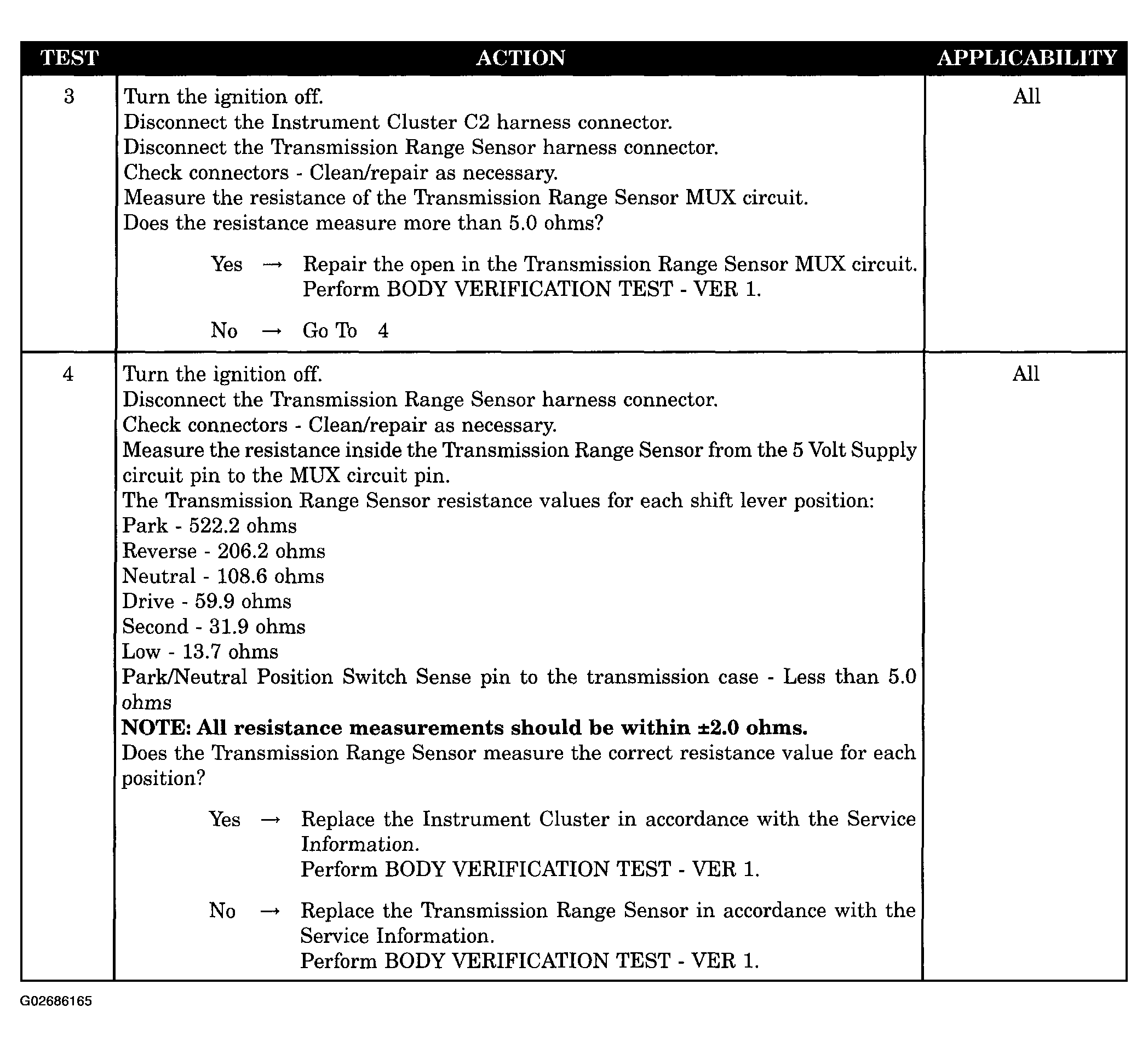

Fig 2: PRNDL Switch Circuit Open Diagnostic Procedure (2 Of 2)
G02686165Courtesy of DAIMLERCHRYSLER CORP.
