Diagnostic Procedures

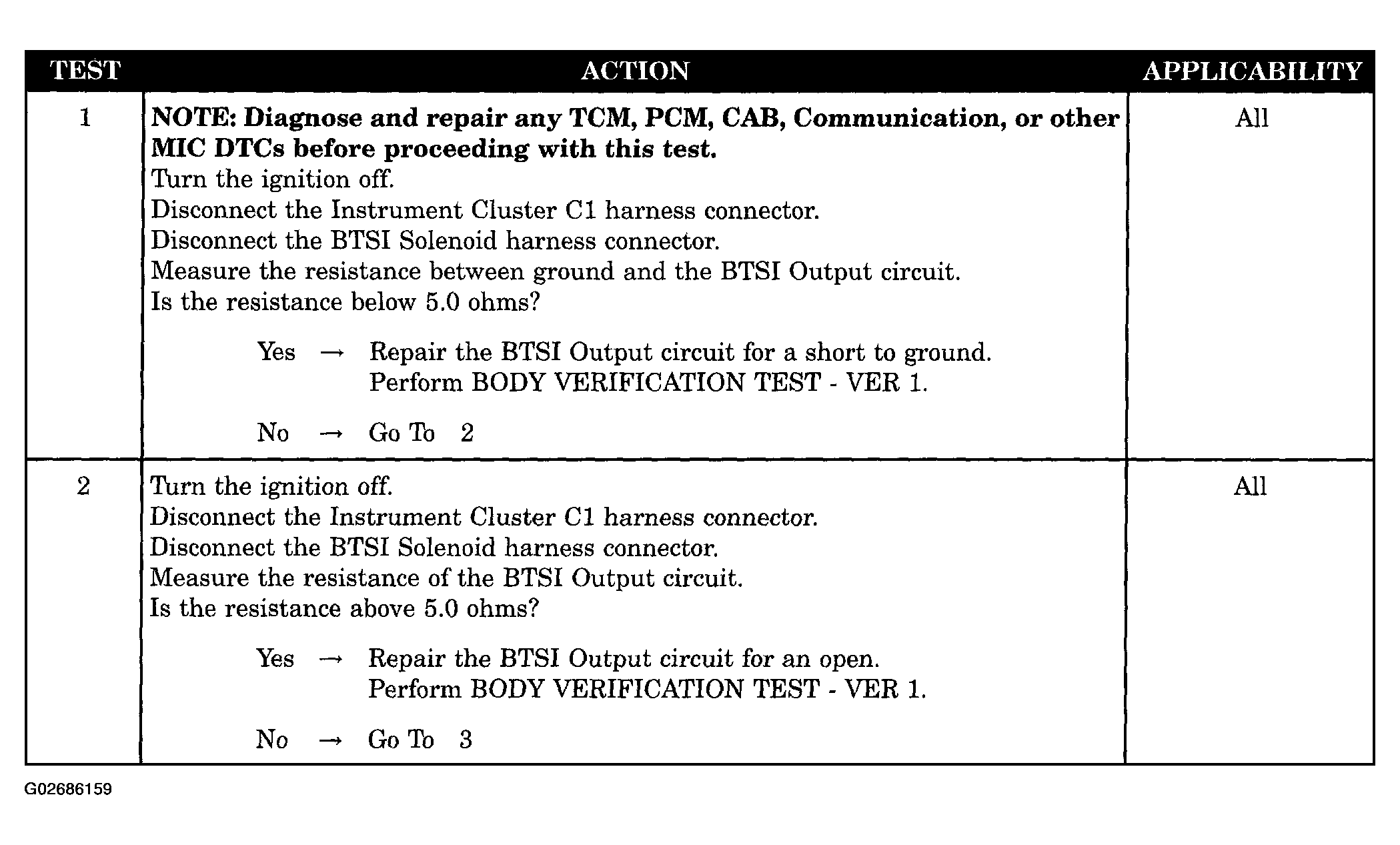

Fig 1: BTSI Output Circuit Shorted Or Open (4.7L EATX Only) Diagnostic Procedure (1 Of 2)
G02686159Courtesy of DAIMLERCHRYSLER CORP.

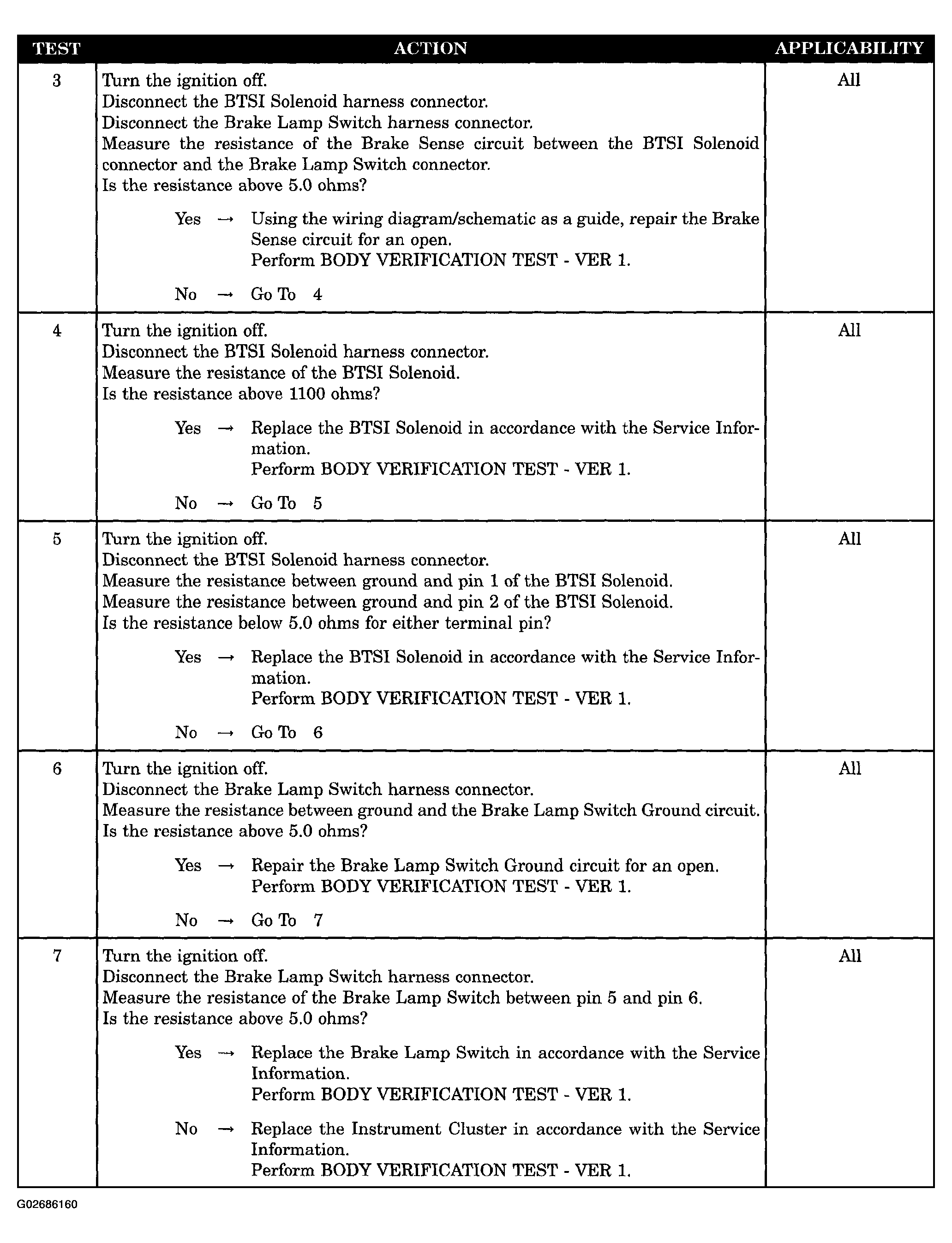

Fig 2: BTSI Output Circuit Shorted Or Open (4.7L EATX Only) Diagnostic Procedure (2 Of 2)
G02686160Courtesy of DAIMLERCHRYSLER CORP.
