LEMON Manuals: Even more car manuals for everyone
Home >> Dodge and Ram >> 2003 >> Durango Base, 5.9 Z, RWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Body Diagnostics >> Diagnostic Information & Procedures >> Instrument Cluster >> Symptom: *Instrument Cluster Dimming Inoperative >> Diagnostic Procedures

Diagnostic Procedures

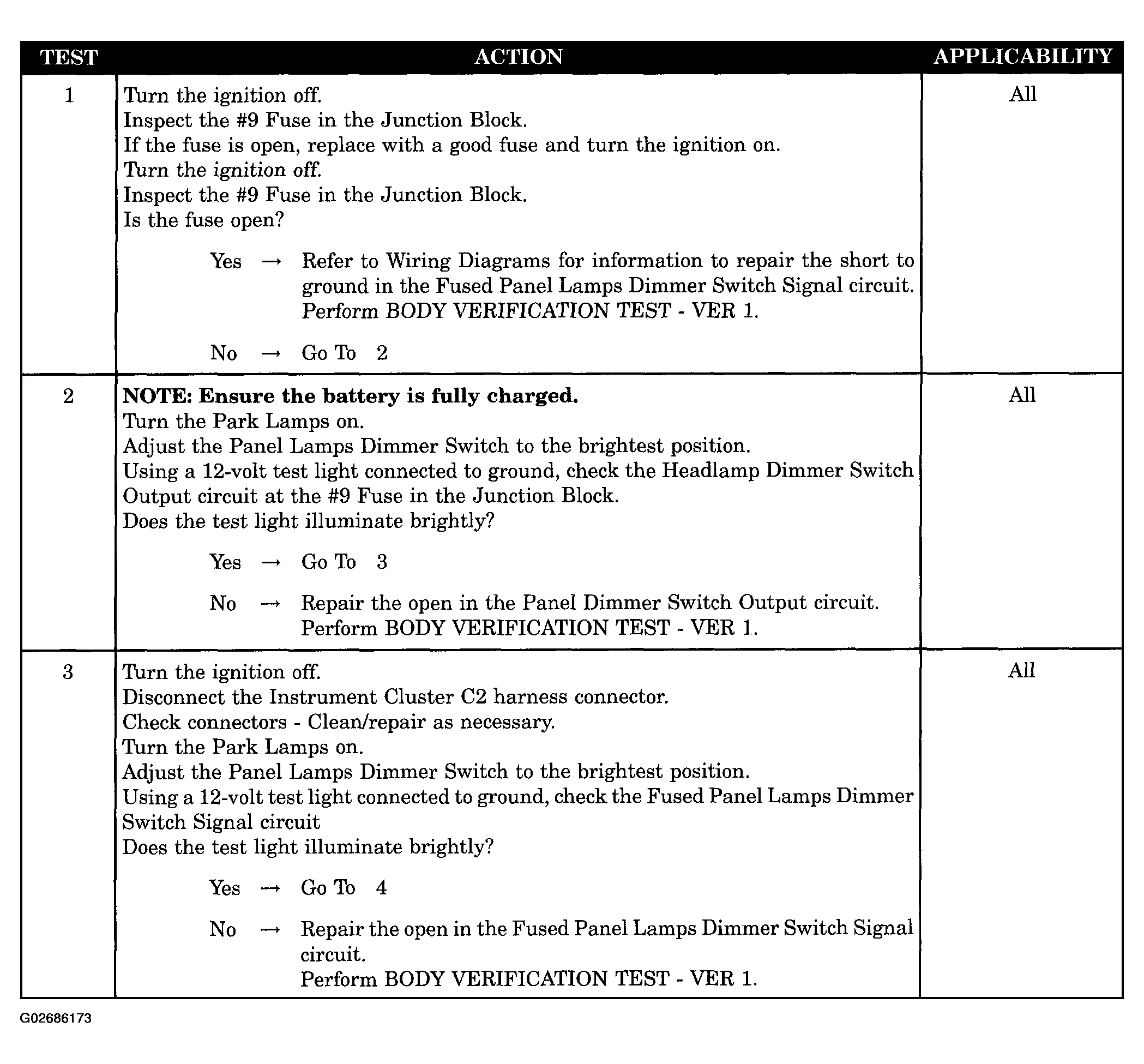

Fig 1: Instrument Cluster Dimming Inoperative Diagnostic Procedure (1 Of 2)
G02686173Courtesy of DAIMLERCHRYSLER CORP.

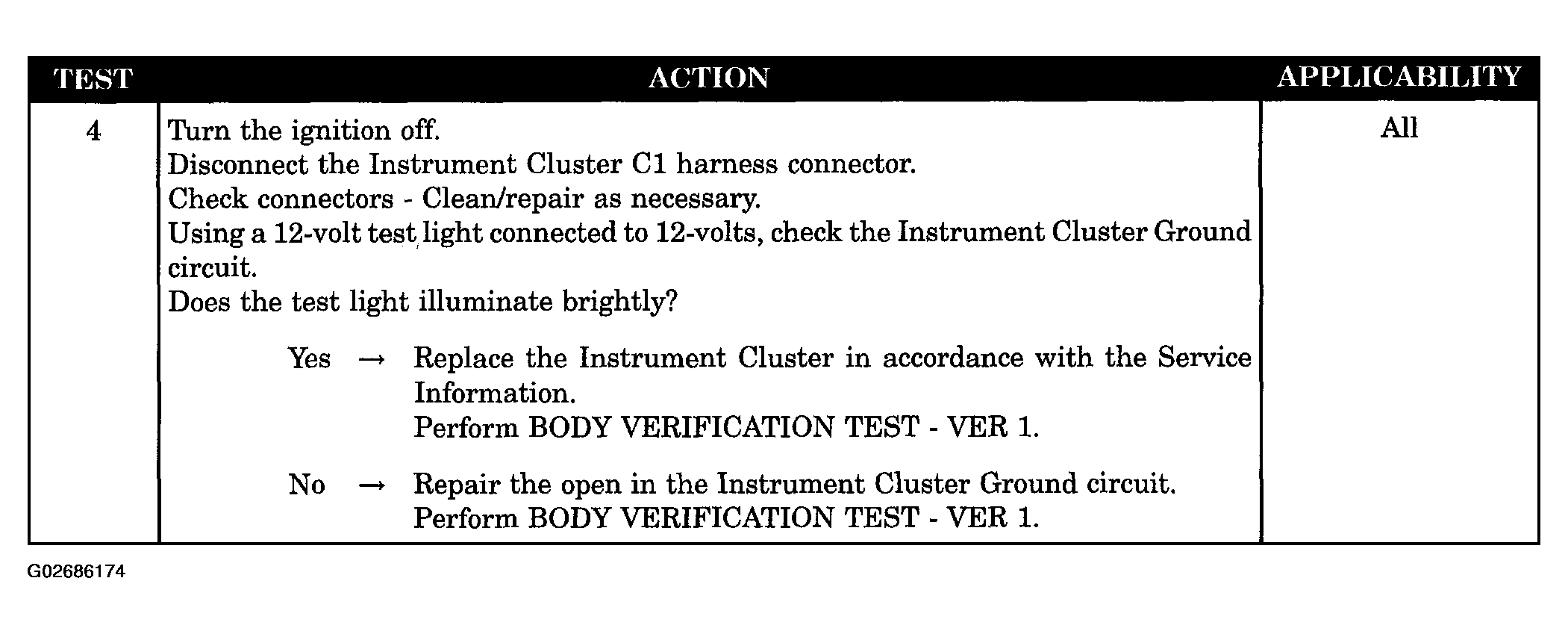

Fig 2: Instrument Cluster Dimming Inoperative Diagnostic Procedure (2 Of 2)
G02686174Courtesy of DAIMLERCHRYSLER CORP.
