Diagnostic Procedures

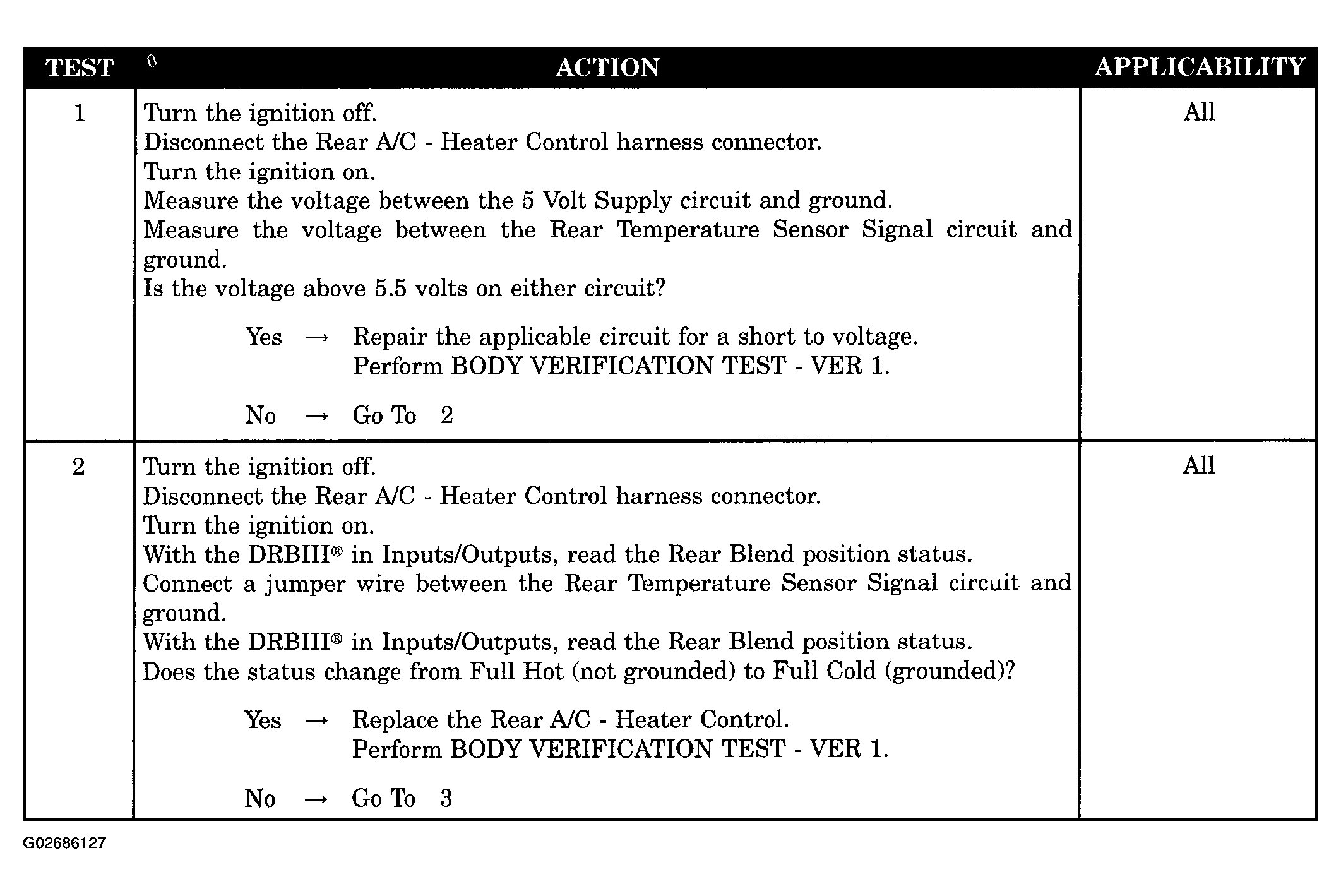

Fig 1: Rear Blend Pot Circuit Open (Active) Diagnostic Procedure (1 Of 2)
G02686127Courtesy of DAIMLERCHRYSLER CORP.

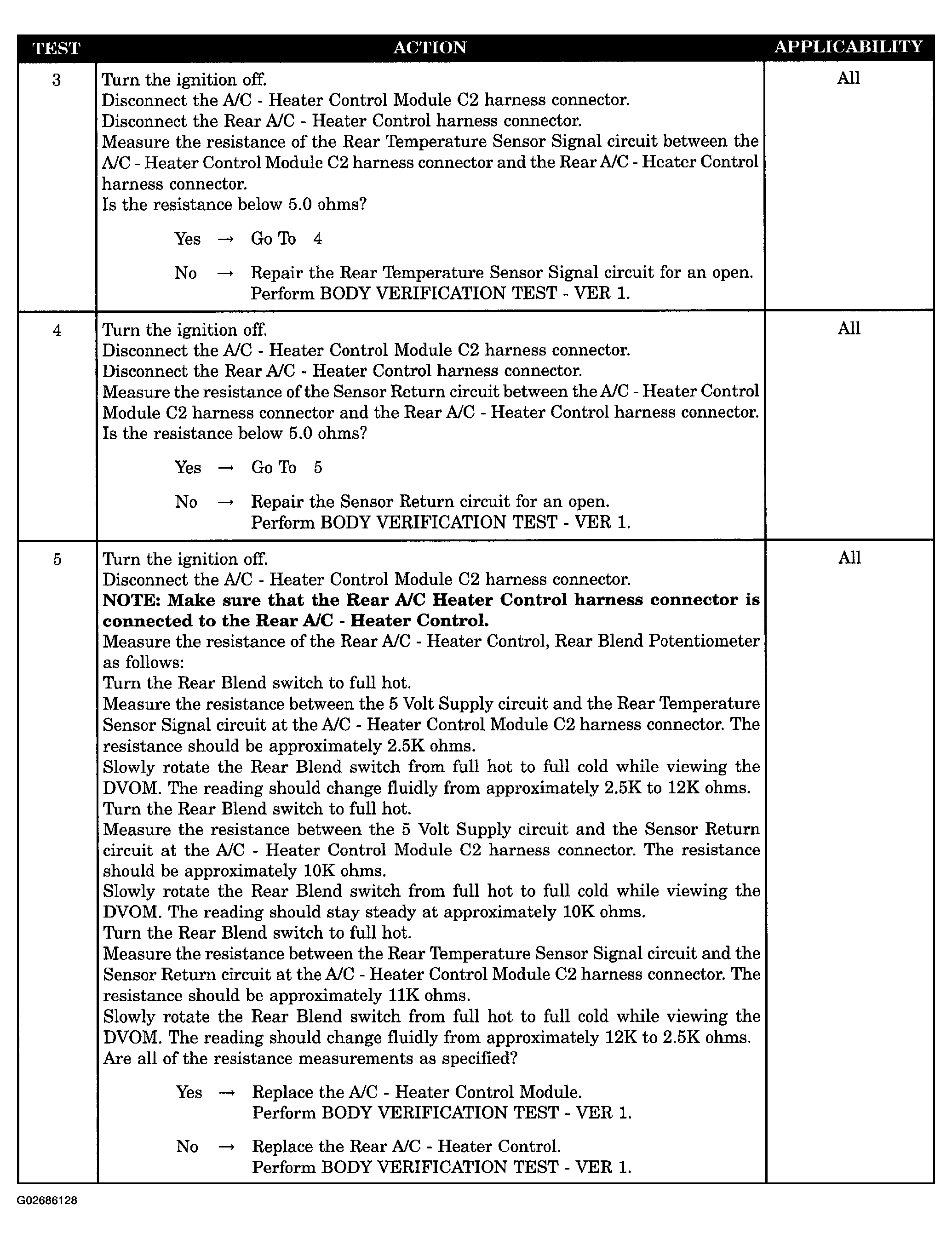

Fig 2: Rear Blend Pot Circuit Open (Active) Diagnostic Procedure (2 Of 2)
G02686128Courtesy of DAIMLERCHRYSLER CORP.
