Diagnostic Procedures

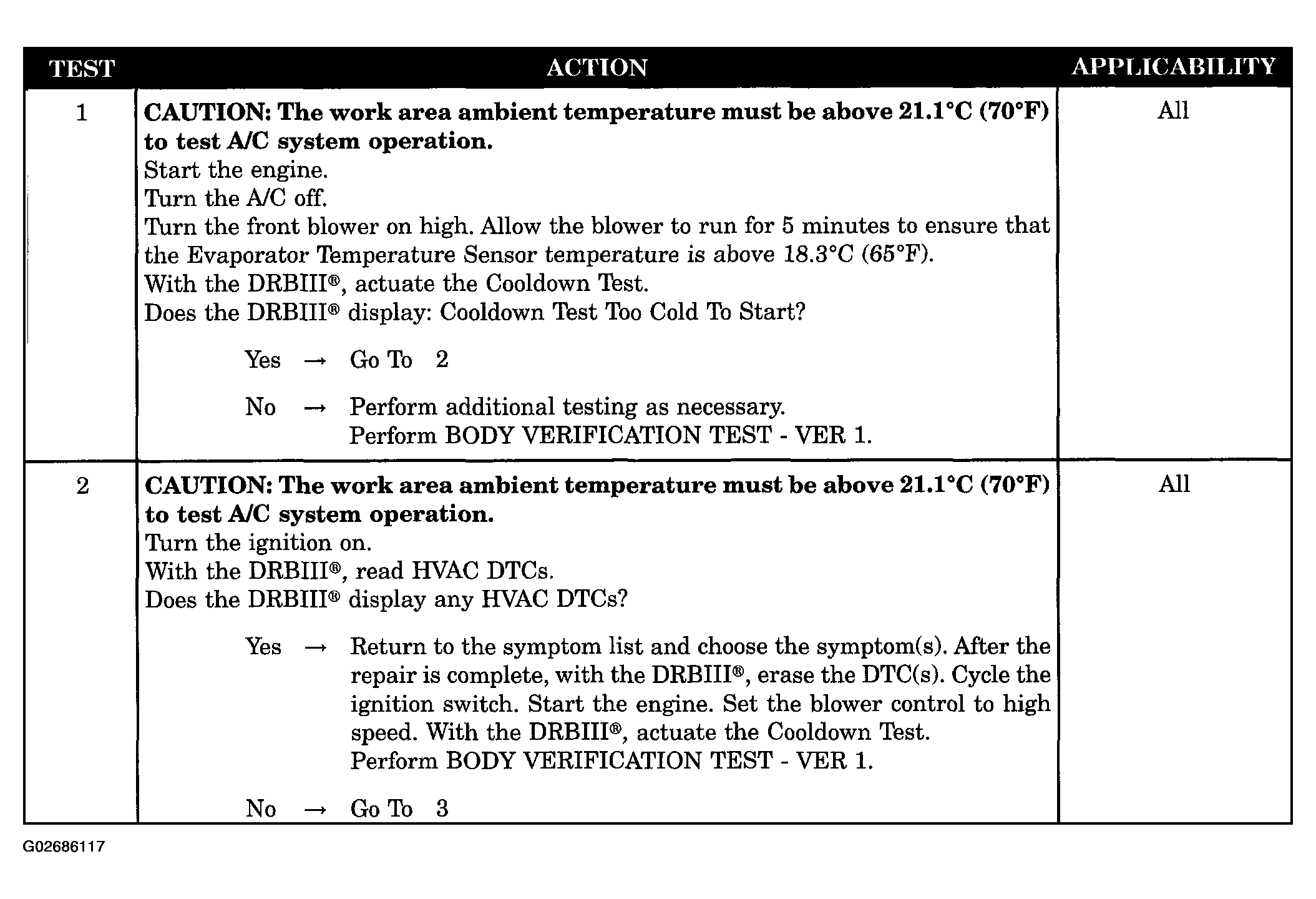

Fig 1: Cooldown Test Too Cold To Start Diagnostic Procedure (1 Of 3)
G02686117Courtesy of DAIMLERCHRYSLER CORP.

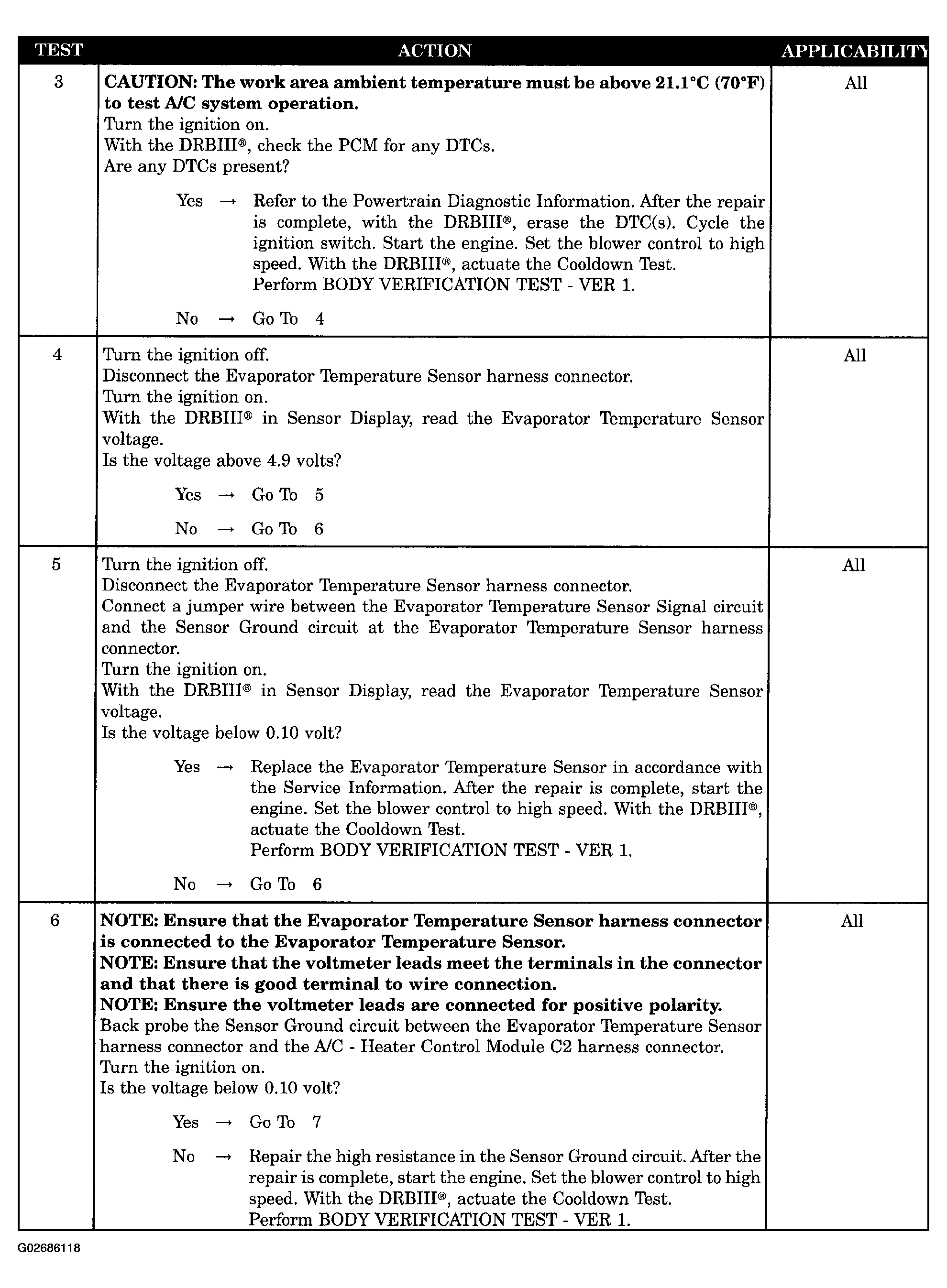

Fig 2: Cooldown Test Too Cold To Start Diagnostic Procedure (2 Of 3)
G02686118Courtesy of DAIMLERCHRYSLER CORP.

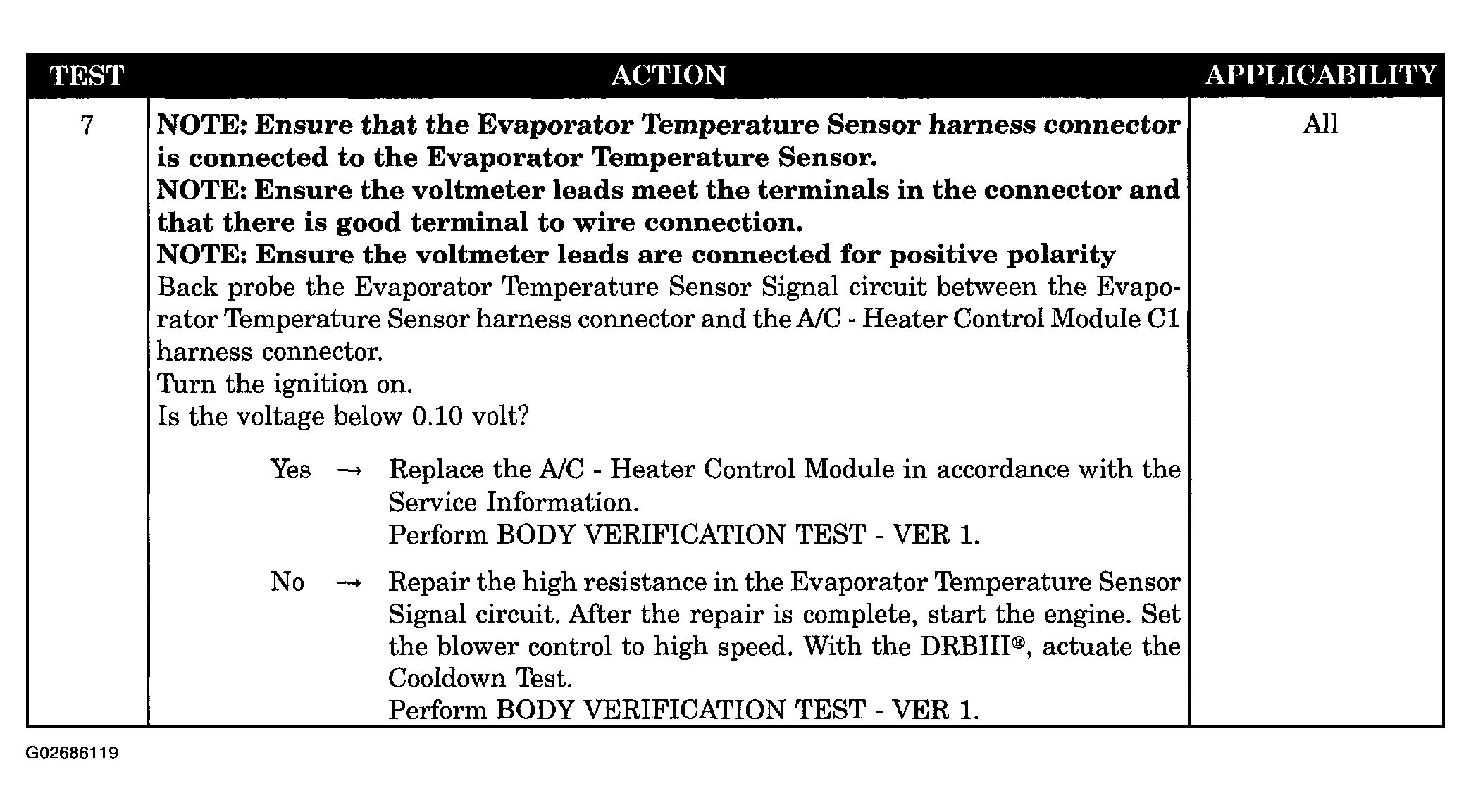

Fig 3: Cooldown Test Too Cold To Start Diagnostic Procedure (3 Of 3)
G02686119Courtesy of DAIMLERCHRYSLER CORP.
