Diagnostic Procedures

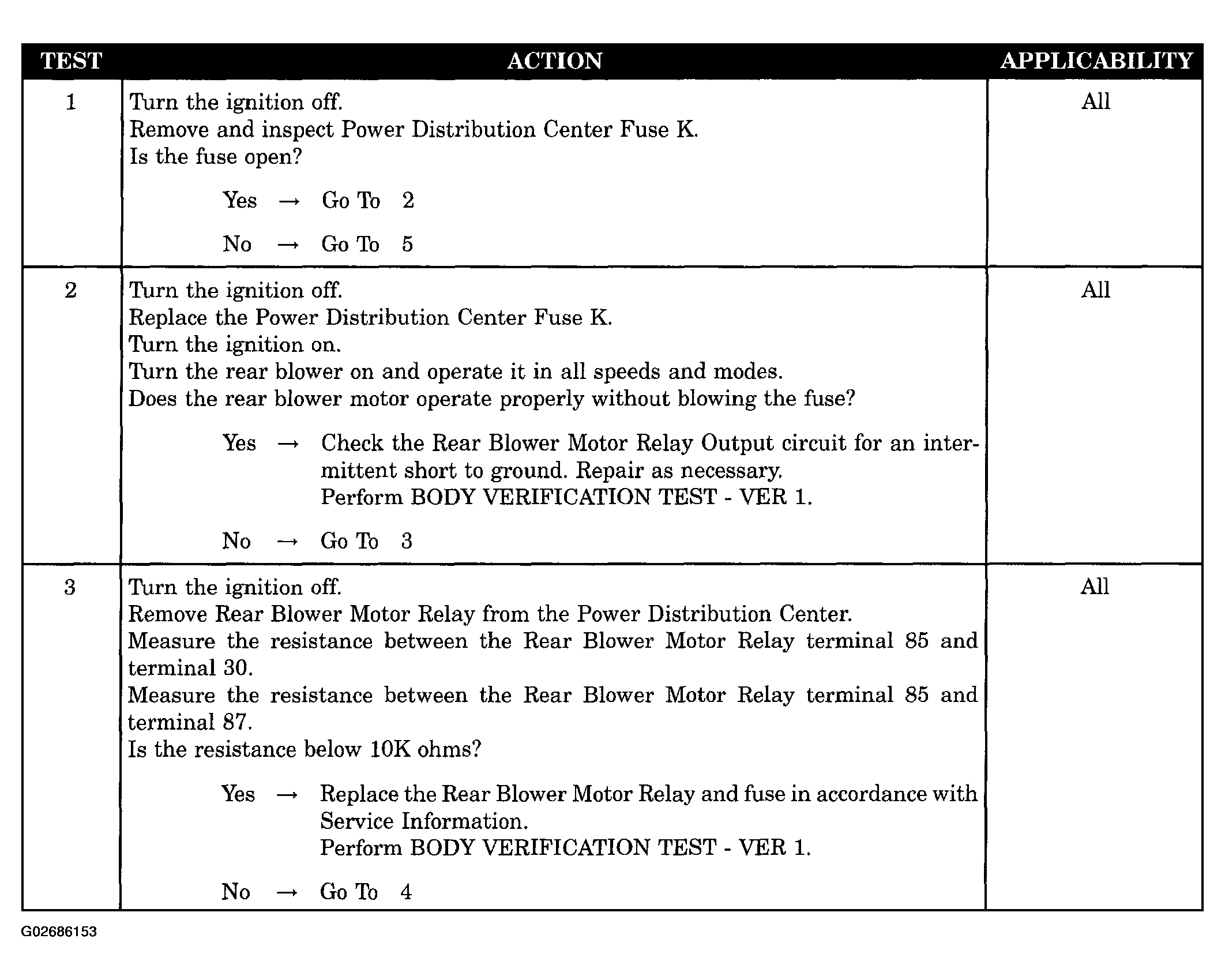

Fig 1: Rear Blower Motor Inoperative Diagnostic Procedure (1 Of 3)
G02686153Courtesy of DAIMLERCHRYSLER CORP.

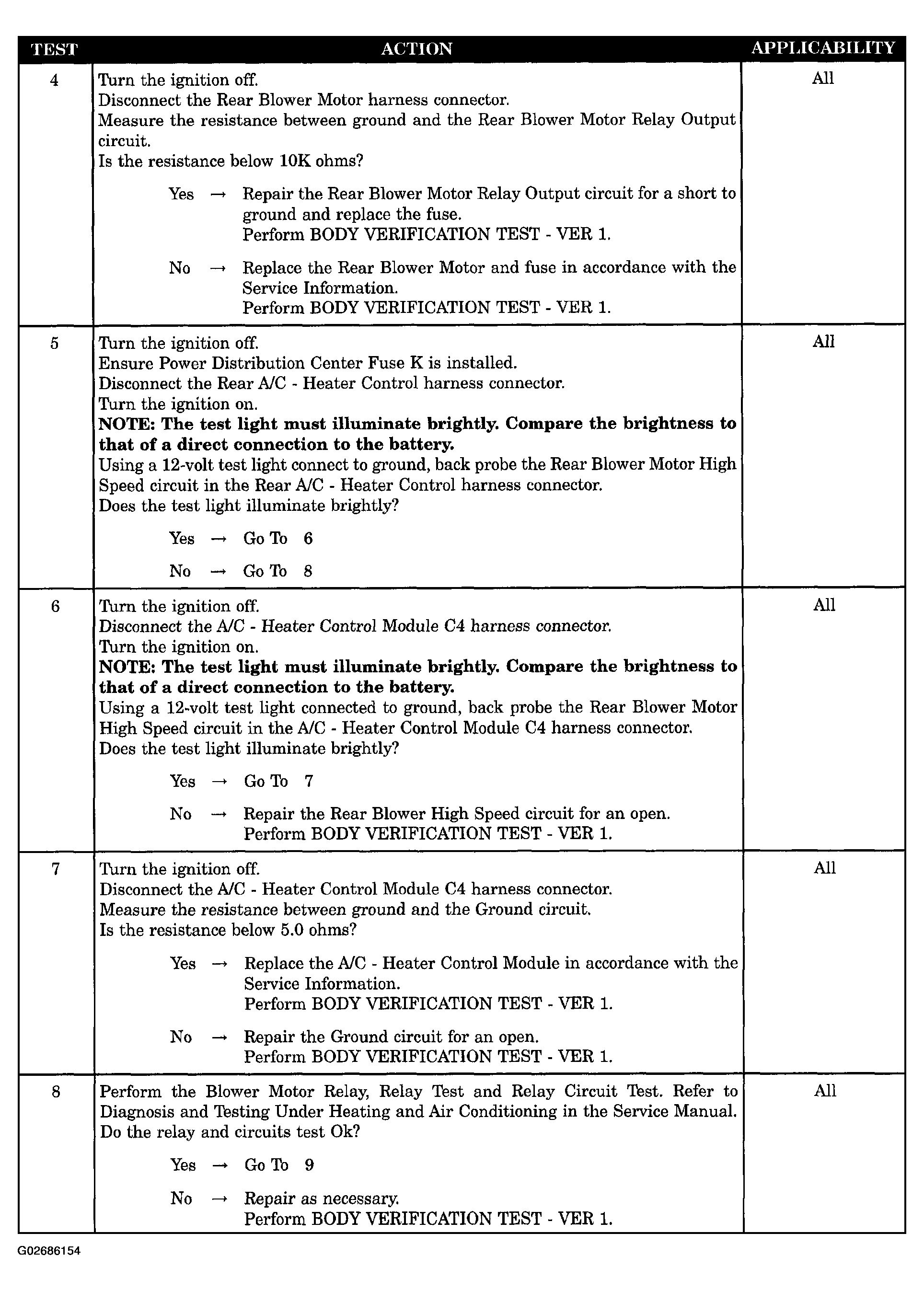

Fig 2: Rear Blower Motor Inoperative Diagnostic Procedure (2 Of 3)
G02686154Courtesy of DAIMLERCHRYSLER CORP.

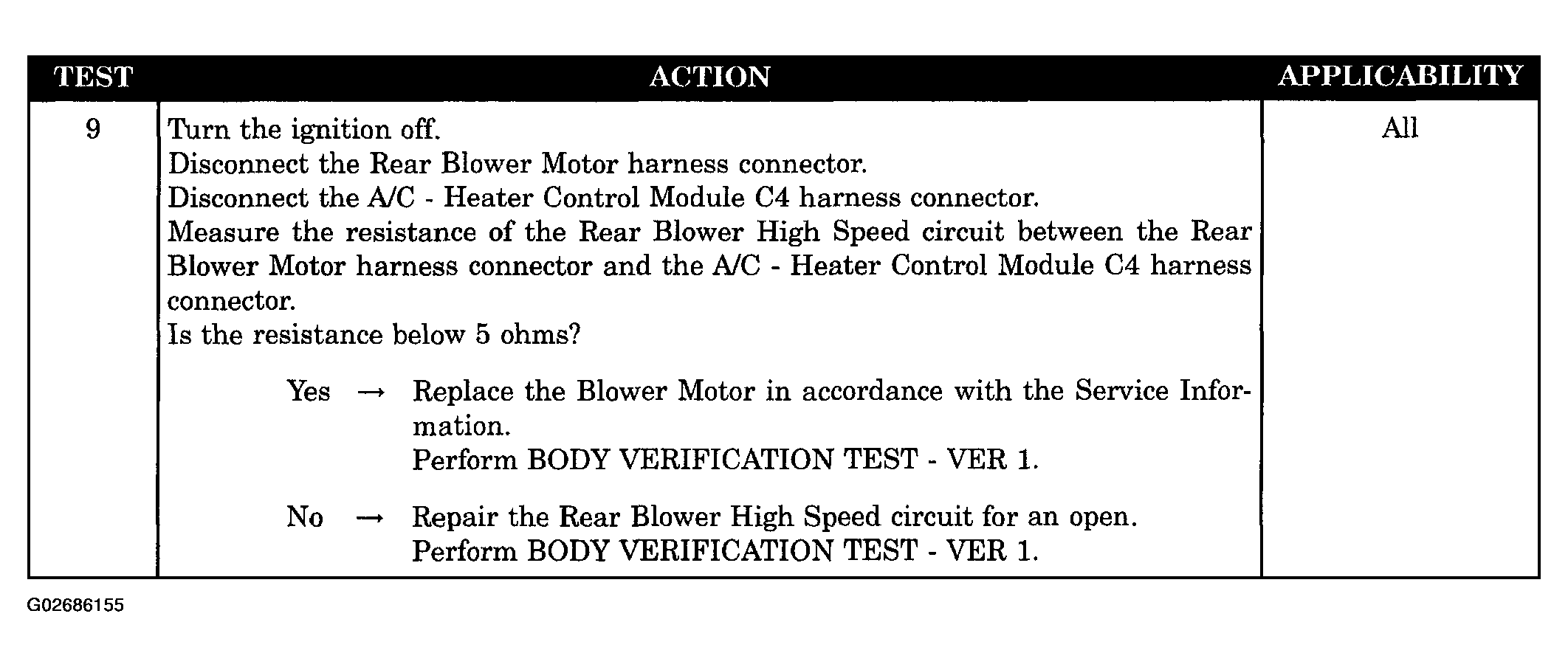

Fig 3: Rear Blower Motor Inoperative Diagnostic Procedure (3 Of 3)
G02686155Courtesy of DAIMLERCHRYSLER CORP.
