Diagnostic Procedures

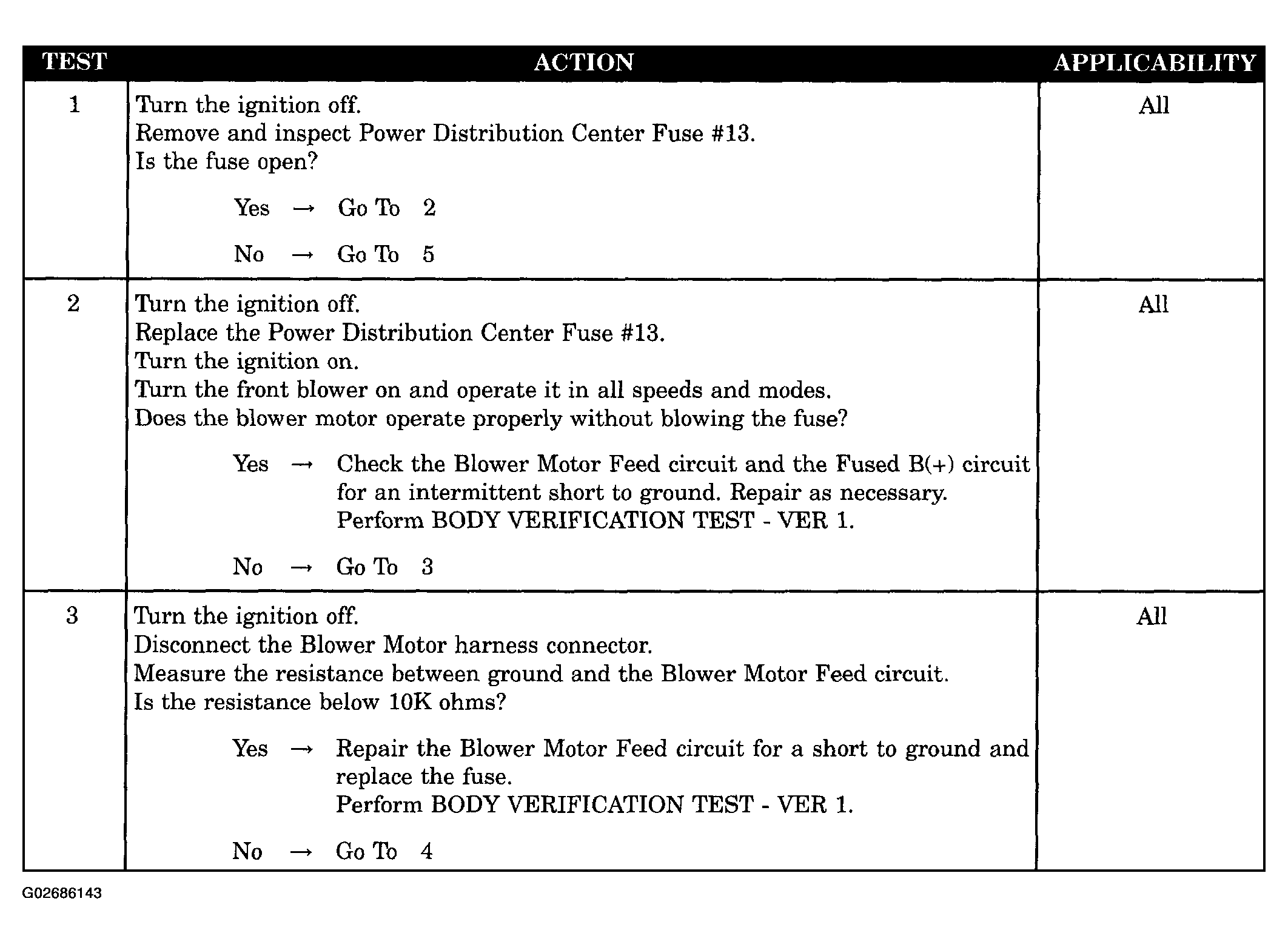

Fig 1: Front Blower Motor Inoperative Diagnostic Procedure (1 Of 3)
G02686143Courtesy of DAIMLERCHRYSLER CORP.

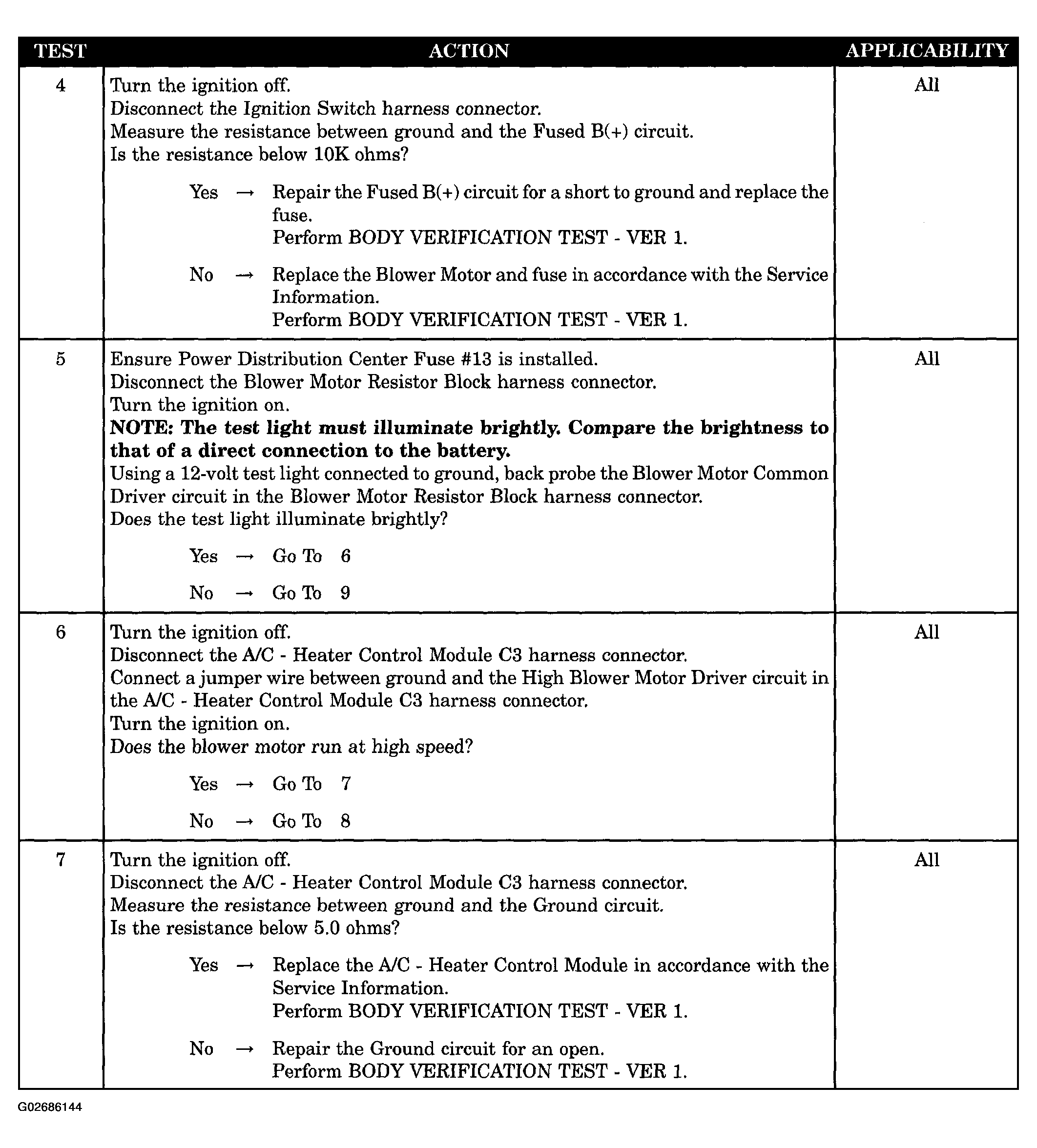

Fig 2: Front Blower Motor Inoperative Diagnostic Procedure (2 Of 3)
G02686144Courtesy of DAIMLERCHRYSLER CORP.

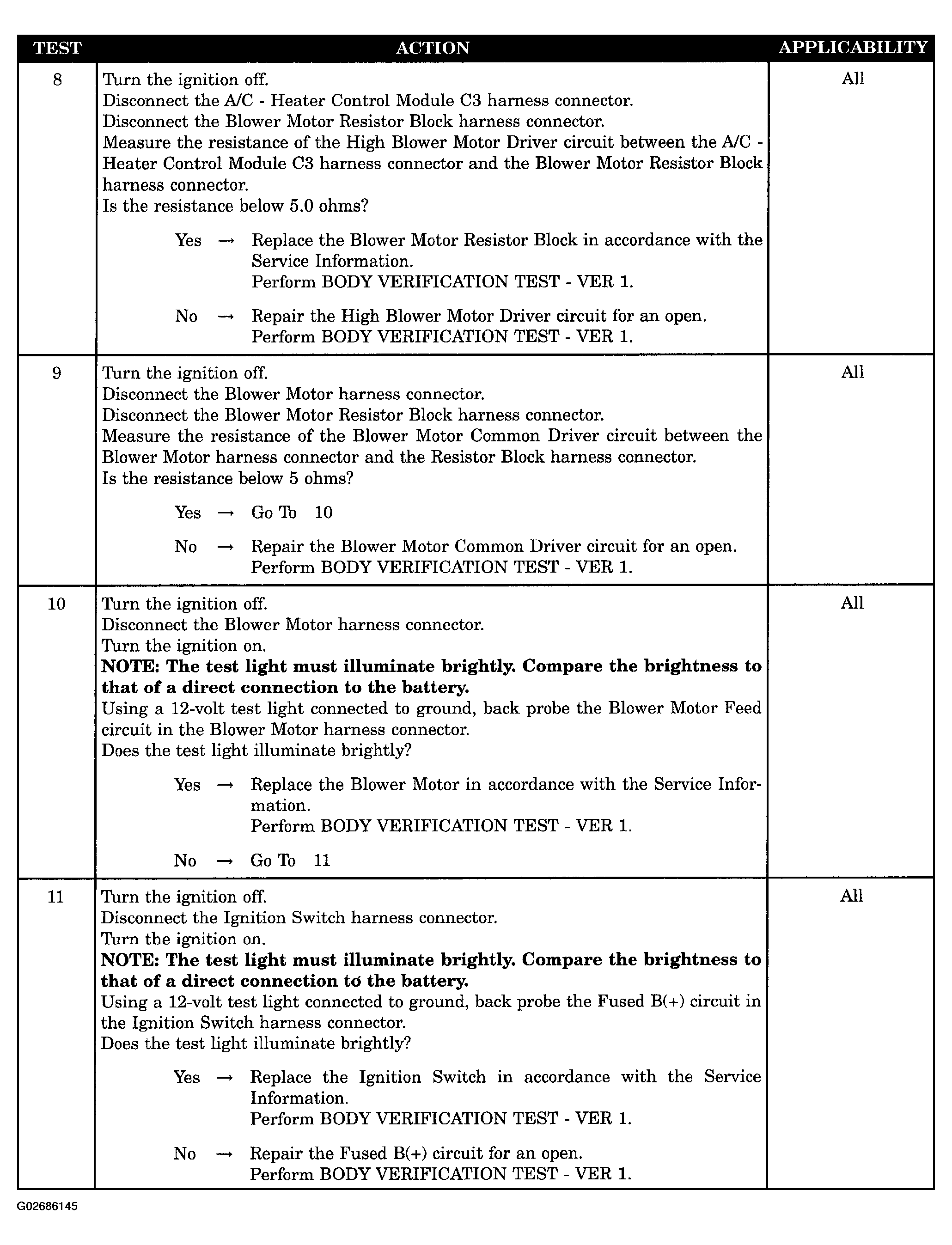

Fig 3: Front Blower Motor Inoperative Diagnostic Procedure (3 Of 3)
G02686145Courtesy of DAIMLERCHRYSLER CORP.
