Symptom: *Blend/Mode/RECIRC Door Operation Improper
>>
Diagnostic Procedures
Diagnostic Procedures

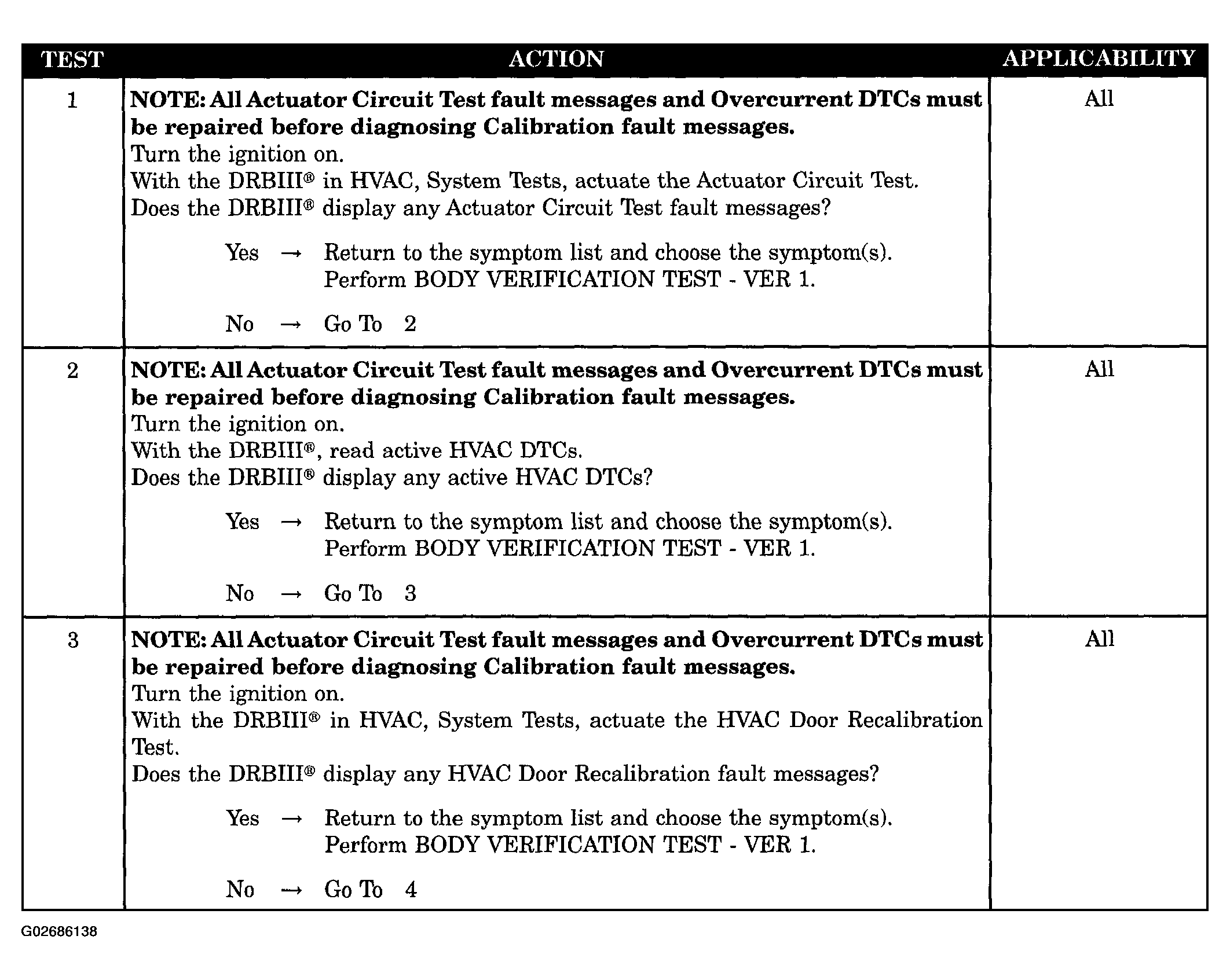

Fig 1: Blend/Mode/Recirc Door Operation Improper Diagnostic Procedure (1 Of 4)
Courtesy of DAIMLERCHRYSLER CORP.

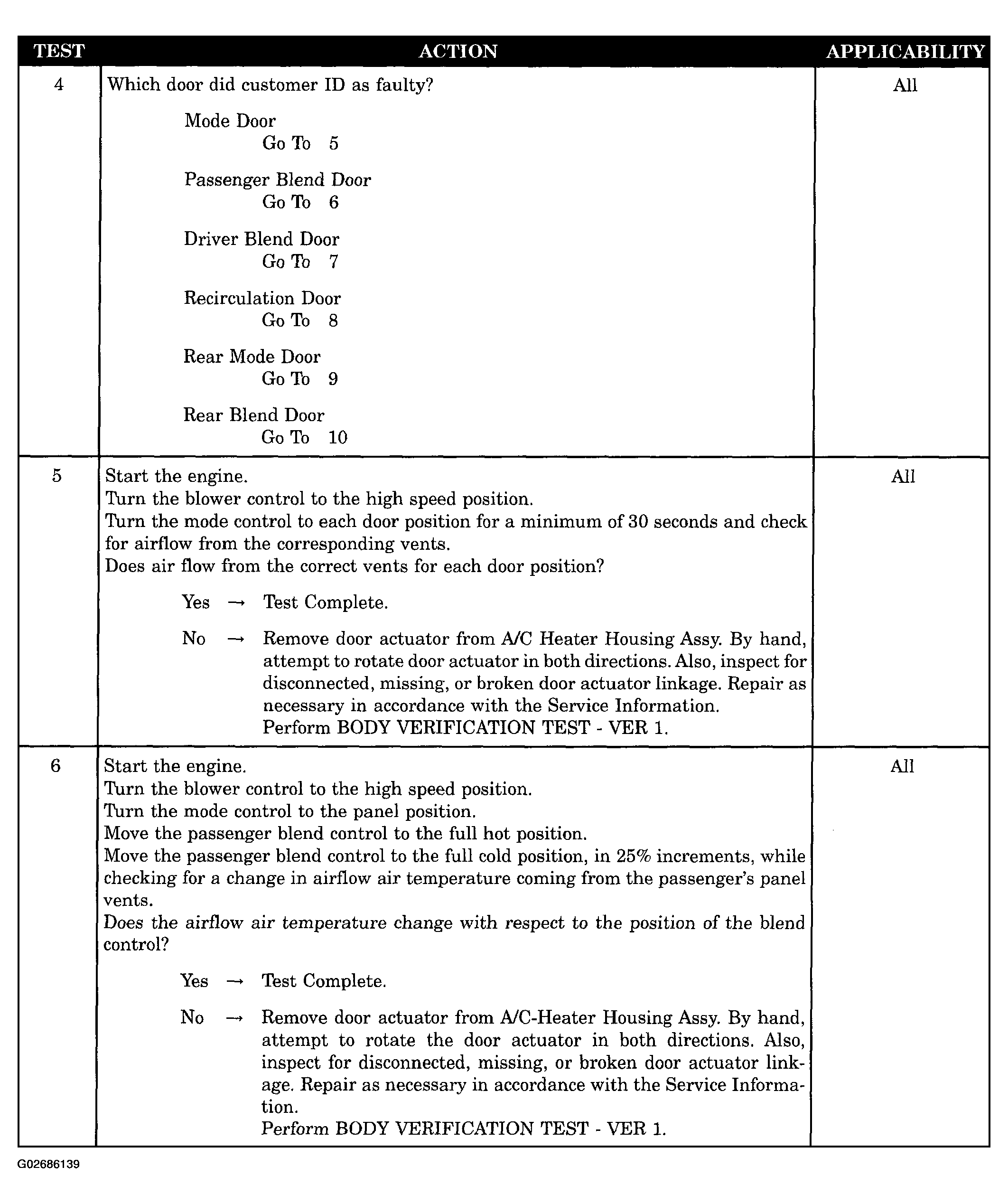

Fig 2: Blend/Mode/Recirc Door Operation Improper Diagnostic Procedure (2 Of 4)
Courtesy of DAIMLERCHRYSLER CORP.

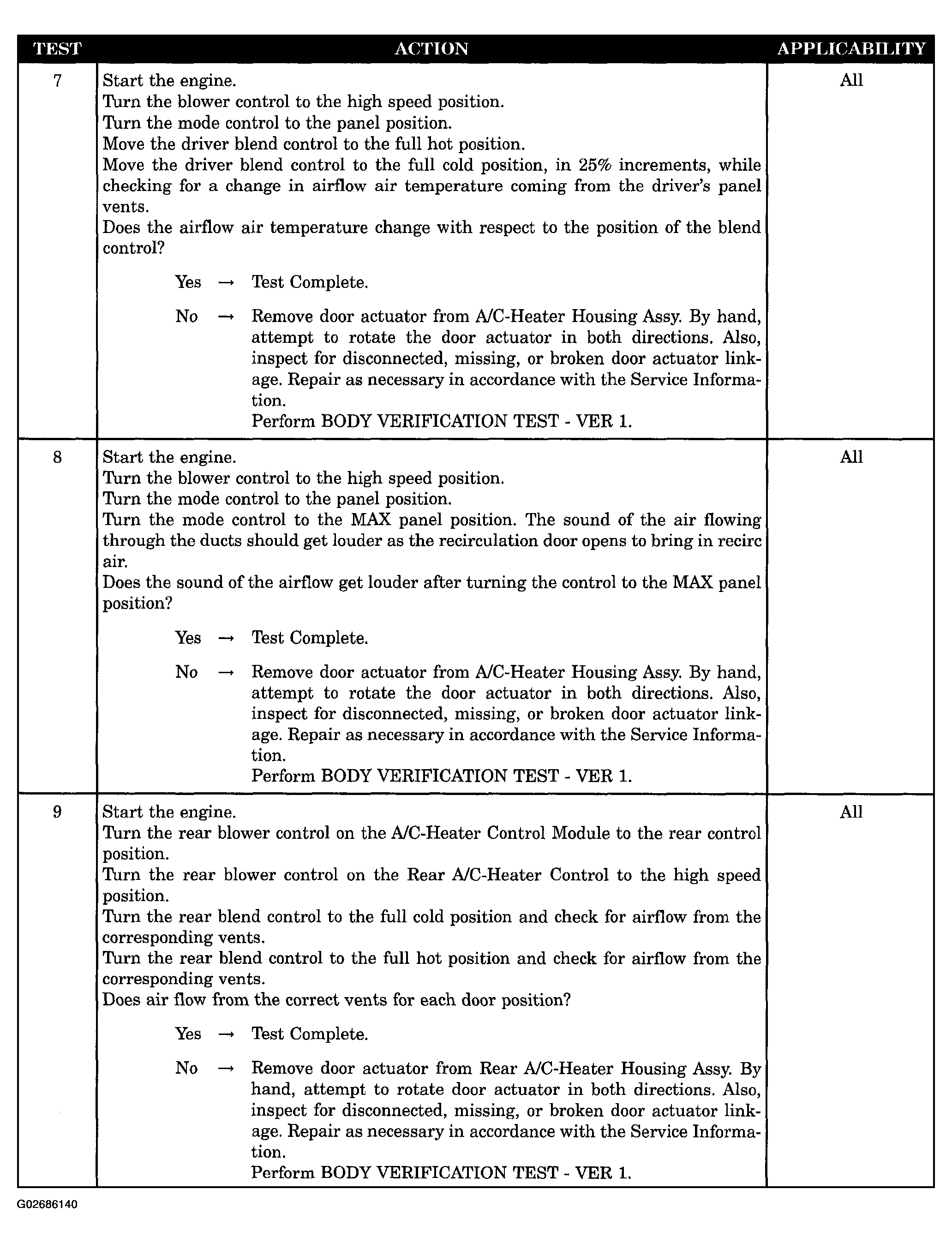

Fig 3: Blend/Mode/Recirc Door Operation Improper Diagnostic Procedure (3 Of 4)
Courtesy of DAIMLERCHRYSLER CORP.

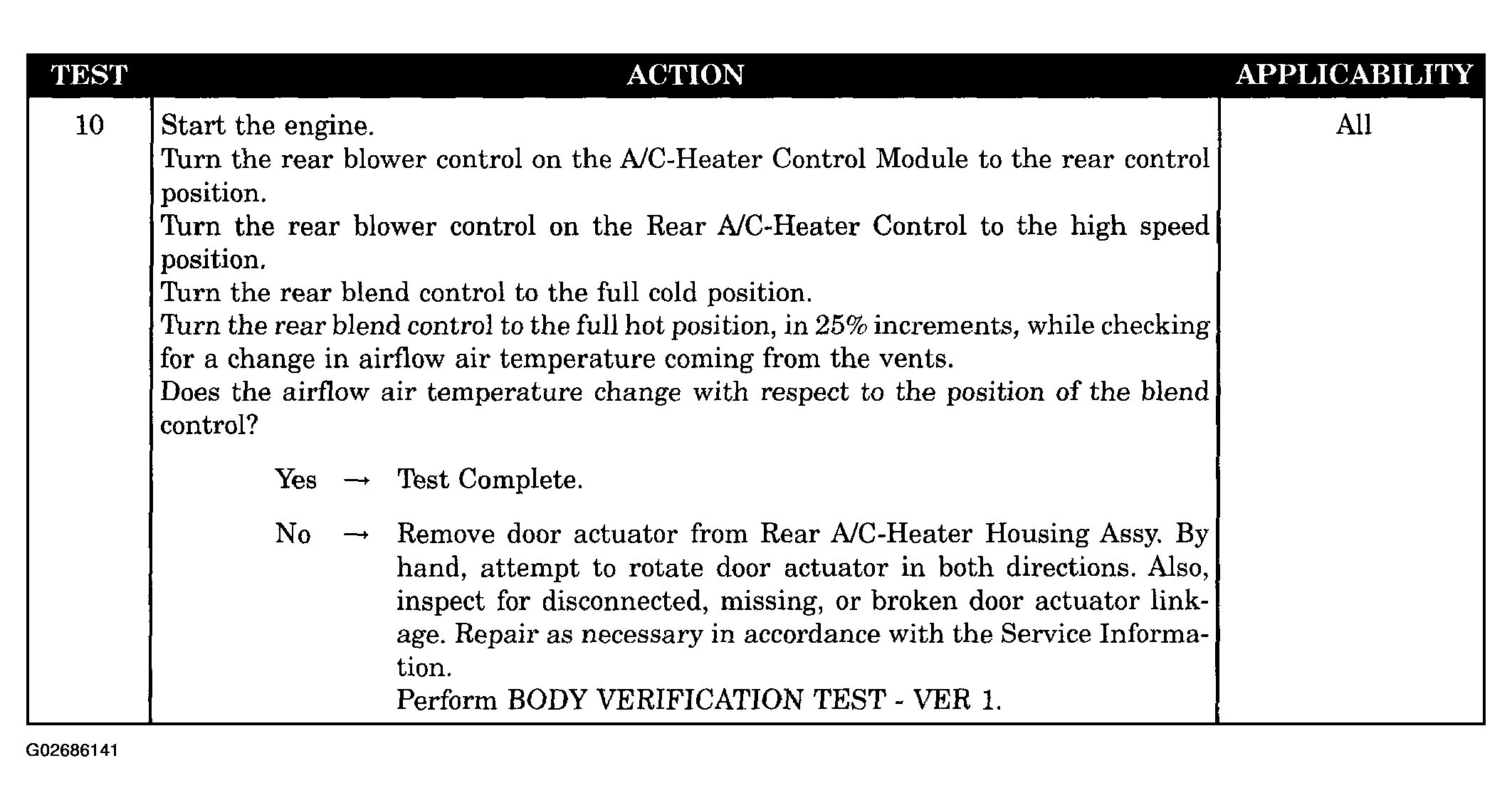

Fig 4: Blend/Mode/Recirc Door Operation Improper Diagnostic Procedure (4 Of 4)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
