Diagnostic Procedures

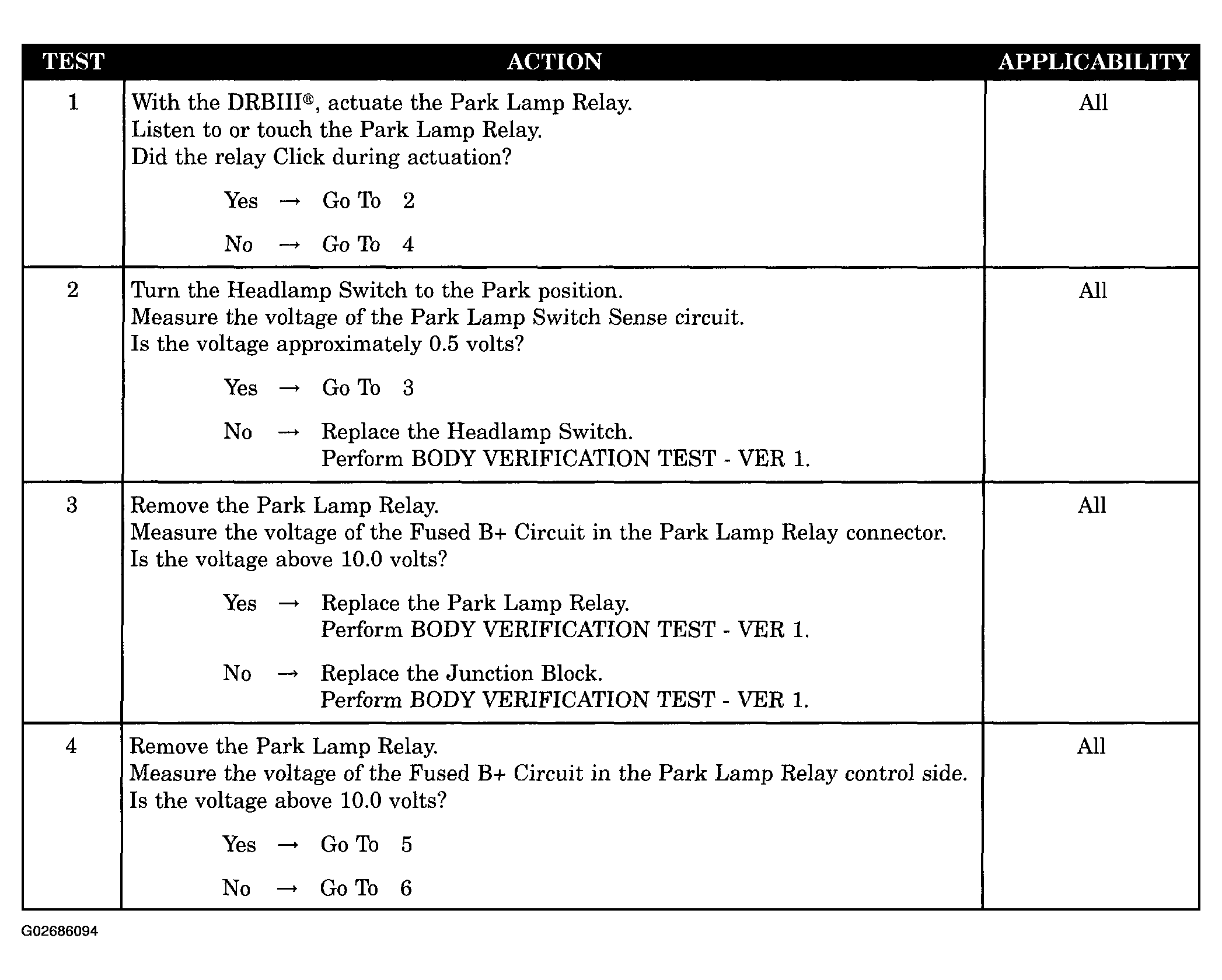

Fig 1: Park Lamps Will Not Turn On Diagnostic Procedure (1 Of 2)
G02686094Courtesy of DAIMLERCHRYSLER CORP.

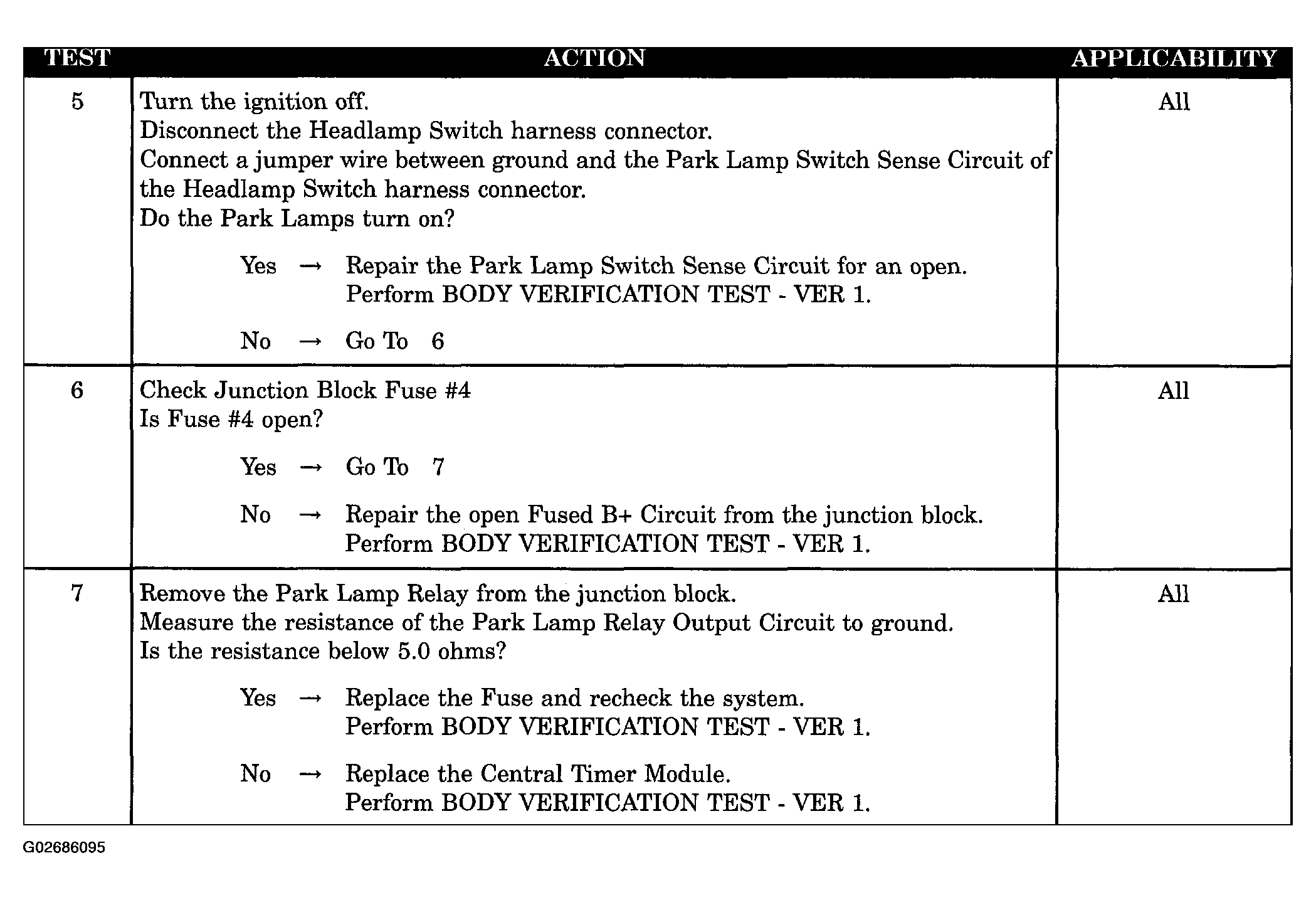

Fig 2: Park Lamps Will Not Turn On Diagnostic Procedure (2 Of 2)
G02686095Courtesy of DAIMLERCHRYSLER CORP.
