Diagnostic Procedures

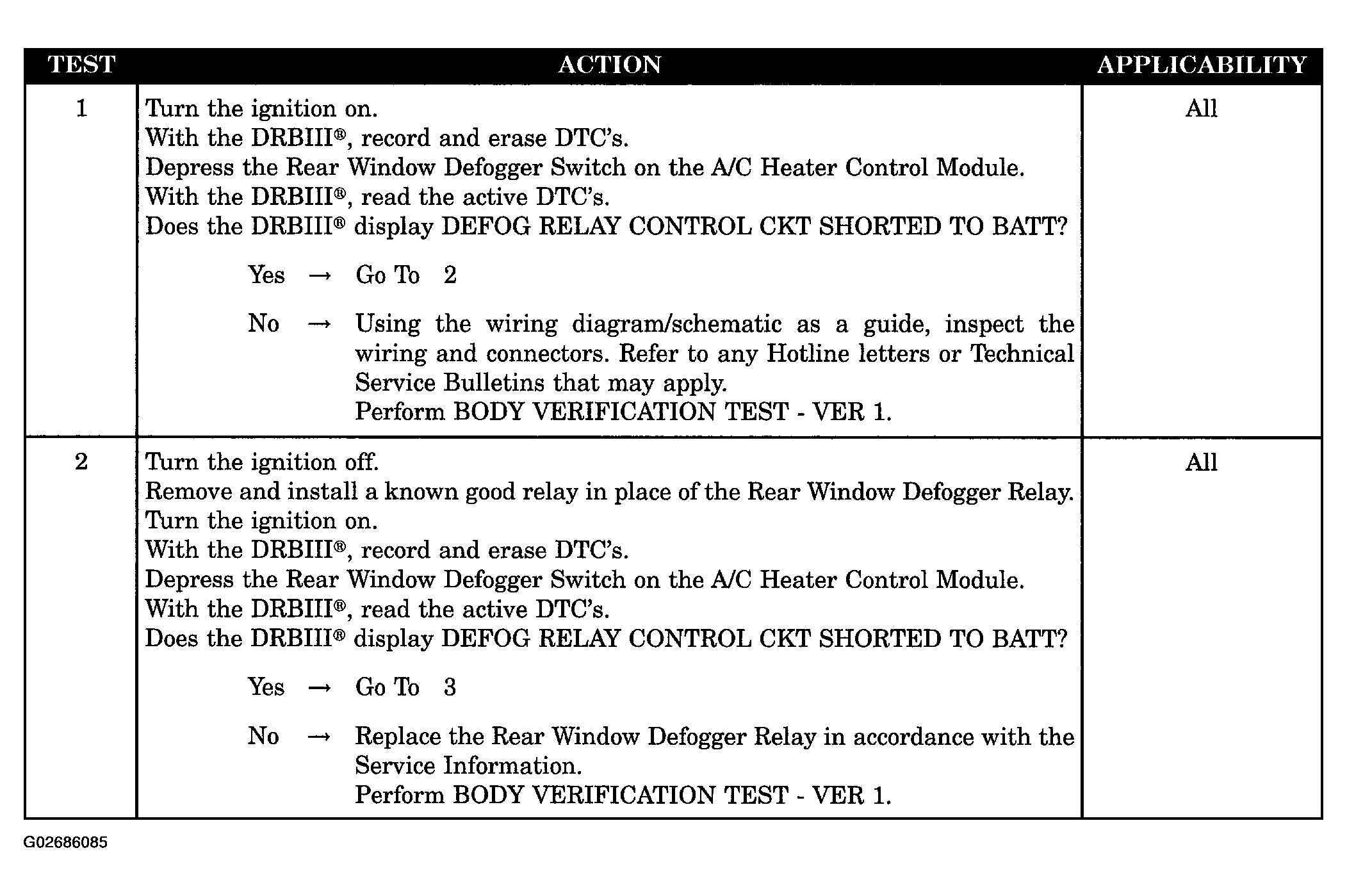

Fig 1: Defog Relay Control CKT Shorted To Battery Diagnostic Procedure (1 Of 2)
G02686085Courtesy of DAIMLERCHRYSLER CORP.

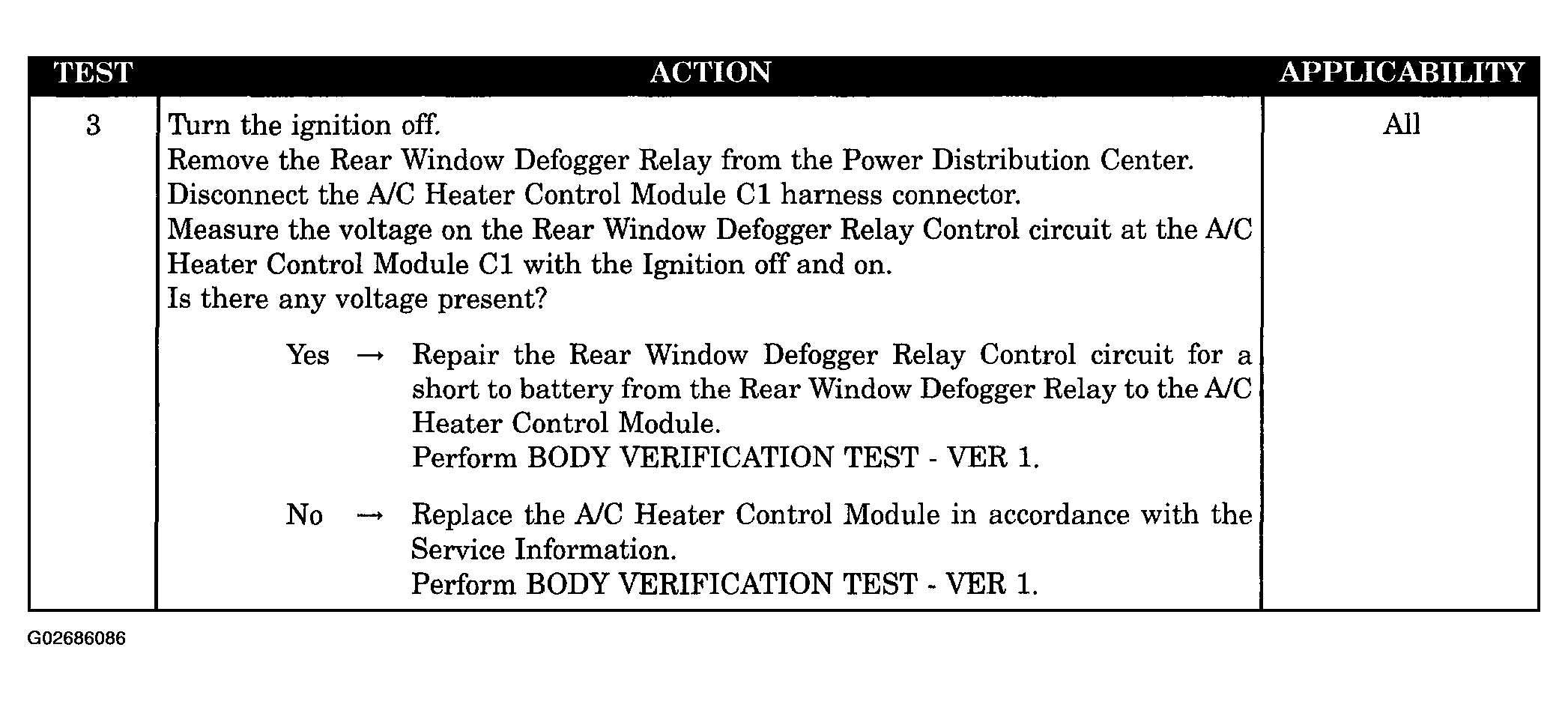

Fig 2: Defog Relay Control CKT Shorted To Battery Diagnostic Procedure (2 Of 2)
G02686086Courtesy of DAIMLERCHRYSLER CORP.
