Home >> Dodge and Ram >> 2003 >> Durango Base, 5.9 Z, RWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Body Diagnostics >> Diagnostic Information & Procedures >> Compass/Mini-Trip Computer >> Symptom: *Temperature Display Inaccurate Or Inoperative -JTEC >> Diagnostic Procedures

Diagnostic Procedures

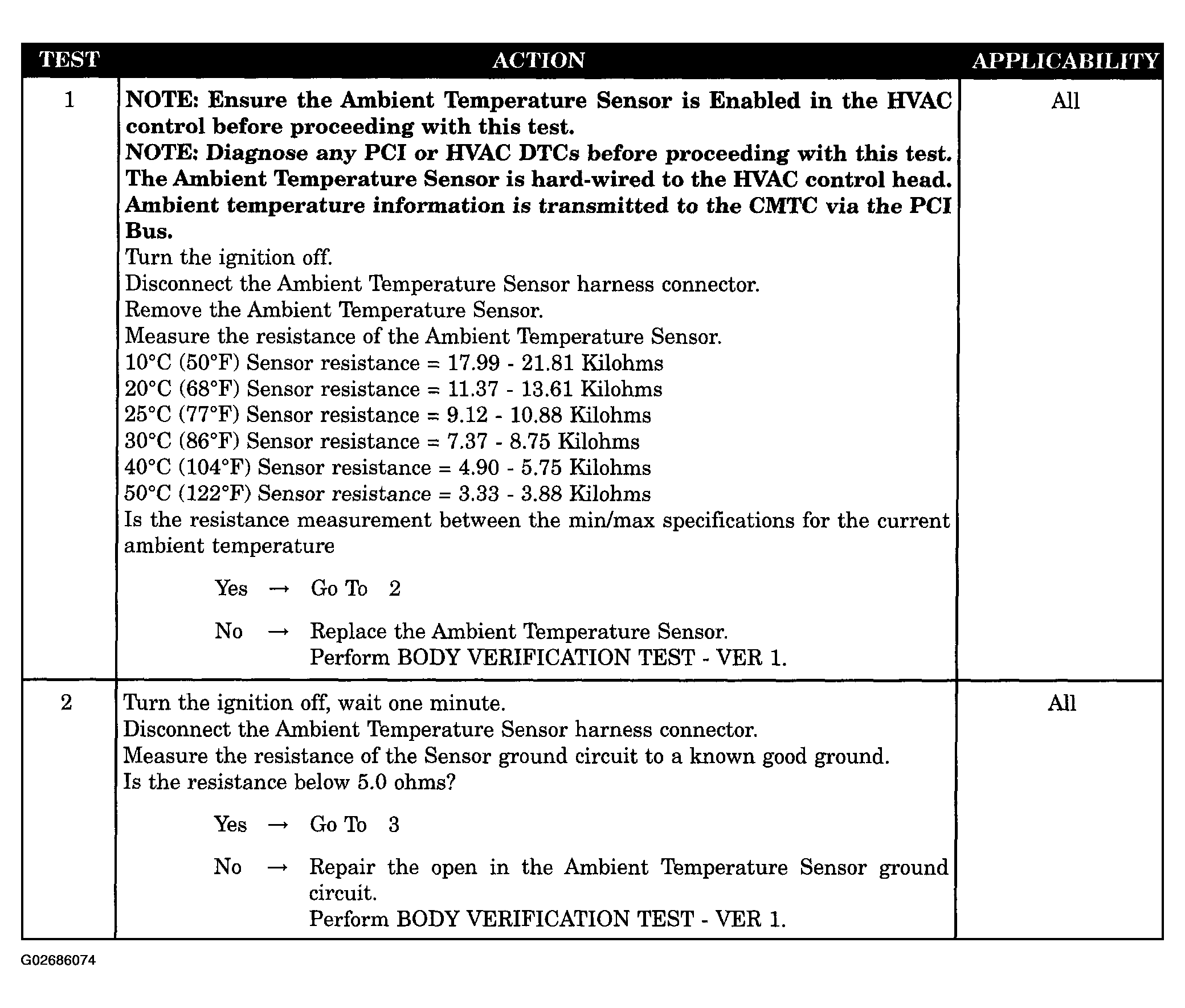

Fig 1: Temperature Display Inaccurate Or Inoperative -JTEC Diagnostic Procedure (1 Of 2)
G02686074Courtesy of DAIMLERCHRYSLER CORP.

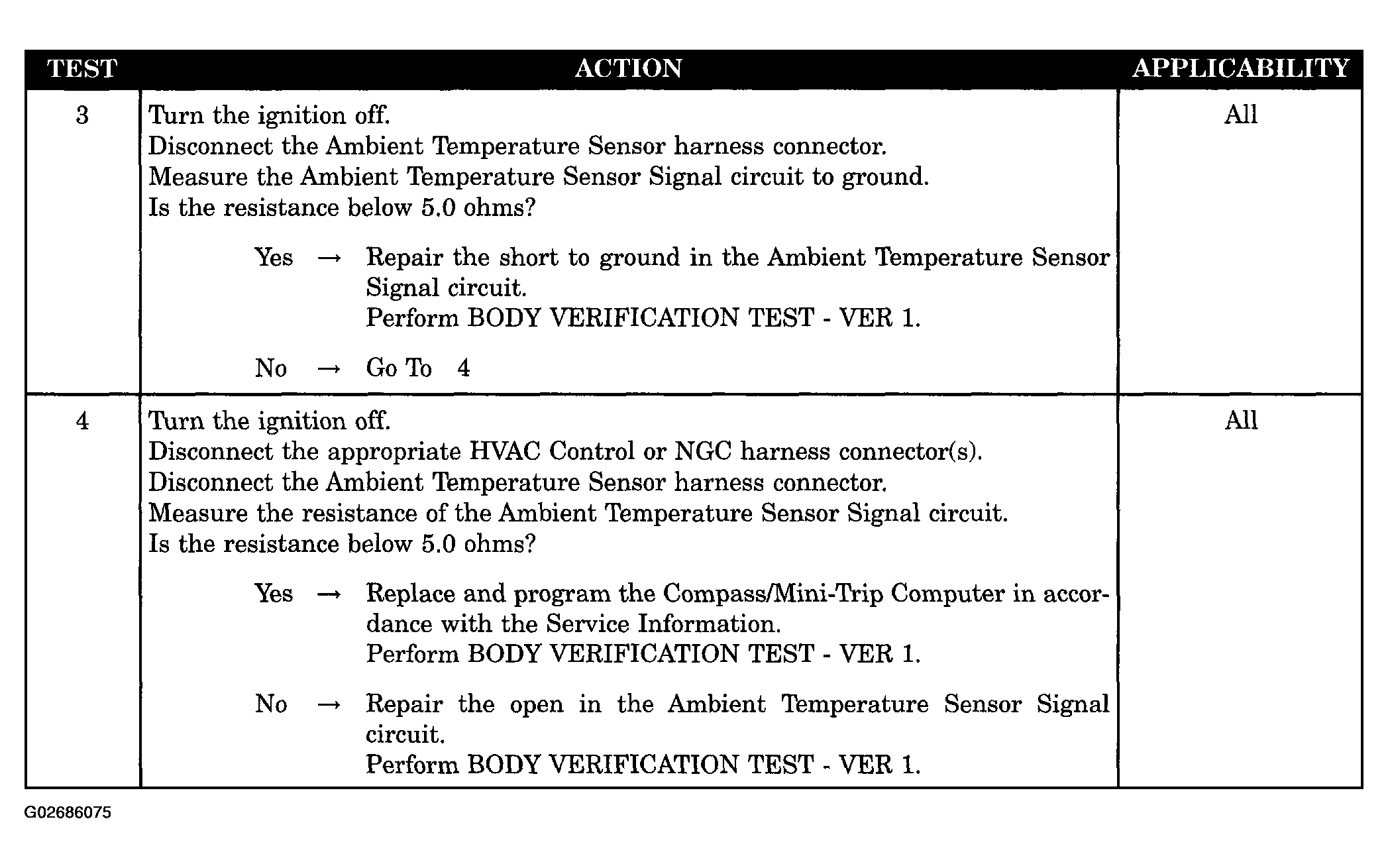

Fig 2: Temperature Display Inaccurate Or Inoperative -JTEC Diagnostic Procedure (2 Of 2)
G02686075Courtesy of DAIMLERCHRYSLER CORP.
