Diagnostic Procedures

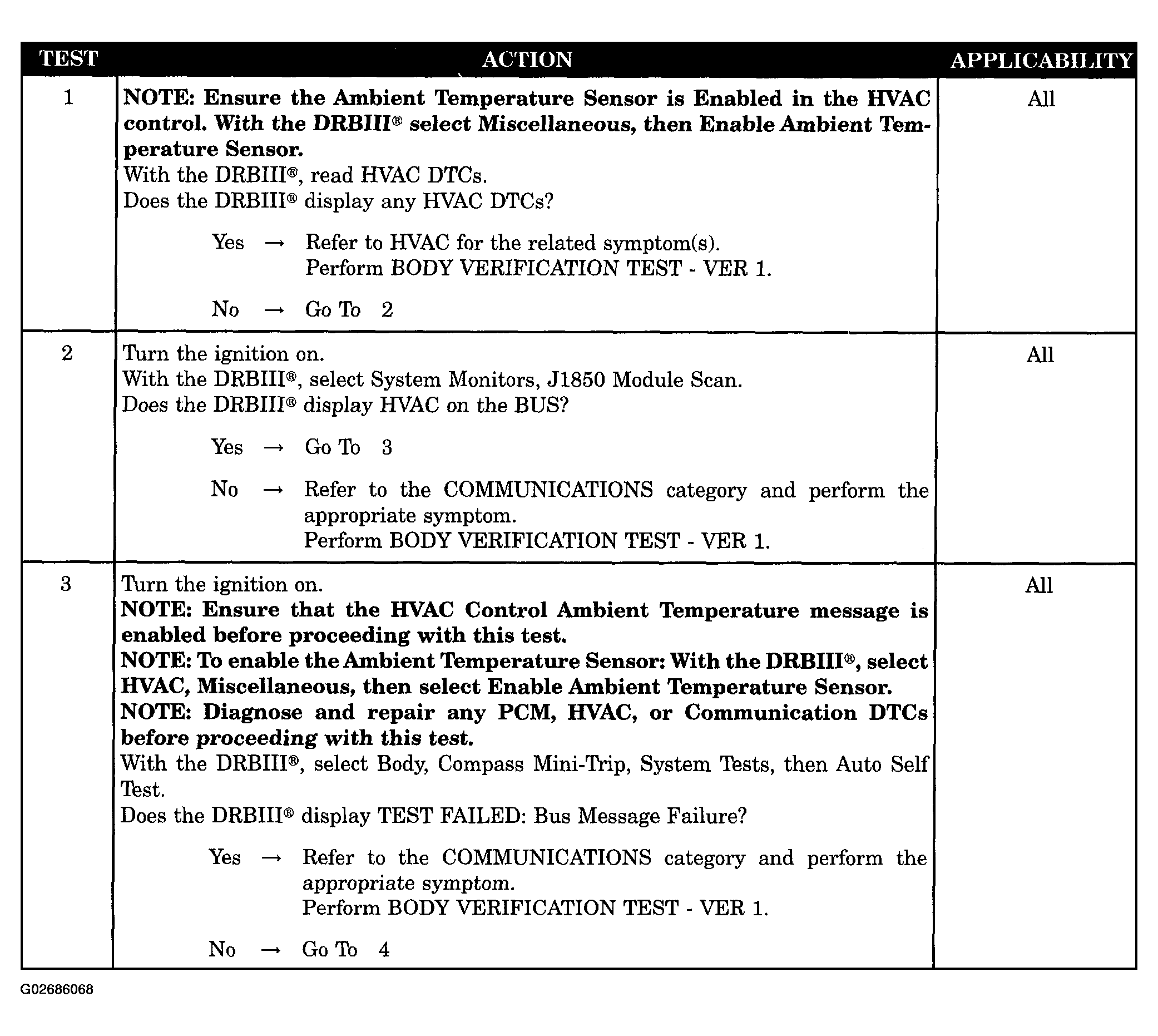

Fig 1: CMTC Displays -40° (C OR F), 54°C (130°F), OR (- -) - JTEC Diagnostic Procedure (1 Of 3)
G02686068Courtesy of DAIMLERCHRYSLER CORP.
Fig 2: CMTC Displays -40° (C OR F), 54°C (130°F), OR (- -) - JTEC Diagnostic Procedure (2 Of 3)
G02686069Courtesy of DAIMLERCHRYSLER CORP.

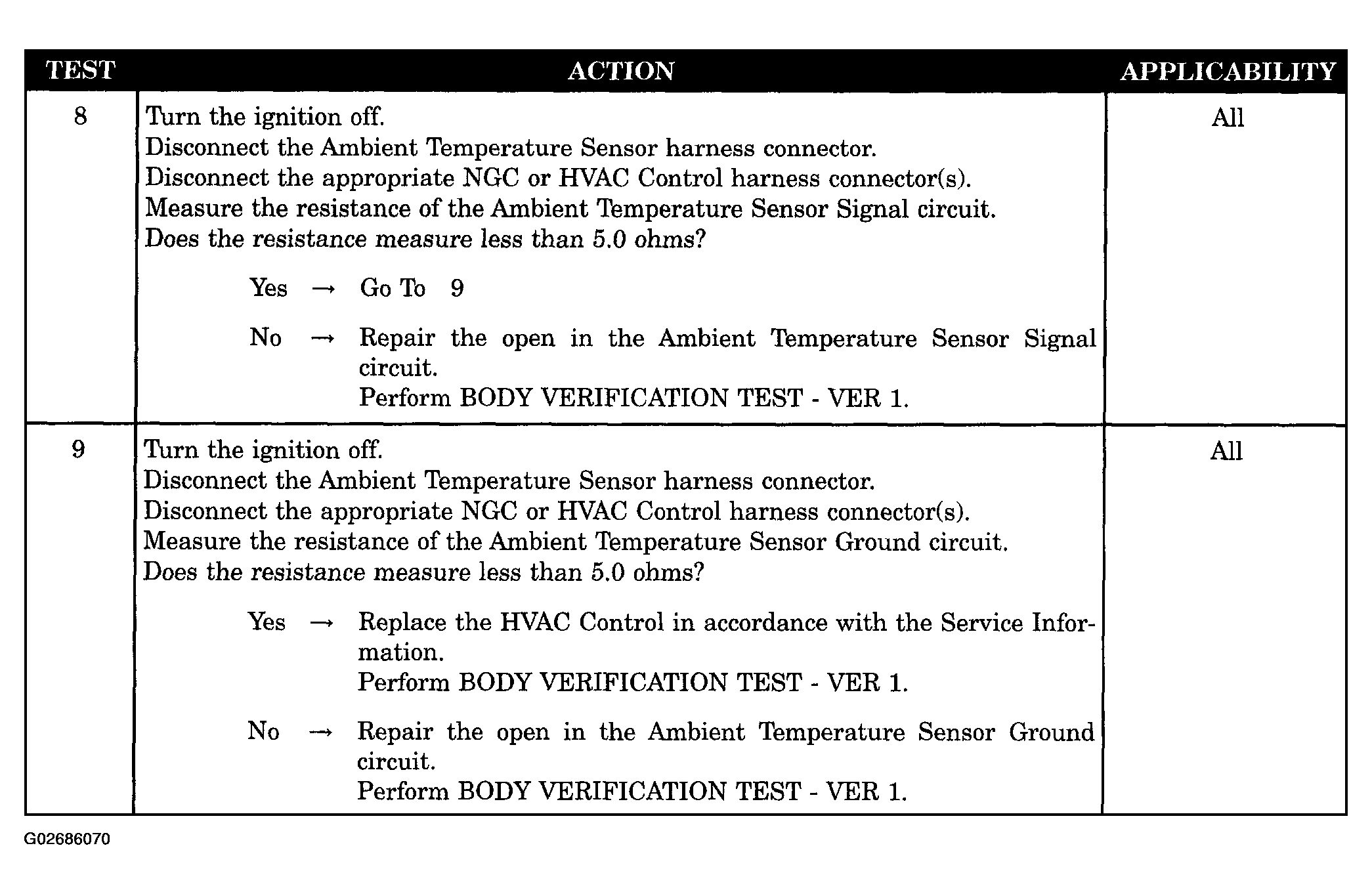

Fig 3: CMTC Displays -40° (C OR F), 54°C (130°F), OR (- -) - JTEC Diagnostic Procedure (3 Of 3)
G02686070Courtesy of DAIMLERCHRYSLER CORP.
