Diagnostic Procedures

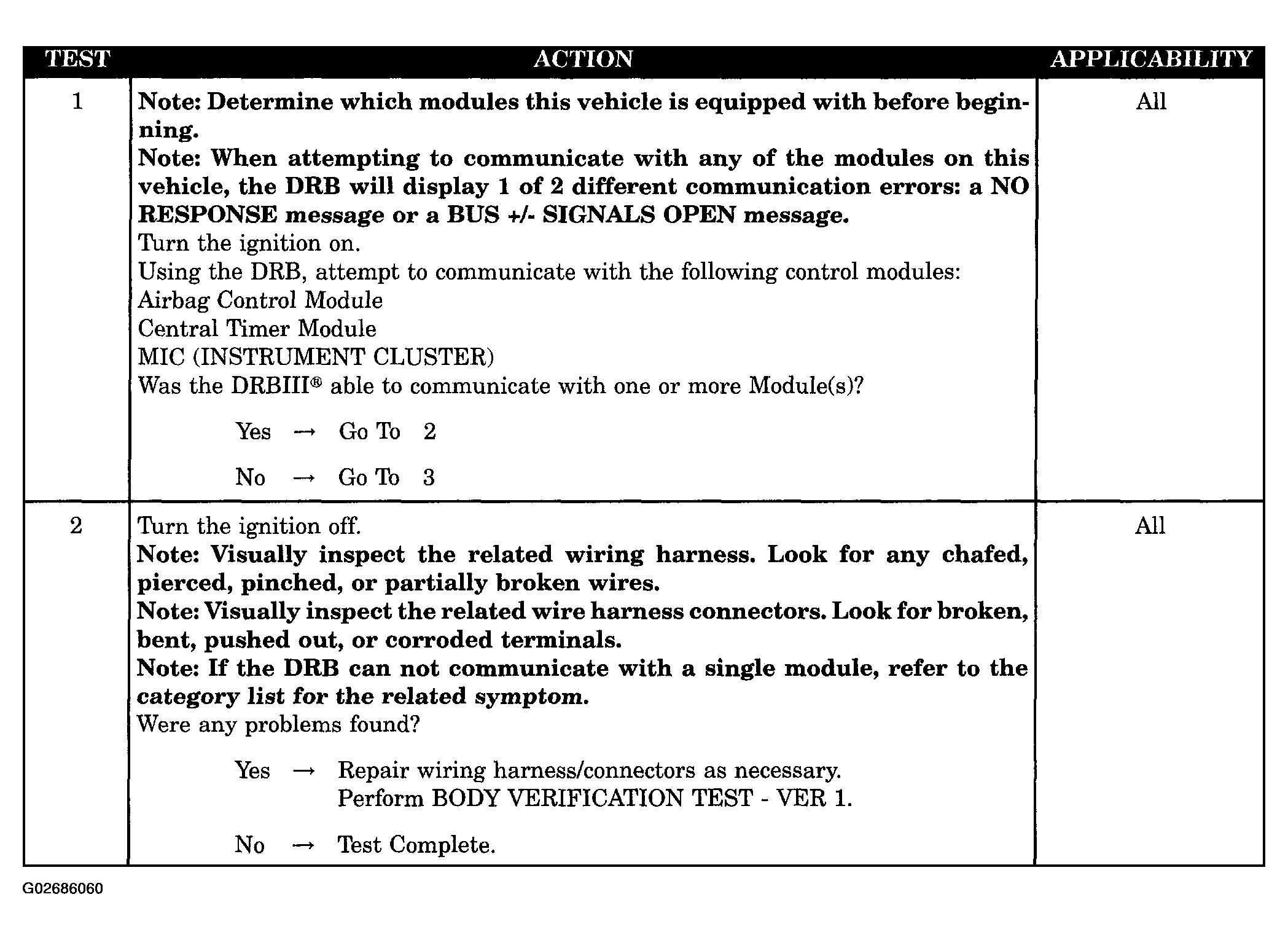

Fig 1: PCI Bus Communication Failure Diagnostic Procedure (1 Of 3)
G02686060Courtesy of DAIMLERCHRYSLER CORP.

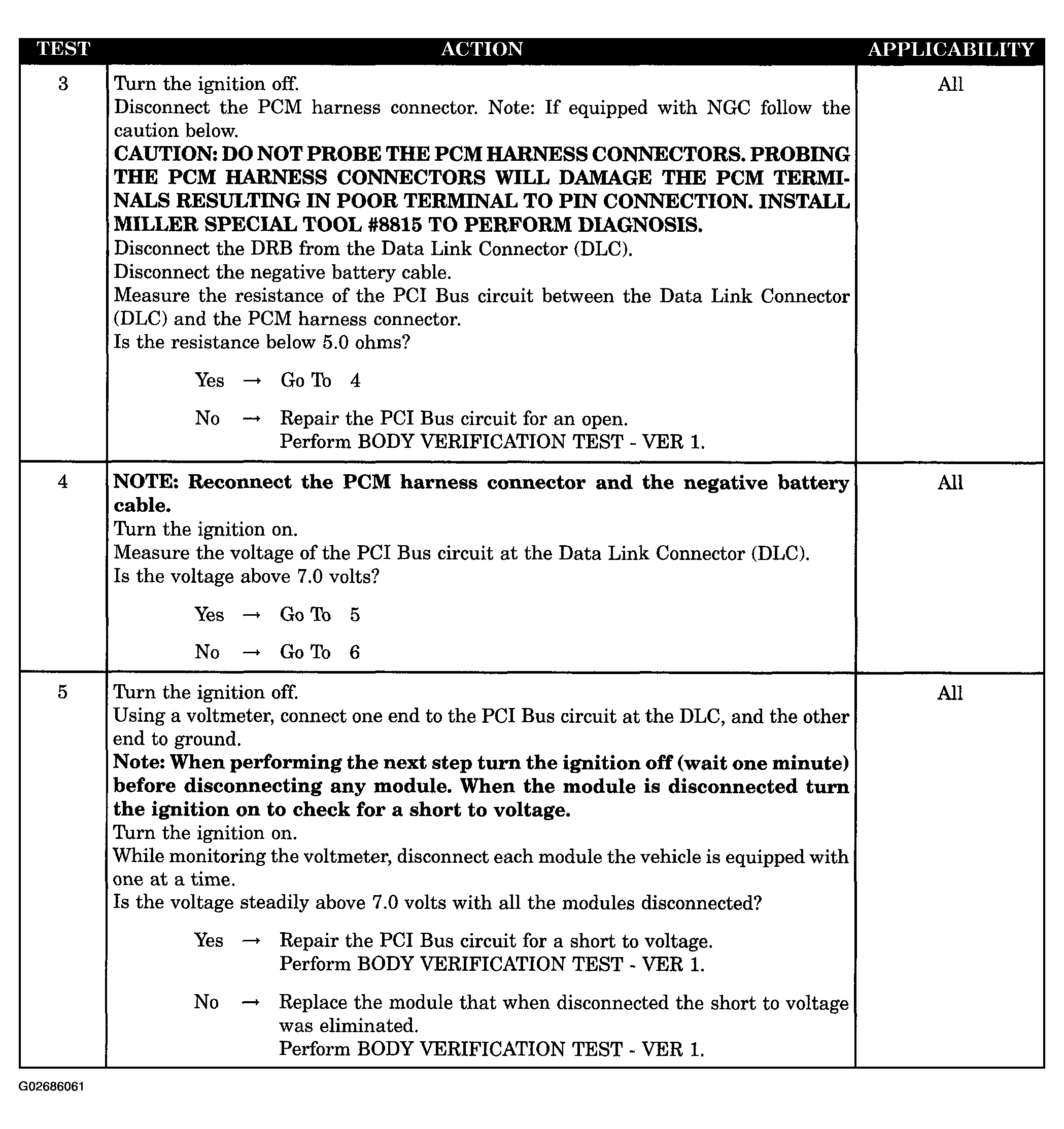

Fig 2: PCI Bus Communication Failure Diagnostic Procedure (2 Of 3)
G02686061Courtesy of DAIMLERCHRYSLER CORP.

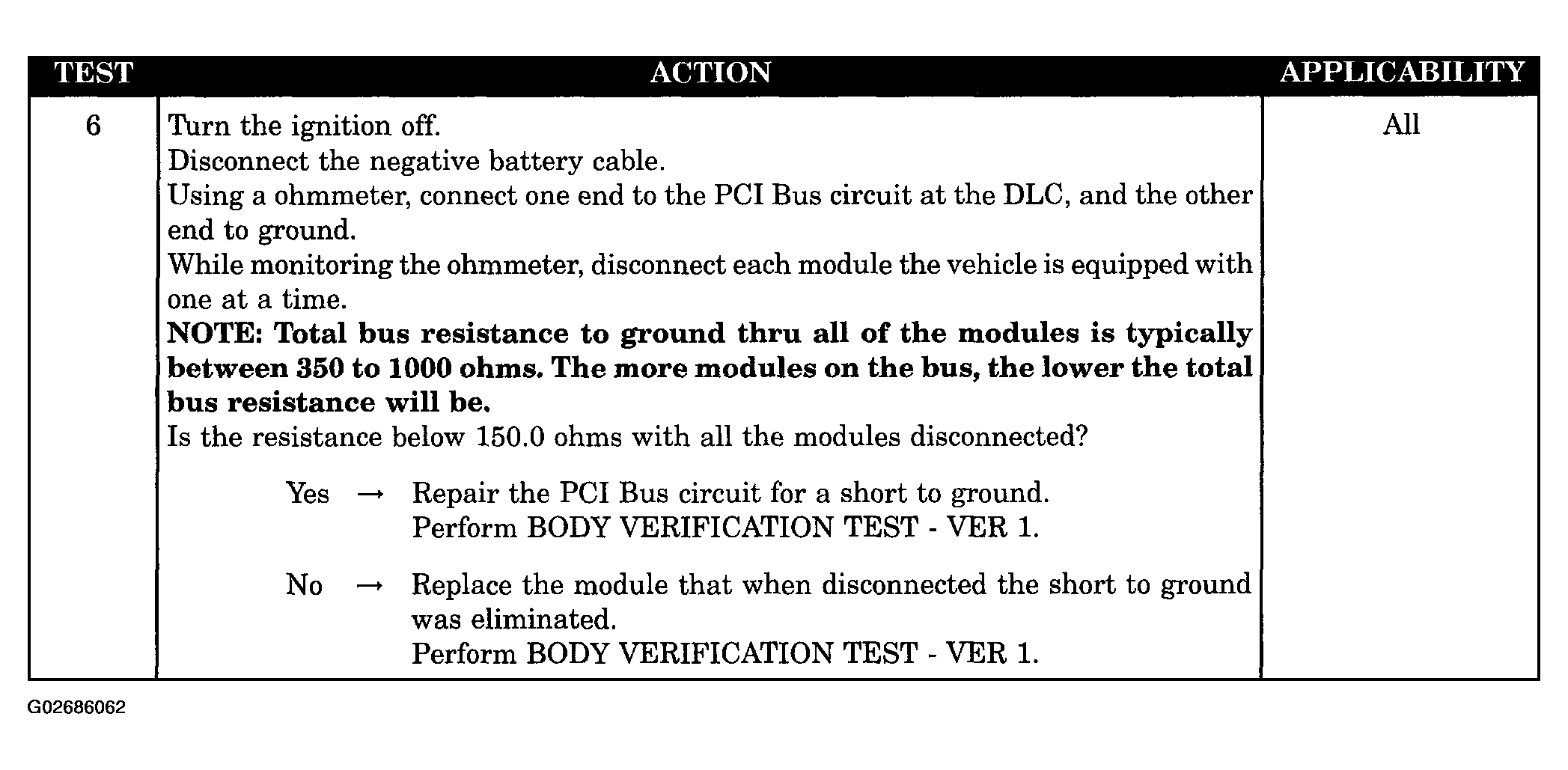

Fig 3: PCI Bus Communication Failure Diagnostic Procedure (3 Of 3)
G02686062Courtesy of DAIMLERCHRYSLER CORP.
