Diagnostic Procedures

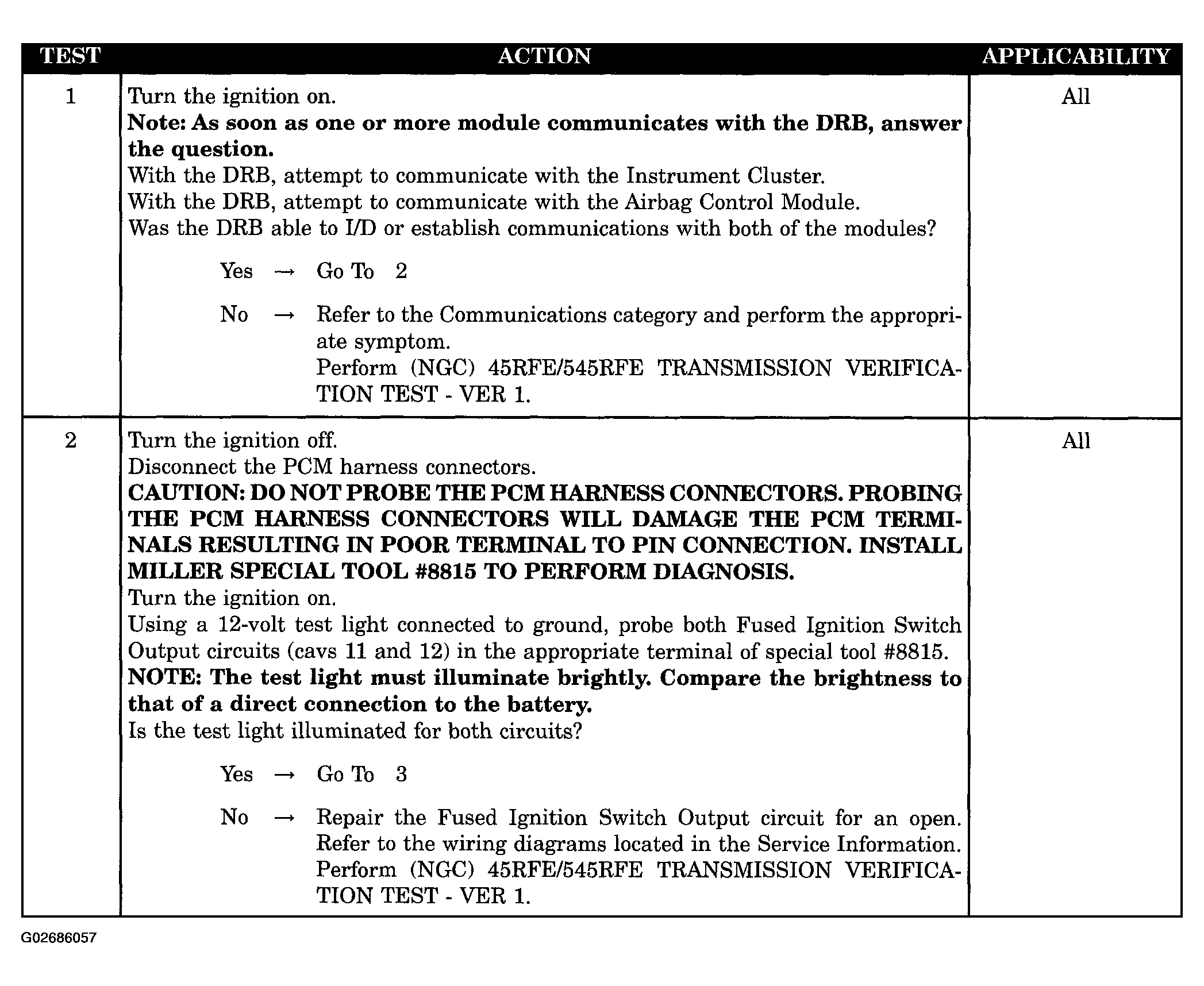

Fig 1: No Response From Transmission Control Module - NGC Diagnostic Procedure (1 Of 3)
G02686057Courtesy of DAIMLERCHRYSLER CORP.

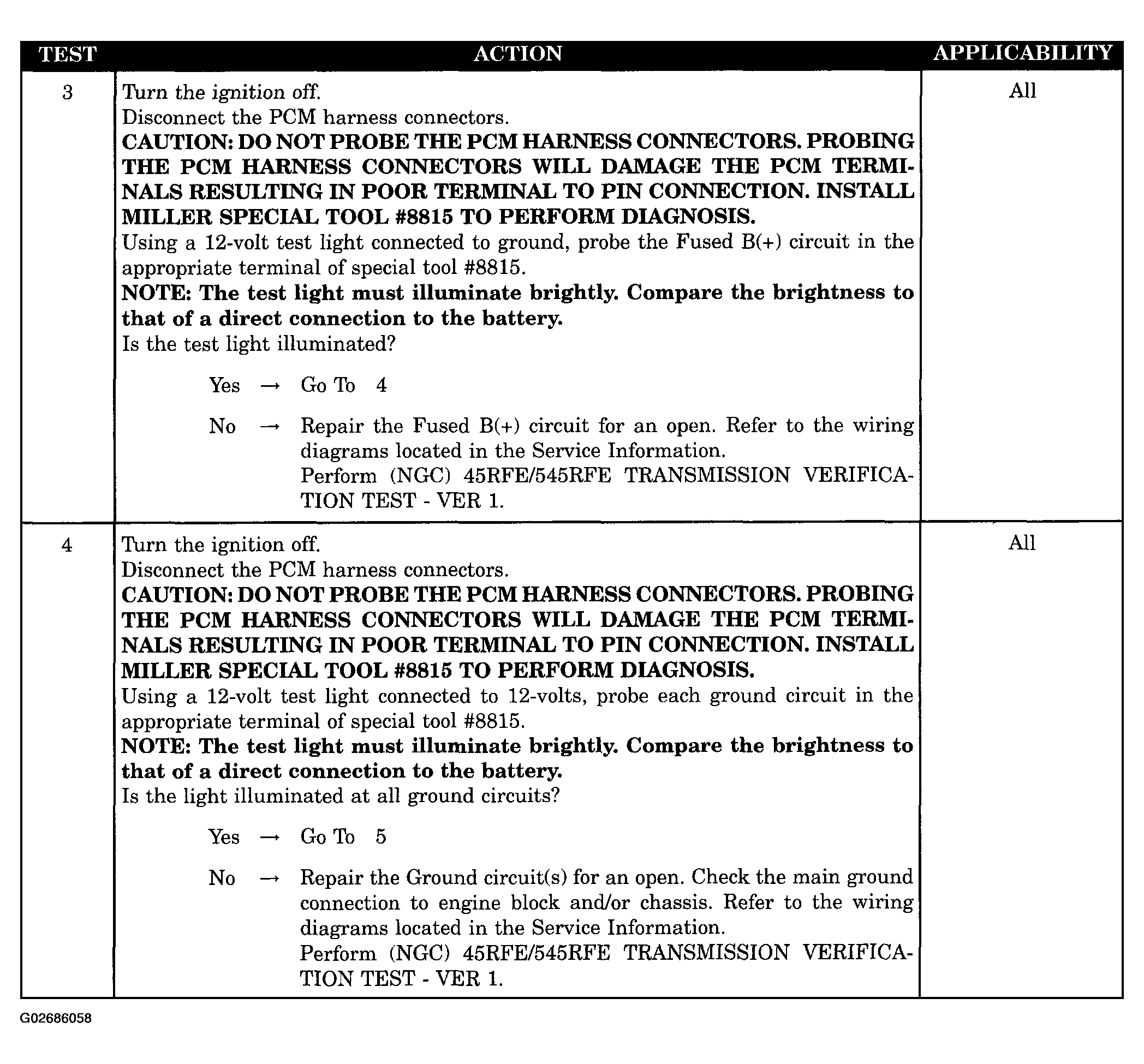

Fig 2: No Response From Transmission Control Module - NGC Diagnostic Procedure (2 Of 3)
G02686058Courtesy of DAIMLERCHRYSLER CORP.

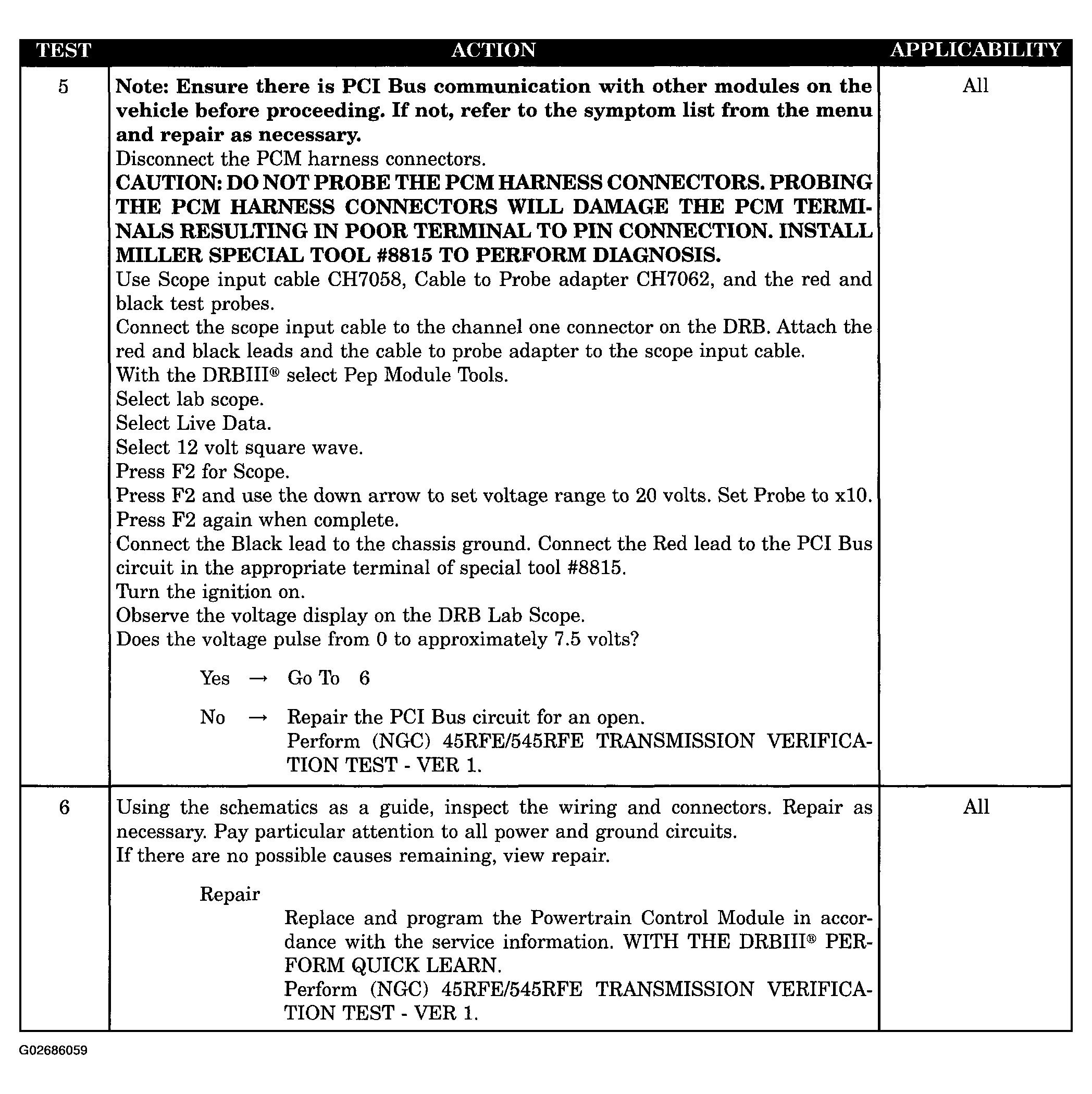

Fig 3: No Response From Transmission Control Module - NGC Diagnostic Procedure (3 Of 3)
G02686059Courtesy of DAIMLERCHRYSLER CORP.
