Diagnostic Procedures

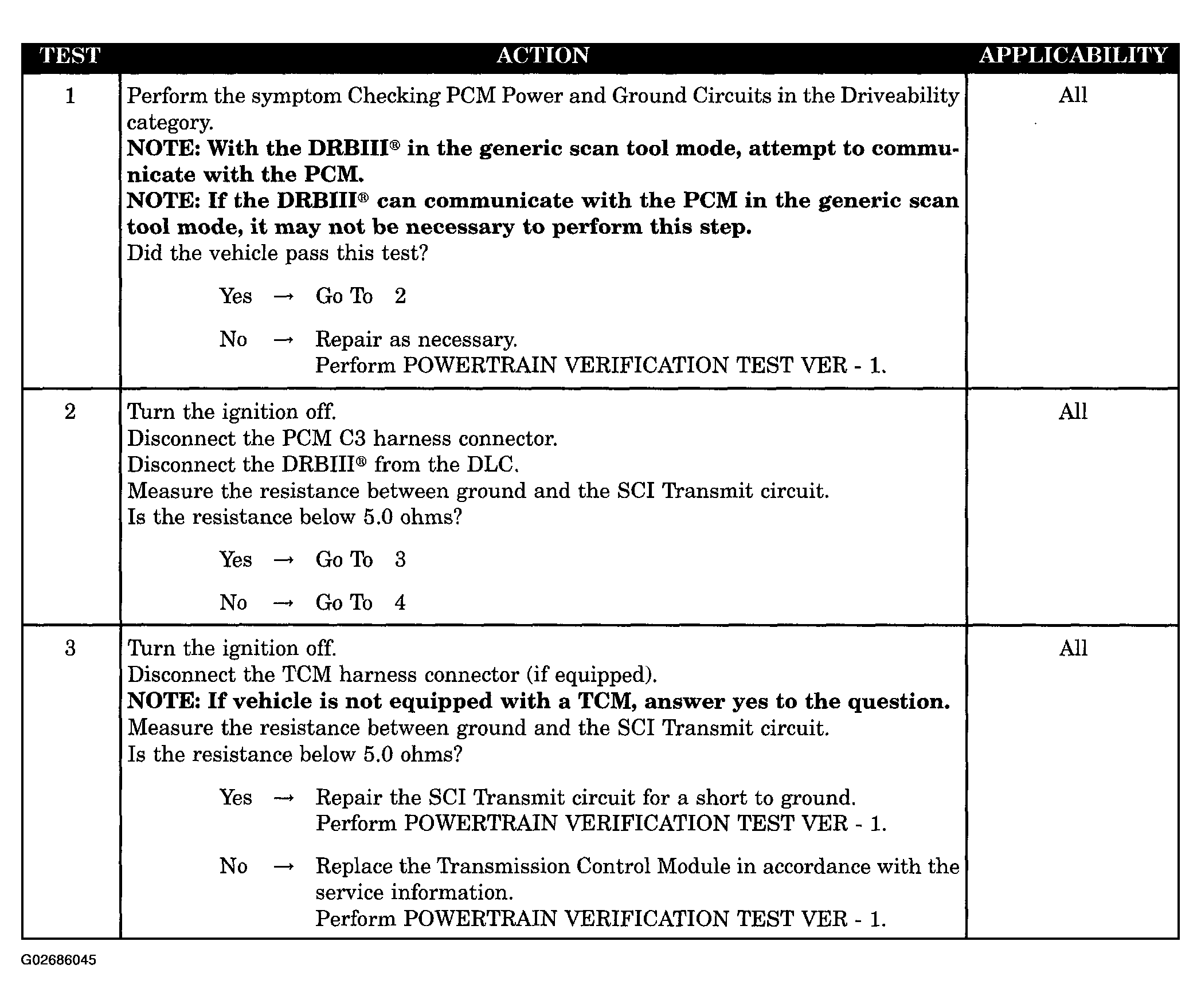

Fig 1: No Response From PCM (SCI Only) - JTEC Diagnostic Procedure (1 Of 3)
G02686045Courtesy of DAIMLERCHRYSLER CORP.

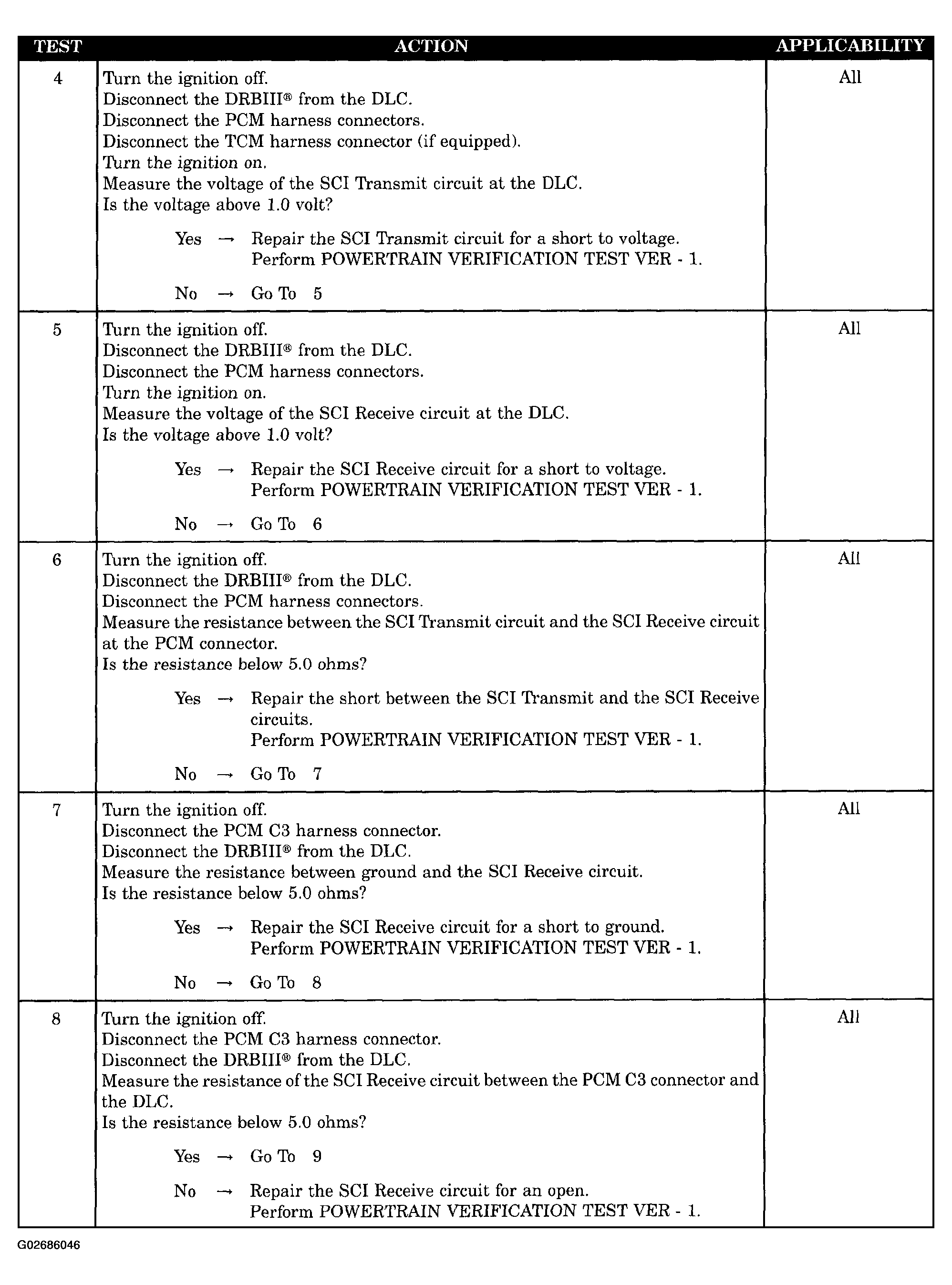

Fig 2: No Response From PCM (SCI Only) - JTEC Diagnostic Procedure (2 Of 3)
G02686046Courtesy of DAIMLERCHRYSLER CORP.

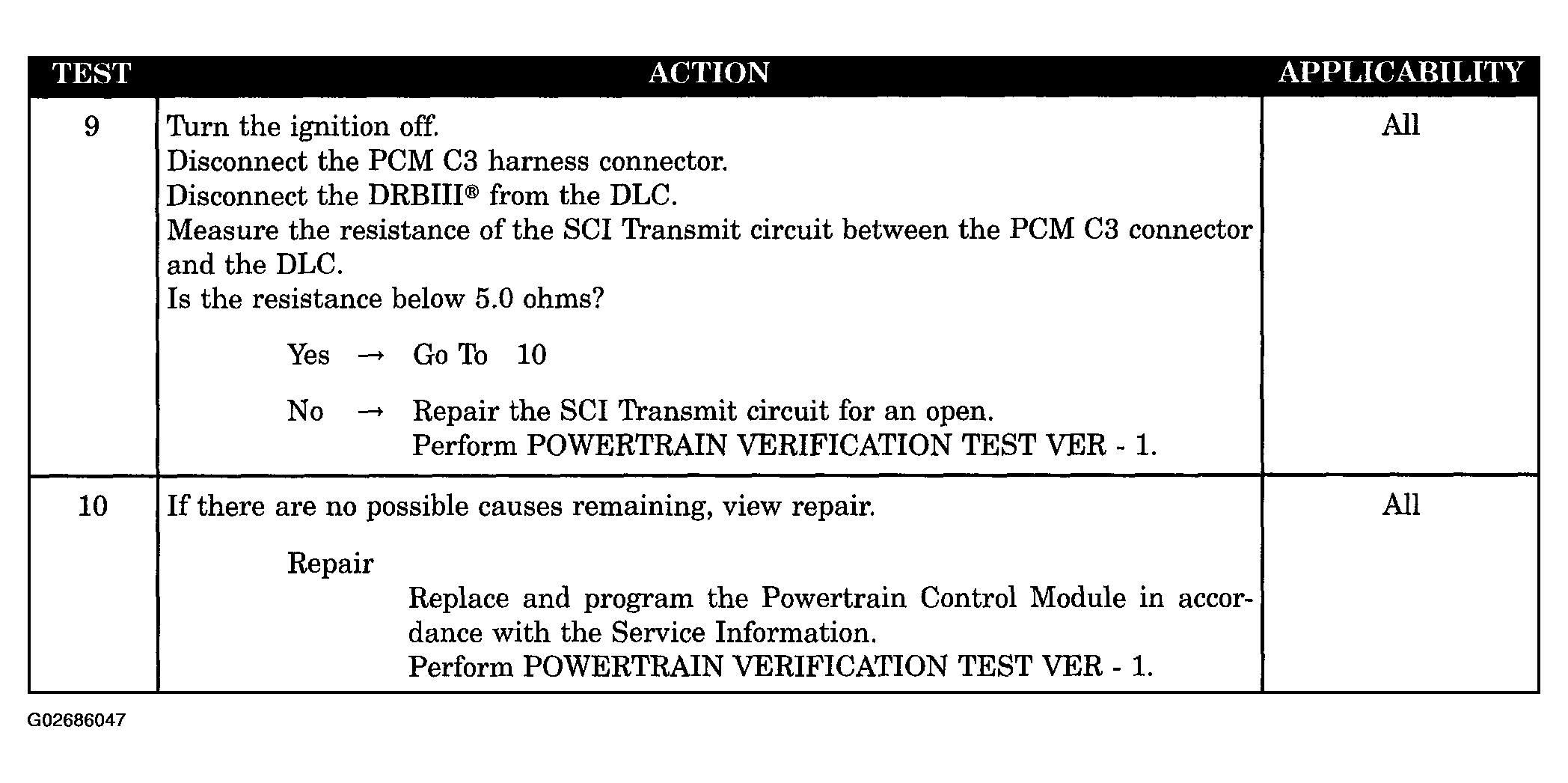

Fig 3: No Response From PCM (SCI Only) - JTEC Diagnostic Procedure (3 Of 3)
G02686047Courtesy of DAIMLERCHRYSLER CORP.
