Diagnostic Procedures

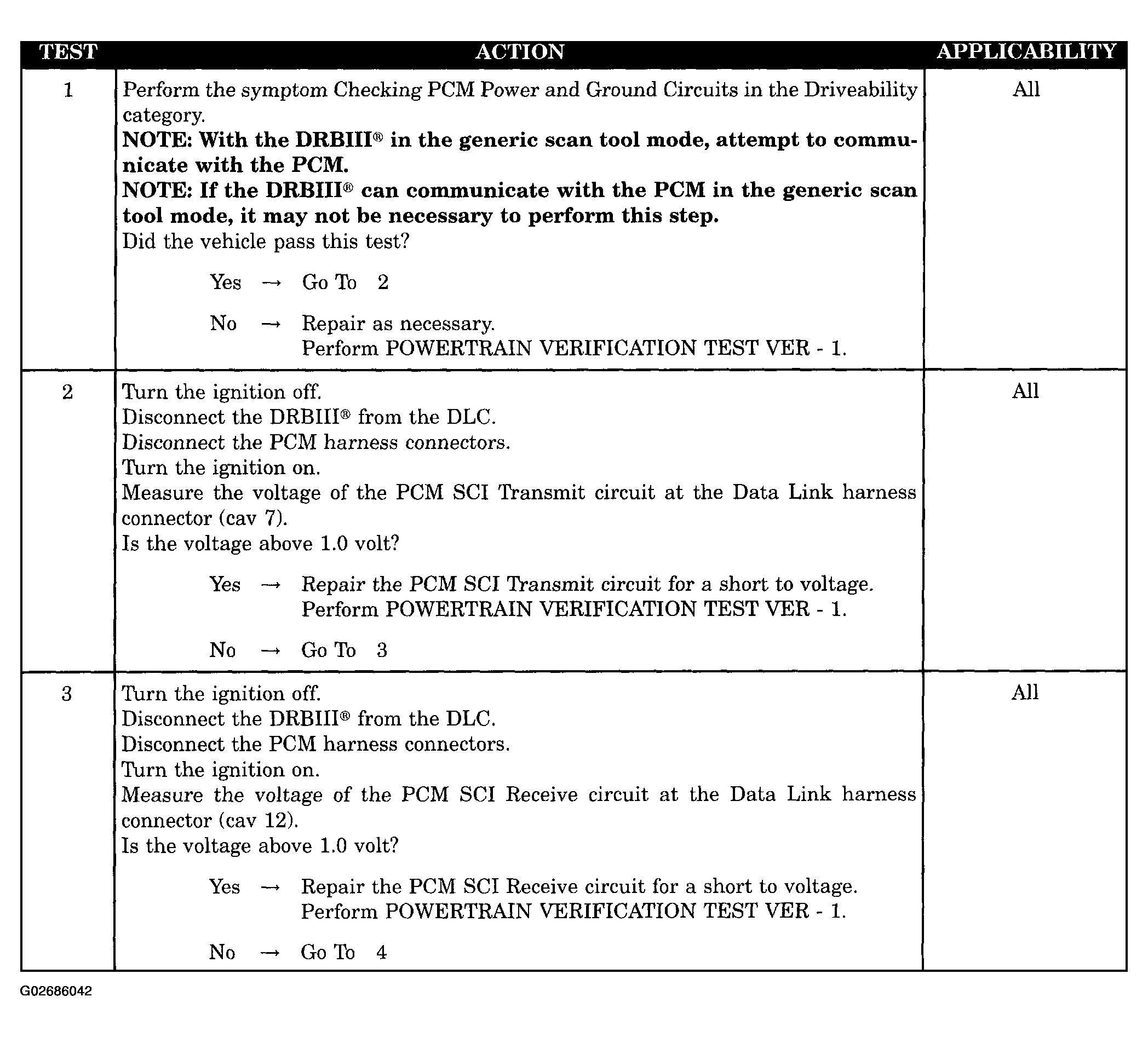

Fig 1: No Response From PCM (PCM SCI Only) - NGC Diagnostic Procedure (1 Of 3)
G02686042Courtesy of DAIMLERCHRYSLER CORP.

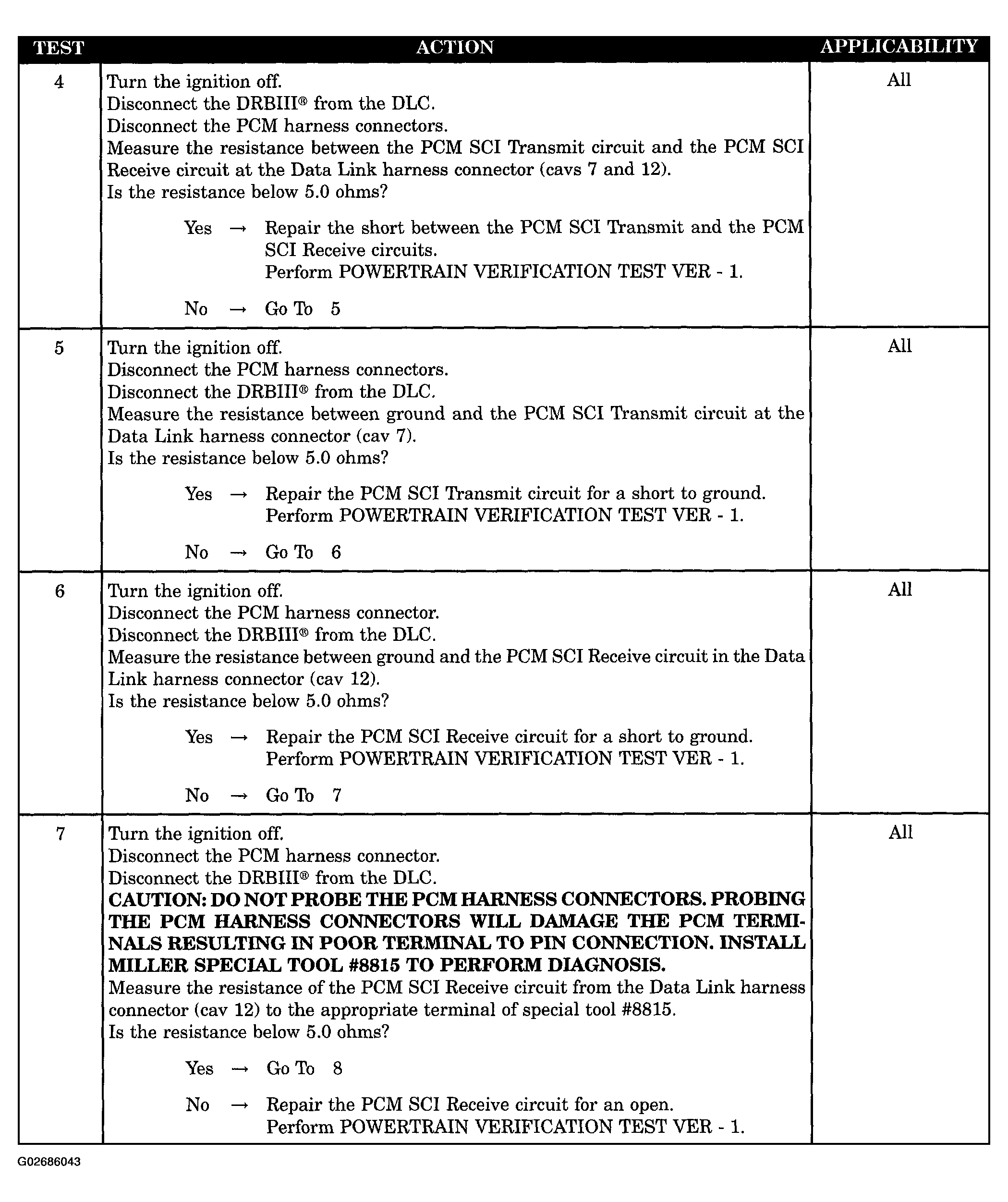

Fig 2: No Response From PCM (PCM SCI Only) - NGC Diagnostic Procedure (2 Of 3)
G02686043Courtesy of DAIMLERCHRYSLER CORP.

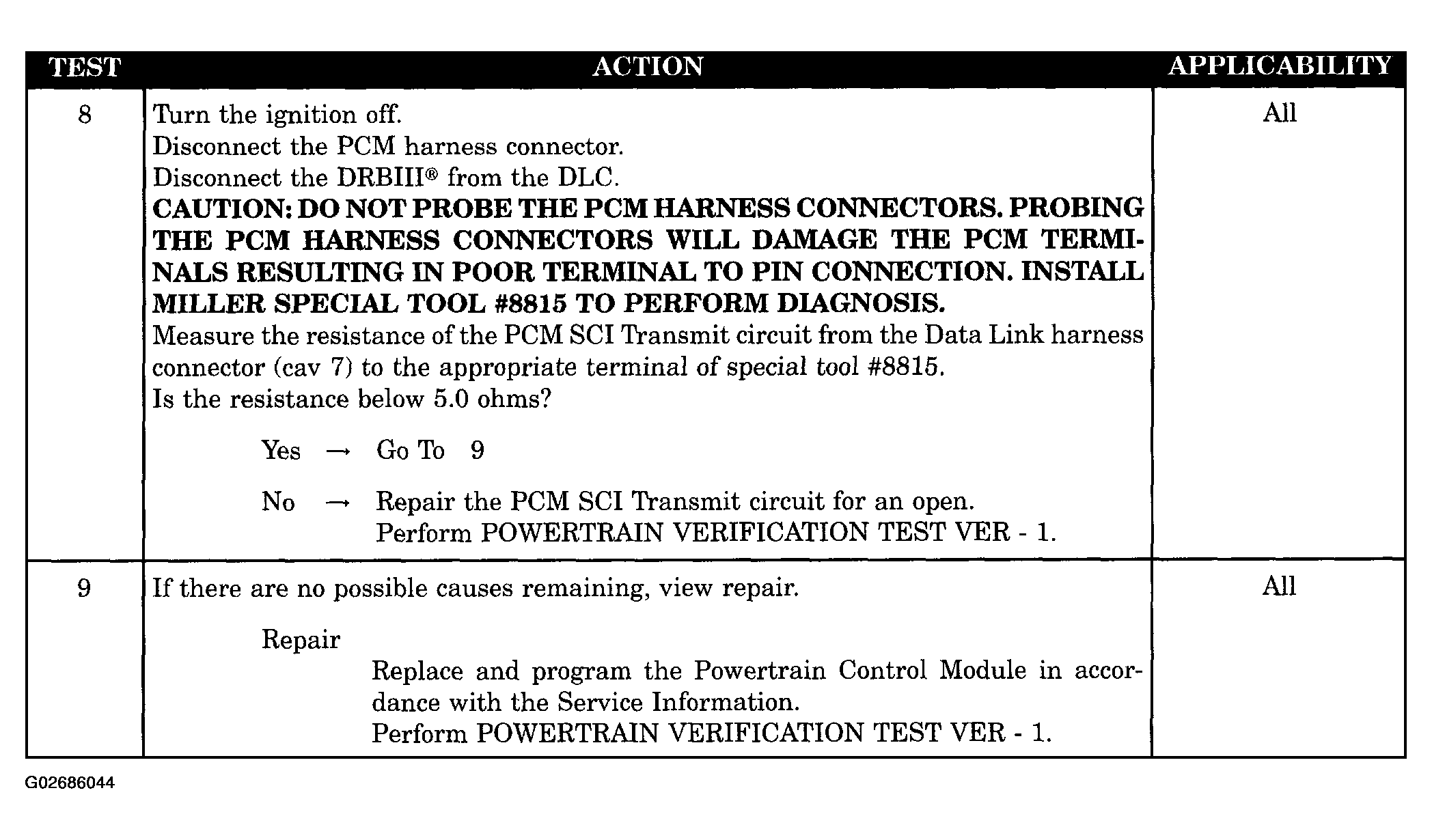

Fig 3: No Response From PCM (PCM SCI Only) - NGC Diagnostic Procedure (3 Of 3)
G02686044Courtesy of DAIMLERCHRYSLER CORP.
