Diagnostic Procedures

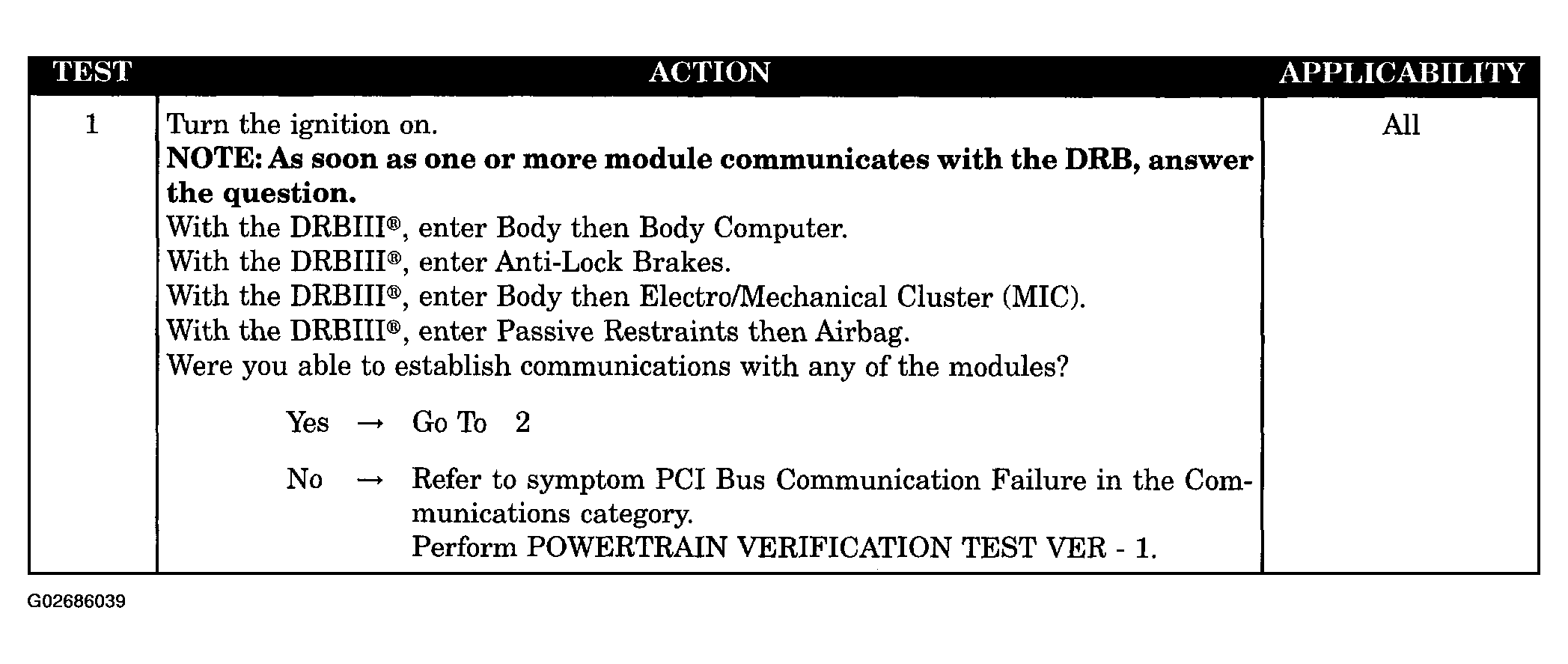

Fig 1: No Response From PCM (PCI BUS) - JTEC Diagnostic Procedure (1 Of 2)
G02686039Courtesy of DAIMLERCHRYSLER CORP.

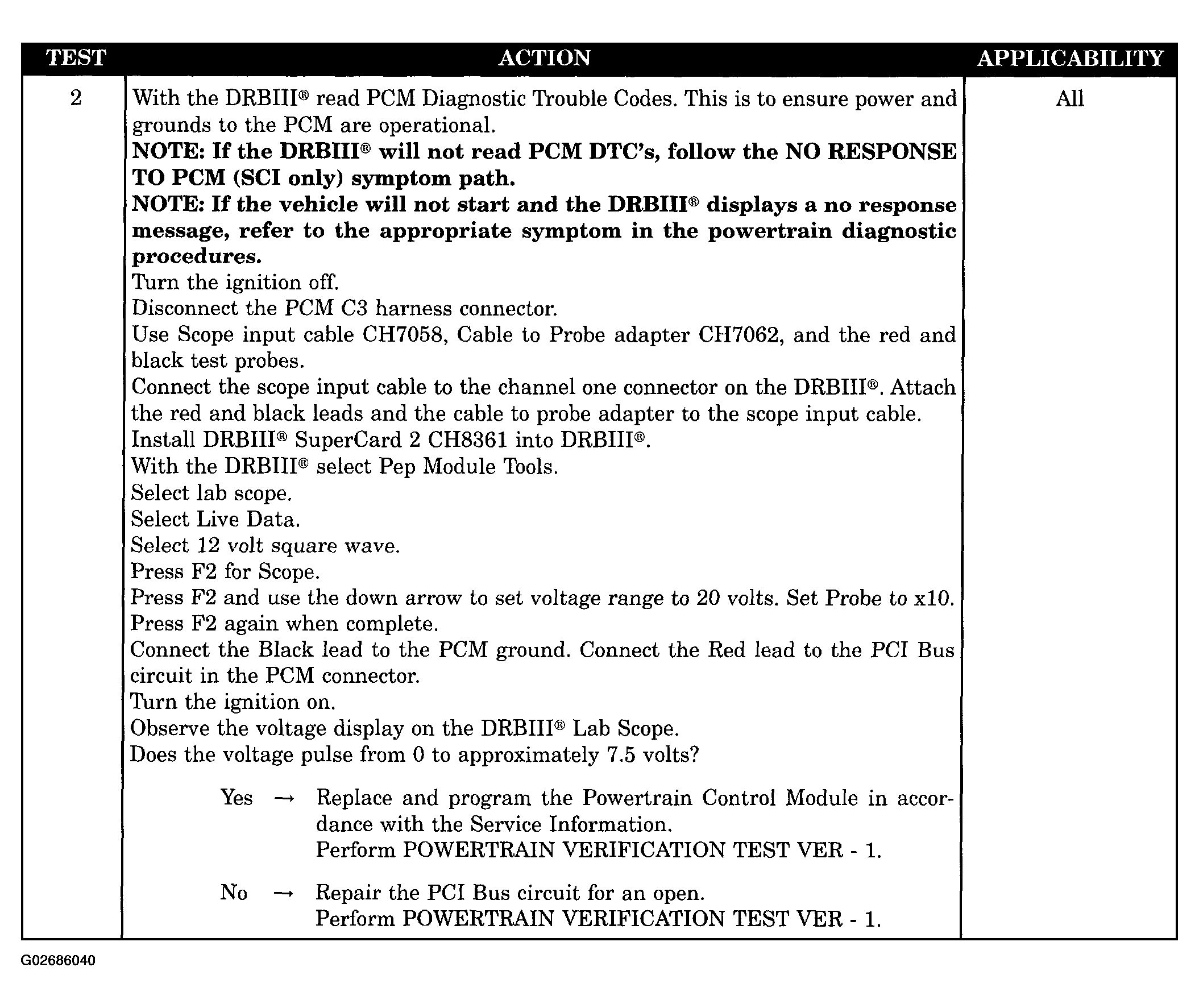

Fig 2: No Response From PCM (PCI BUS) - JTEC Diagnostic Procedure (2 Of 2)
G02686040Courtesy of DAIMLERCHRYSLER CORP.
