Diagnostic Procedures

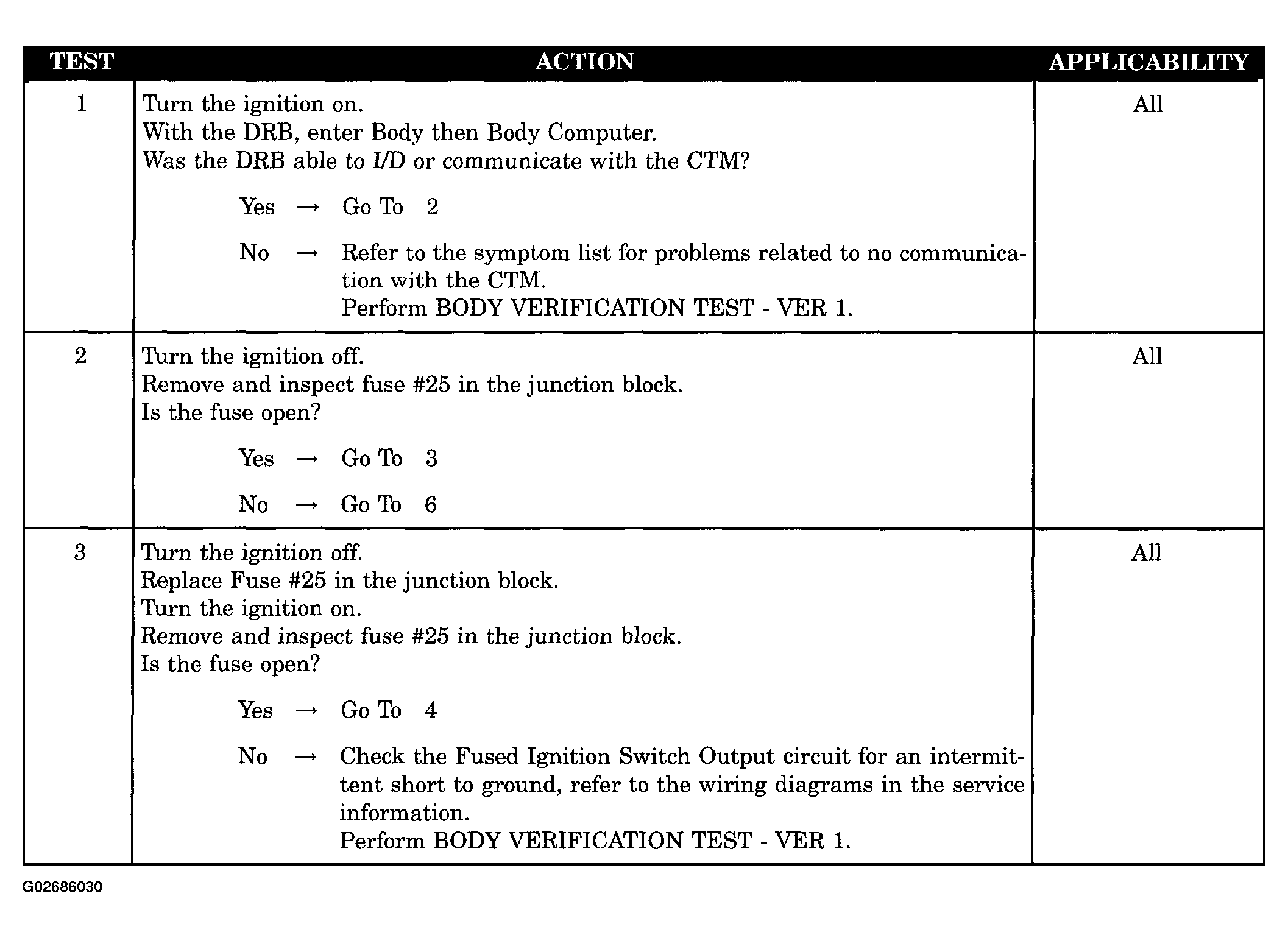

Fig 1: No Response From HVAC Diagnostic Procedure (1 Of 3)
G02686030Courtesy of DAIMLERCHRYSLER CORP.

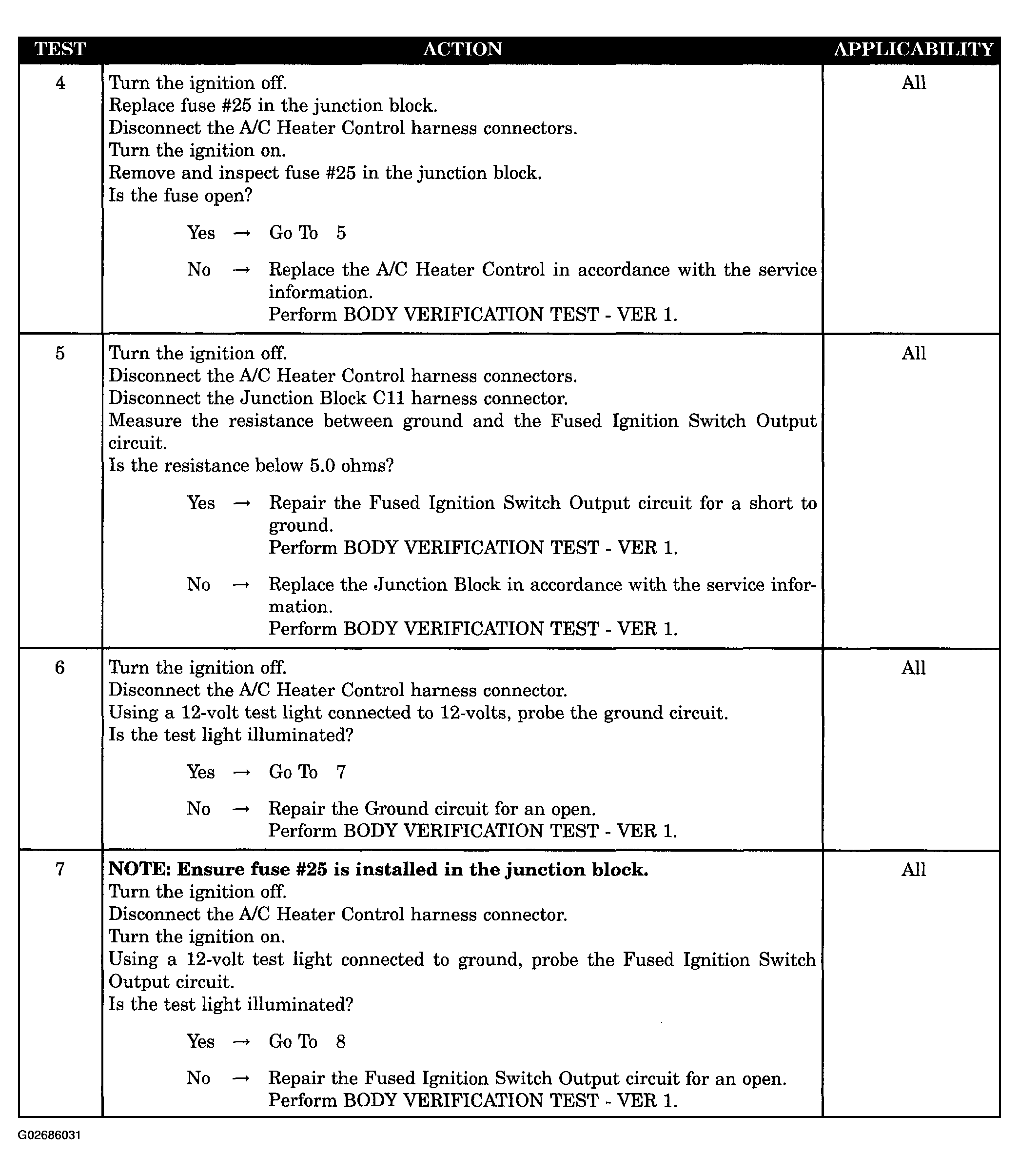

Fig 2: No Response From HVAC Diagnostic Procedure (2 Of 3)
G02686031Courtesy of DAIMLERCHRYSLER CORP.

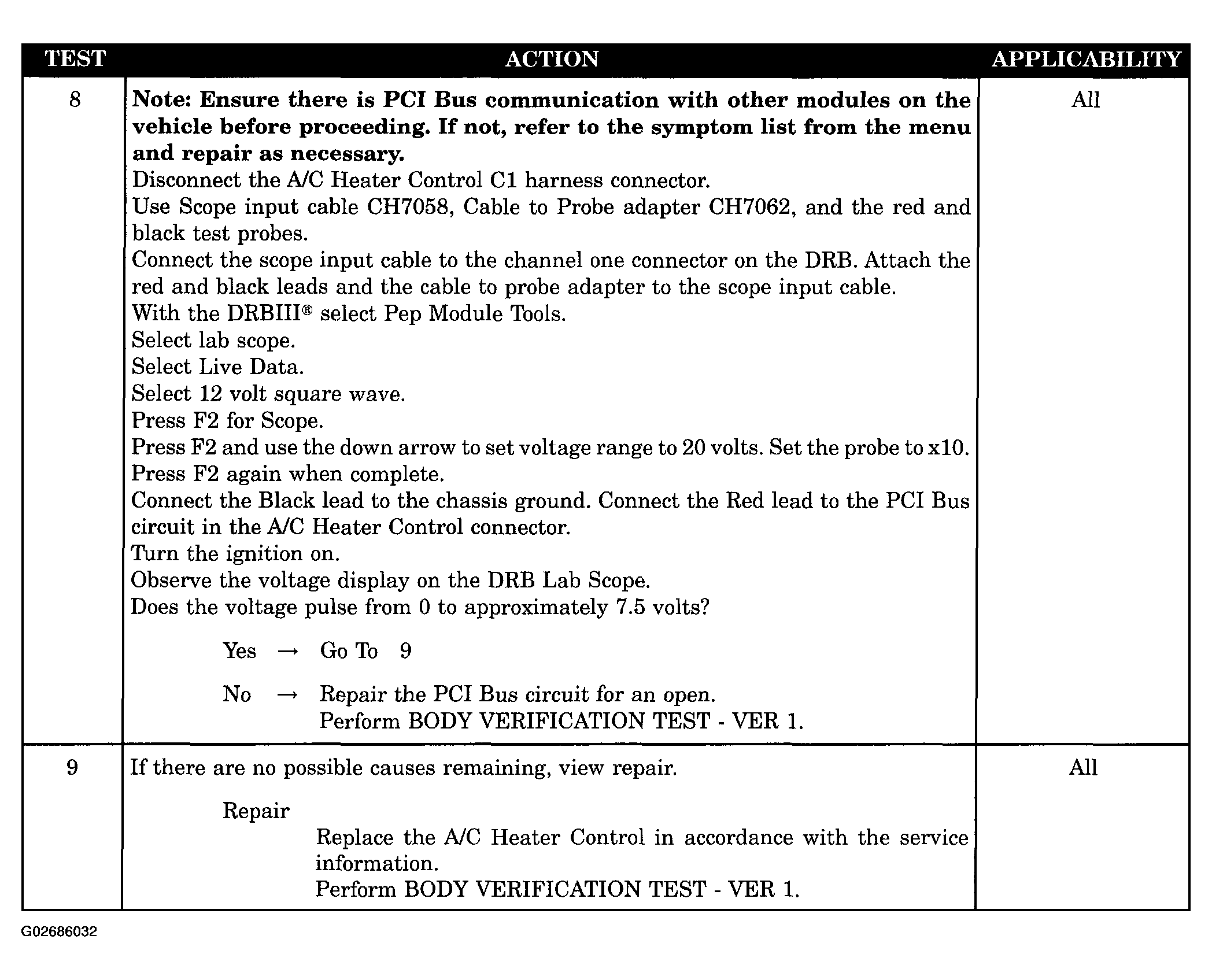

Fig 3: No Response From HVAC Diagnostic Procedure (3 Of 3)
G02686032Courtesy of DAIMLERCHRYSLER CORP.
