Diagnostic Procedures

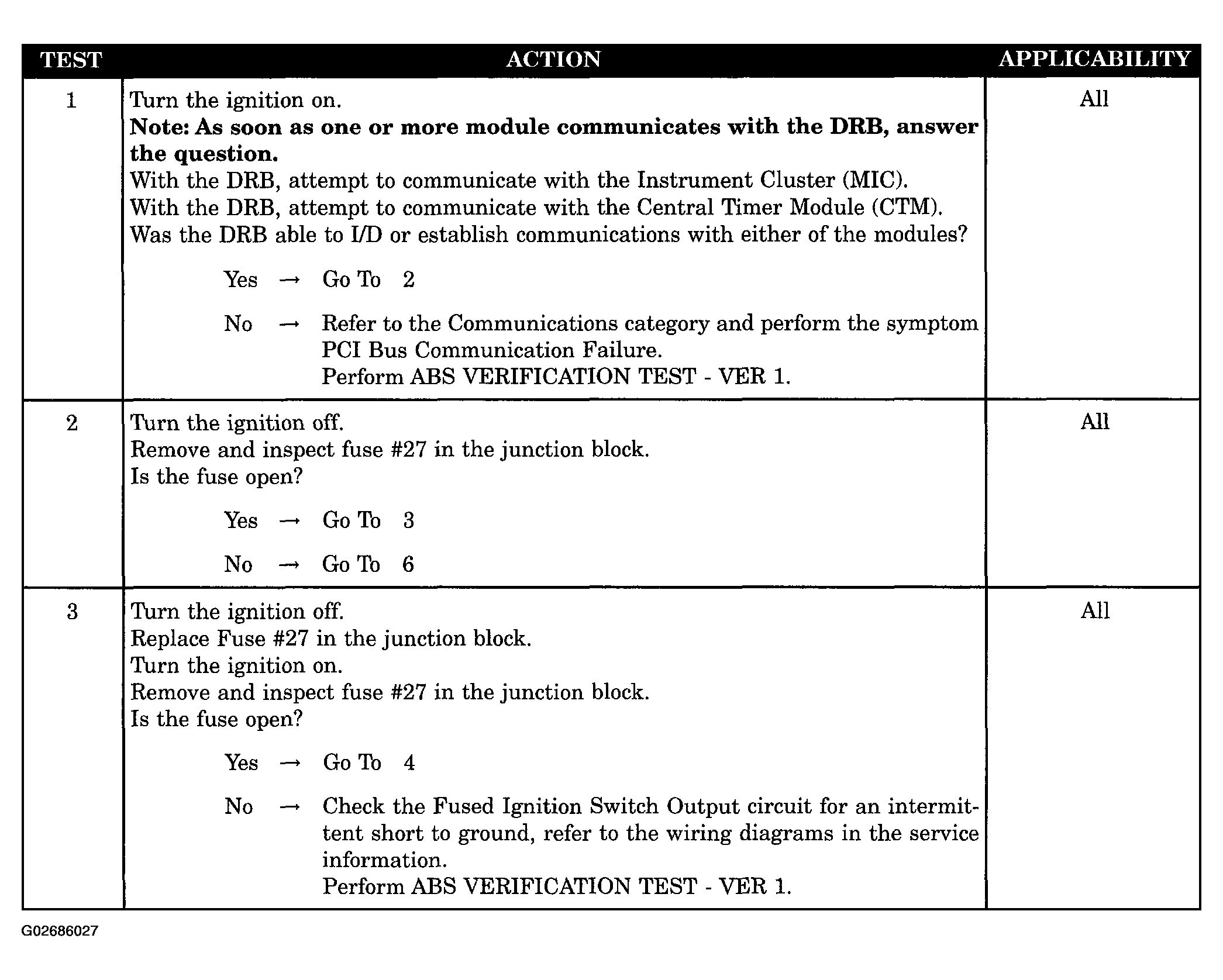

Fig 1: No Response From Controller Anti-Lock Brake Diagnostic Procedure (1 Of 3)
G02686027Courtesy of DAIMLERCHRYSLER CORP.

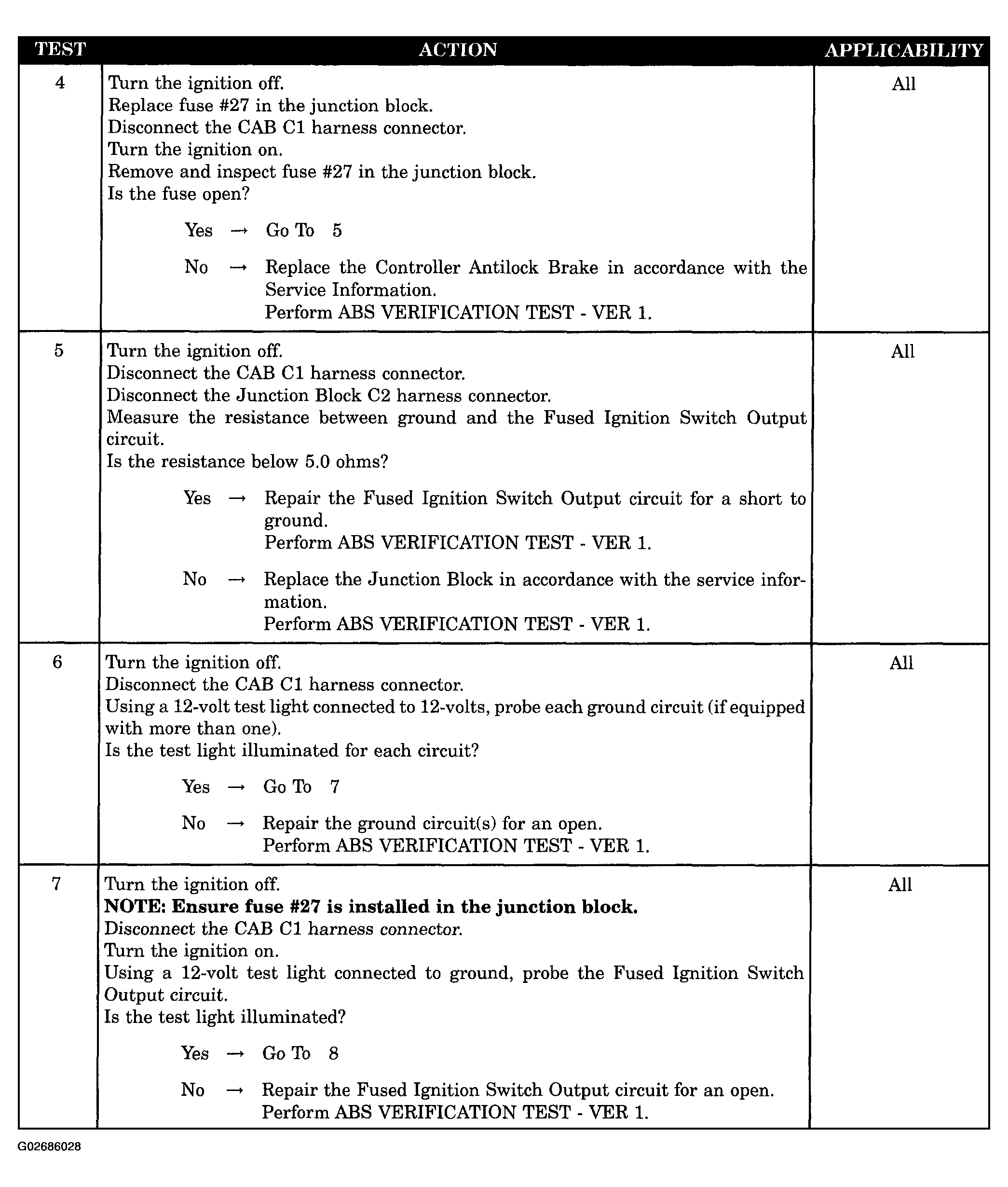

Fig 2: No Response From Controller Anti-Lock Brake Diagnostic Procedure (2 Of 3)
G02686028Courtesy of DAIMLERCHRYSLER CORP.

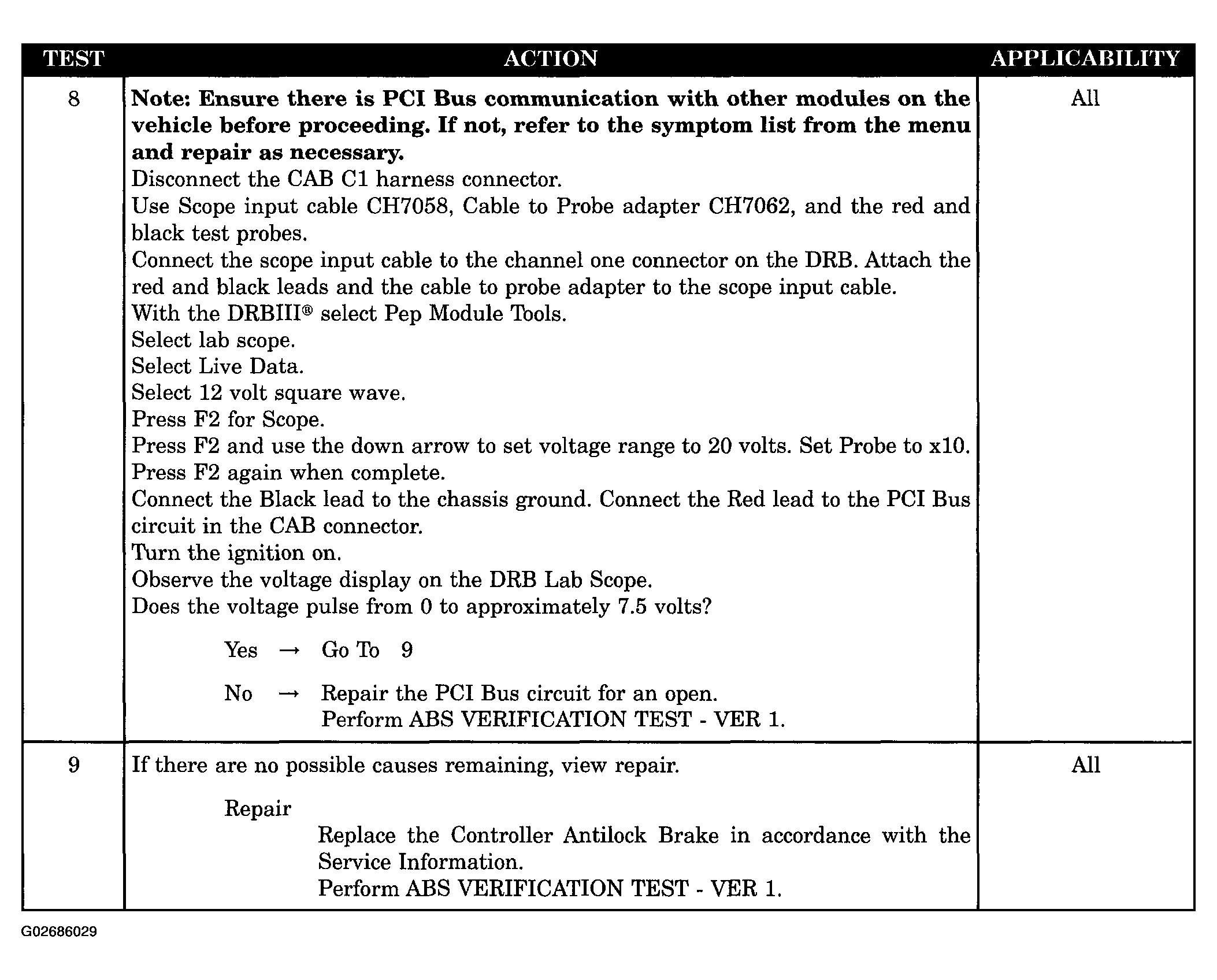

Fig 3: No Response From Controller Anti-Lock Brake Diagnostic Procedure (3 Of 3)
G02686029Courtesy of DAIMLERCHRYSLER CORP.
