Diagnostic Procedures

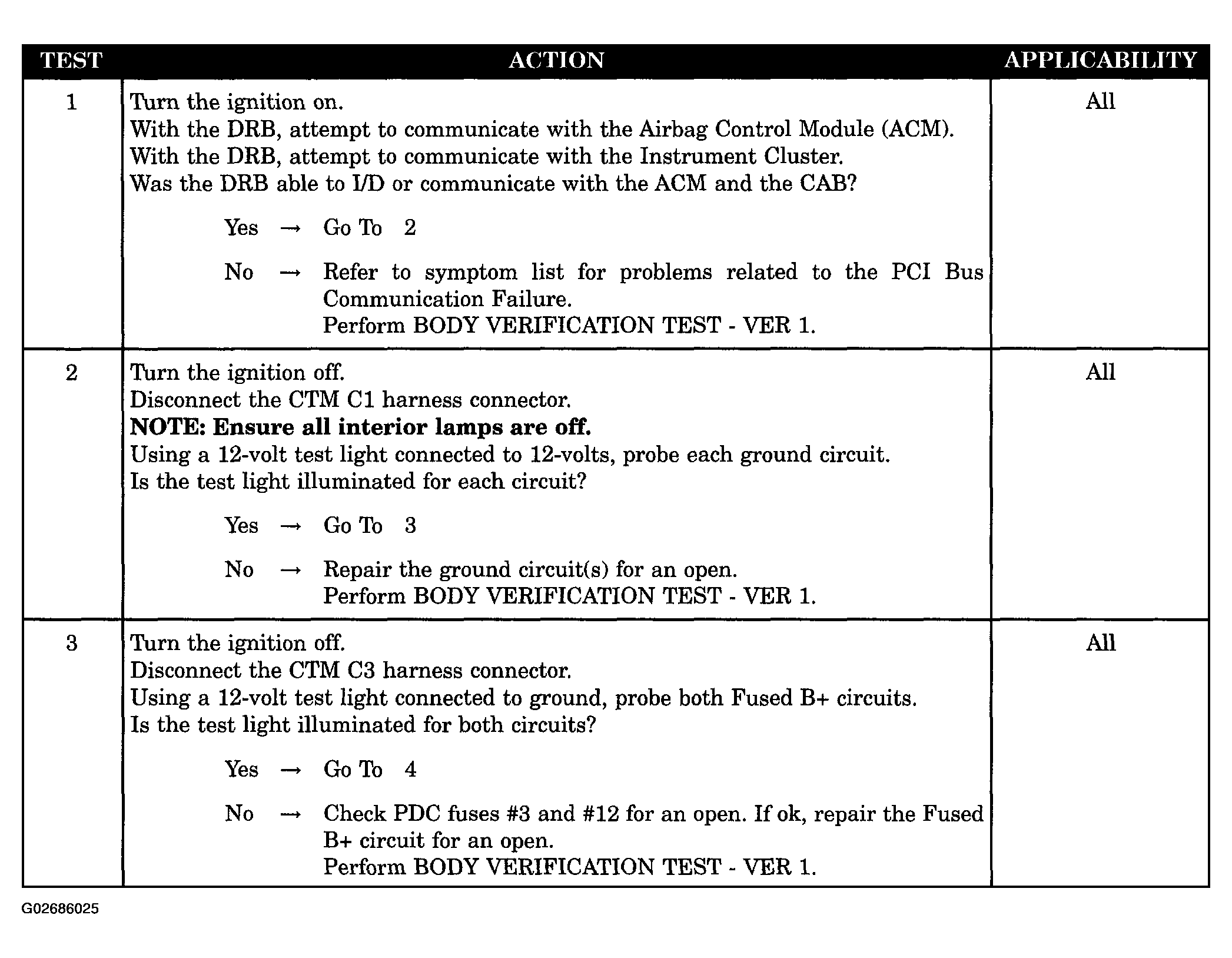

Fig 1: No Response From Central Timer Module Diagnostic Procedure (1 Of 2)
G02686025Courtesy of DAIMLERCHRYSLER CORP.

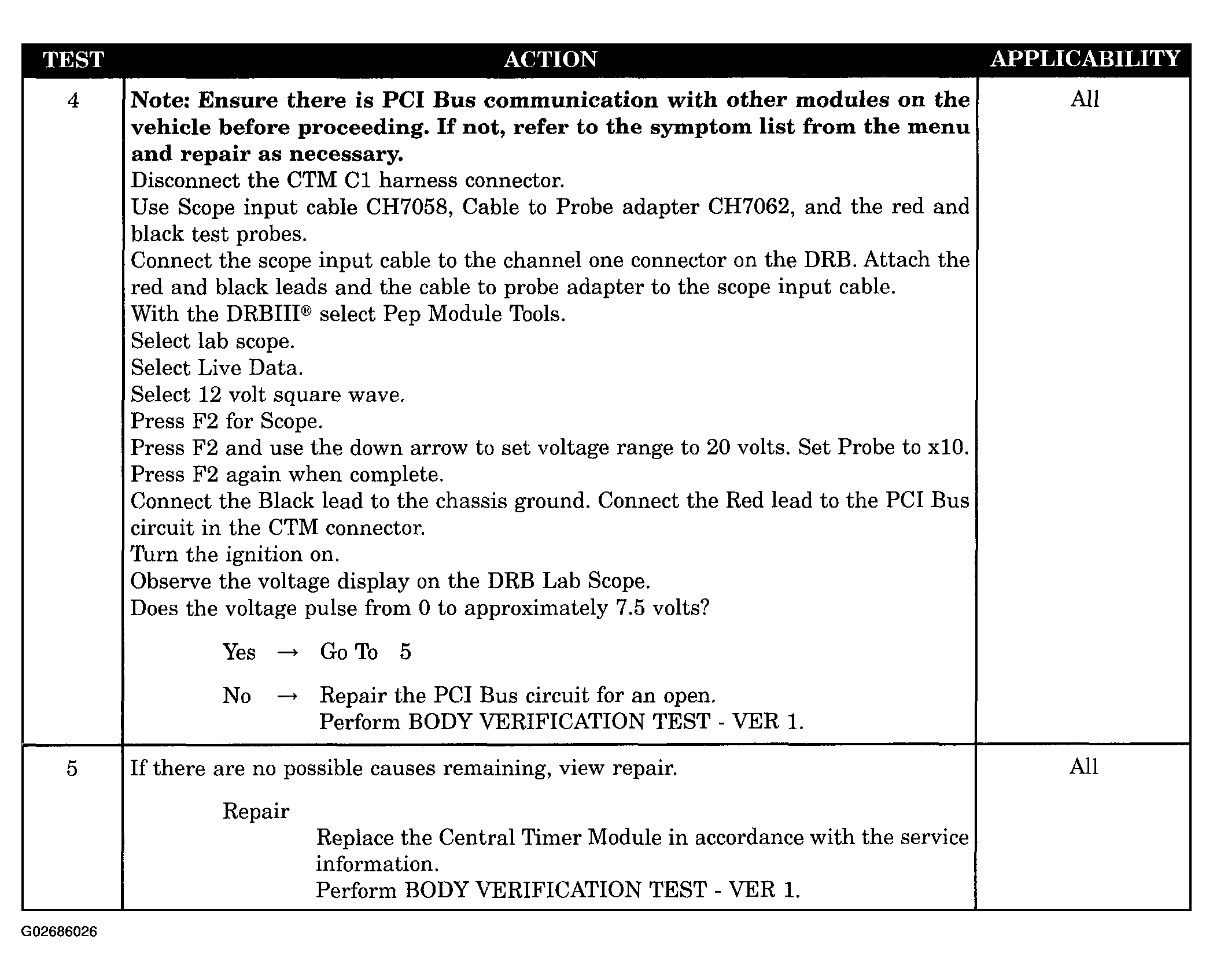

Fig 2: No Response From Central Timer Module Diagnostic Procedure (2 Of 2)
G02686026Courtesy of DAIMLERCHRYSLER CORP.
