Diagnostic Procedures

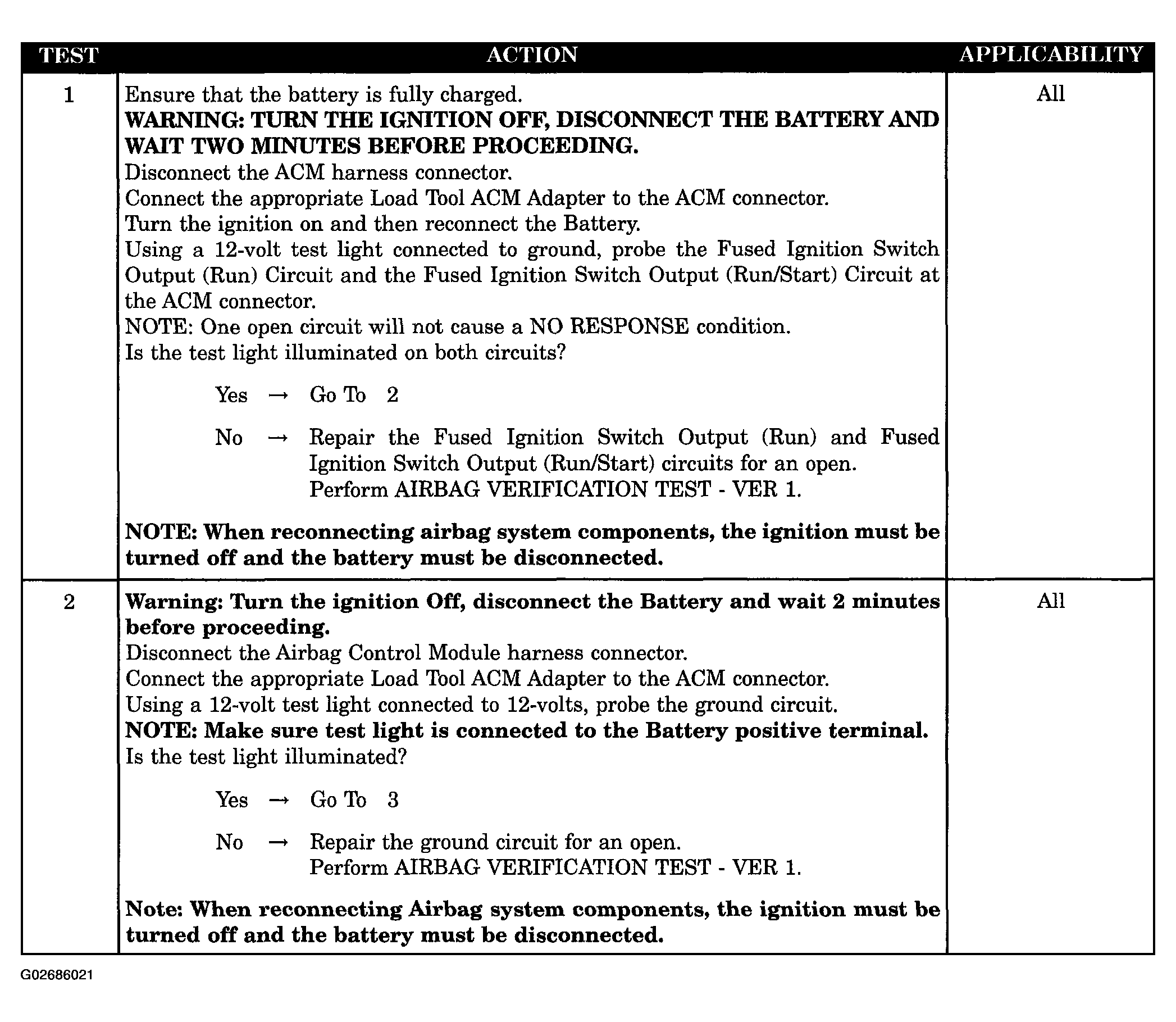

Fig 1: No Response From Airbag Control Module Diagnostic Procedure (1 Of 2)
G02686021Courtesy of DAIMLERCHRYSLER CORP.

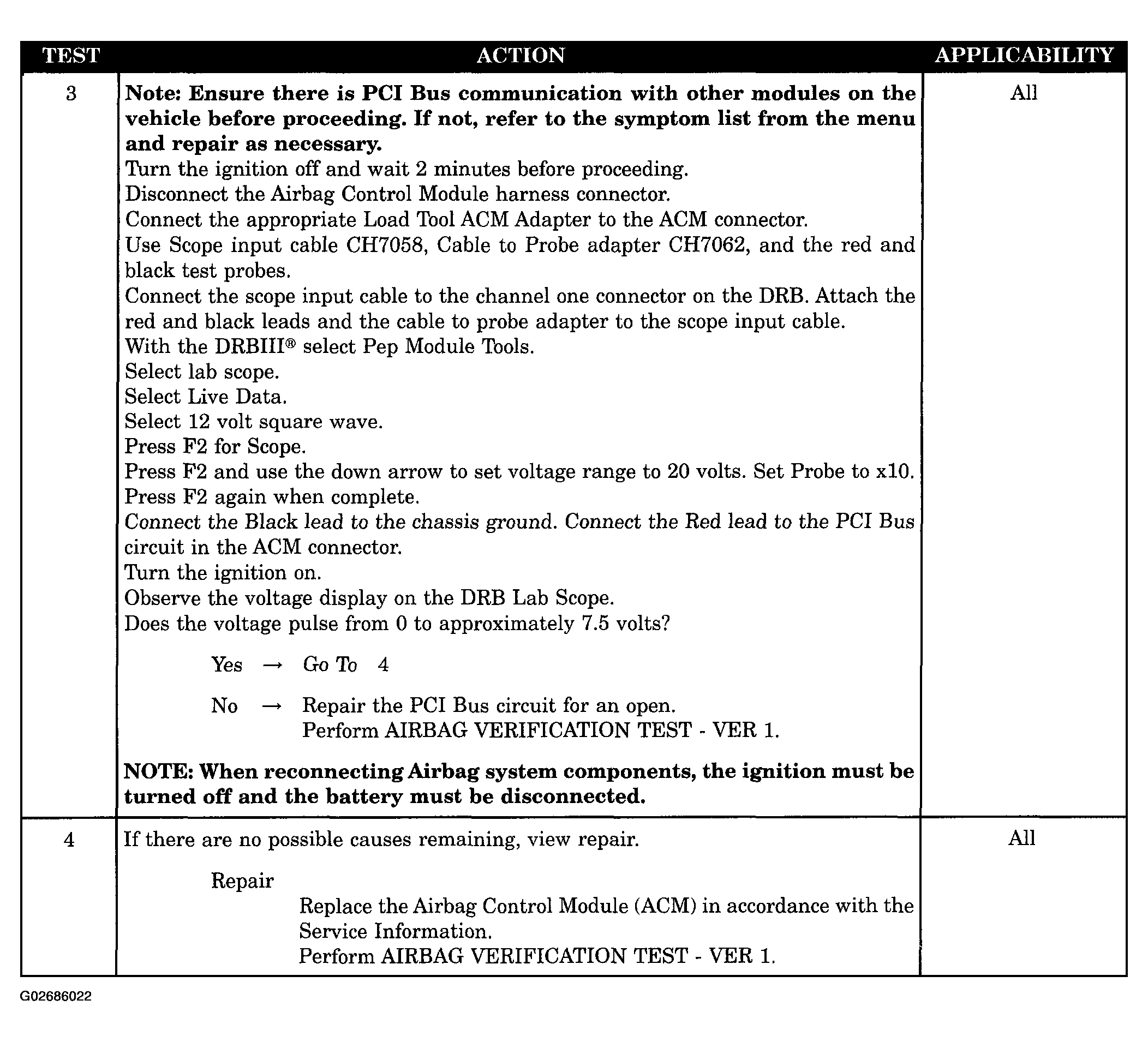

Fig 2: No Response From Airbag Control Module Diagnostic Procedure (2 Of 2)
G02686022Courtesy of DAIMLERCHRYSLER CORP.
