Diagnostic Procedures

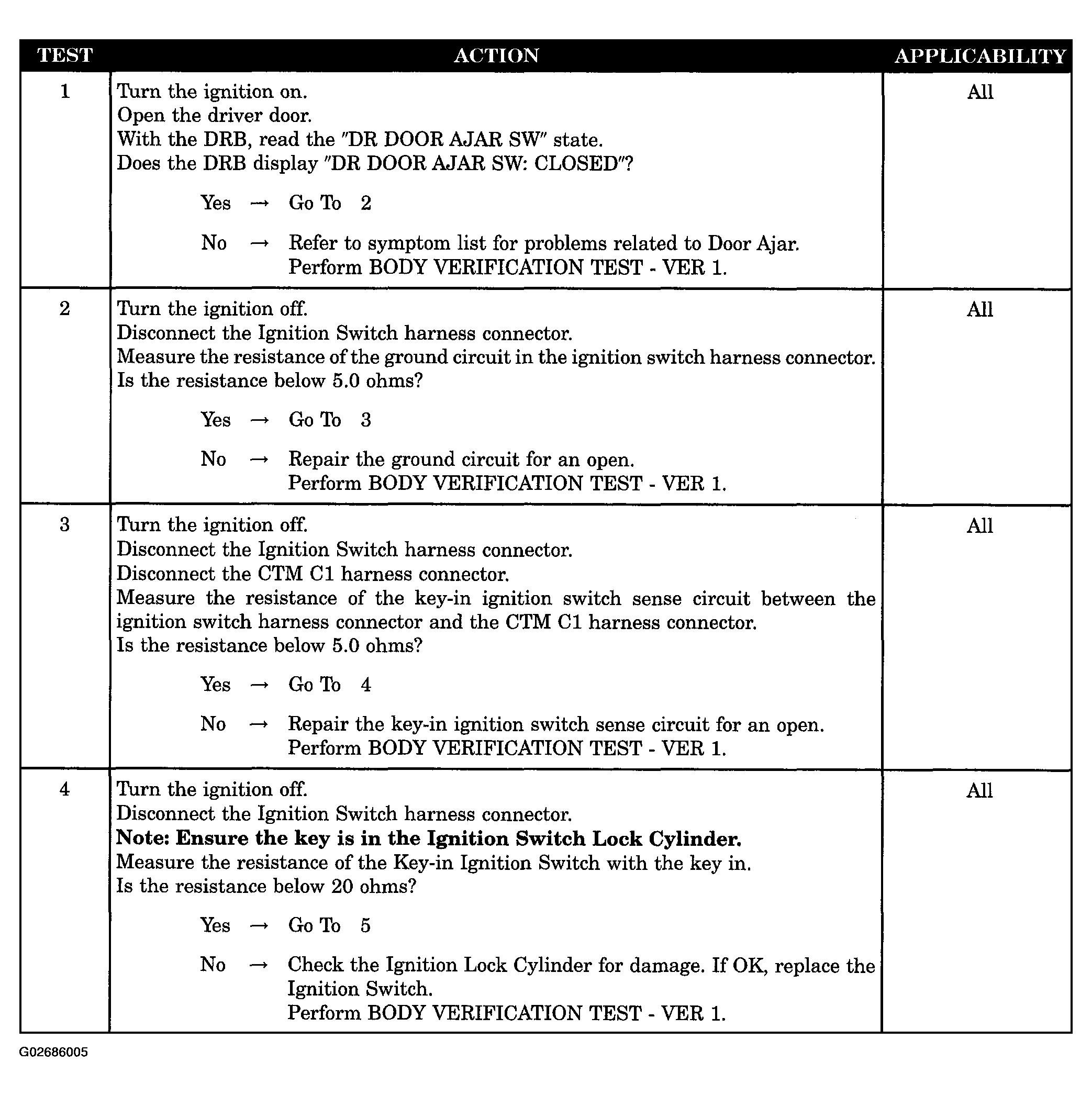

Fig 1: Chime Inoperative With Key In Ignition, Driver's Door Open Diagnostic Procedure (1 Of 2)
G02686005Courtesy of DAIMLERCHRYSLER CORP.

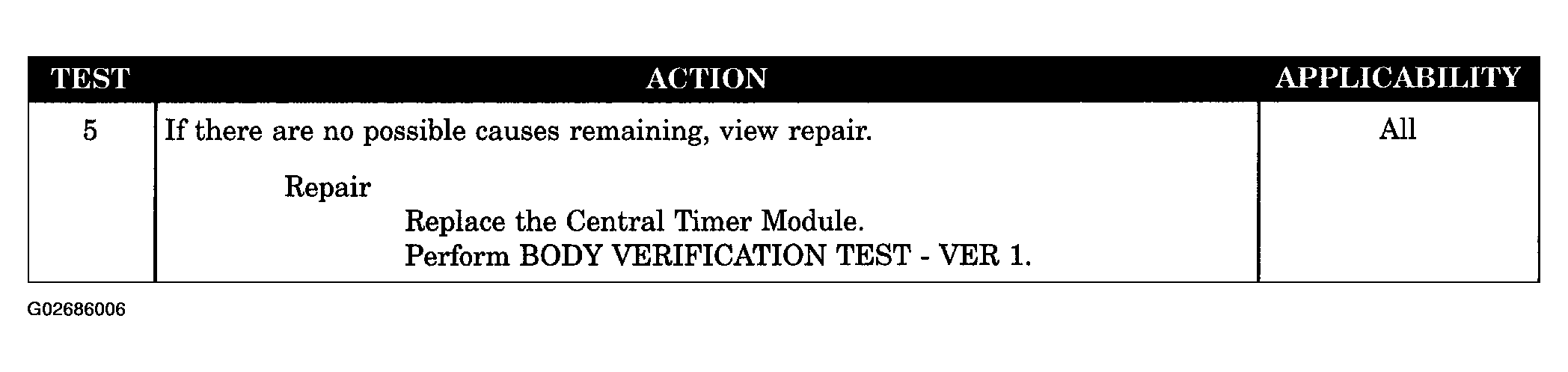

Fig 2: Chime Inoperative With Key In Ignition, Driver's Door Open Diagnostic Procedure (2 Of 2)
G02686006Courtesy of DAIMLERCHRYSLER CORP.
