Diagnostic Procedures

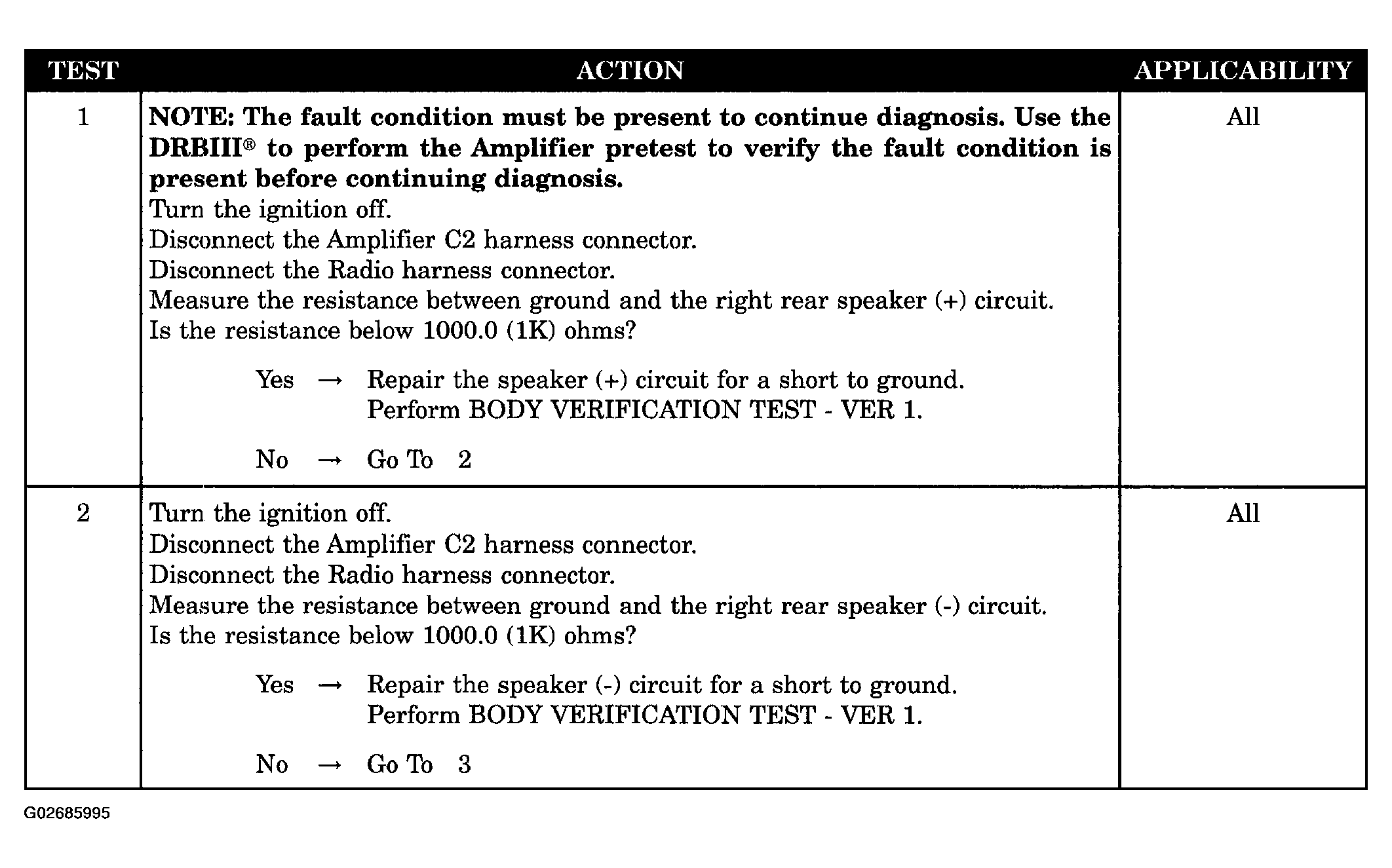

Fig 1: Right Rear Input No Activity Diagnostic Procedure (1 Of 2)
G02685995Courtesy of DAIMLERCHRYSLER CORP.

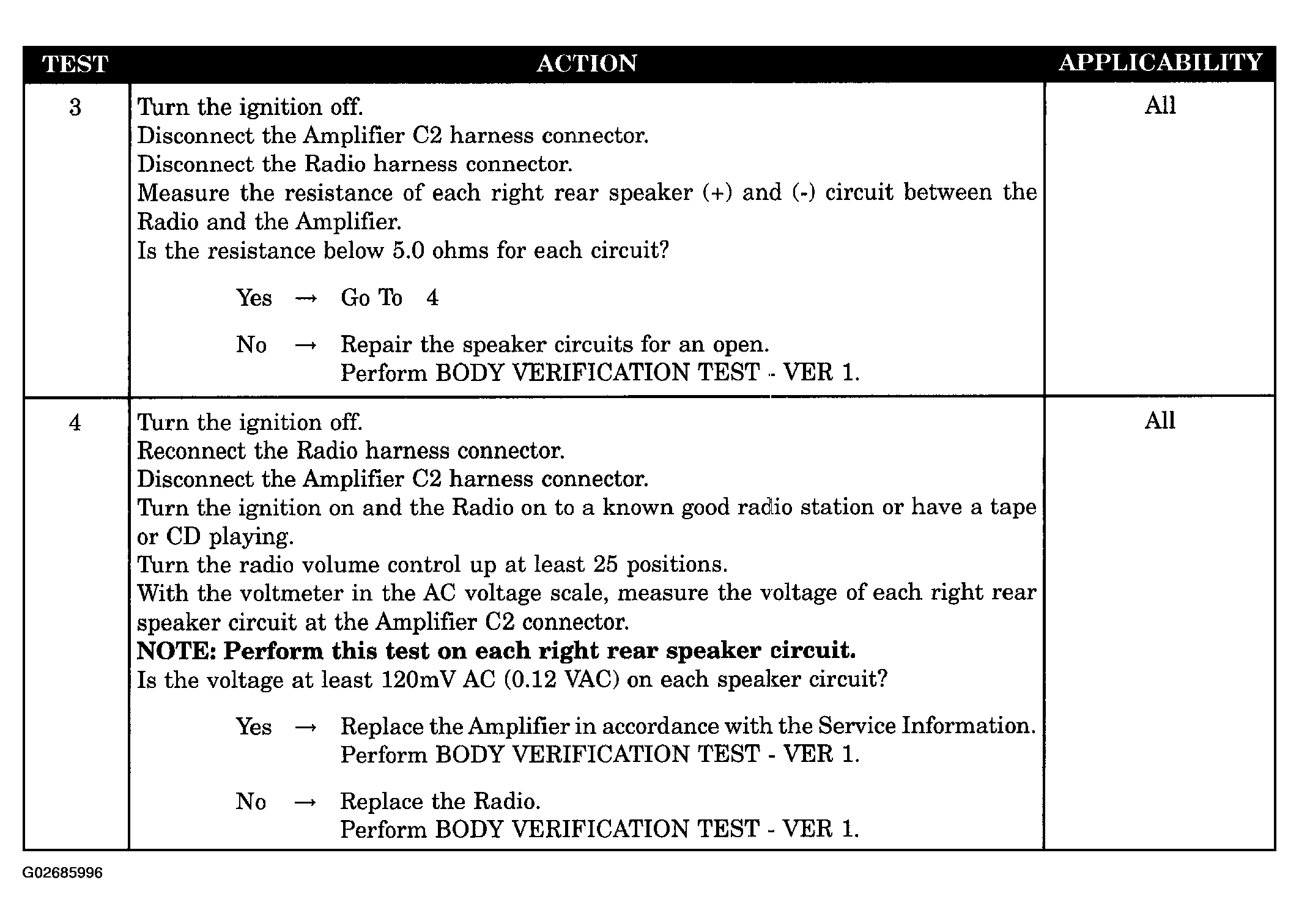

Fig 2: Right Rear Input No Activity Diagnostic Procedure (2 Of 2)
G02685996Courtesy of DAIMLERCHRYSLER CORP.
