Diagnostic Procedures

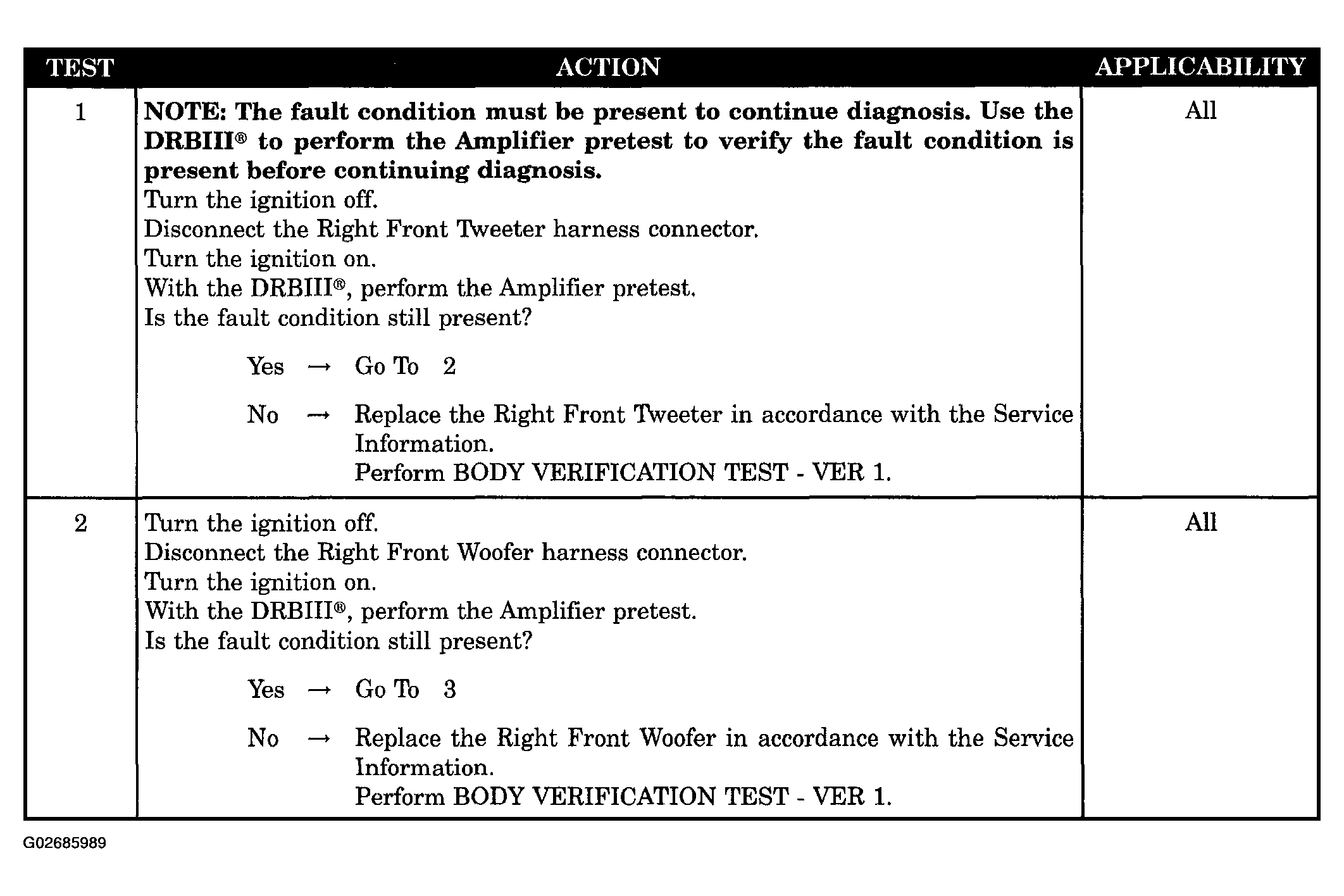

Fig 1: Right Front Channel Short Across Diagnostic Procedure (1 Of 2)
G02685989Courtesy of DAIMLERCHRYSLER CORP.

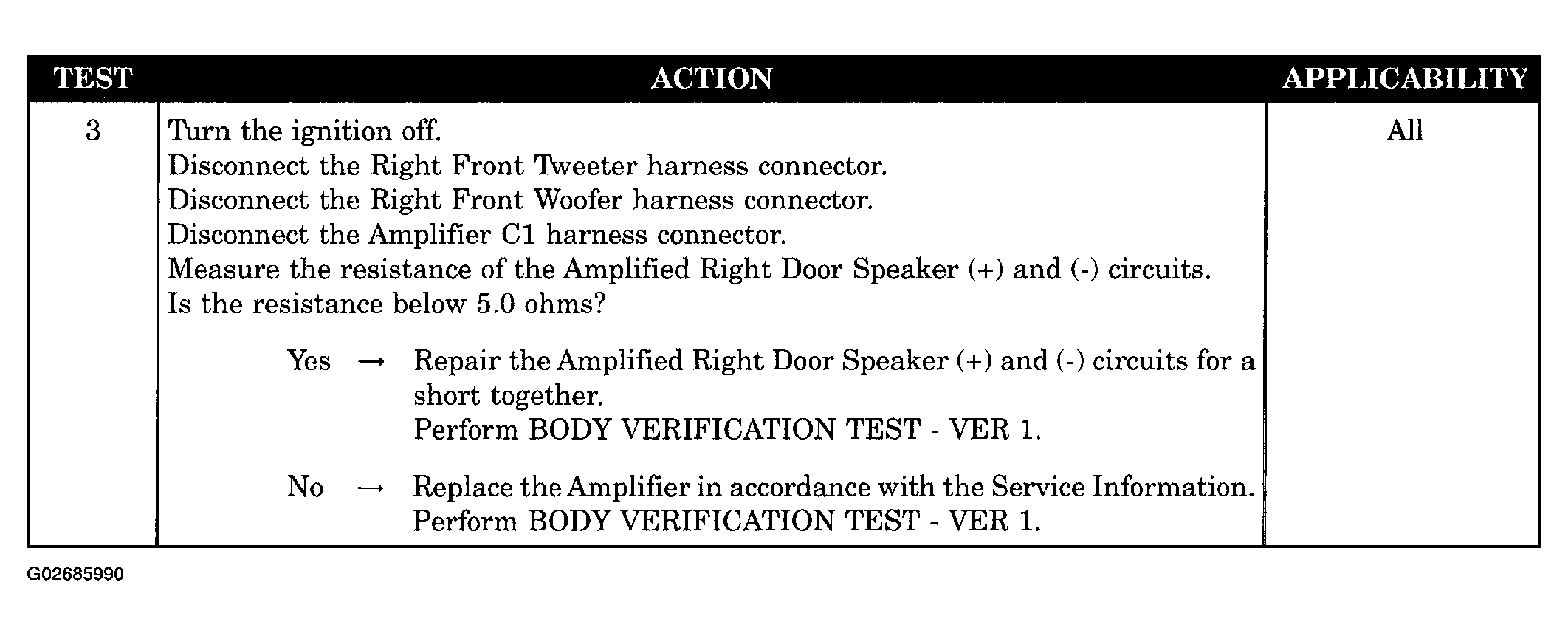

Fig 2: Right Front Channel Short Across Diagnostic Procedure (2 Of 2)
G02685990Courtesy of DAIMLERCHRYSLER CORP.
