Home >> Dodge and Ram >> 2003 >> Durango Base, 5.9 Z, RWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Body Diagnostics >> Diagnostic Information & Procedures >> Audio >> Symptom: Right Front And Left Rear Channels Short Across >> Diagnostic Procedures

Diagnostic Procedures

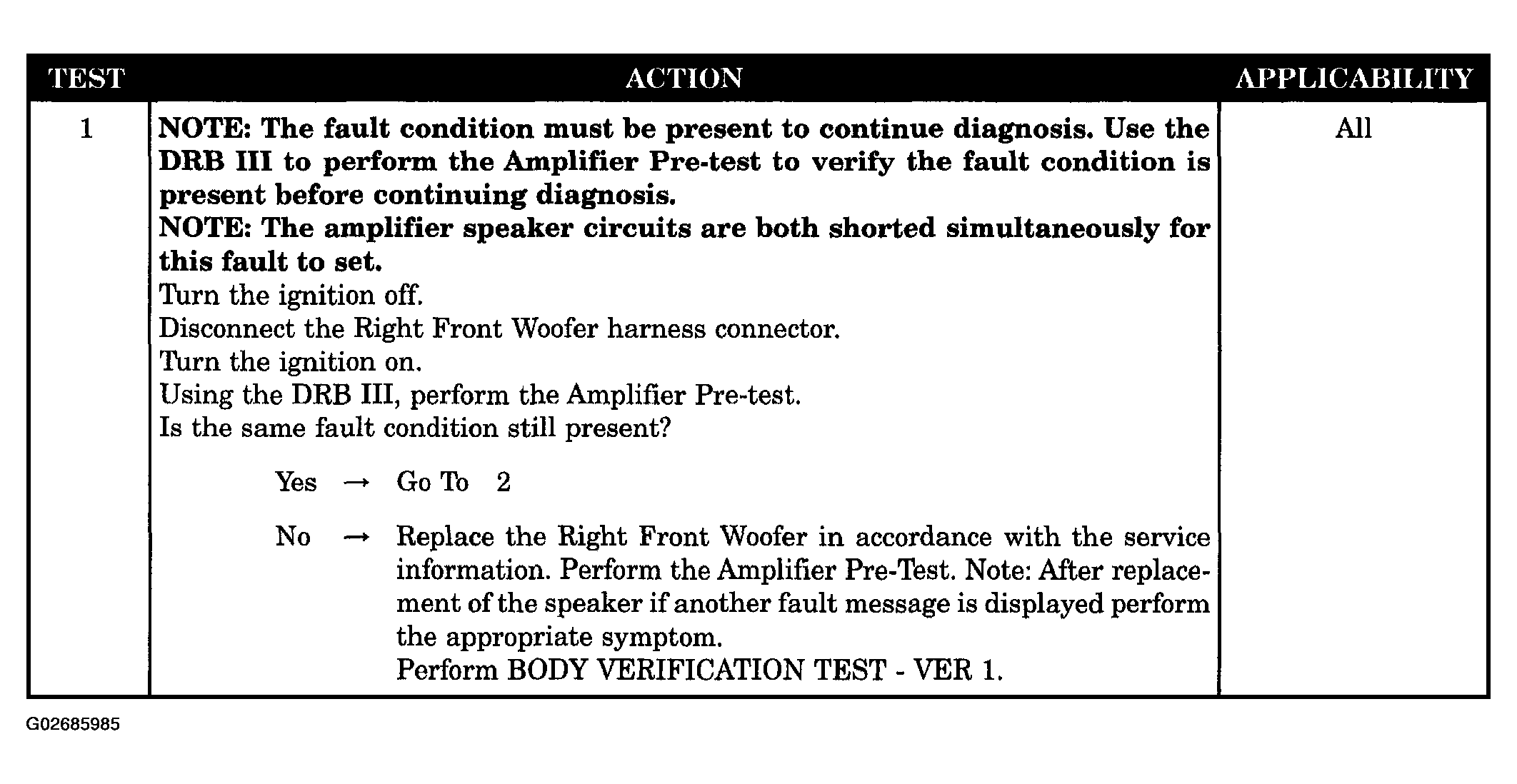

Fig 1: Right Front And Left Rear Channels Short Across Diagnostic Procedure (1 Of 2)
G02685985Courtesy of DAIMLERCHRYSLER CORP.

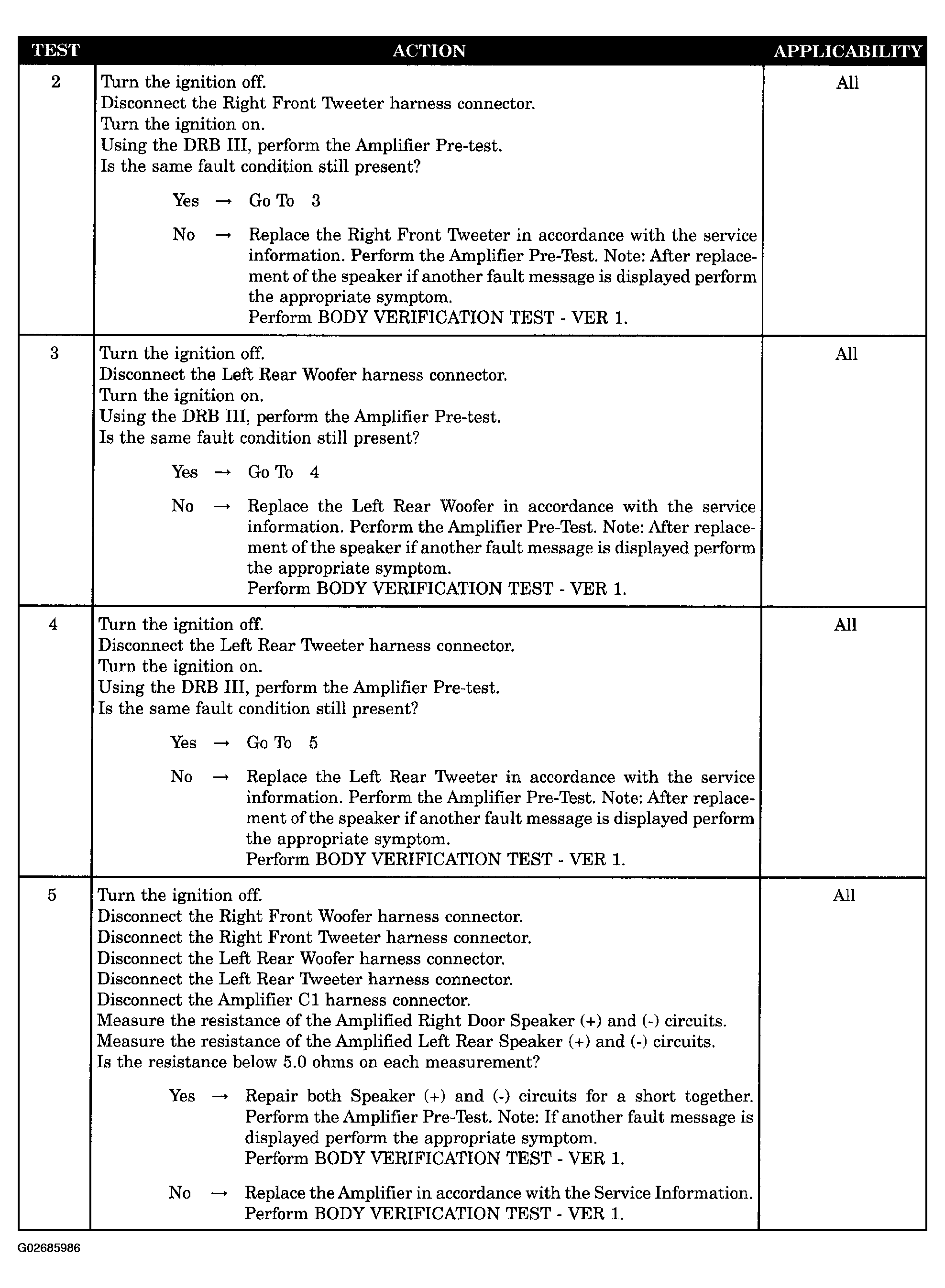

Fig 2: Right Front And Left Rear Channels Short Across Diagnostic Procedure (2 Of 2)
G02685986Courtesy of DAIMLERCHRYSLER CORP.
