Diagnostic Procedures

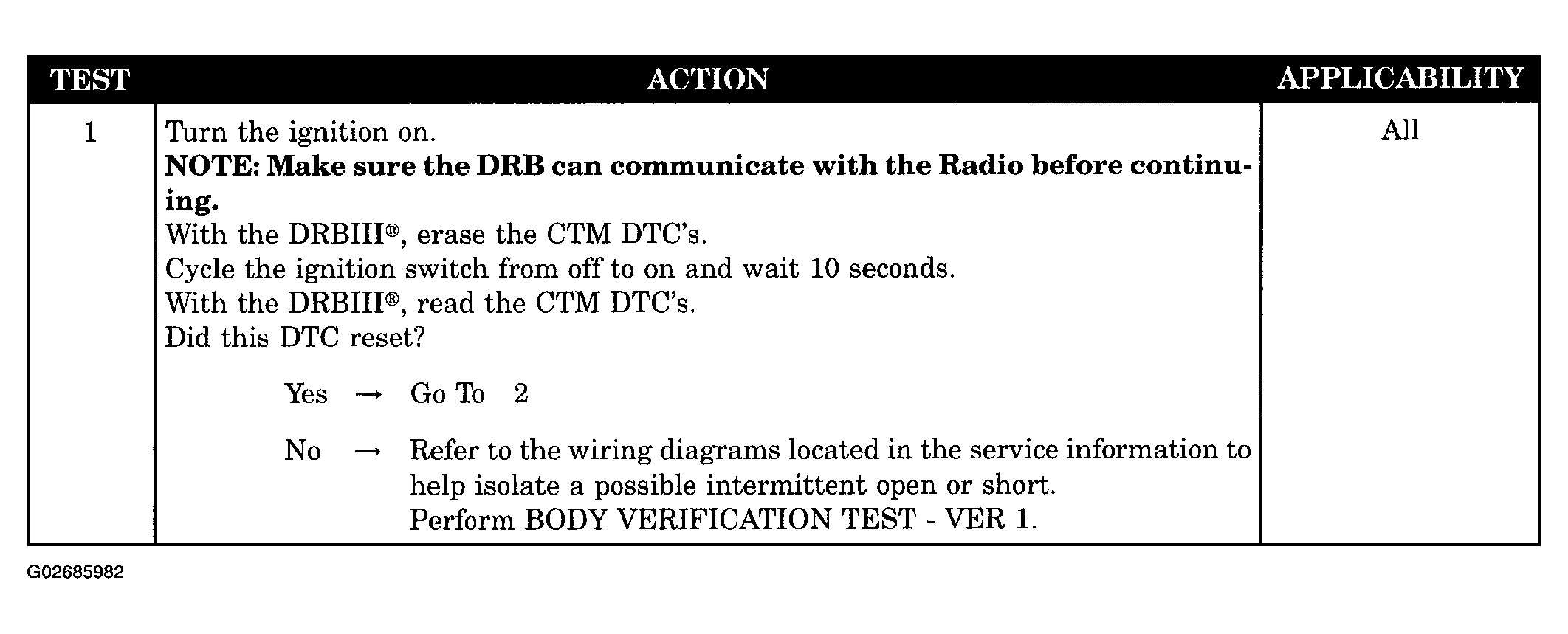

Fig 1: Remote Radio Switch Circuit Open Diagnostic Procedure (1 Of 3)
G02685982Courtesy of DAIMLERCHRYSLER CORP.

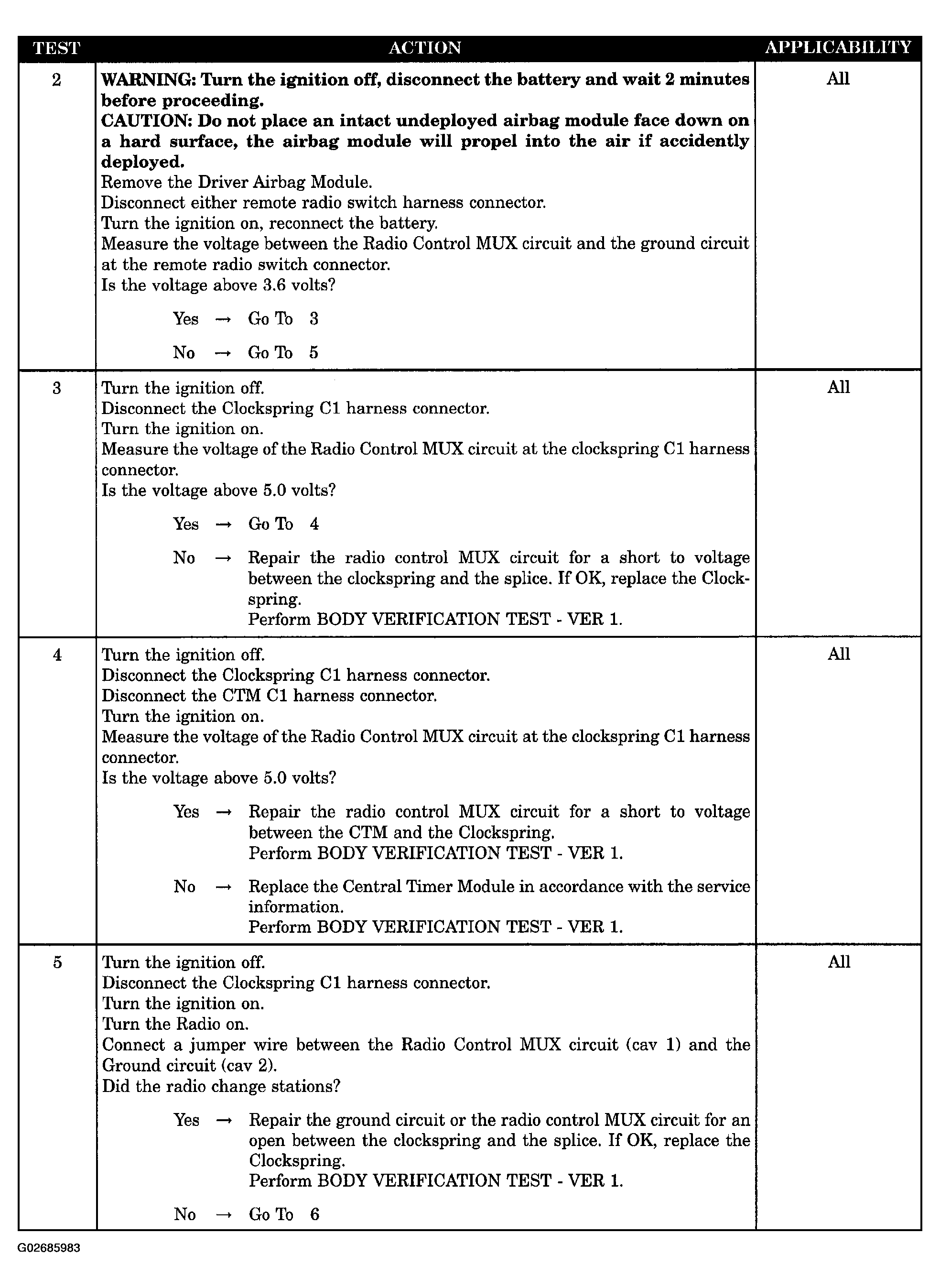

Fig 2: Remote Radio Switch Circuit Open Diagnostic Procedure (2 Of 3)
G02685983Courtesy of DAIMLERCHRYSLER CORP.

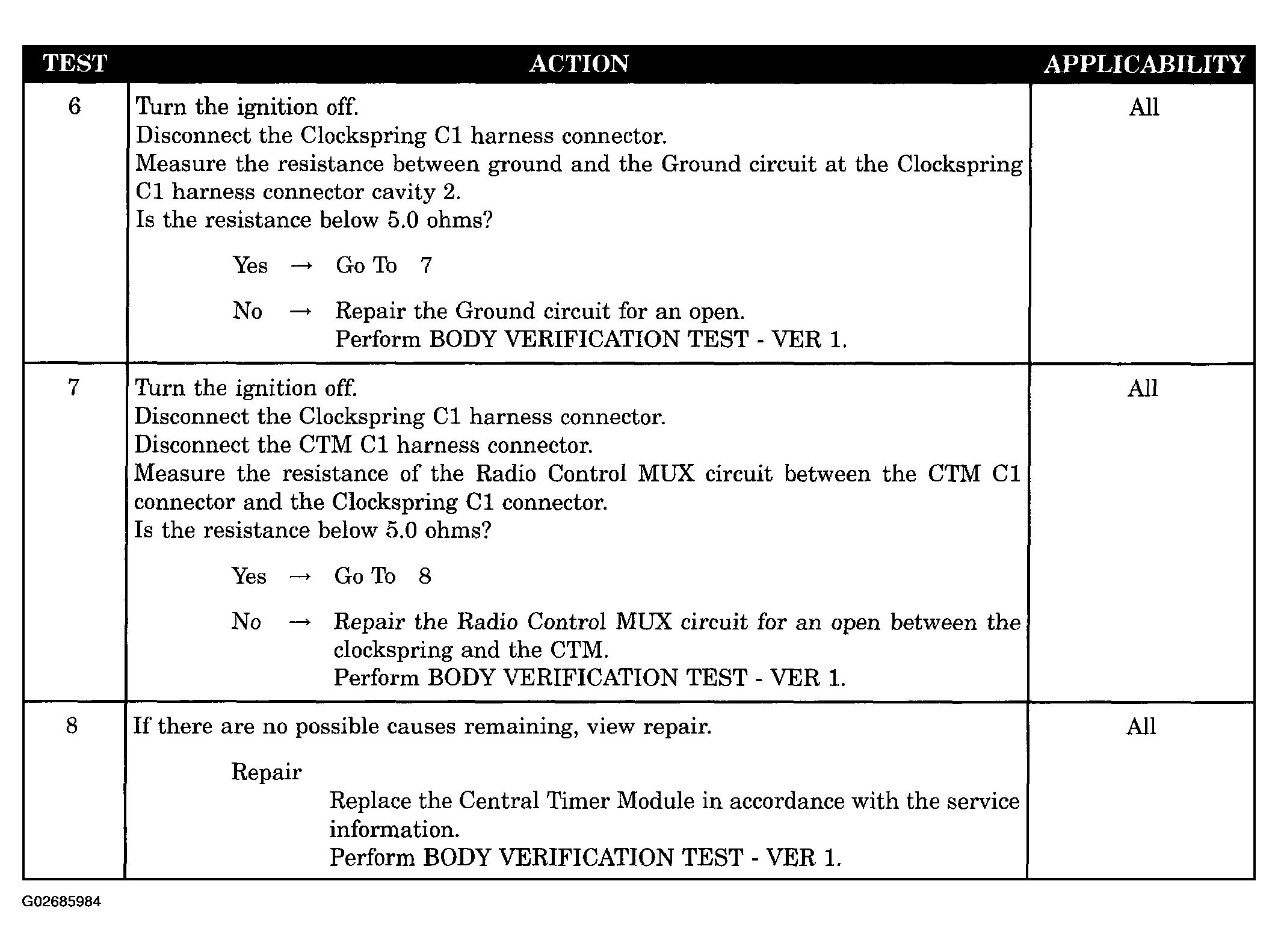

Fig 3: Remote Radio Switch Circuit Open Diagnostic Procedure (3 Of 3)
G02685984Courtesy of DAIMLERCHRYSLER CORP.
