Diagnostic Procedures

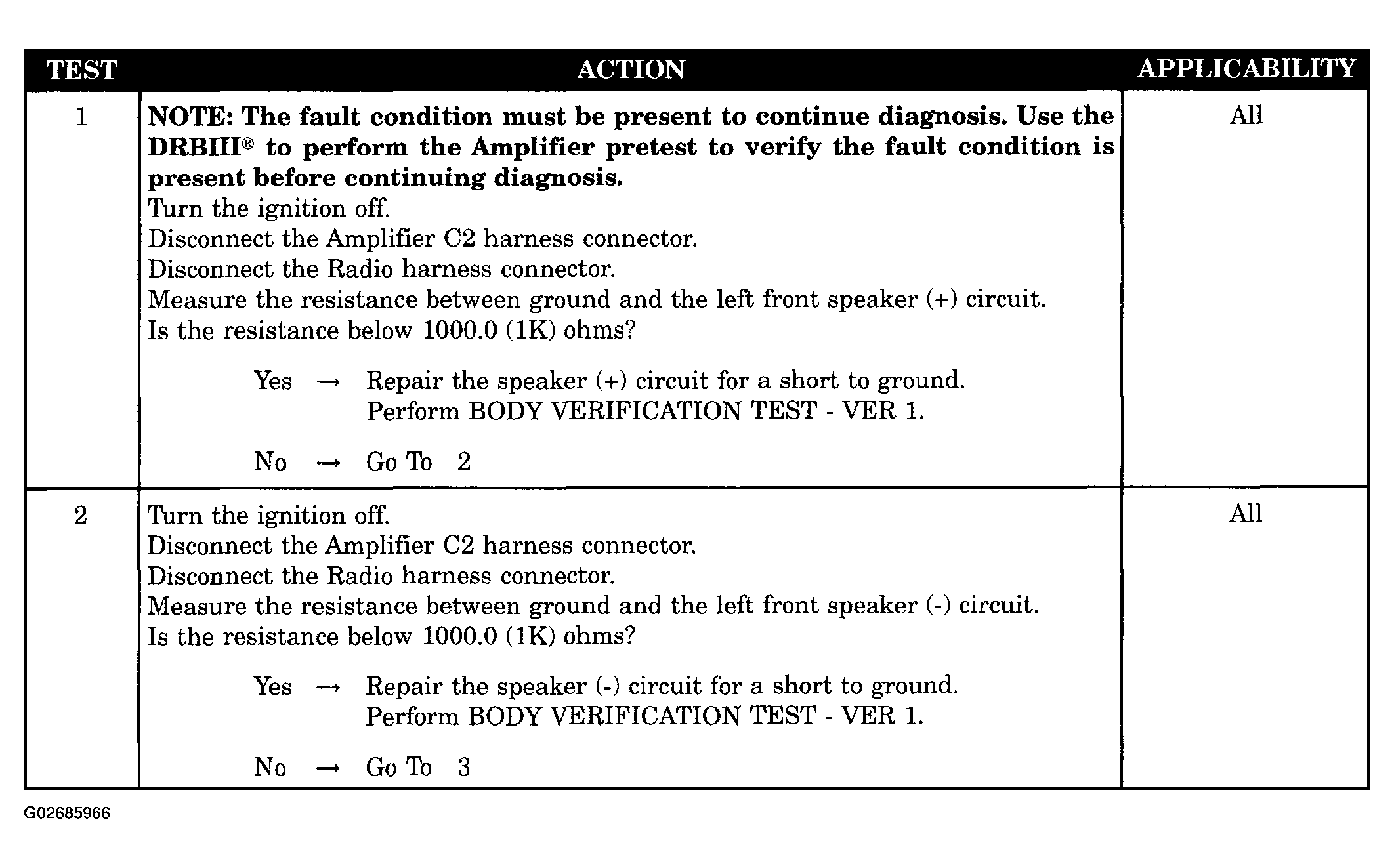

Fig 1: Left Front Input No Activity Diagnostic Procedure (1 Of 2)
G02685966Courtesy of DAIMLERCHRYSLER CORP.

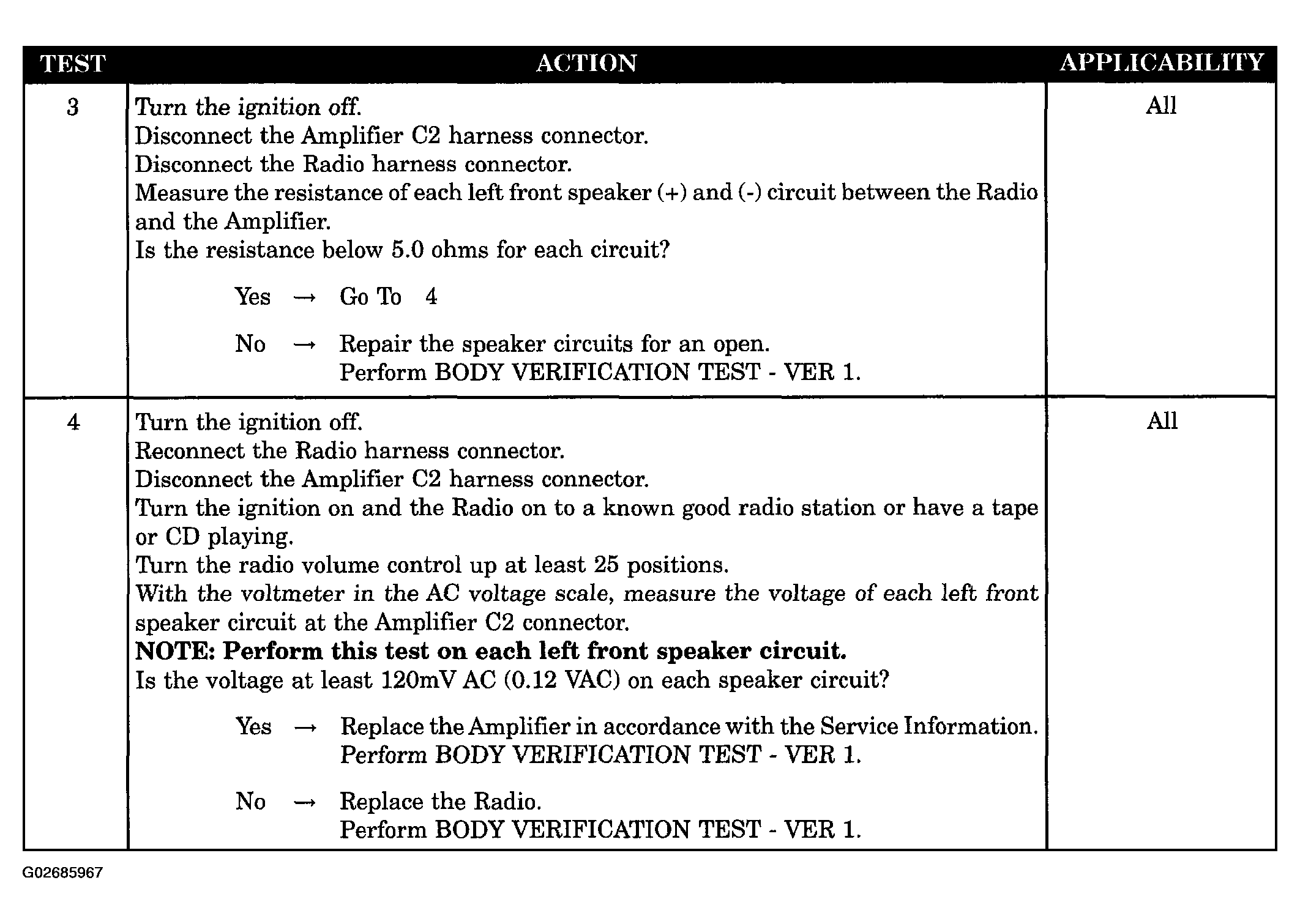

Fig 2: Left Front Input No Activity Diagnostic Procedure (2 Of 2)
G02685967Courtesy of DAIMLERCHRYSLER CORP.
