Diagnostic Procedures

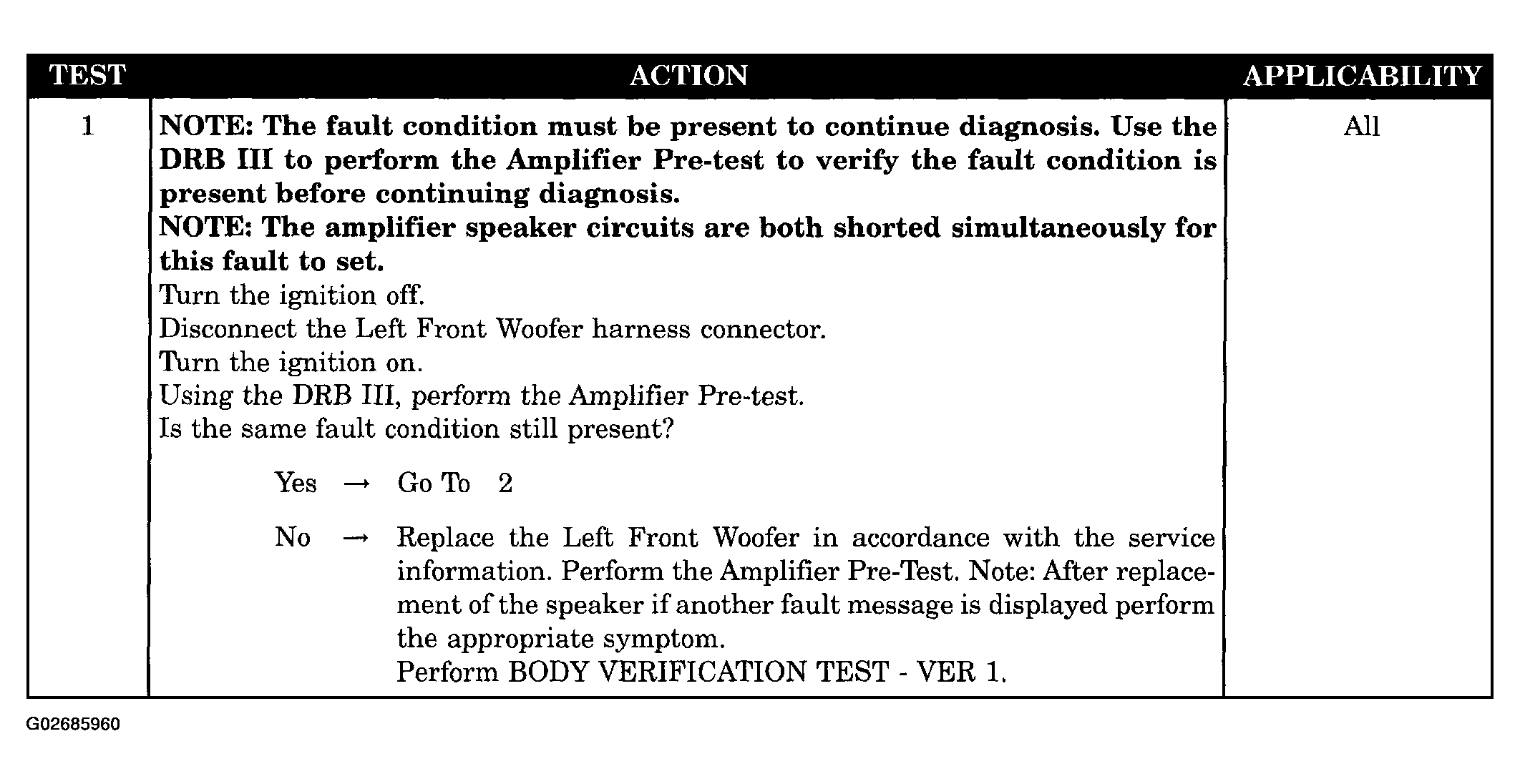

Fig 1: Left Front And Left Rear Channels Shorted Across Diagnostic Procedure (1 Of 2)
G02685960Courtesy of DAIMLERCHRYSLER CORP.

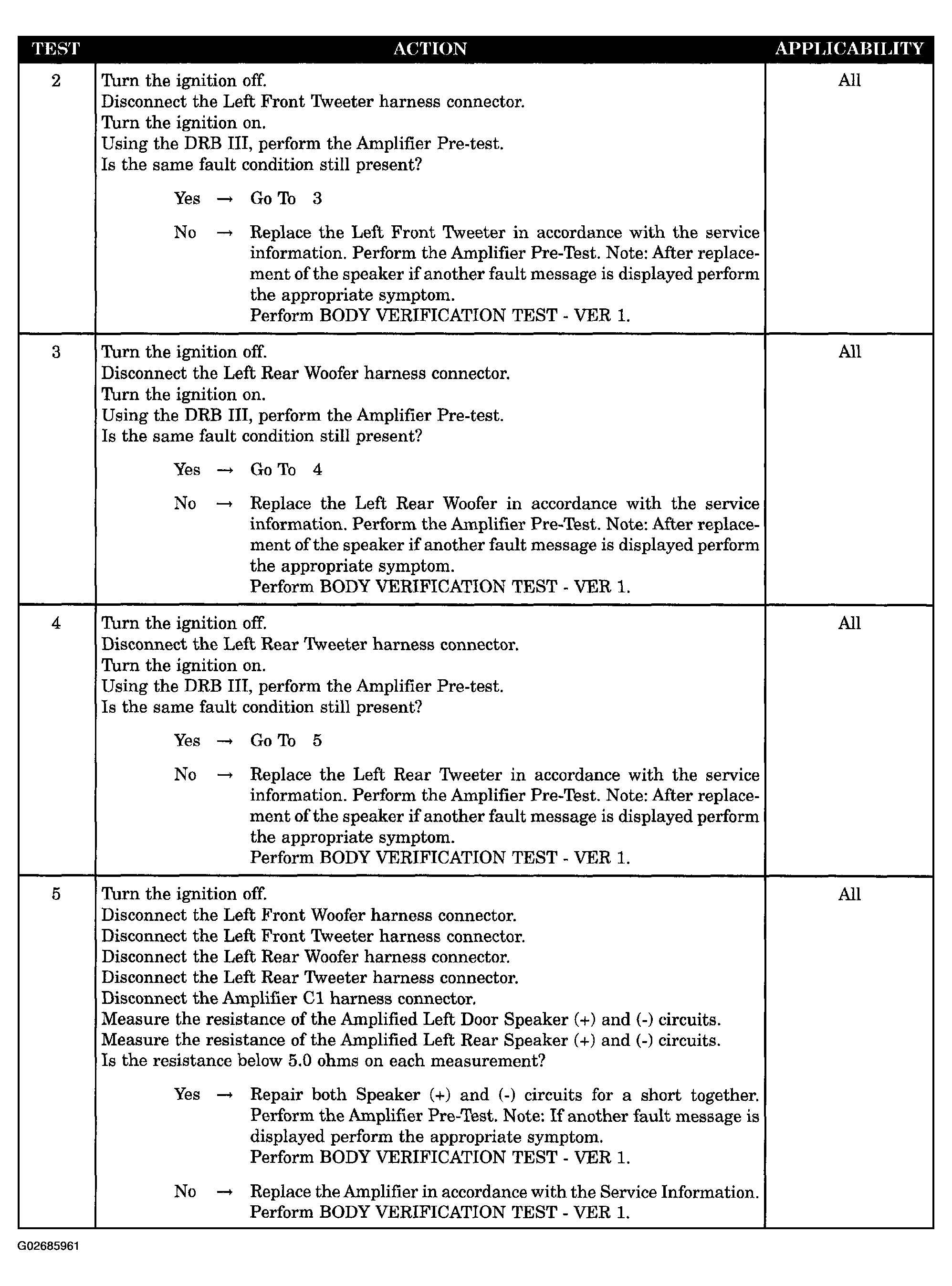

Fig 2: Left Front And Left Rear Channels Shorted Across Diagnostic Procedure (2 Of 2)
G02685961Courtesy of DAIMLERCHRYSLER CORP.
