Diagnostic Procedure

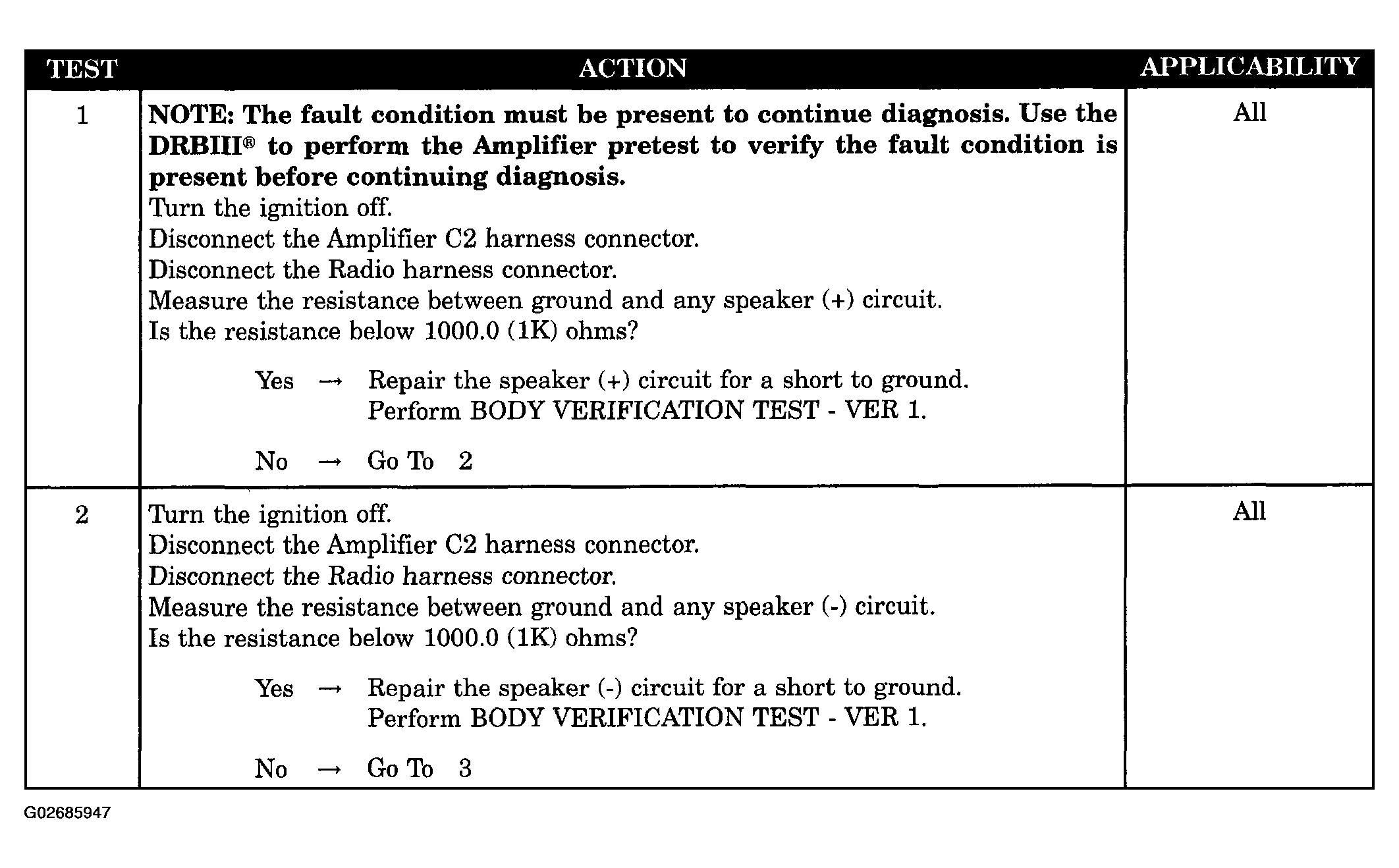

Fig 1: All Inputs No Activity Diagnostic Procedure (1 Of 2)
G02685947Courtesy of DAIMLERCHRYSLER CORP.

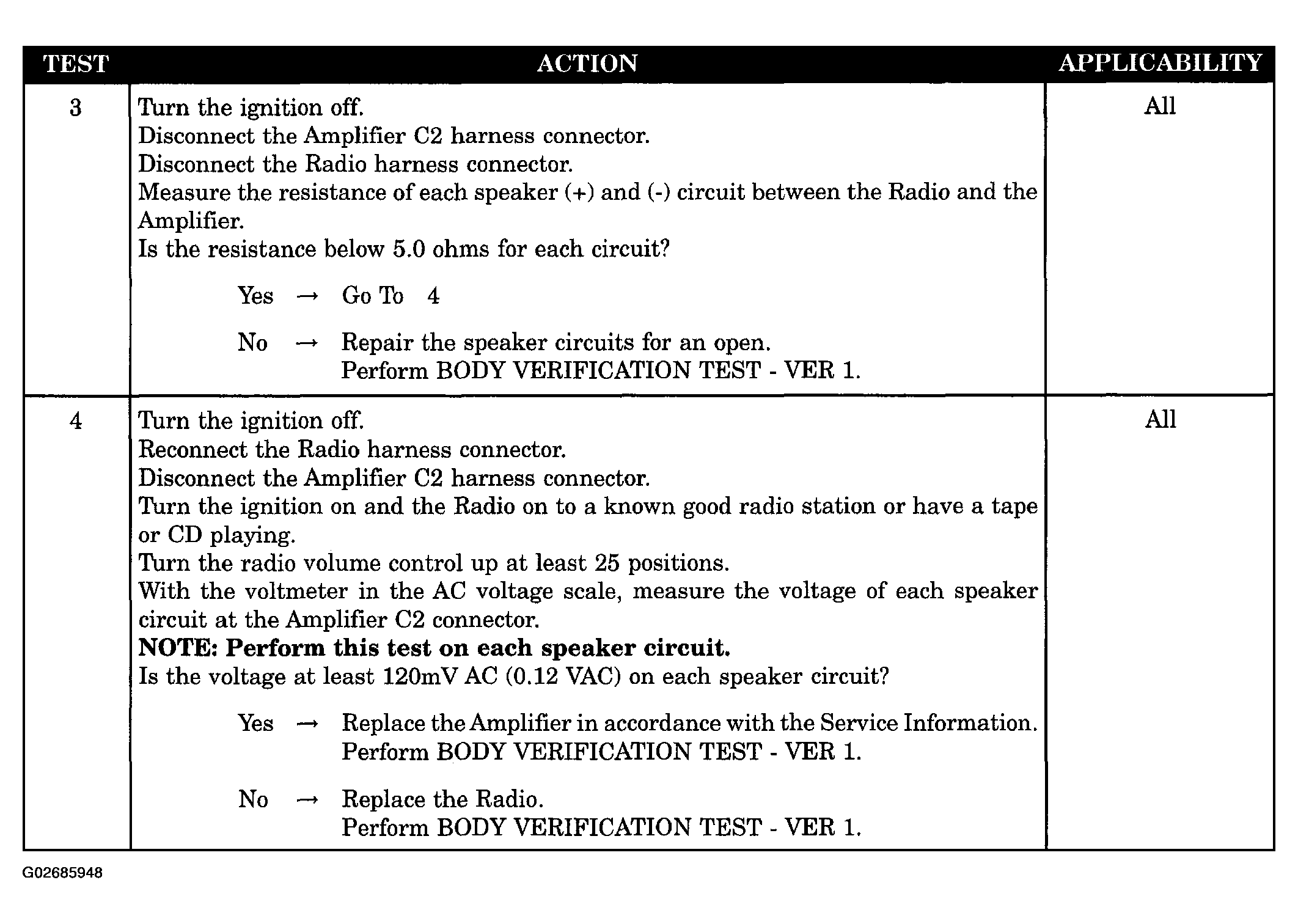

Fig 2: All Inputs No Activity Diagnostic Procedure (2 Of 2)
G02685948Courtesy of DAIMLERCHRYSLER CORP.
