Diagnostic Procedures

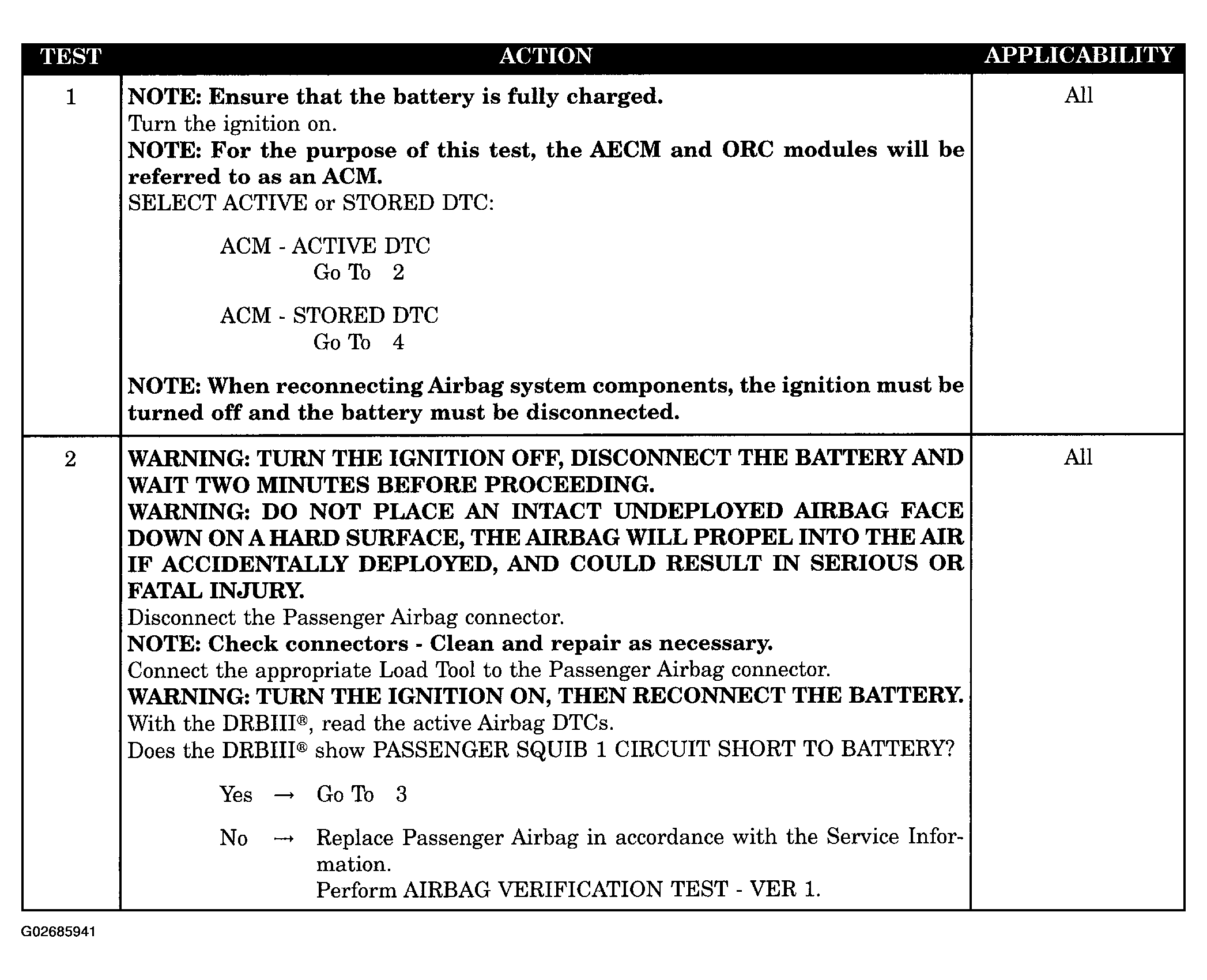

Fig 1: Passenger Squib 1 Short To Battery Diagnostic Procedure (1 Of 2)
G02685941Courtesy of DAIMLERCHRYSLER CORP.

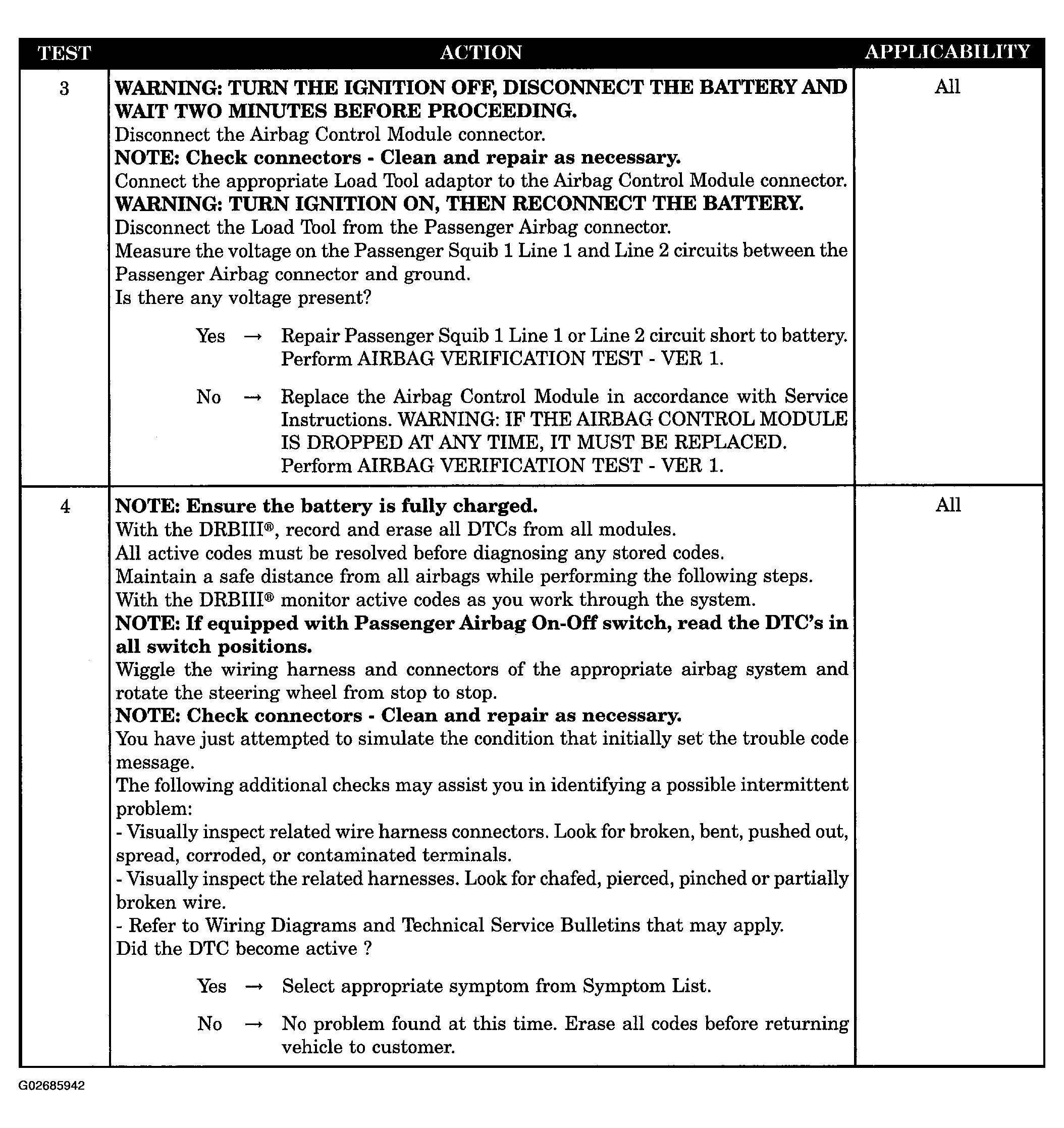

Fig 2: Passenger Squib 1 Short To Battery Diagnostic Procedure (2 Of 2)
G02685942Courtesy of DAIMLERCHRYSLER CORP.
