Diagnostic Procedures

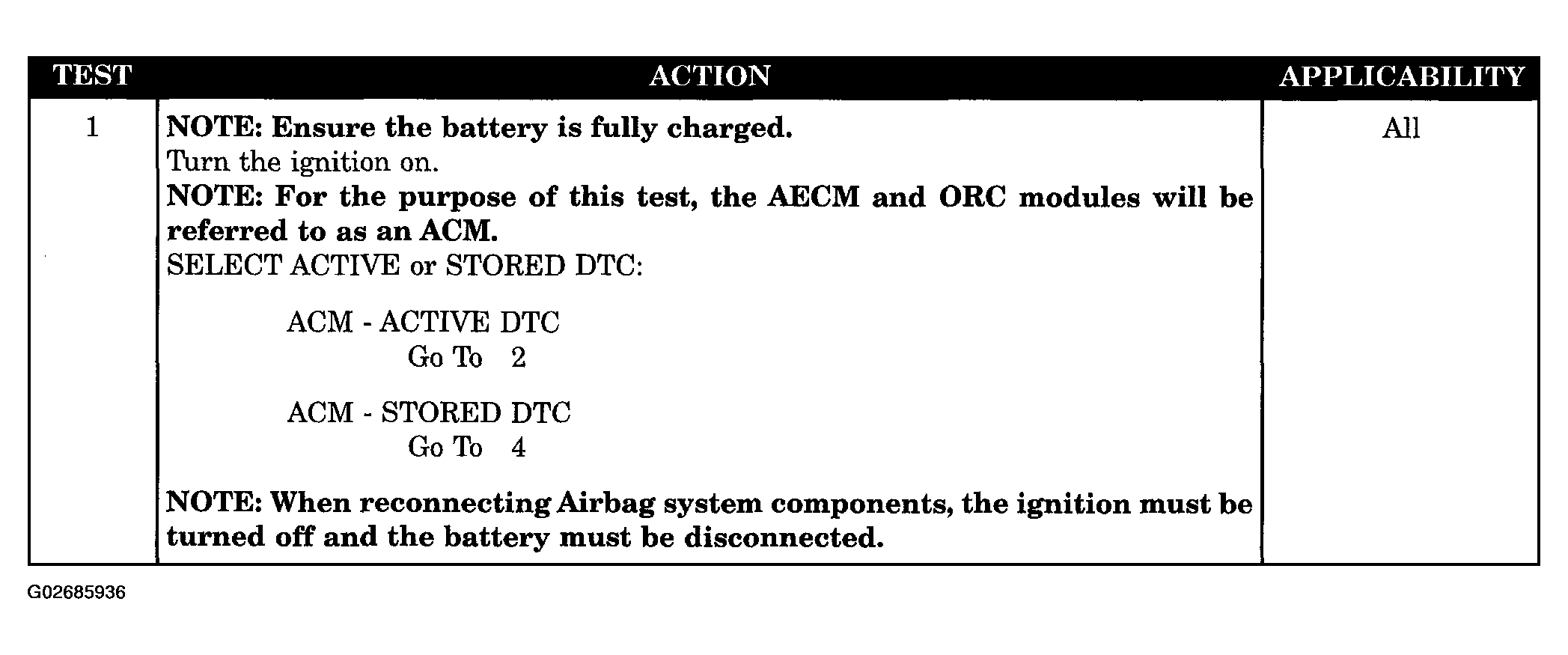

Fig 1: Passenger Squib 1 Circuit Open Diagnostic Procedure (1 Of 3)
G02685936Courtesy of DAIMLERCHRYSLER CORP.

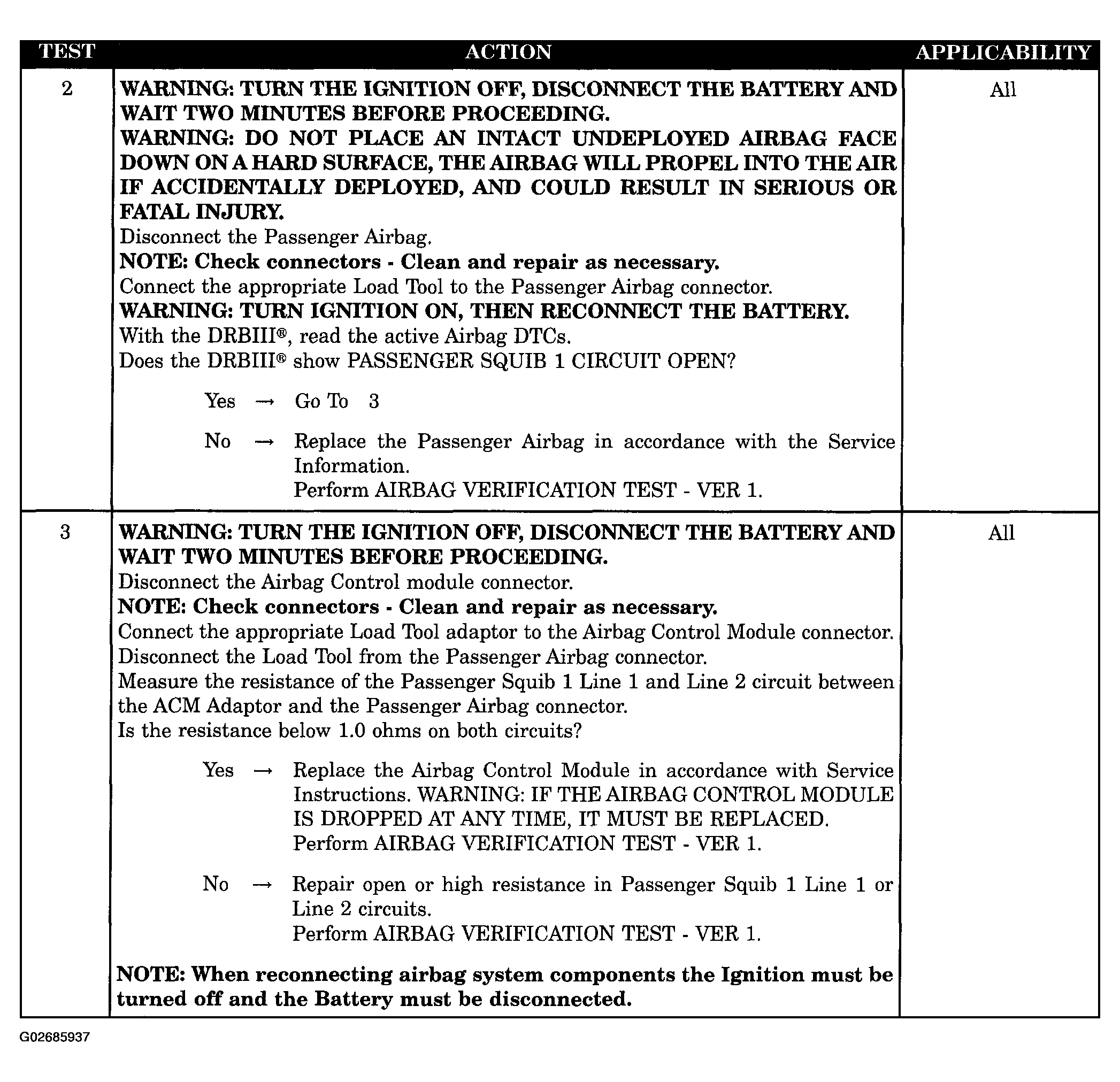

Fig 2: Passenger Squib 1 Circuit Open Diagnostic Procedure (2 Of 3)
G02685937Courtesy of DAIMLERCHRYSLER CORP.

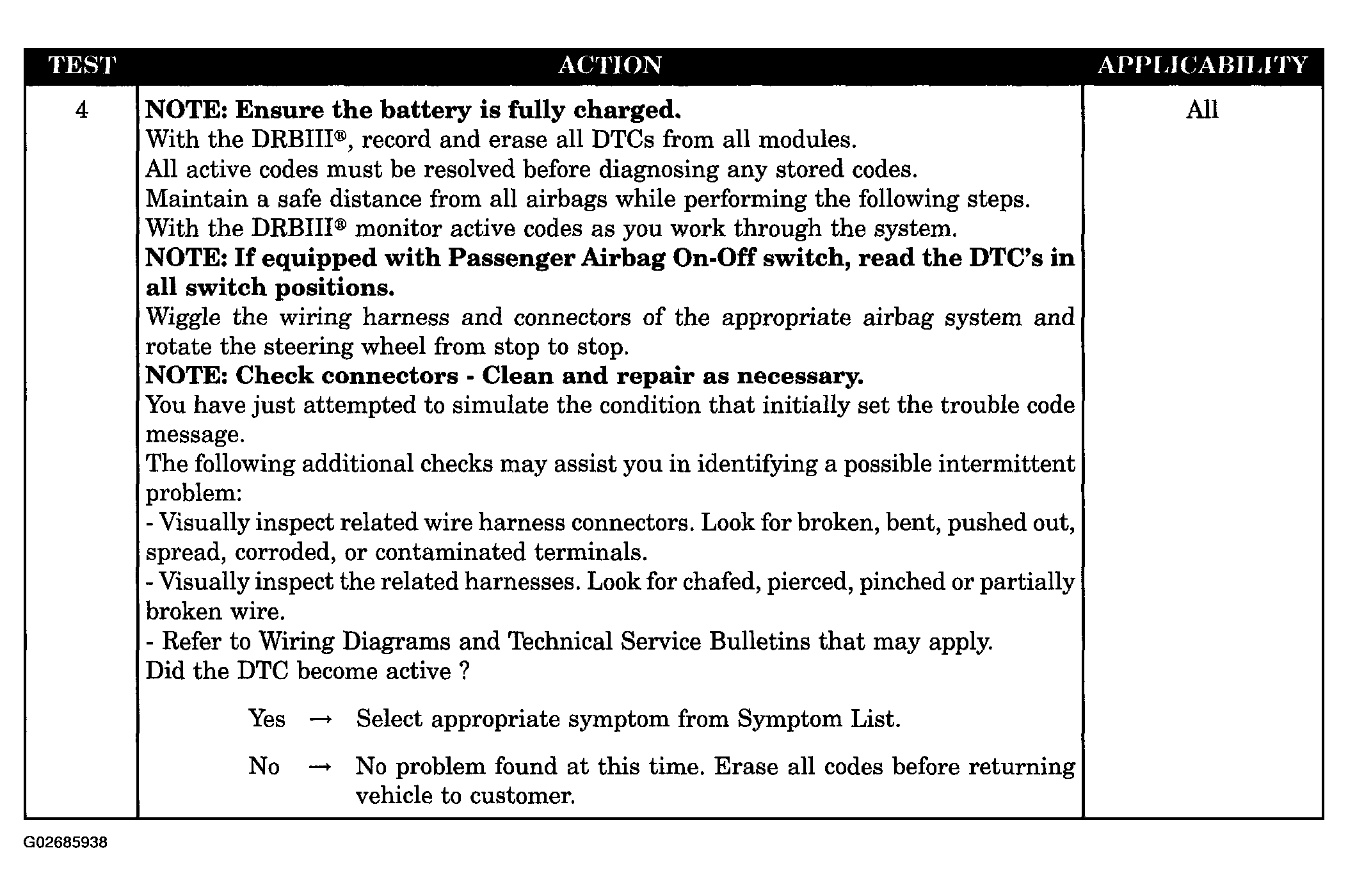

Fig 3: Passenger Squib 1 Circuit Open Diagnostic Procedure (3 Of 3)
G02685938Courtesy of DAIMLERCHRYSLER CORP.
